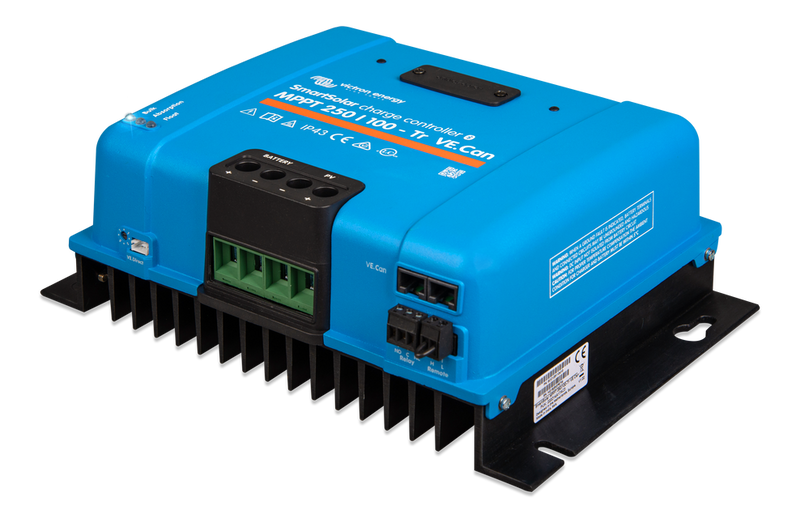

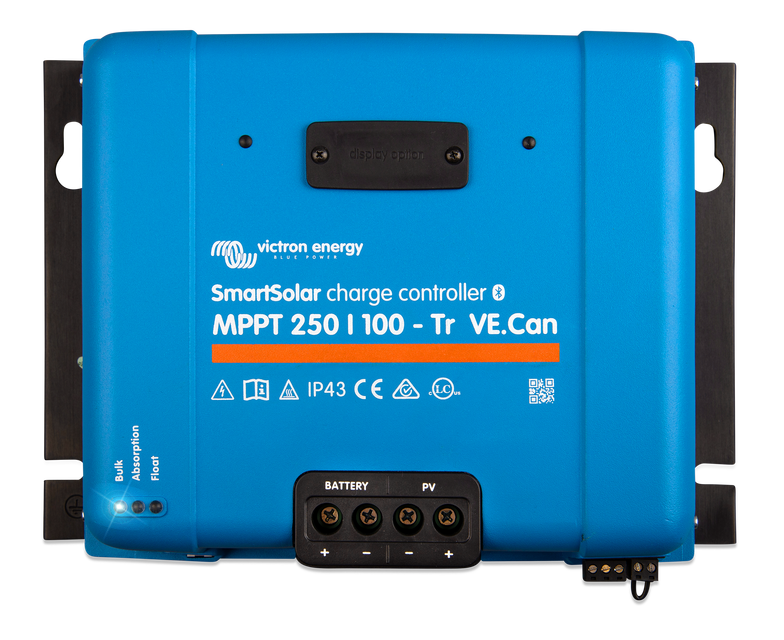

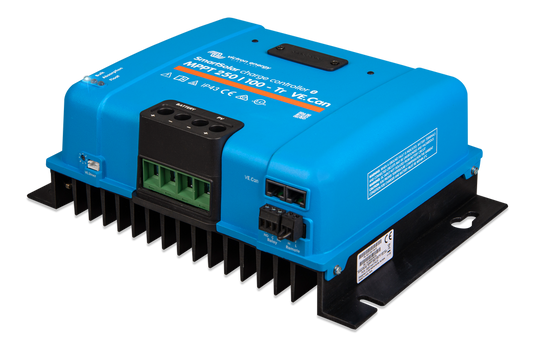

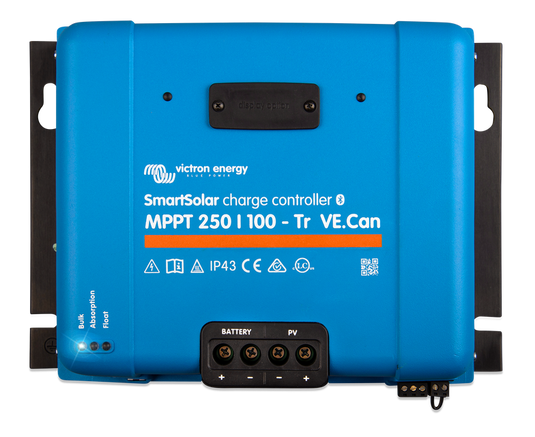

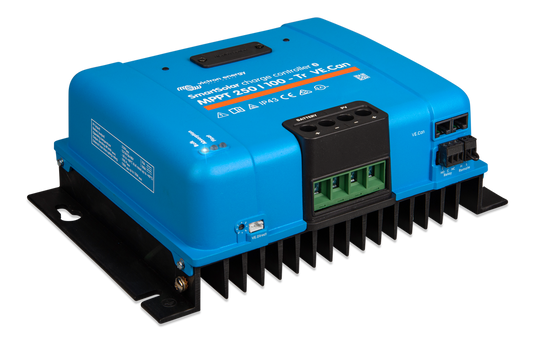

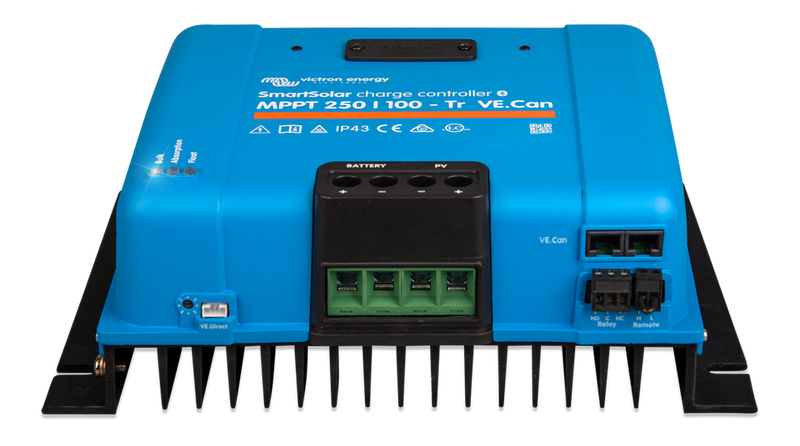

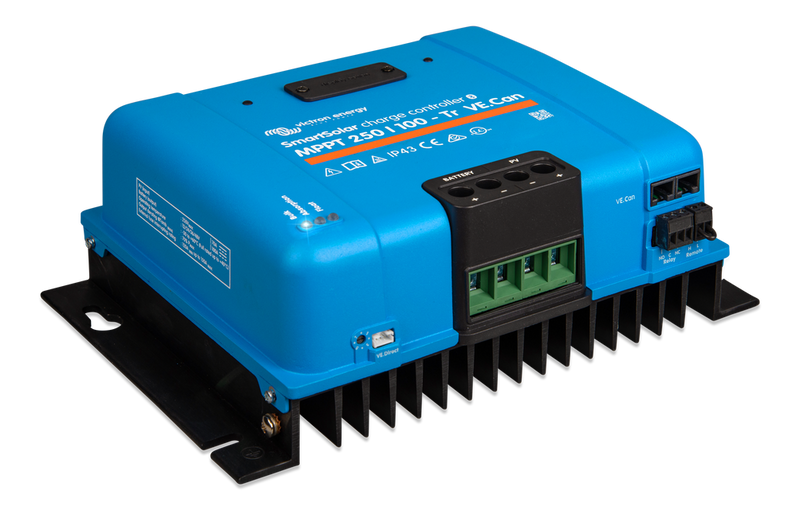

Victron SmartSolar MPPT 250/100-Tr VE.Can 1593101

The Victron SmartSolar MPPT 250/100-Tr VE.Can charge controller is designed to maximize solar energy production while providing advanced monitoring and flexible system integration. Built for 12V, 24V, and 48V battery systems, this controller uses ultra-fast MPPT technology to optimize charging performance and help batteries reach a full charge faster. With built-in Bluetooth connectivity, scalable VE.Can communication, and support for multiple battery chemistries, it’s an excellent solution for residential, off-grid, backup, marine, and commercial solar applications.

Key Benefits

• Ultra-Fast MPPT Tracking – Continuously tracks the maximum power point of your solar array to maximize energy harvest and improve charging efficiency.
• Flexible Battery Compatibility – Supports 12V, 24V, and 48V battery banks and is fully programmable for lithium, lead-acid, and other battery chemistries.
• Built-In Bluetooth Monitoring – Monitor, configure, and manage your system directly from the VictronConnect App with real-time and historical performance data.
• Scalable System Expansion – Daisy chain multiple VE.Can SmartSolar controllers together for synchronized charging and centralized monitoring through a GX device.
• Smart Load Management – Adjustable load output settings help protect batteries by disconnecting loads when voltage thresholds are reached.

Use Cases

The Victron SmartSolar MPPT 250/100-Tr VE.Can is ideal for off-grid homes, backup power systems, cabins, RVs, marine applications, and larger solar installations requiring advanced monitoring and scalable charging capabilities. Its flexible voltage compatibility and smart communication features make it a strong option for both new solar systems and system expansions.

Tech Specs

• Battery Voltage: 12V / 24V / 48V

• Max VOC: 250V

• Charge Current: Up to 100A

• Protection Rating: IP43

• Connectivity: VE.Can and Bluetooth

• Dimensions: 216 x 295 x 103 mm

• Weight: 4.5 kg / 9.9 lbs.
