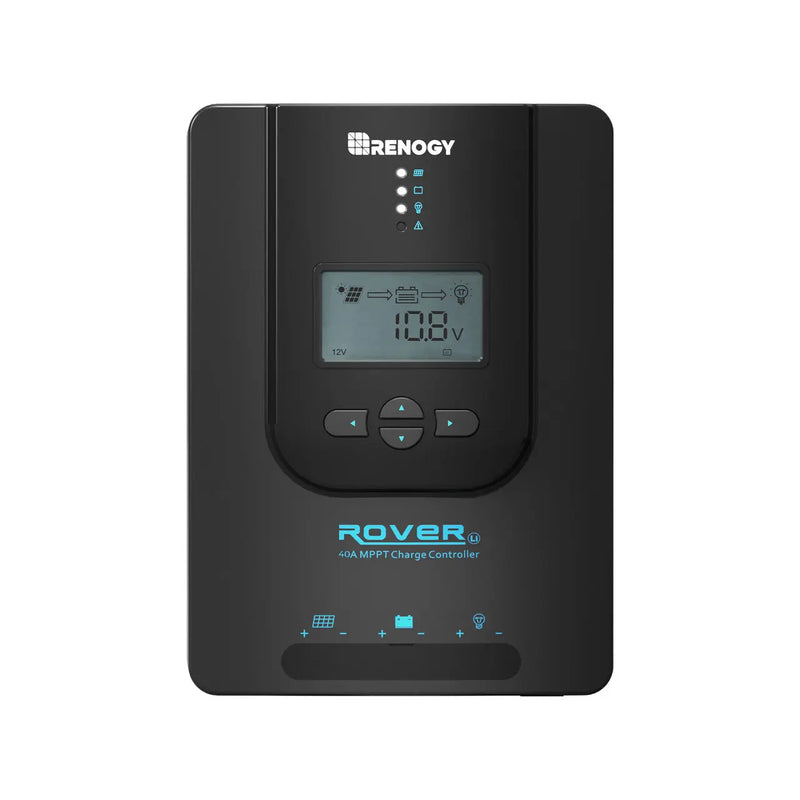

Rover Li 40 Amp MPPT Solar Charge Controller

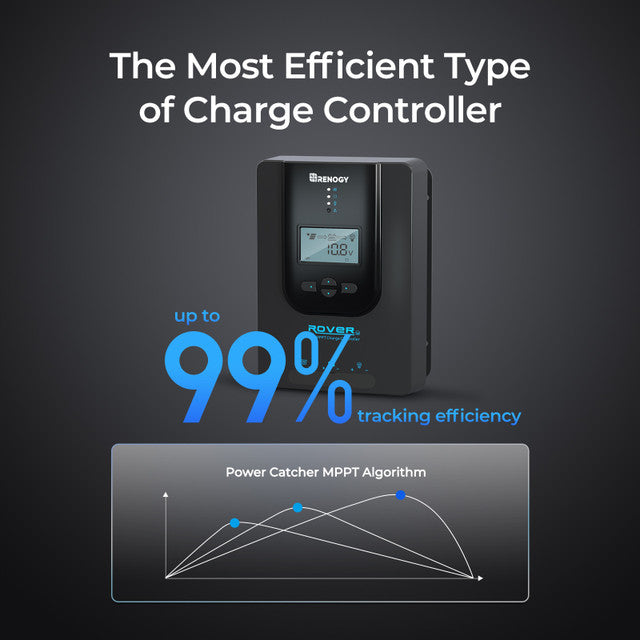

Maximize Your System Efficiency
Prioritize Safety with Battery Voltage Setting
Simple and Intuitive Programming
Multiple Protections for Various Battery Types
Enhanced Connectivity for a Superior Experience

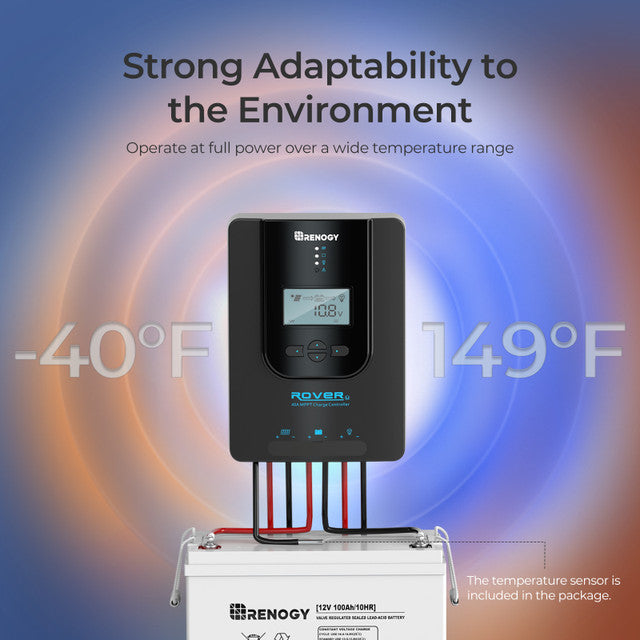

Powerful Heat Dissipation
Operates at peak performance even in extreme temperatures, ensuring your system is always running smoothly and efficiently.
Exceptional Resilience and Long-lasting Performance
Crafted with rust- and corrosion-resistant materials and coatings, the Rover Charge Controller ensures long-lasting durability and reliable performance for your solar energy system.
ROVER Bluetooth Module Guide
Identify the correct BT-1 or BT-2 module based on your controller's interface.
Wiring Steps
Do not insert the wires into the space below the socket/hatch. This will damage terminals because of loose connections.
Step 1.
Loosen the screws above the terminals to make the socket/hatch descend.
Step 2.
Insert the wires into the socket/hatch. The terminals on the Rover 40A can accept up to 8AWG of wires.
Step 3.
Tighten the screws to elevate the socket/hatch to complete the wiring.
Connect and set the battery type
Connection of a Temperature Sensor
Mounting On a Flat Surface & Bluetooth Connection
Connect to the Solar Panel

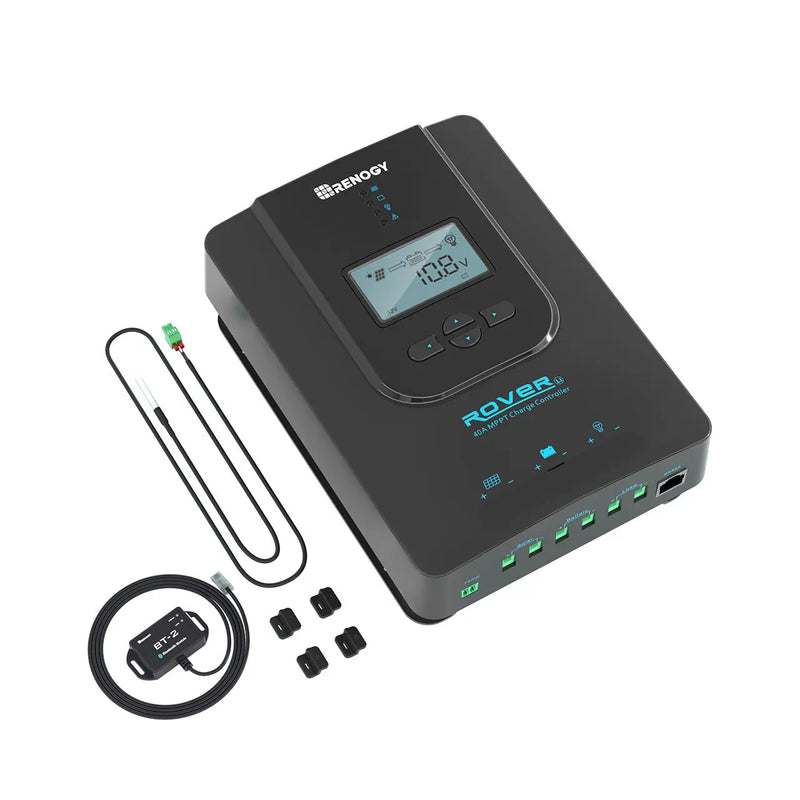

What's in the box
The Renogy Difference
Package Includes
Rover 40 Amp MPPT Solar Charge Controller
x 1
Remote Temperature Sensor
x 1
Mounting Brackets
x 4
Options: BT-2 Bluetooth Module
x 1
RENOGY ROVER 40 AMP MPPT SOLAR CHARGE CONTROLLER (RNG-CTRL-RVR40)
Electrical Parameters
Nominal System Voltage
12/24V Auto-Detect
Rated Charge Current
40A
Solar Input Voltage Range (Voc)
15VDC~100VDC
Max. PV Input Power
12V/520W, 24V/1040W
Power Consumption
＜100mA/12V; ＜58mA/24V
Battery Input Voltage Range
10VDC~32VDC
Communication
G1 Version: RS232, G2 Version: RS485
Electrical Protection
Overcharging, over-discharging, overload, and short circuit. Capable of charging over-discharged lithium batteries.
Environmental Data
Protection Level
IP32
Operating Temperature Range
-35°C to 45°C; -31°F to 113°F
Storage Temperature Range
-35°C to 75°C; -31°F to 167°F
Operating / Storage Humidity
≤ 90%, No Condensation
Temperature Compensation
-3mV/°C/2V
Mechanical Specifications
Dimensions
238 x 172 x 77 mm;9.38 x 6.78 x 3.05 in
Weight
2.0kg / 4.41 lb
Max. Terminals Size
8 AWG 10mm2
Accessories
Temperature Sensor
9.8ft cable length
Certifications
CE
YES
FCC Class B Part 15 Compliant
YES
Warranty
Material and workmanship warranty
3 Year
Compatibility
Compatible MPPT Charge Controller
RNG-CTRL-RVR40/ RNG-CTRL-RVR60/ RNG-CTRL-RVR100
Compatible App
Renogy DC Home App available in both the App Store and Google Play
Operation Specifications
Communication Protocol
RS485 Modbus
Port Type
RJ12
Input Voltage /repeat1
5V
Protection Grade
IP54
Standby Power Consumption
0.04W
Operating Power Consumption
0.05W
Serial Baud Rate
Fixed Baud Rate 9600bps
Mechanical Specifications /repeat2
Communication Range
≤82ft (25m)
Cable Length
16.4 ft (5.00m )
Dimensions/repeat3
2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm)
Weights/repeat4
4.58oz (130g )
Operation Temperature
-31℉ to 113℉/-35℃ to 45℃
Storage Temperature
-31℉ to 167℉/-35℃ to 75℃
Operating Altitude
≤3000m
Certifications/repeat5
FCC Class B Part 15 Compliant/repeat6
YES
