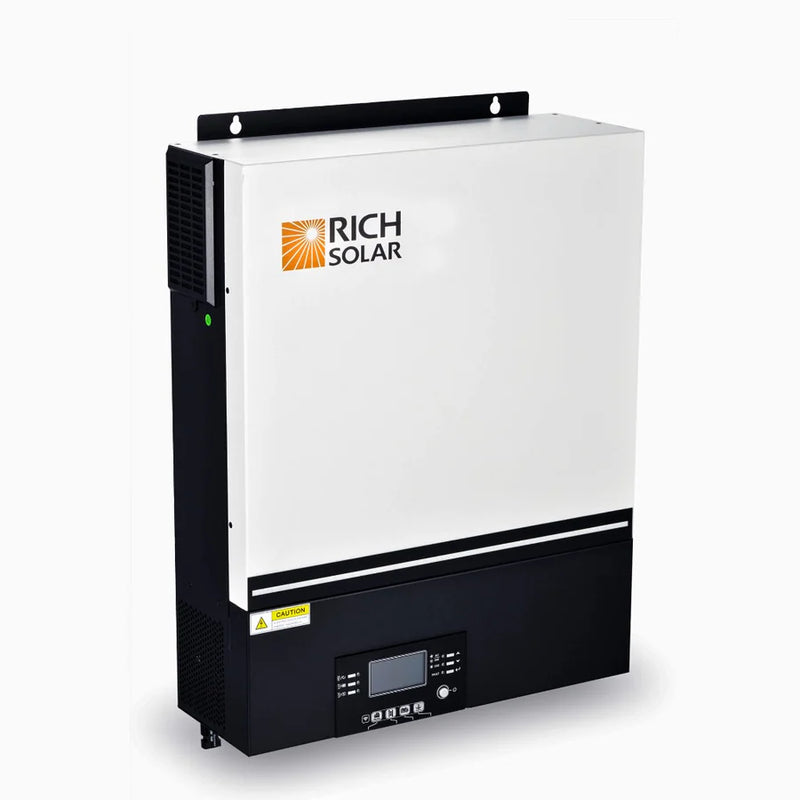

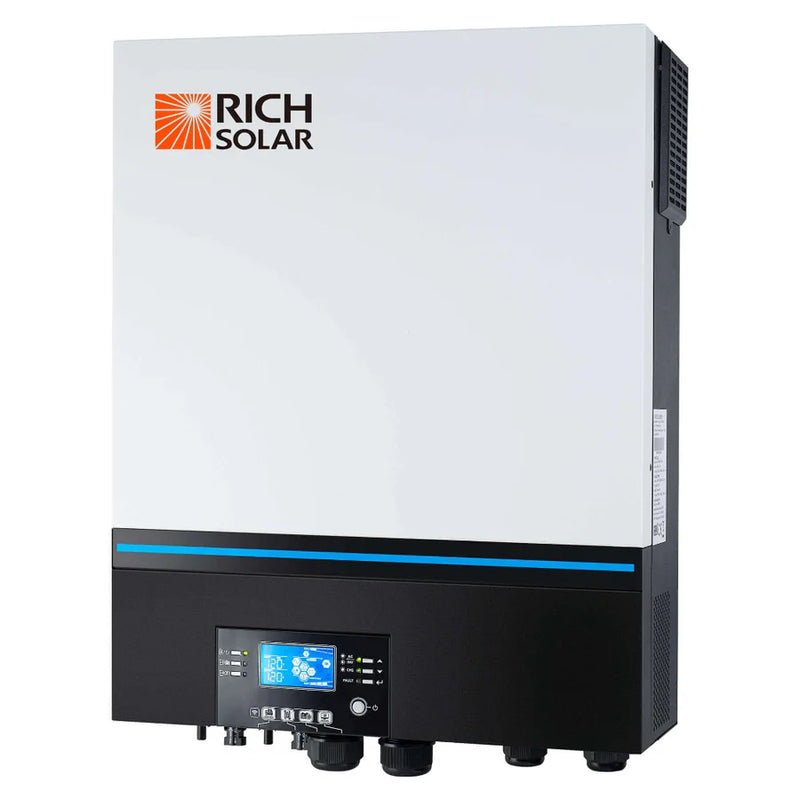

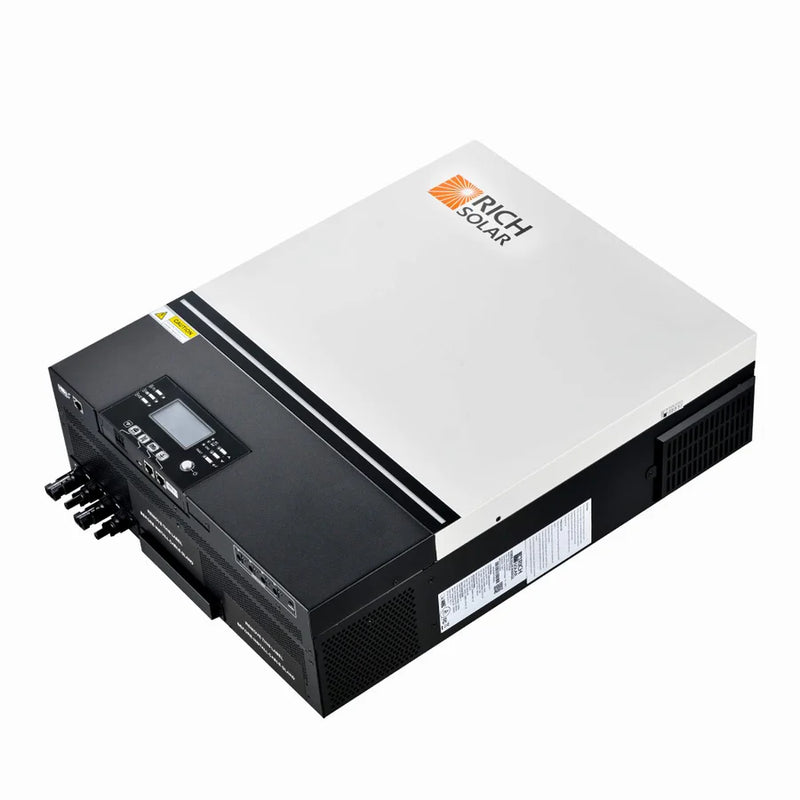

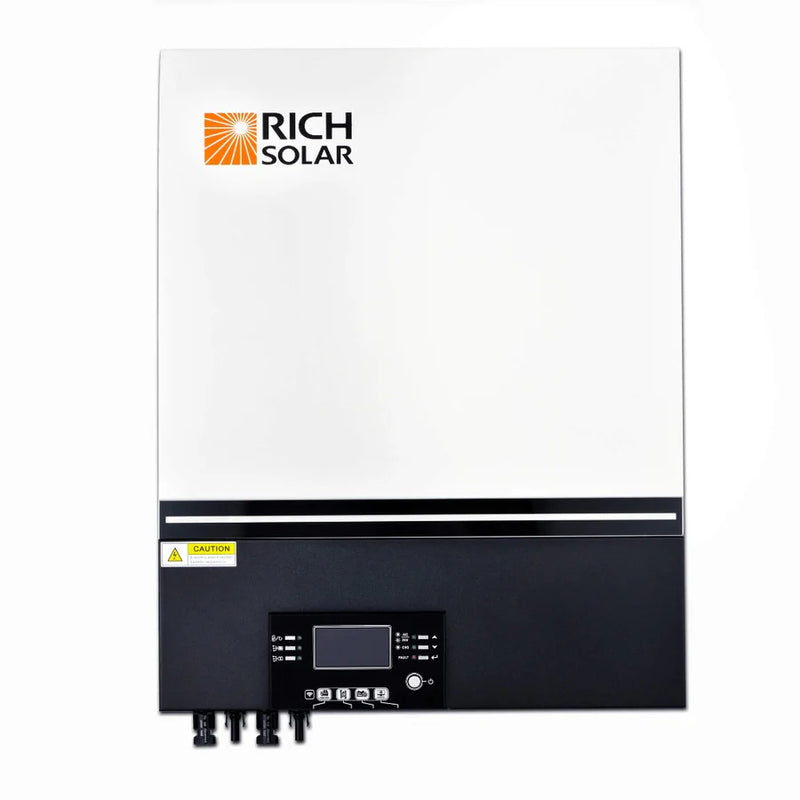

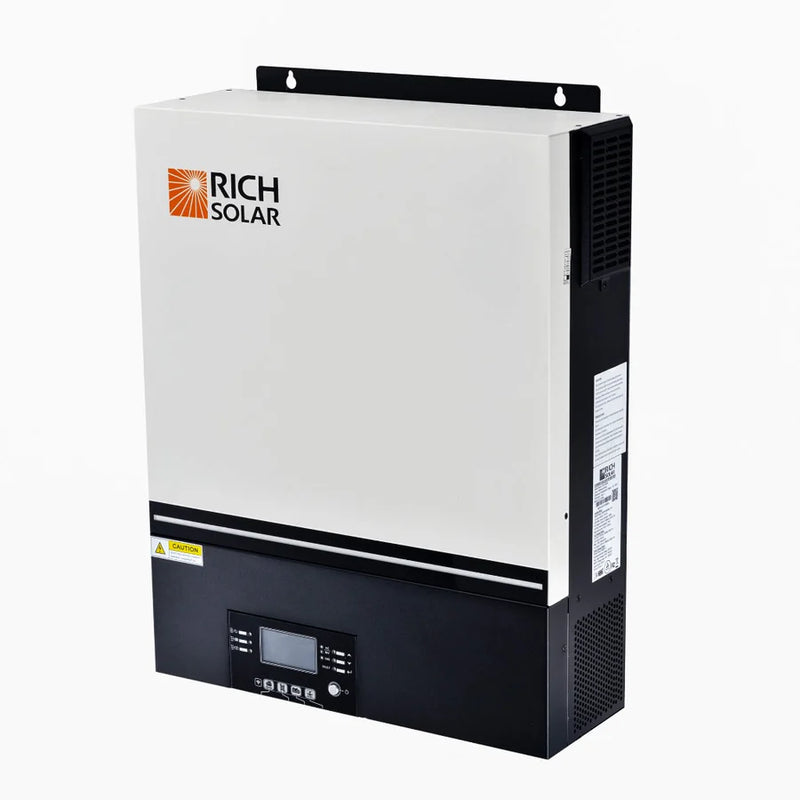

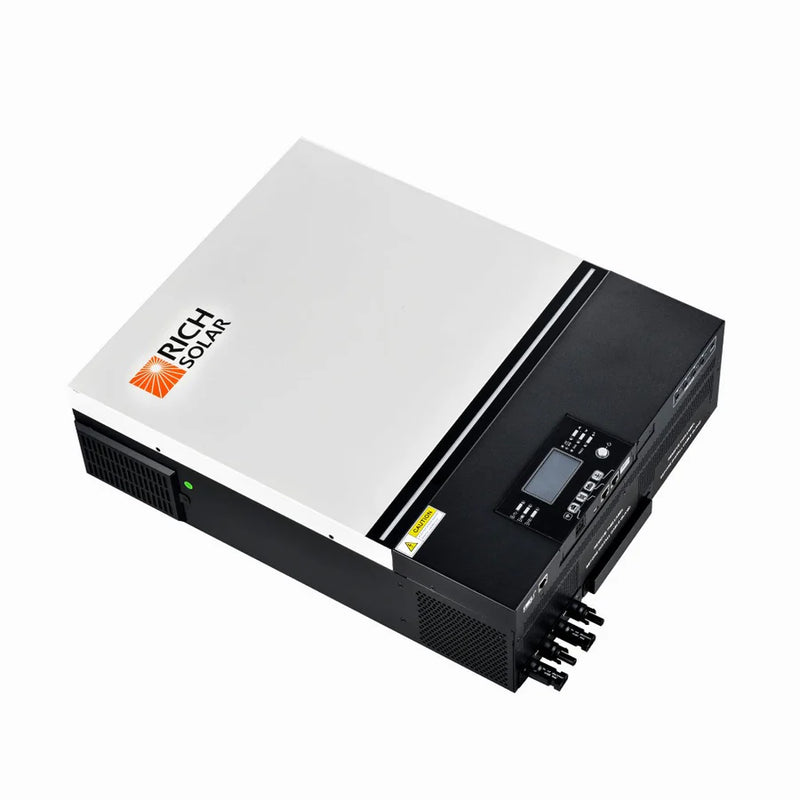

• Model: RS-H6548
• Rated Inverter Power: 6500VA/6500W

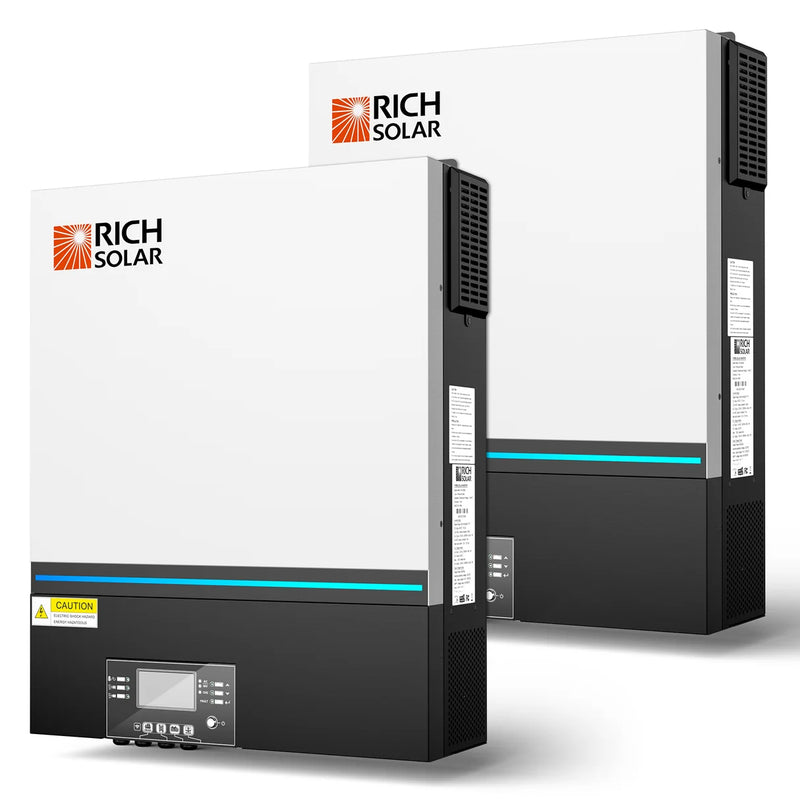

• Parallel Capability: Yes, 6 units

Input

• Voltage: 120 VAC
• Selectable Voltage Range: 90–140 VAC (For Computers), 80–140 VAC (For Home Appliances)
• Frequency Range: 50 Hz/60 Hz (Auto Sensing)

Output

• AC Voltage Regulation (Batt. Mode): 120 VAC ± 5%
• Surge Power: 2* rated power for 5 seconds
• Efficiency (Peak): 91%
• Transfer Time: 10 ms (For Personal Computers), 20 ms (For Home Appliances)
• Waveform: Pure Sine Wave
• Optional DC Voltage: 12 VDC ± 7%, 100W

Battery

• Battery Voltage: 48 VDC
• Float Charging Voltage: 54 VDC
• Overcharge Protection: 66 VDC

Solar Charger & AC Charger

• Solar Charger Type: MPPT
• Maximum PV Array Power: 8000W (4000W x 2)
• MPPT Operating Voltage Range: 90 ~ 230 VDC
• Maximum PV Array Open Circuit Voltage: 250 VDC
• Maximum Solar Charge Current: 120A
• Maximum AC Charge Current: 120A
• Maximum Charge Current: 120A

Physical

• Dimensions (D X W X H): 5.8 x 17.0 x 21.8 in
• Net Weight: 40.6 lb
• Communication Interface: USB/RS232/RS485/WiFi/Dry-contact

Operating Environment

• Humidity: 5% to 95% Relative Humidity (Non-condensing)
• Operating Temperature: -14°F to 104°F
• Storage Temperature: 5°F to 140°F

Standard

• Compliance Safety: UL 1741 by TUV
