Features
High-Efficiency MPPT Charging
- 99.5% MPPT Tracking Efficiency – Maximizes available solar energy harvest
- 98% Conversion Efficiency – Reduces power loss for higher system efficiency
Intelligent System Compatibility
- Auto 12V / 24V Detection – Simplifies installation and setup
- Wide Battery Compatibility – Supports GEL, AGM, WET, CALCIUM, LiFePO₄, LTO, and LCO
Smart Monitoring & App Control

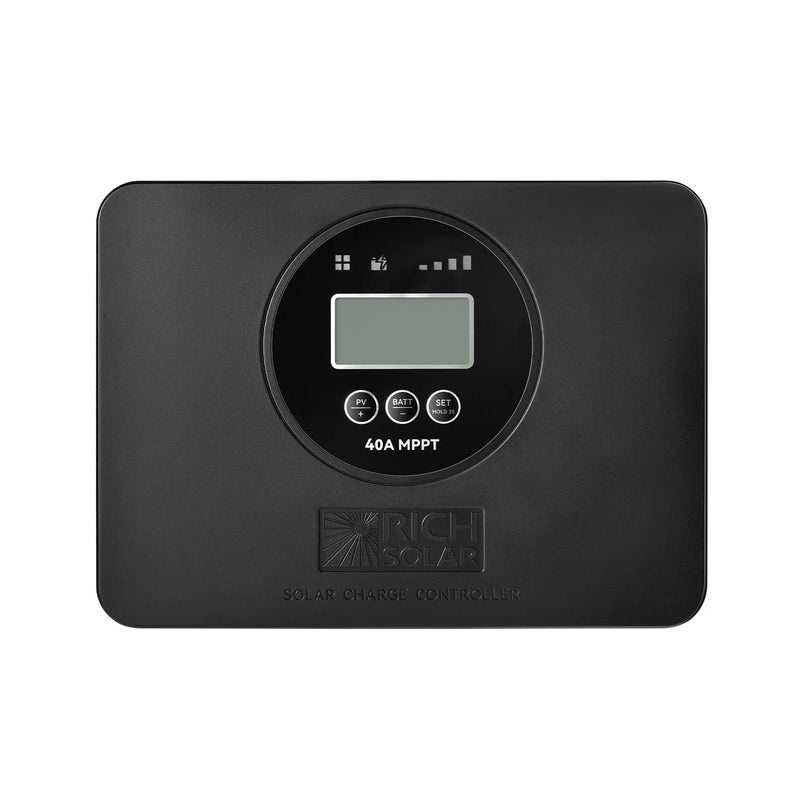

- LCD Display – Real-time system status at a glance
- Bluetooth + App Support – Remote monitoring and parameter adjustment via smartphone
Reliable Built-In Protection & Certifications
- Multi-Level Safety Protection – Protects against over-voltage, reverse polarity, short circuits, and overheating
- Certified Safety & Compliance – ETL, CE, FCC, RoHS
Specifications

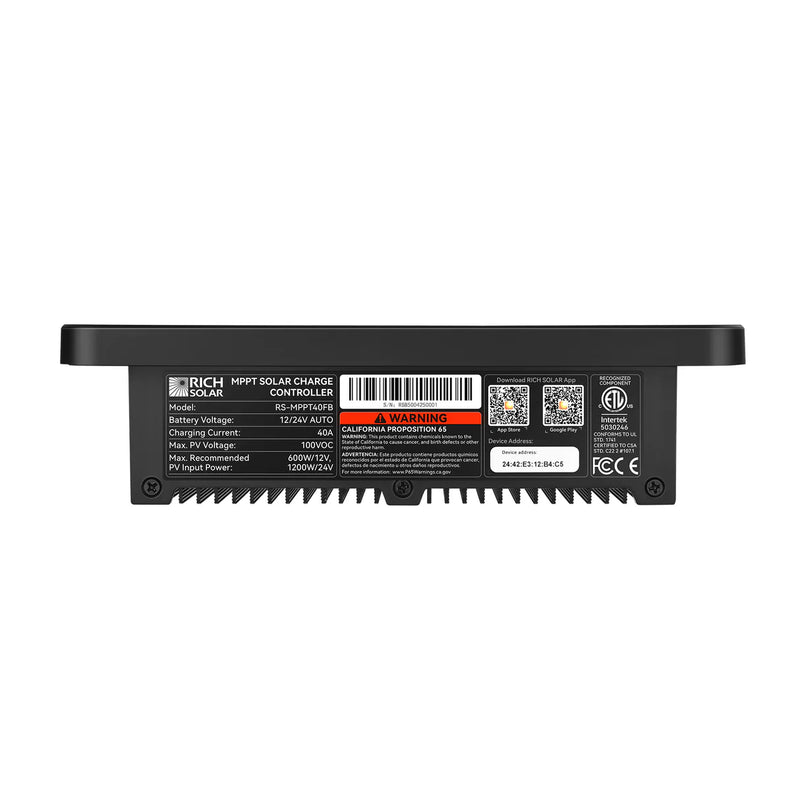

- System Nominal Voltage: 12V/24V Auto
- Maximum Solar Input Current: 40A
- Maximum Charging Current: 40A
- Recommended Solar Input Power: 600W(12V)/1200W(24V)
- Solar Input Voltage Range: 8-100V
- Standby Current: 10mA
- Charging Technology: MPPT
- MPPT Voltage Tracking Range: 15-72VDC
- MPPT Efficiency: 99.5%
- Conversion Efficiency: 98%
- Battery Compatibility: GEL / AGM / WET / LFP / LTO / LCO / Crystal / Calcium / Customizable Battery
- IP Grade: IP43
- Operating Temperature: -13℉ ~ 122℉
- Bluetooth: Yes
- Options: External Battery Temperature Sensor; External Digital Remote Display
- Dimensions: 8.3 × 6.1 × 2.2 in
- Weight: 1.8 lb
- Certifications: ETL, CE, FCC, RoHS
