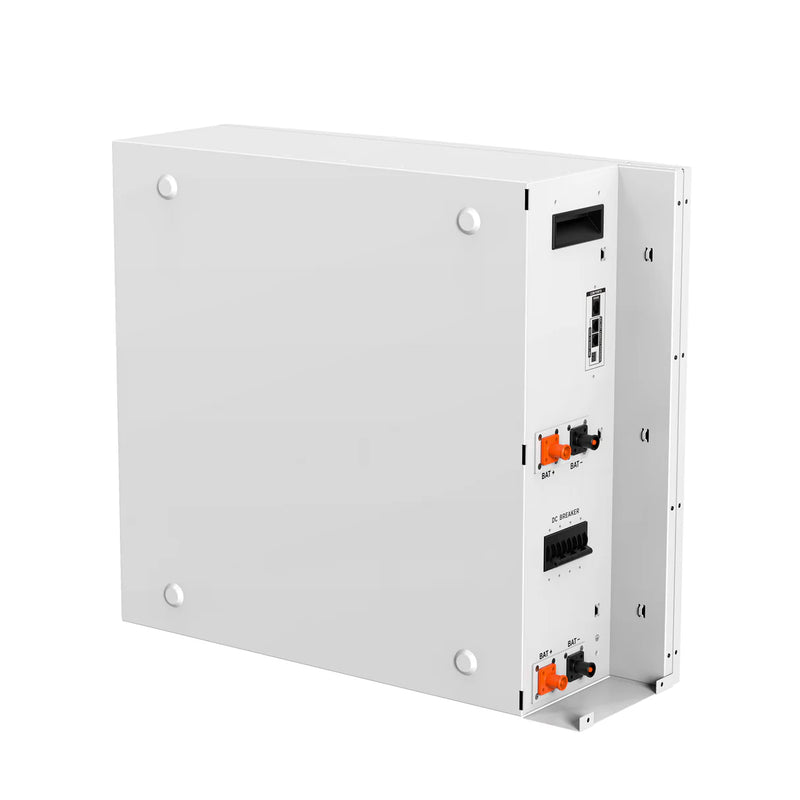

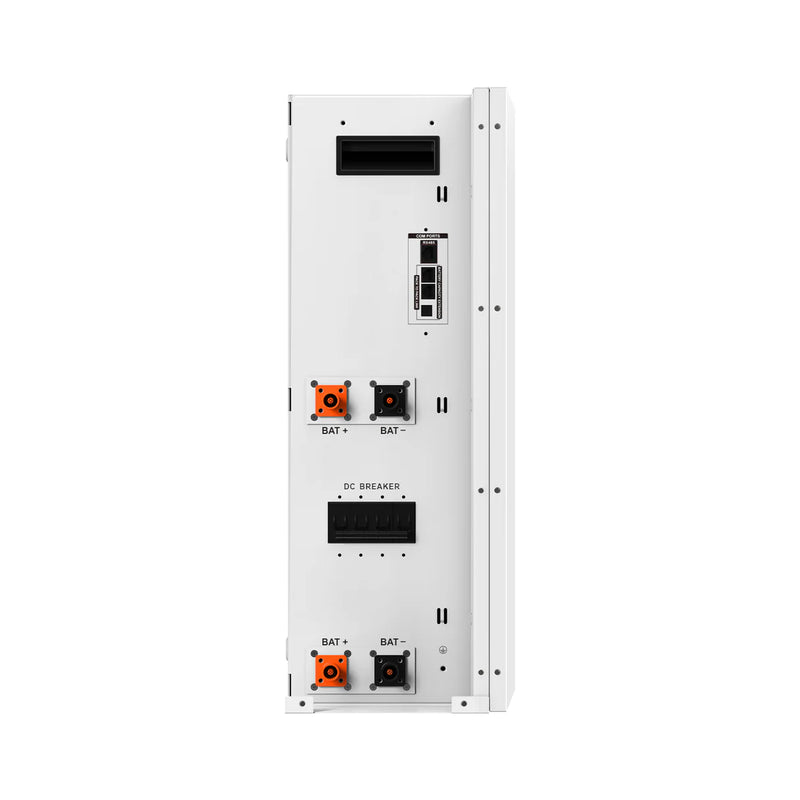

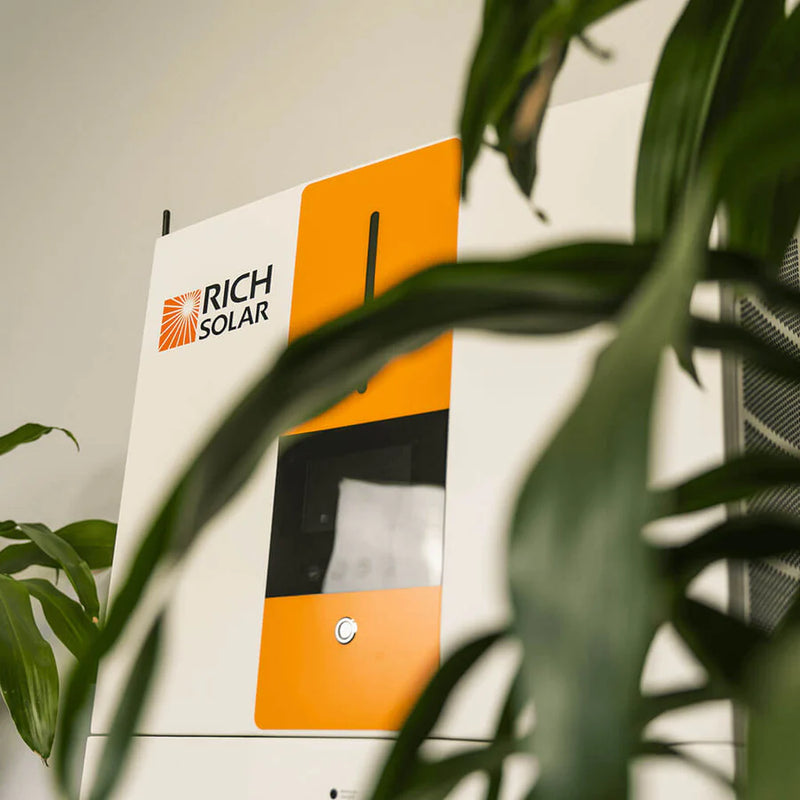

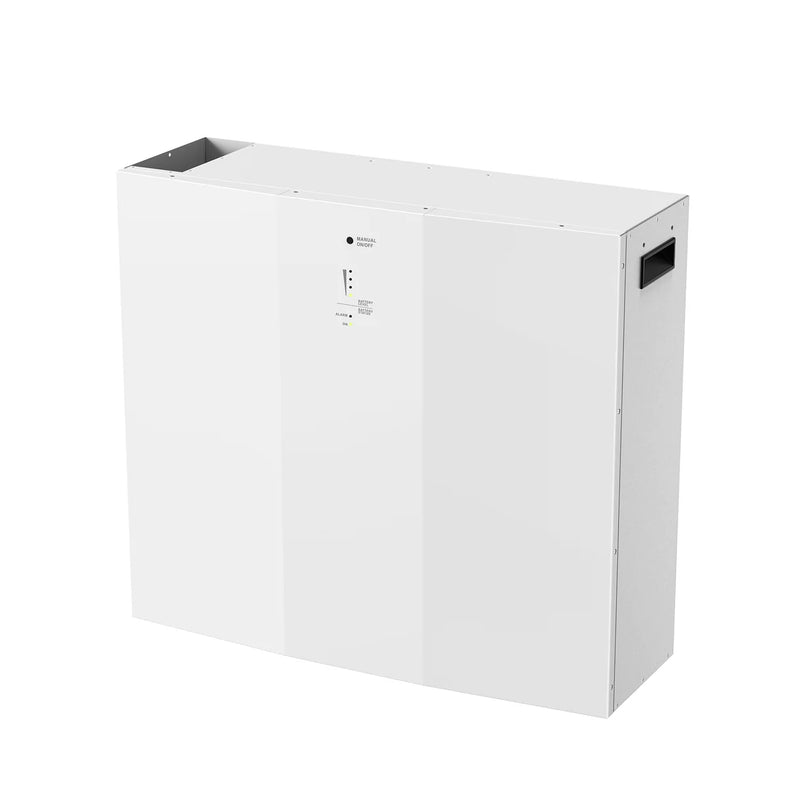

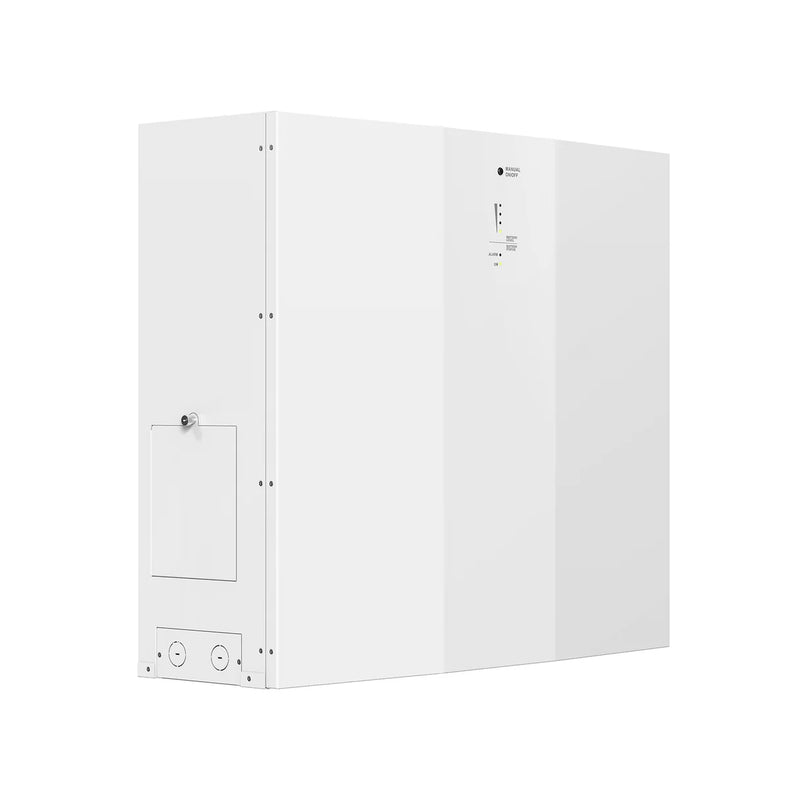

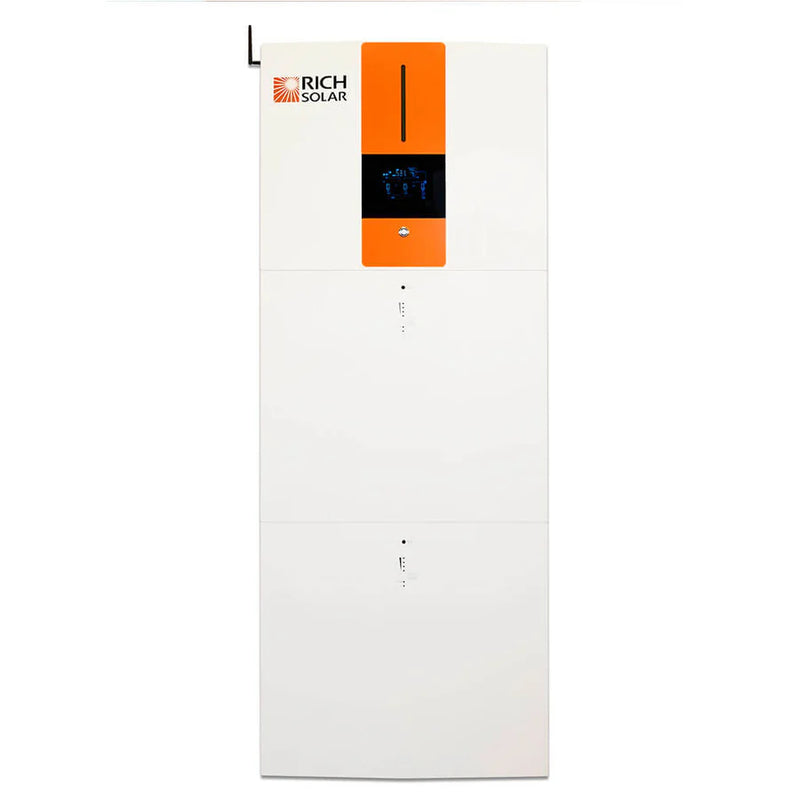

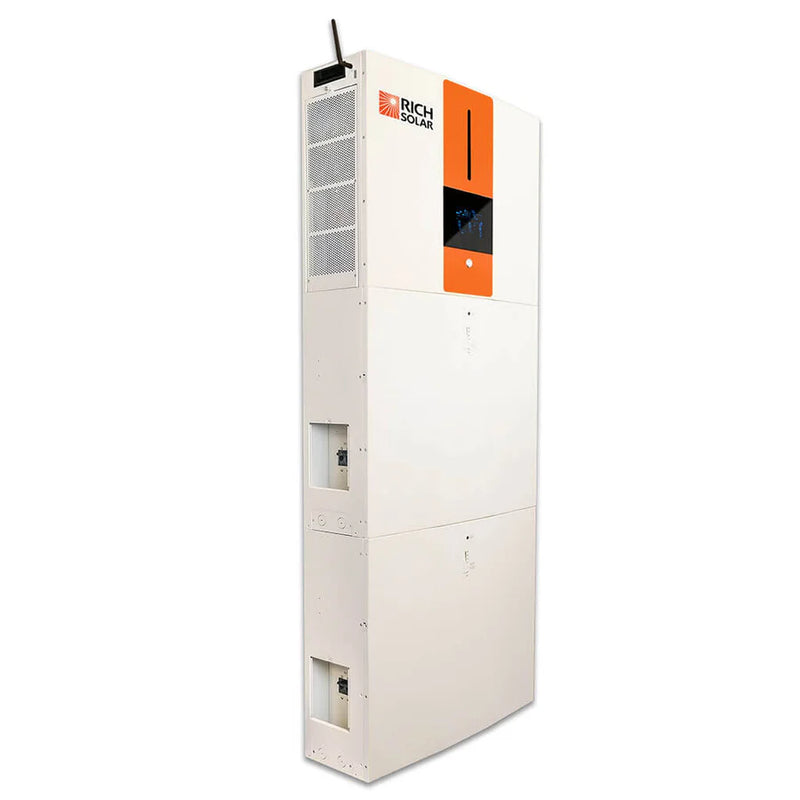

Introducing the RICH SOLAR All-in-One Energy Storage System
The RICH SOLAR All-in-One Energy Storage System is a powerful and efficient solar energy system designed to provide clean and reliable electricity. This innovative system integrates all the components required for solar power generation into a single, compact unit, including an inverter, batteries, and a charge controller.
Power & Performance Features
Pure sine wave output
Off-Grid application
Programmable supply priority for PV, Battery, or Grid
User-adjustable battery charging current
Battery independent design
Smart Technology & Connectivity
Multiple communication for USB, RS232, SNMP, Modbus, GPRS and Wi-Fi

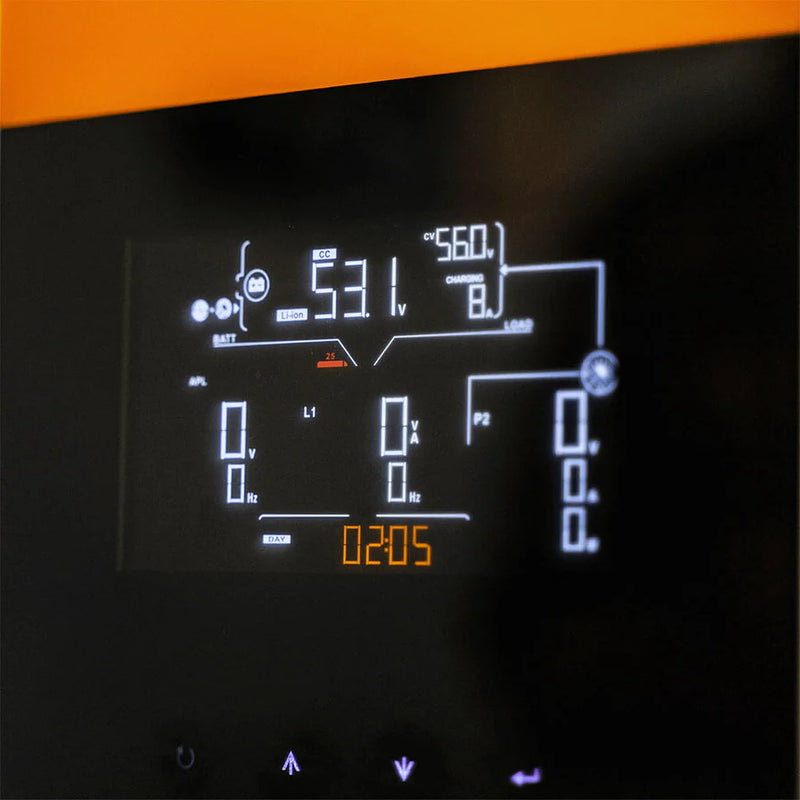

Monitoring APP (Android and iOS) for real-time status display and parameter control
Built-in 2 MPPT trackers and AC/Solar charger up to 120A
Compatible with utility and generator
Scalable Li-Ion battery expansion
The compact design of an All-in-One Energy Storage System makes it an attractive option for those with limited space, or for those who want a more discreet installation. It can also be easier to install and maintain compared to larger energy storage systems, which may require more extensive wiring and infrastructure.
Specifications
Battery Info
Model:RS-A10
Maximum PV Input Power:8000W
Rated Output Power:6500W
Maximum Charging Power:6500W
PV Input (DC)
MPPT Range @ Operating Voltage:90 ~ 230 VDC
Maximum PV Array Open Circuit Voltage:250 VDC
Maximum Solar Charge Current:120A
Number of MPP Trackers / Maximum Input Current:2 / 2 x 18A
AC Input
Acceptable Input Voltage Range:
90–140 VAC (For Computers)
80–140 VAC (For Home Appliances)
Maximum AC Input Current:60A
Battery Mode Output
Nominal Output Voltage:120 VAC
Maximum Conversion Efficiency (DC/AC):93%
Battery
Nominal DC Voltage:48 VDC
Maximum Charging Current:120A
Dimension (D × W × H):8.4" × 24.4" × 19.7"
Net Weight:99 lb
Capacity:5120Wh
Nominal Voltage:51.2VDC
Full Charge Voltage (FC):56V
Full Discharge Voltage (FD):42V
Typical Capacity:100Ah
Max Continuous Discharging Current:120A
Max Discharging Current:192A at 1 min
Protection:BMS, Breaker
Float Charge Voltage:52.5V
Charge Current:20A (0.2C)
Maximum Charge Current:50A (0.5C)
Standard Charge Method:0.2C CC (Constant current) charge to FC, CV (Constant voltage FC) charge till charge current declines to <0.05C
Inner Resistance:≤20mΩ
All In One System Physical
System Dimension (D × W × H):19.7" × 26" × 49.2"
Net Weight:287 lb
Standard
Compliance Safety:IEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3, UL 1741, CSA C22.2 No.107.1-16, FCC PART 15B
