48V (57.6V) Waterproof LiFePO4 Charger | 20A / 25A, 100-240V AC, 8-in-1 Protection, Fan-Cooled - 25A is backordered and will ship as soon as it is back in stock.
Features
- Fast Charging Performance: Delivers up to 20A or 25A charging current for 48V (57.6V) LiFePO₄ batteries.
- 88–93% Peak Efficiency: Maximizes charging efficiency while reducing energy loss.
- 100–240V AC Input: Supports worldwide AC input for convenient charging.
- 8-in-1 Safety Protection: Includes overvoltage, overcurrent, short circuit, reverse polarity, over-temperature, undervoltage, automatic shutoff, and battery activation.
- IP67 Waterproof Housing: Die-cast aluminum enclosure resists water, dust, and impacts for demanding environments.

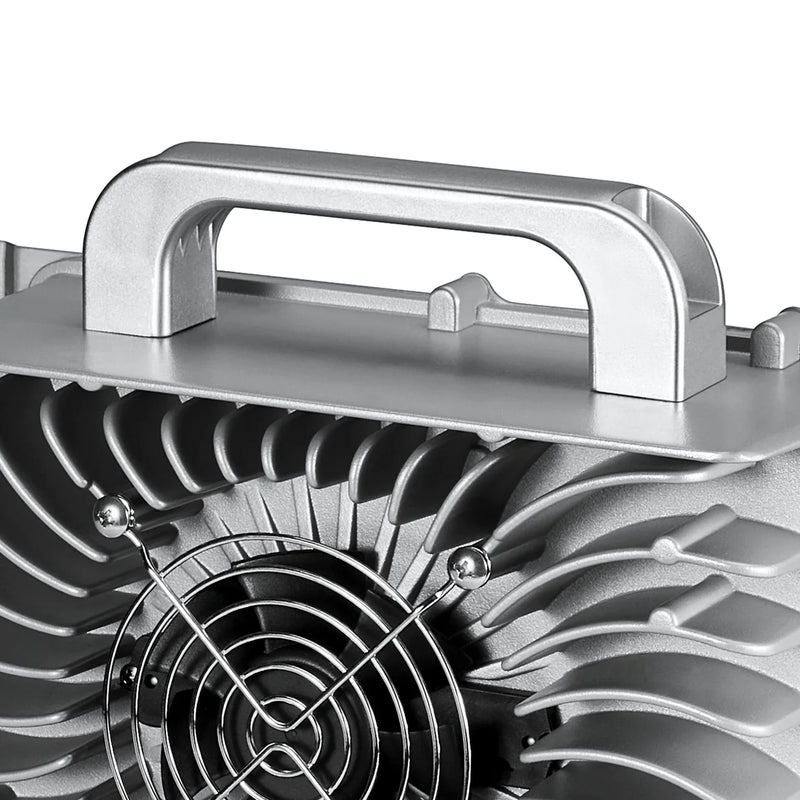

- Active Cooling Fan: Provides efficient heat dissipation for reliable high-current charging.
- Two-Color LED Indicator: Displays standby, charging, fully charged, and fault status.
- FCC, CE & RoHS Certified: Meets recognized safety and environmental standards.
LED Indicator
- Green (Always On): Standby / No Load
- Green (Flashing): Battery is Charging
- Green (Always On): Battery Fully Charged
- Red (Flashing): Charger Fault or Under Protection
How to Connect
- Ensure the charger is switched OFF.
- Connect the DC output cable to the battery (+ to +, − to −) and secure the Anderson connector.
- Turn the charger ON. The battery is charging when the LED indicator flashes green.
- Turn the charger OFF after charging is complete.
Specifications
AC Input
-
Input Voltage: 100–240V AC
- Input Frequency: 50/60Hz
DC Output
-
Output Voltage: 57.6V DC
-
Output Current: 20A or 25A (Model Dependent)
-
Battery Compatibility: 48V LiFePO₄ Batteries
- Peak Efficiency: 88–93%
General
-
Protection Rating: IP67
-
Enclosure Material: Die-Cast Aluminum
-
Cooling: Active Cooling Fan
-
Charging Indicator: Two-Color LED
-
Operating Temperature: -4°F to 104°F (-20°C to 40°C)
- Storage Temperature: -40°F to 158°F (-40°C to 70°C)
Certifications & Compliance
- Compliance: FCC, CE, and RoHS
