Features
- Automatically detects 12V or 24V DC system voltages.
- Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium.
- Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
- Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.

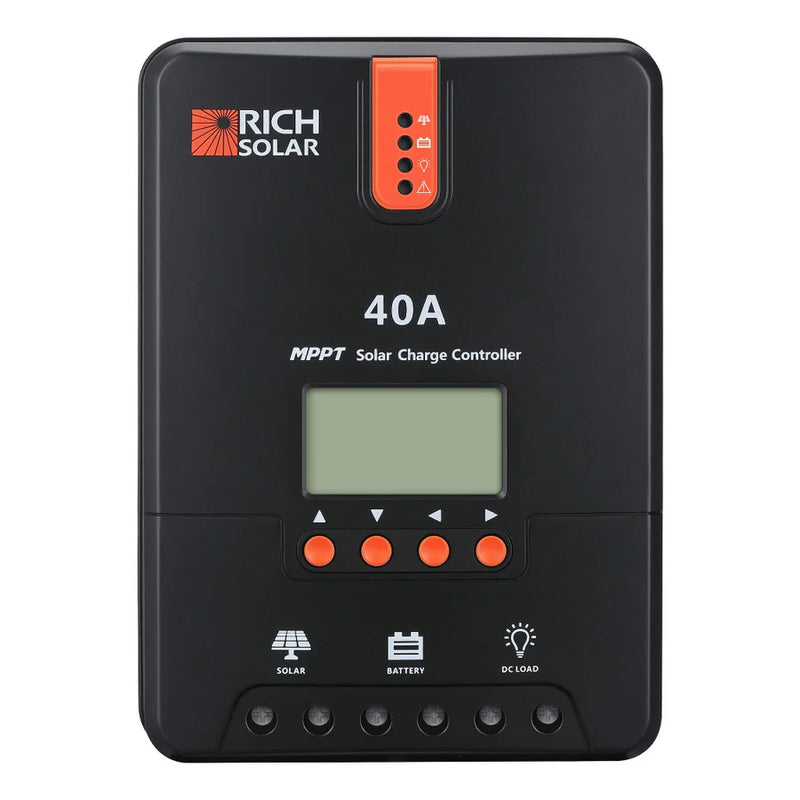

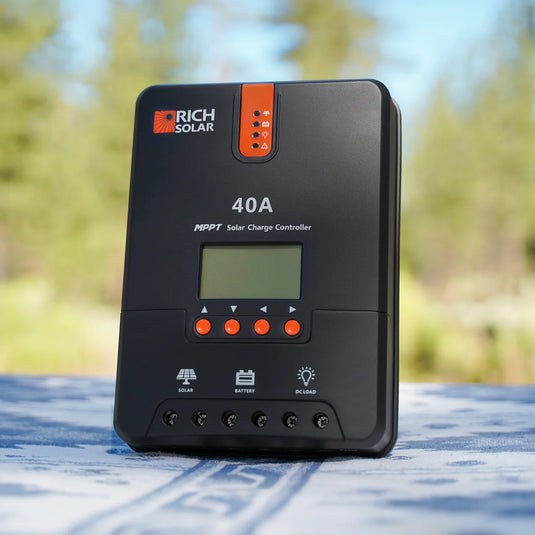

- LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
- Features diverse load control; also capable of charging over-discharged lithium batteries.

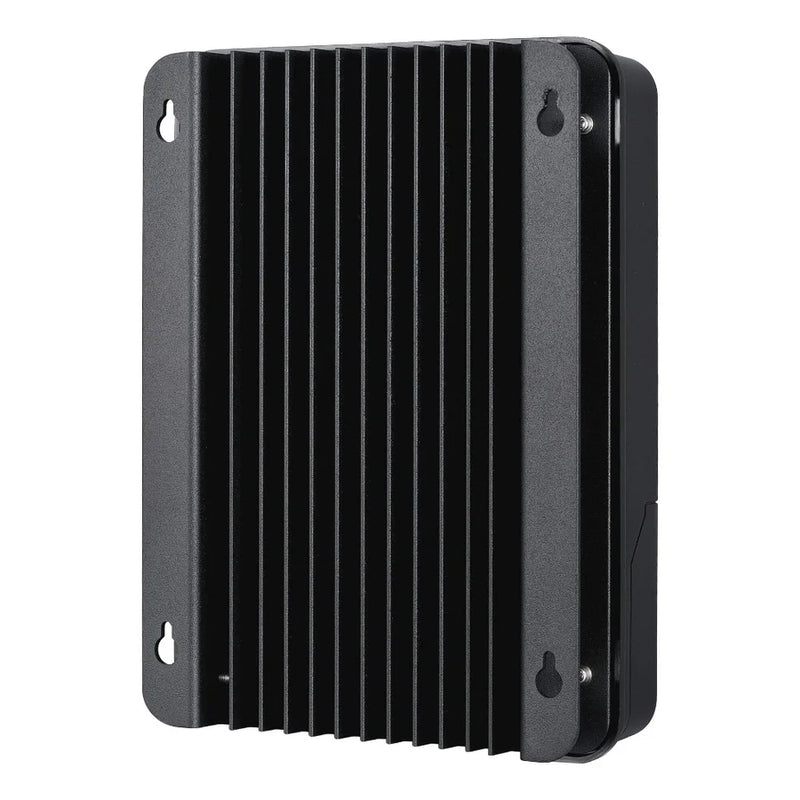

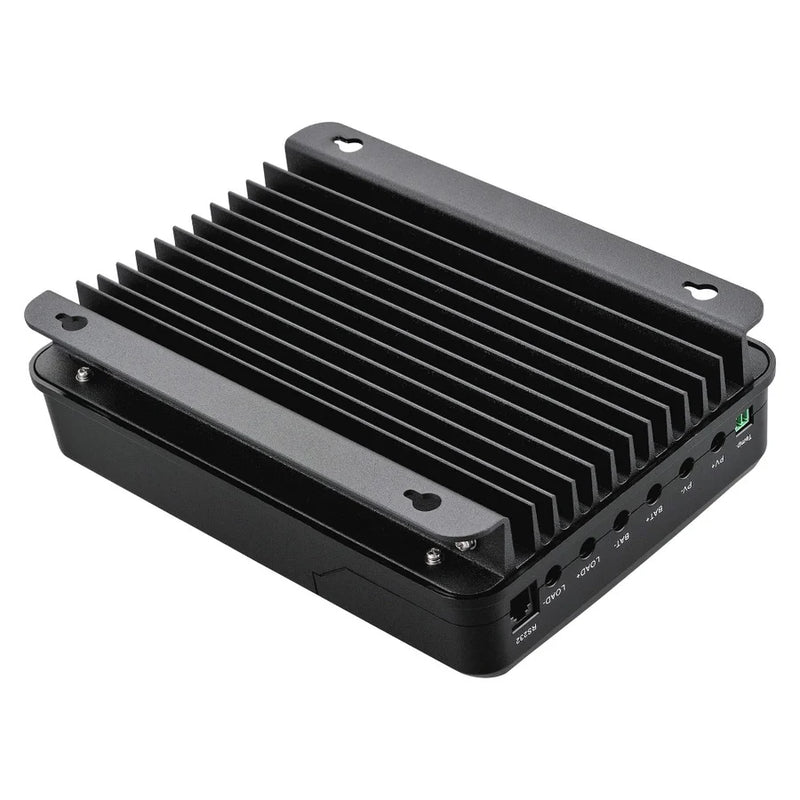

- Die-cast aluminum design allows for efficient heat dissipation.

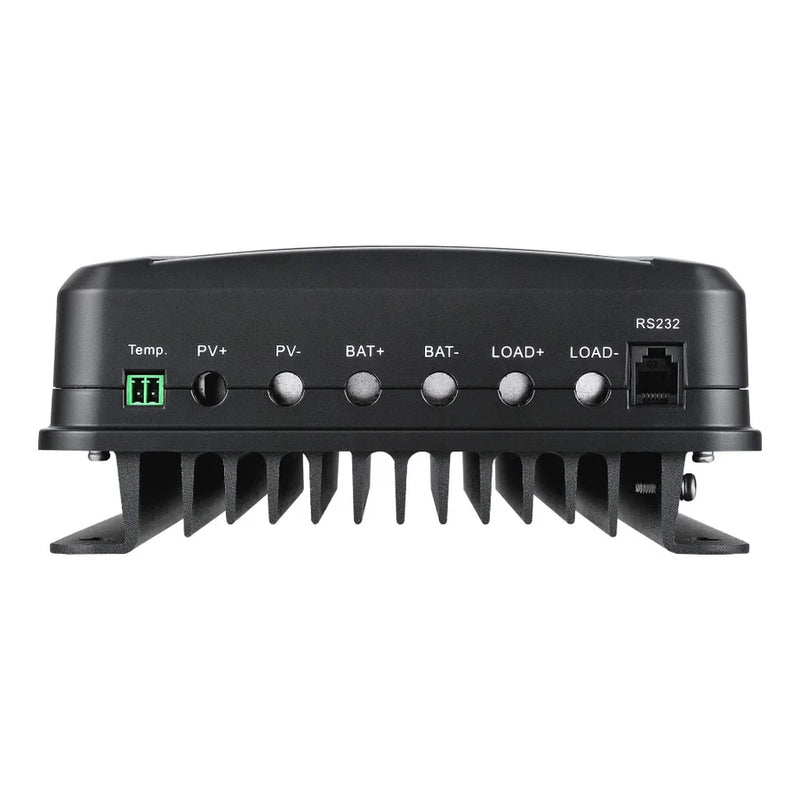

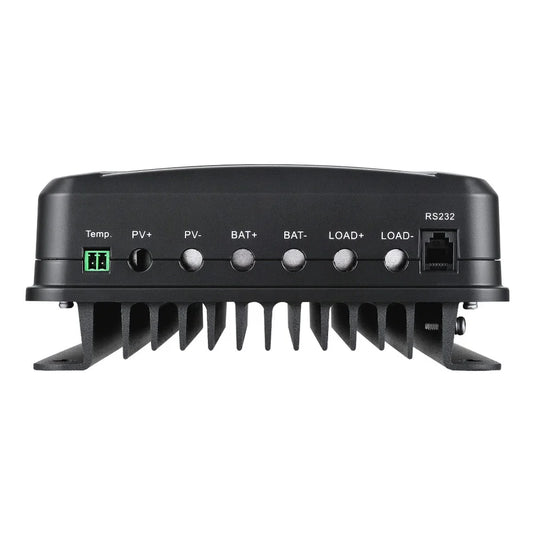

- RS232 port to communicate with BT-1 Bluetooth module.
Specifications
-
Rated Battery Current: 40A
-
Rated Load Current: 20A
-
Max. PV Input Short Current: 50A
-
Max. Battery Voltage: 32V
-
Max Solar Input Voltage: 100VDC
-
Charge Circuit Voltage Drop: ≤0.26V
-
Discharge Circuit Voltage Drop: ≤0.15V
-
Working Temperature: -31°F to +113°F
-
Max Terminal Size: 8AWG
-
Rated Load Current: 10% to 90% NC
-
Overall Dimensions: 9.37 x 6.81 x 2.85 in
-
Net Weight: 4.41 lb
