Features
- Automatically detects 12V or 24V DC system voltages
- Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium
- Innovative MPPT technology with high tracking efficiency of up to 99% and peak conversion efficiency of 98%
- Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current

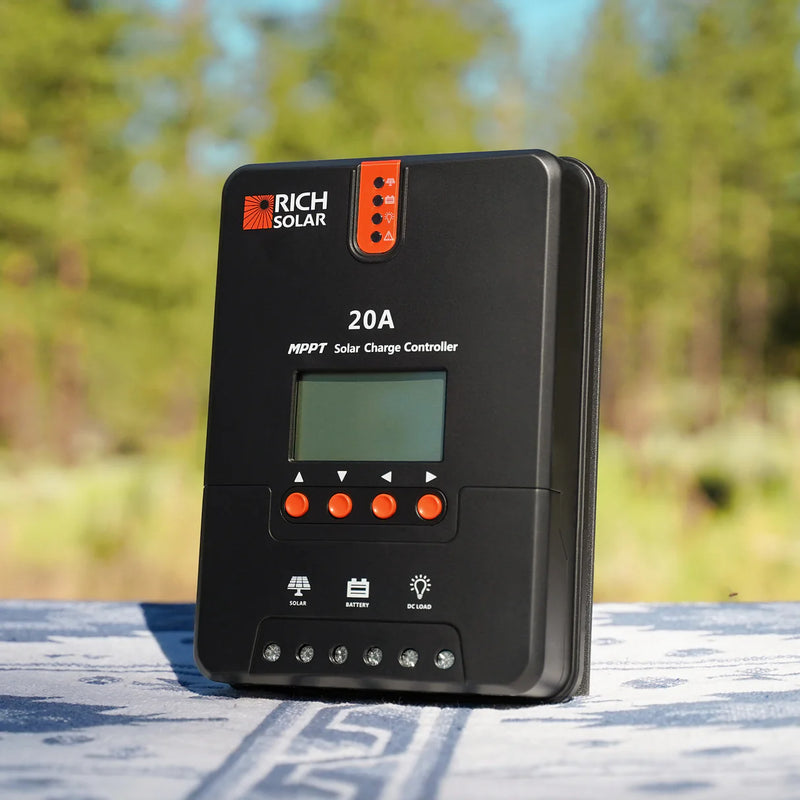

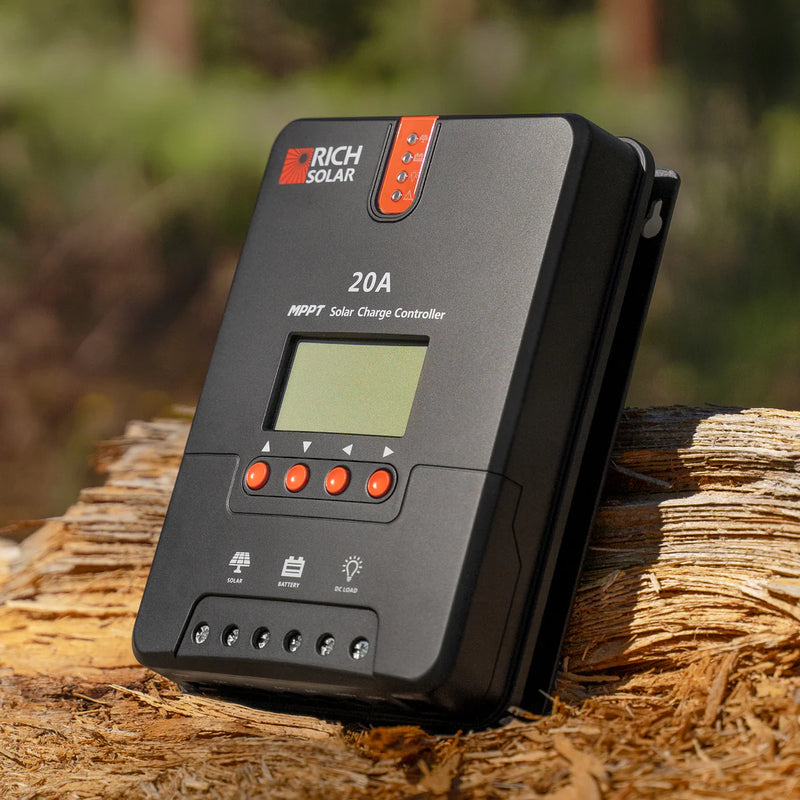

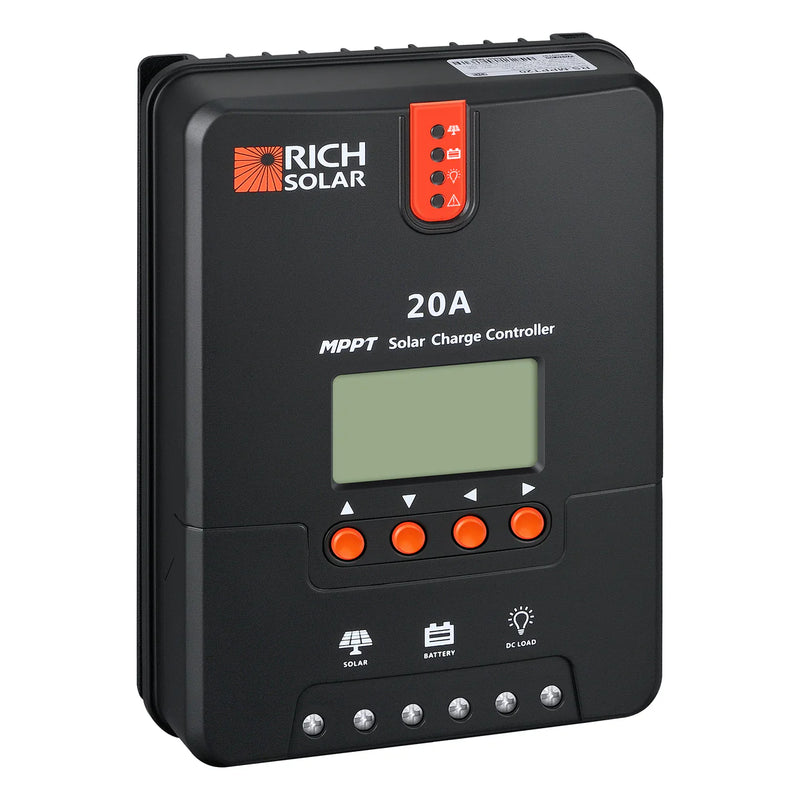

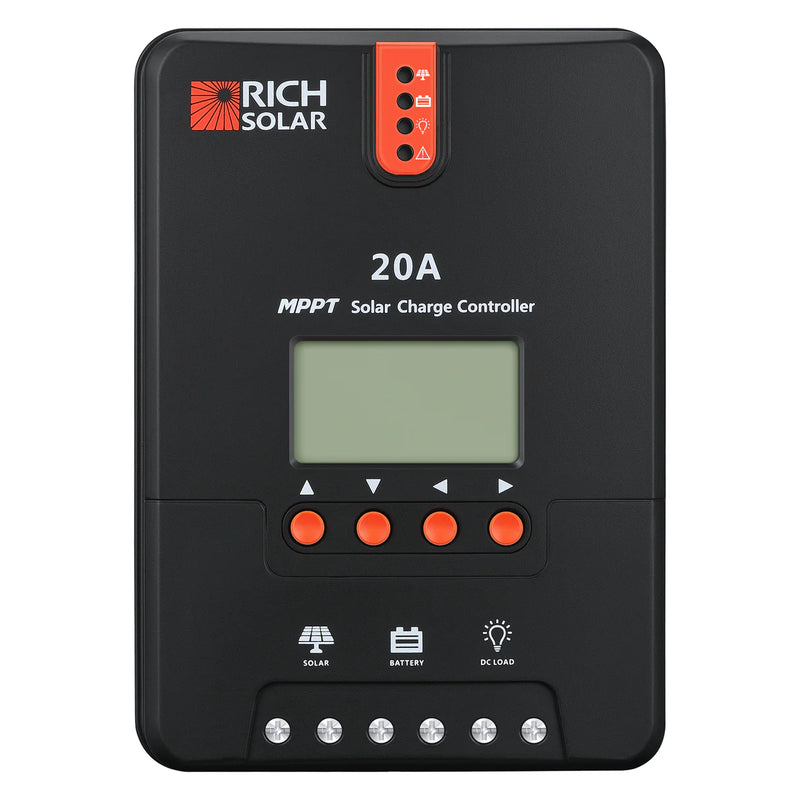

- LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes
- Features diverse load control; also capable of charging over-discharged lithium batteries

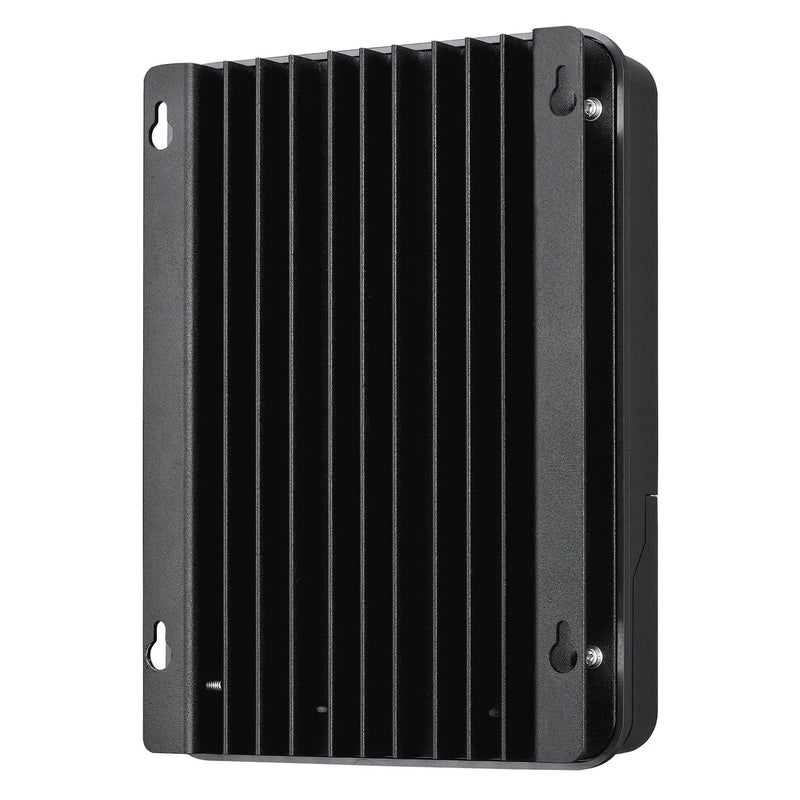

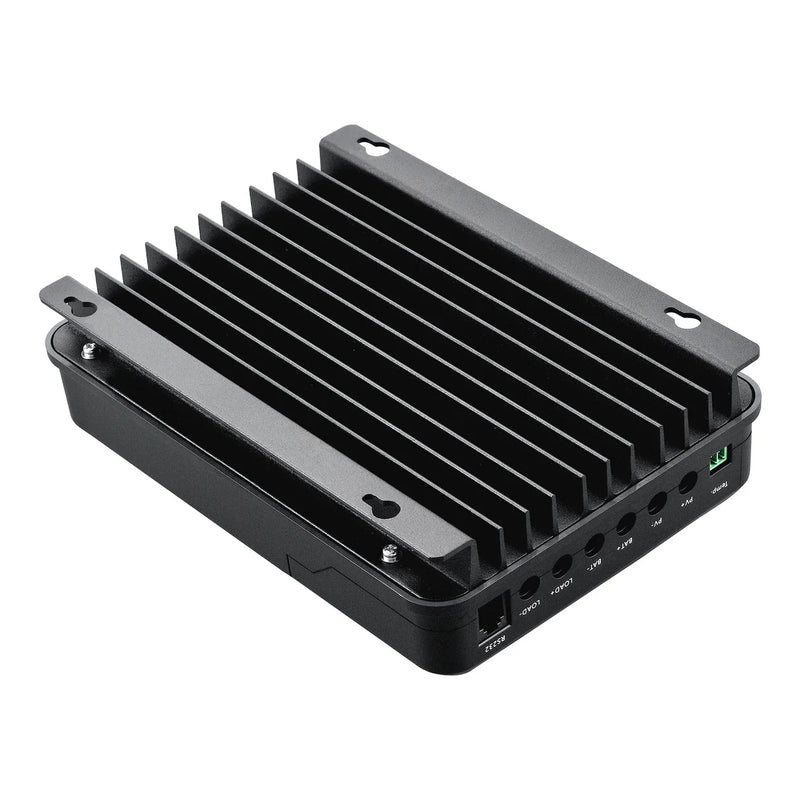

- Die-cast aluminum design allows for efficient heat dissipation

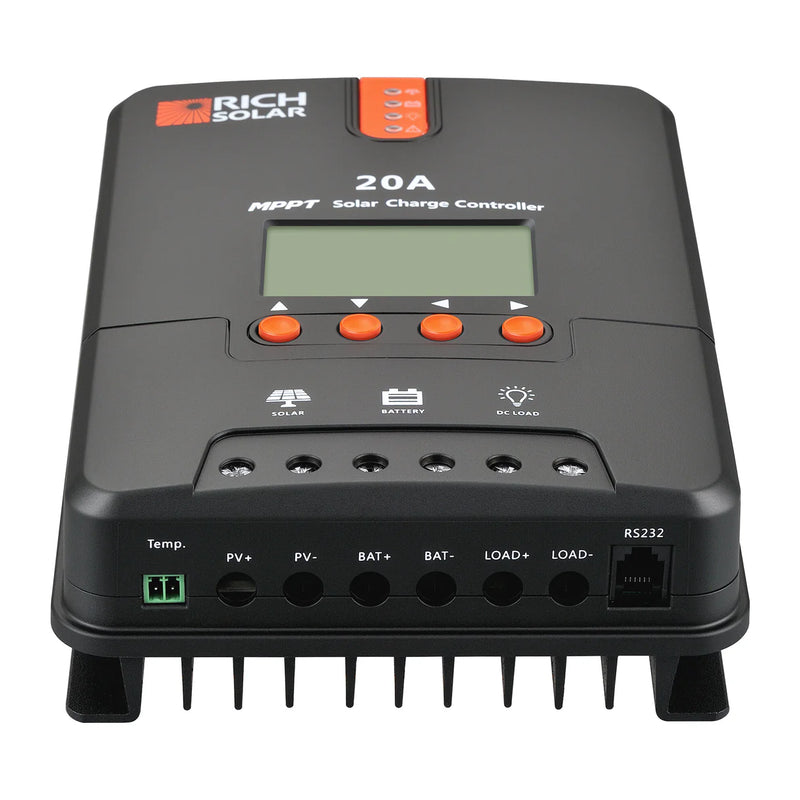

- RS232 port to communicate with BT-1 Bluetooth module
Specifications
-
Nominal System Voltage: 12V/24V Auto Recognition
-
Rated Battery Current: 20A
-
Rated Load Current: 20A
-
Max. PV Input Short Current: 25A
-
Max. Battery Voltage: 32V
-
Max Solar Input Voltage: 100 VDC
-
Discharge Circuit Voltage Drop: ≤0.15 V
-
Max. Photovoltaic System Input Power: 260W/12V, 520W/24V
-
Conversion Efficiency: ≤98%
-
MPPT Tracking Efficiency: >99%
-
Operating Temperature: -35℃ to +45℃
-
Protection Degree: IP32
-
Net Weight: 3.08 lb
-
Overall Dimensions: 8.27 x 5.94 x 2.34 in
