Key Features

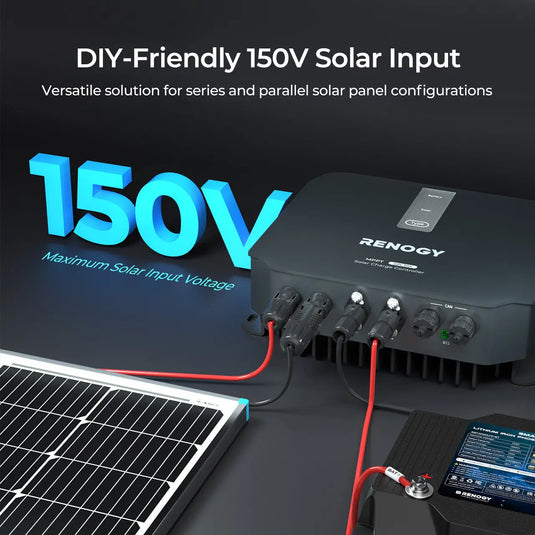

- Supports 150V PV input; compatible with 12V-48V systems.

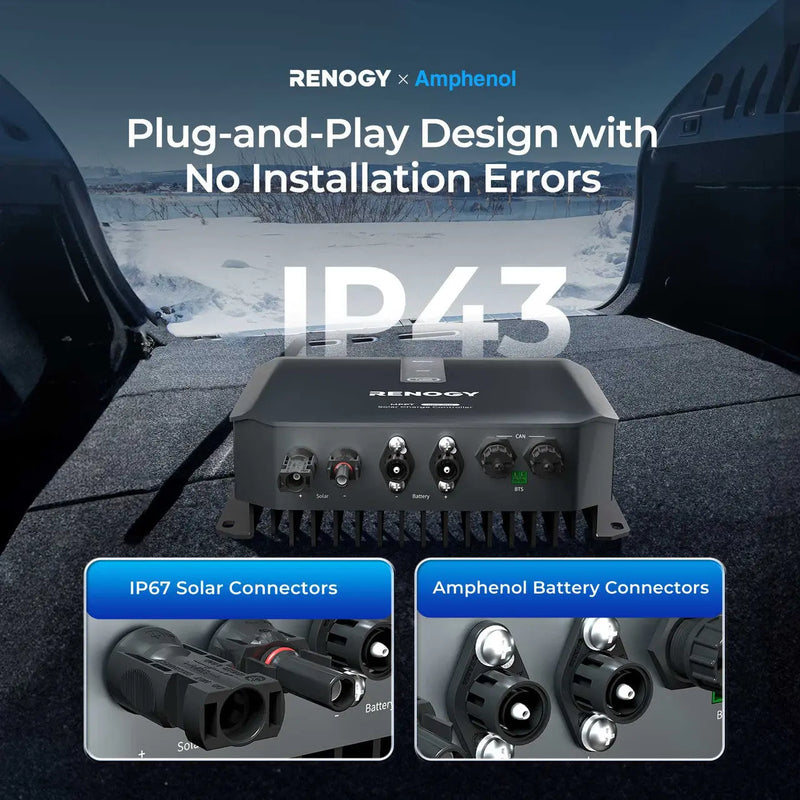

- Error-proof connections with Amphenol connectors.
- Built-in Bluetooth and RV-C for easy connection and control.
- 13 safety protections, incl. low-temperature protection.
- FCC, RoHS, CE, RCM, UL1741 certified. 5-year warranty.
RENOGY REGO 12V/24V/36V/48V 30A MPPT Solar Charge Controller

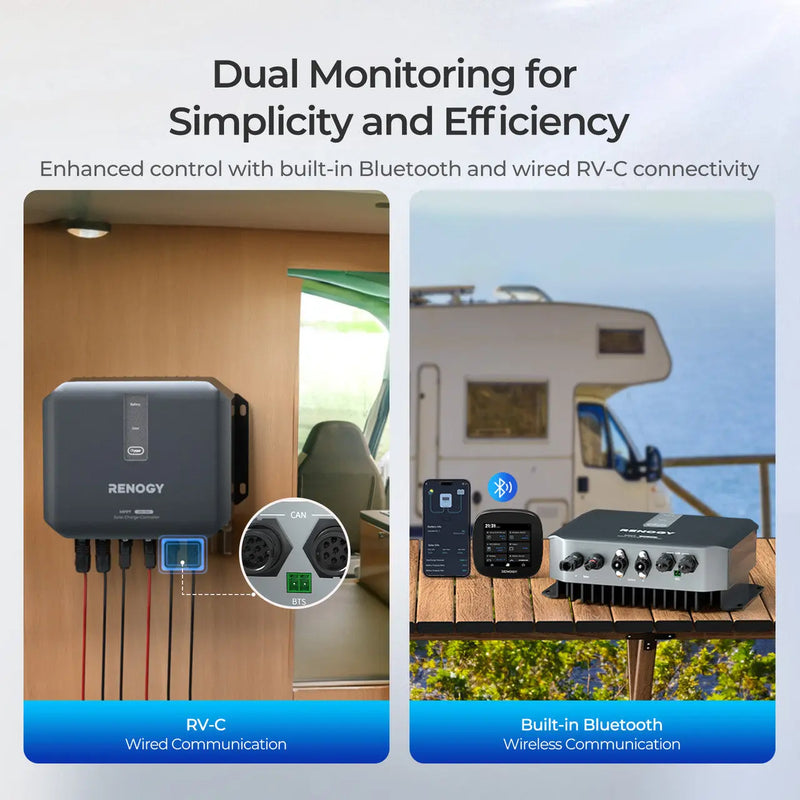

Dual Monitoring, Simple yet Efficient

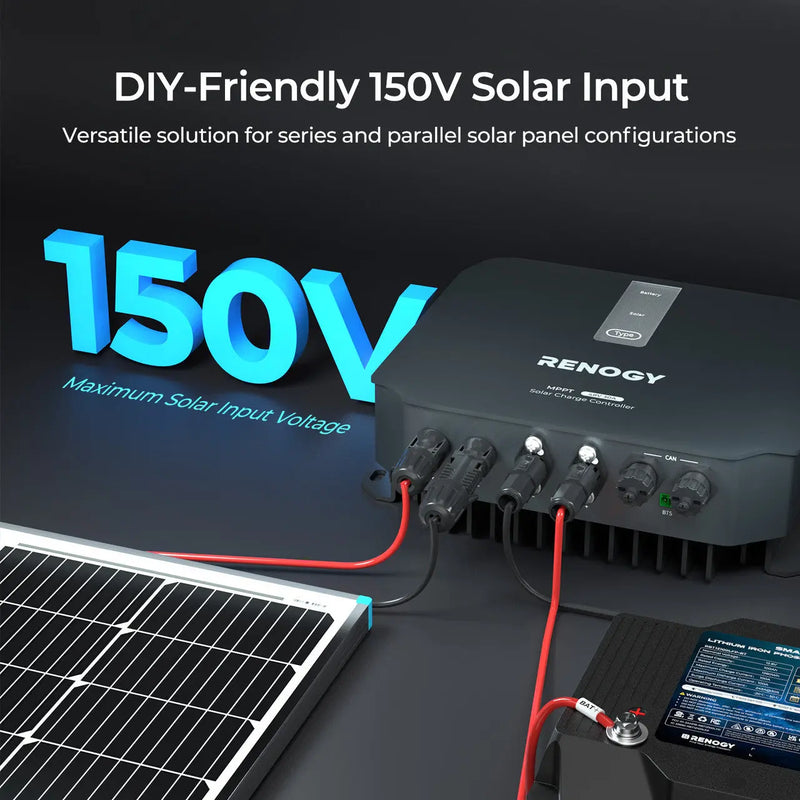

Unleashing the Potential for High-Power DIY Systems

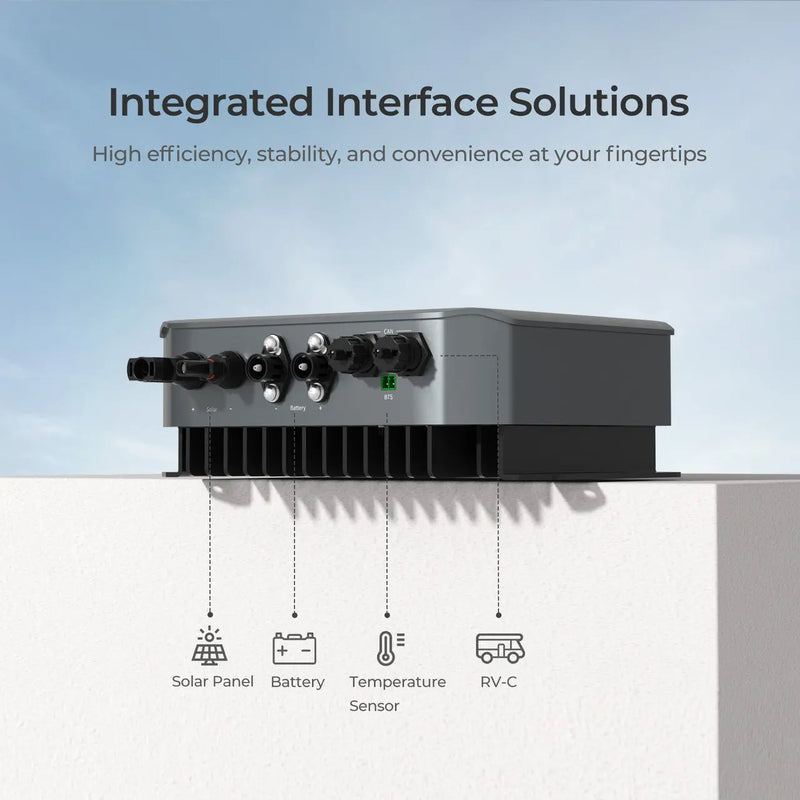

Seamless Installation

Unmatched Stability in Extreme Conditions

Comprehensive Protection for Your Energy System

Versatile Voltage Compatibility


Effortless Battery Type Selection

IP43 for Humid Environments

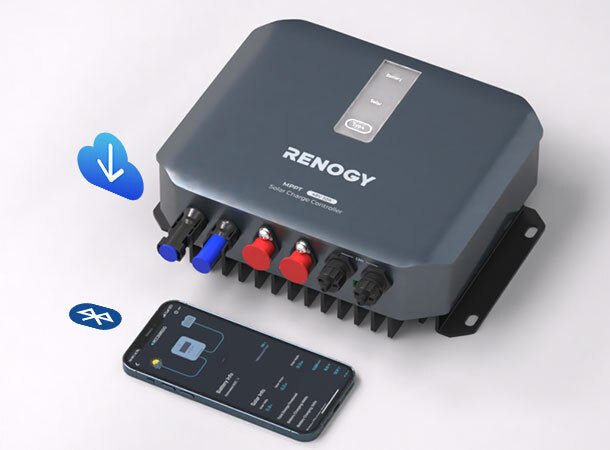

Over-the-Air Update

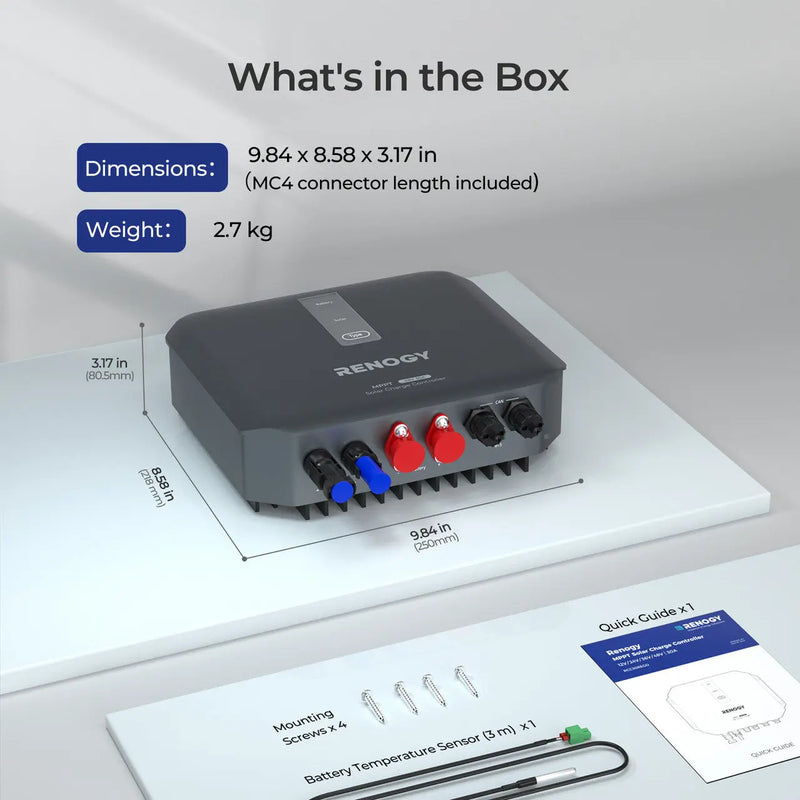

Package Includes

Solar Charge Controller
x 1

Quick Guide
x 1

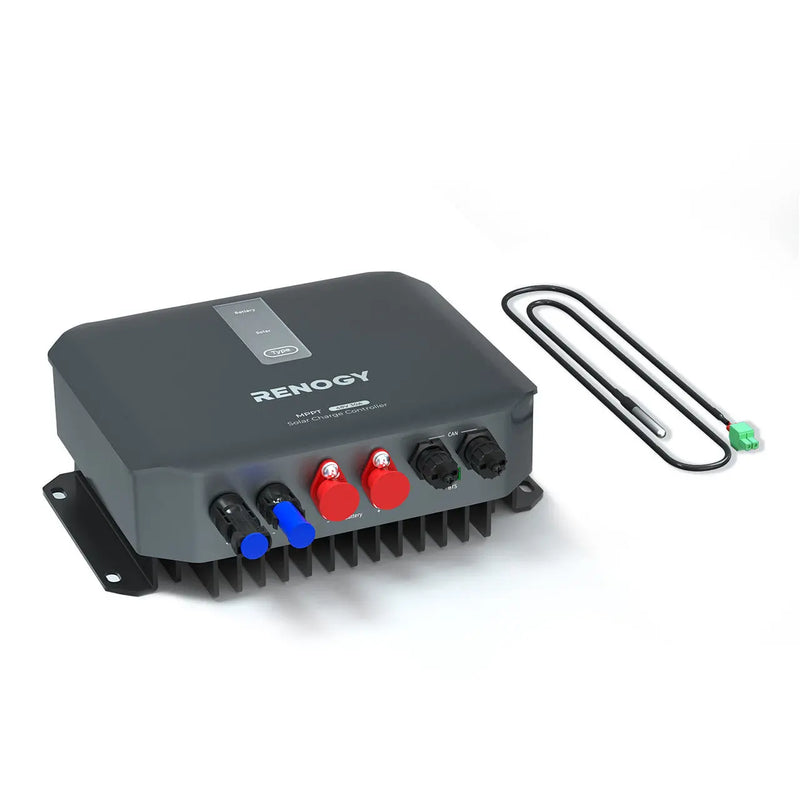

Battery Temperature Sensor
x 1

Mounting Screws
x 4
RENOGY REGO 12V/24V/36V/48V 30A MPPT Solar Charge Controller
General Data
Grounding
Common Negative
Communication
RS485;RENOGY CAN
Operating Temperature
-31°F to 149°F / -35°C to 65°C
Storage Temperature
-31°F to 176°F / -35°C to 80°C
Humidity
0%~95% RH
Cooling
Heat Sink
Enclosure Rating
IP43
Dimensions (LxWxH)
9.84 x 7.40 x 3.17 in / 250 x 188 x 80 mm (Solar connector length not included); 9.84×8.58 X 3.17 in / 250 x 218 x 80 mm (Solar connector length included)
Weight
2.7 kg /5.95 lb
Regulatory and Safety Specifications
FCC, RoHS, CE, SAA, RCM, and UL 1741
Charger Data
Rated Battery Input Voltage
Non-Lithium :12VDC / 24 VDC / 36 VDC /48 VDC (Auto Recognition)
Battery Operating Voltage Range
8V to 64V
Rated Charge Current
30A
Maximum Solar Input Power
440 W (12V Battery);880W (24V Battery);1314 W (36V Battery);1700W (48V Battery)
Maximum Solar Input Voltage (Voc)
150VDC
Power Consumption
<0.57W (12V Battery);<0.67W (24V Battery);<0.97W (36V Battery);<1.34W (48V Battery)
MPPT Tracking Efficiency
>99%
Conversion Efficiency
>97%
Temperature Compensation
3mV / ℃ / 2V (Non-Lithium); 0mV / ℃ / 2V, no compensation (Lithium)
Charger Algorithm
3-stage Lead Acid, Bulk, Boost, Float, Equalize*; 2-Stage Lithium, Bulk, Boost
Charger Preset
AGM/Gel/SLD/FLD/LI (four cell groups) and User Mode
WARRANTY INFORMATION
Accessories
5-year material warranty
