Drop the weight, not your score. 200+ pounds lighter means effortless glides, precise maneuvers, and lasting power in your buggies to enjoy every round longer.
Save Energy for Your Next Play
The last thing you want is a fully drained battery waiting in your golf cart when you leave for days or months. The smart Auto-Off feature kicks in after 5 days of inactivity, ensuring your battery stays healthy and ready even if you forget to turn it off manually.

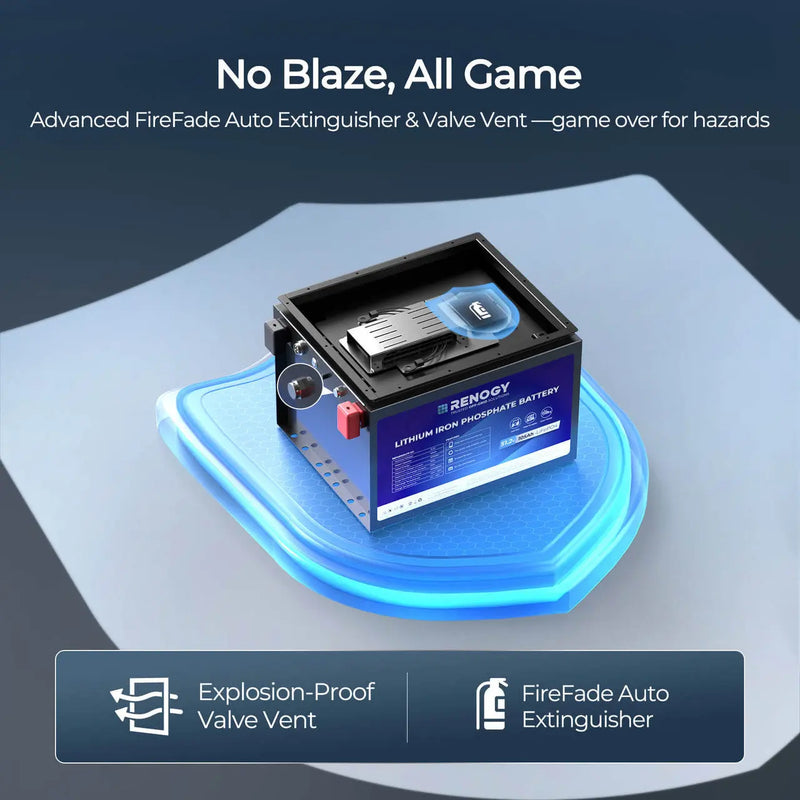

Burn Risks? Not in This Battery
When temperatures spike to 338°F / 170°C, the FireFade™ fire suppression system activates– like a built-in firefighter that smothers flames in seconds. Game on, worry off.
Let Go of the Pressure
The internal pressure will build up when the battery operates overtime. The smart valve automatically releases pressure before it even thinks about causing trouble and reducing the lifespan of your golf cart battery.
Install Upon Delivery
With full accessories that are above the average, you can make the switch the minute you receive the package and enjoy a smoother, faster driving experience brought by the Renogy lithium power.

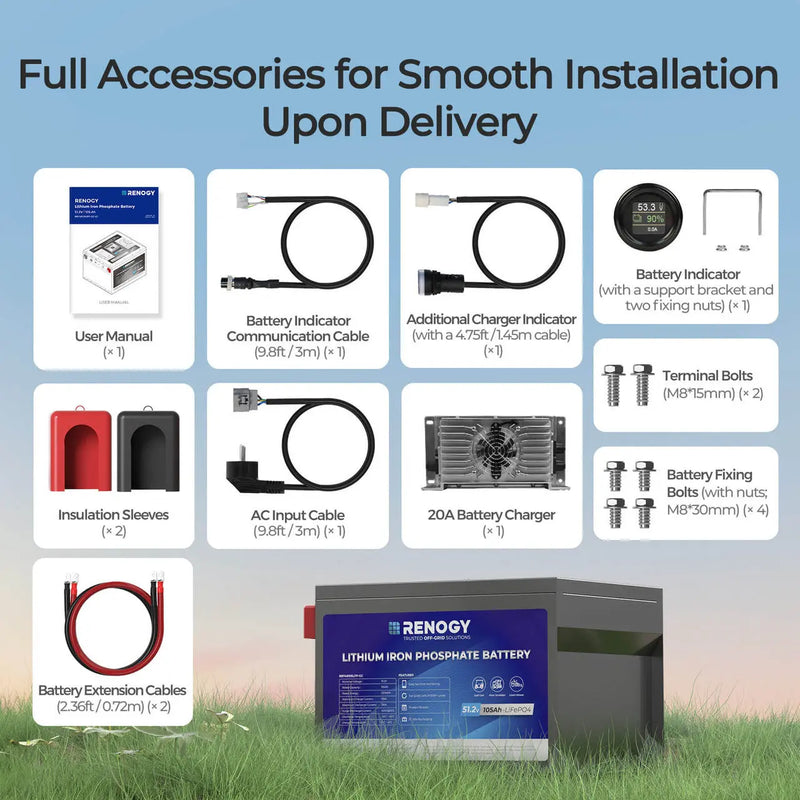

What' s in the Box
From the 20A AC-DC Battery Charger to the Battery Indicator Communication Cable, we've had you covered for a seamless upgrade from the lead-acid to the lithium battery.
Performance from the Inside Out
The corrosion-resistant metal casing keeps dirt and water out, while the 220A BMS is always on duty: balancing cells, preventing overloads, monitoring temperatures, and keeping your cart rolling smoothly.

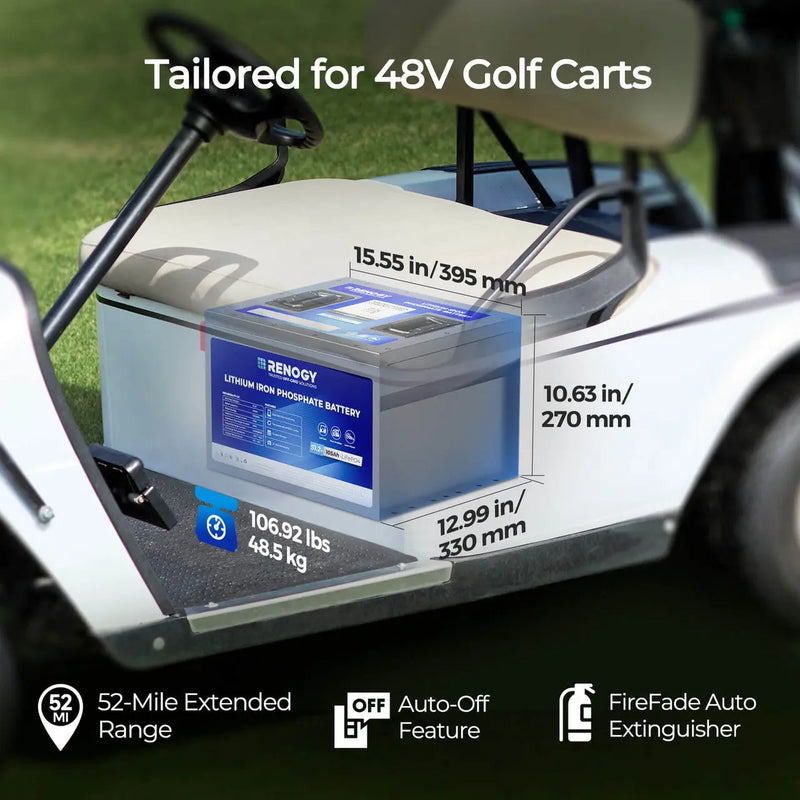

Dimensional Reference Guide
Before installing the battery, ensure a clearance of 1.97-3.94 inches (5-10 cm) above the battery, and leave at least 7.87 inches (20 cm) on the side with the busbars for optimal installation.

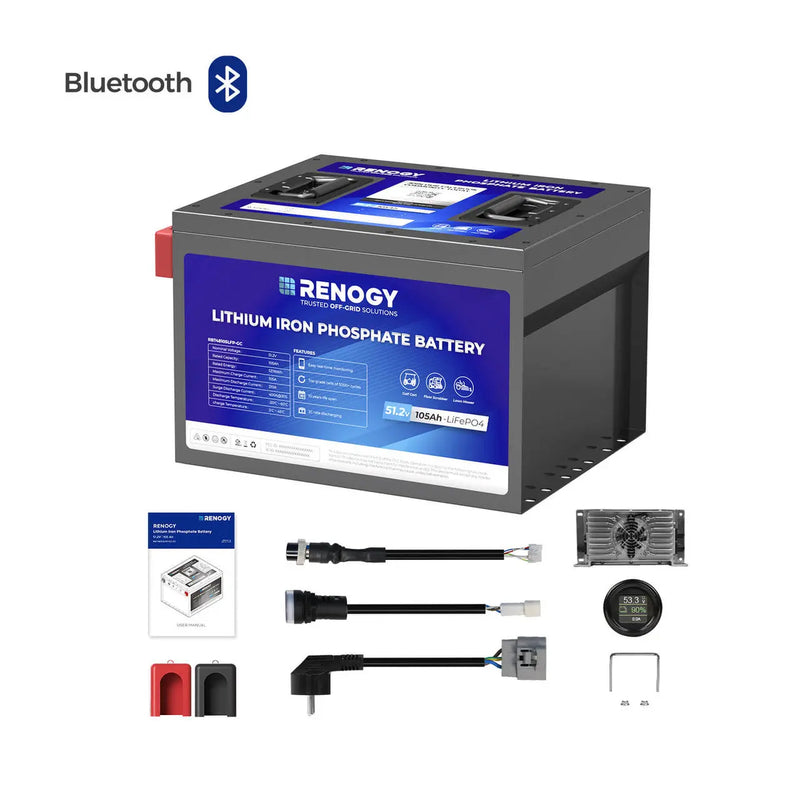

Package Includes
RENOGY 48V 105Ah Golf Cart Lithium Iron Phosphate Battery
x 1
Insulation Sleeves
x 2
Terminal Bolts (M8*15mm)
x 2
Battery Fixing Bolts (with nuts; M8*30mm)
x 4
Battery Indicator (with a support bracket and two fixing nuts)
x 1
Battery Indicator Communication Cable (9.8ft. / 3m)
x 1
Battery Extension Cables (2.36ft. / 0.72m)
x 2
Battery Charger
x 1
AC Input Cable (9.8ft. / 3m)
x 1
Additional Charger Indicator (with a 4.75ft. / 1.45m cable)
x 1
User Manual
x 1
Renogy 48V 105Ah Deep Cycle Lithium Iron Phosphate Battery
Electrical Specifications
Rated Capacity
105Ah (0.5C, 25°C)
Voltage
51.2V
Energy
5376Wh
Cycle Life (0.5C/1C, 25℃)
5000 Cycles (80% DOD, 80% EOL)
Charging Parameters
Voltage Range
40V to 58.4V
Recommended Charge Current
15A to 105A
Discharging Parameters
Maximum Continuous Discharge Current
210A
Peak Discharge Current
400A@30s
Temperature Parameters
Operation Temperature Range
Charge: 32°F to 113°F (0°C to 45°C); Discharge: -4°F to 140°F (-20°C to 60°C)
Storage Temperature Range
41°F to 113°F (-5°C to 45°C)
Operation Relative Humidity
10% to 95%
Mechanical Specifications
Dimension (L x W x H)
15.55 × 12.99 × 10.63 in / 395 × 330 × 270 mm
Weight
106.92 lbs / 48.5 kg
Terminal Bolt Size
M8 × 15 mm
Protection Rating
IP65
Warranty
5-year prorated material and workmanship warranty
Certifications
UN38.3, MSDS, FCC ID, andIC ID
Shop By Scenario
Golf Cart
Battery Charger Mechanical Specifications
Nominal Charge Voltage
51.2V
Maximum Charge Voltage
58.4V
Maximum Continuous Charge Current
20A
AC Input Voltage Range
90V to 264V
Operating Temperature
-40°F to 122°F (-40°C to 50°C)
IP Rating
IP66
Operation Relative Humidity/repeat1
10% to 95%
Dimension (L x W x H)
11.1 × 5.75 × 3.24 in / 282 × 146 × 82.4 mm
