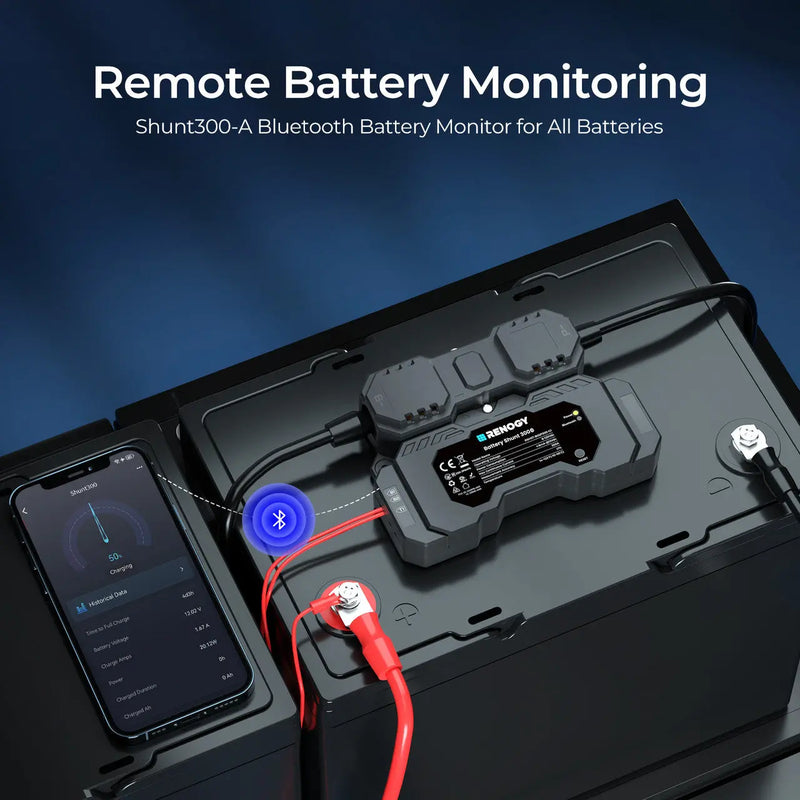

- -Remote monitoring and control via Renogy ONE/DC Home App.

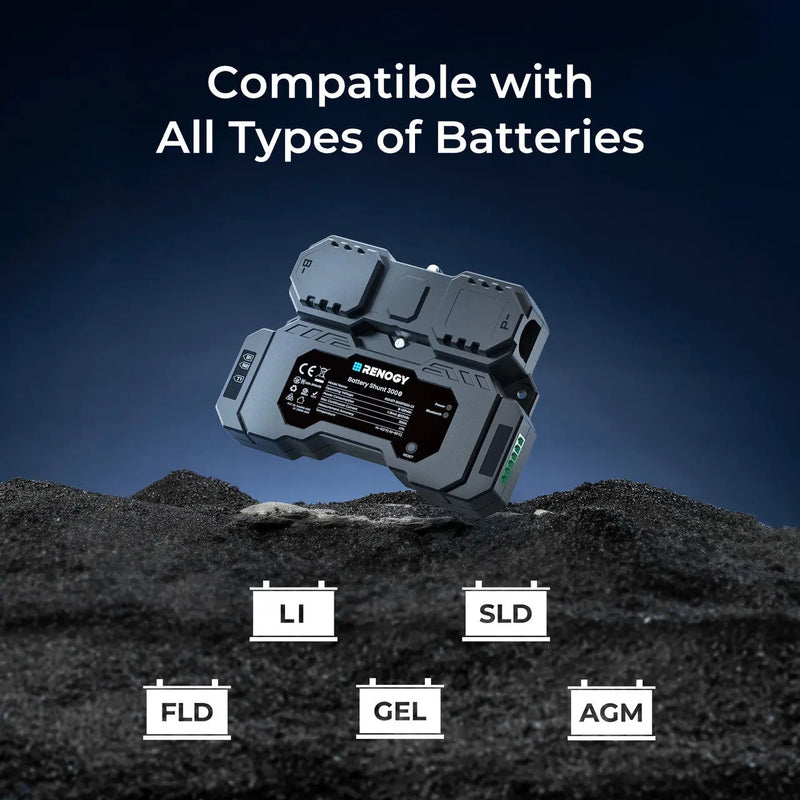

- -Compatible with various batteries: Lead Acid, LFP, Li-ion, and Ni-MH.
- -Displays State of Charge, temperature, and starter battery voltage.

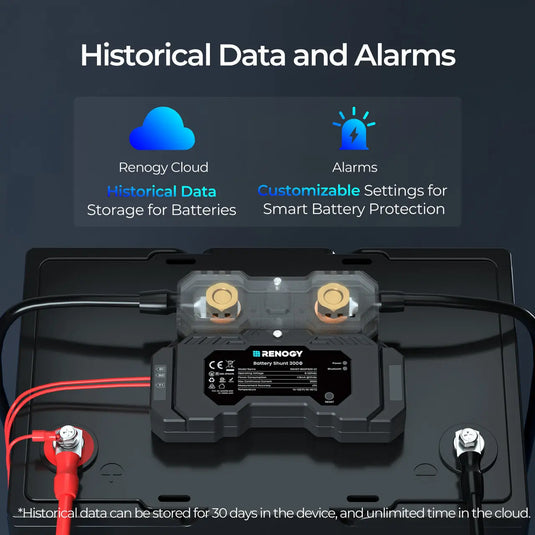

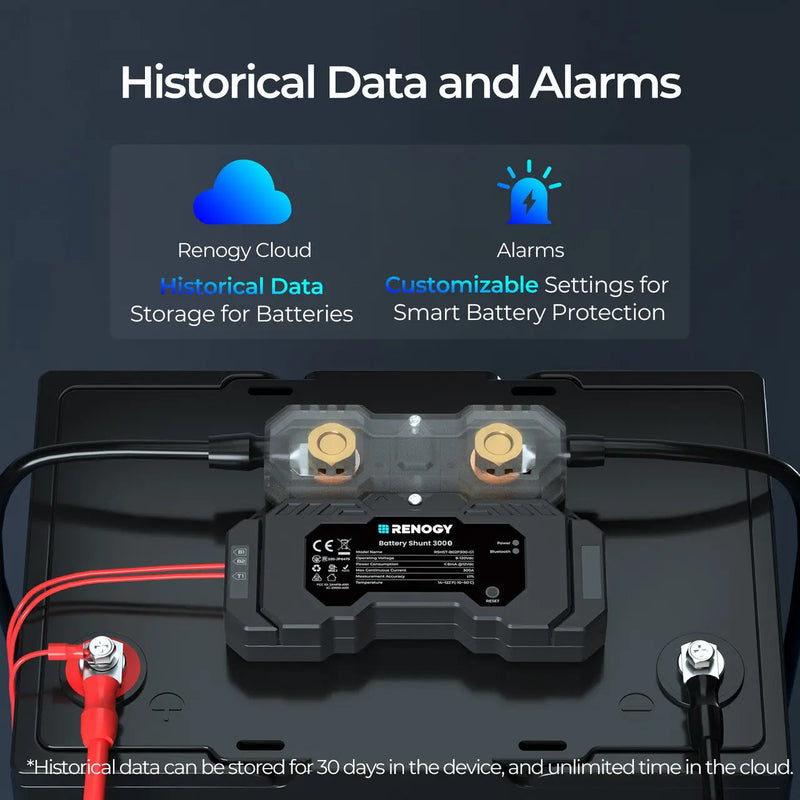

- -Records historical data and issues alerts via DC Home app.
- -Not compatible with Renogy ONE M1 currently.
Package Includes
- Battery Shunt 300 x 1
- Quick Guide x 1
- Mounting Screws x 3
- B+ Wires (1 m) (22 AWG) × 2
- Temperature Sensor (1.5 m) × 1
Specifications

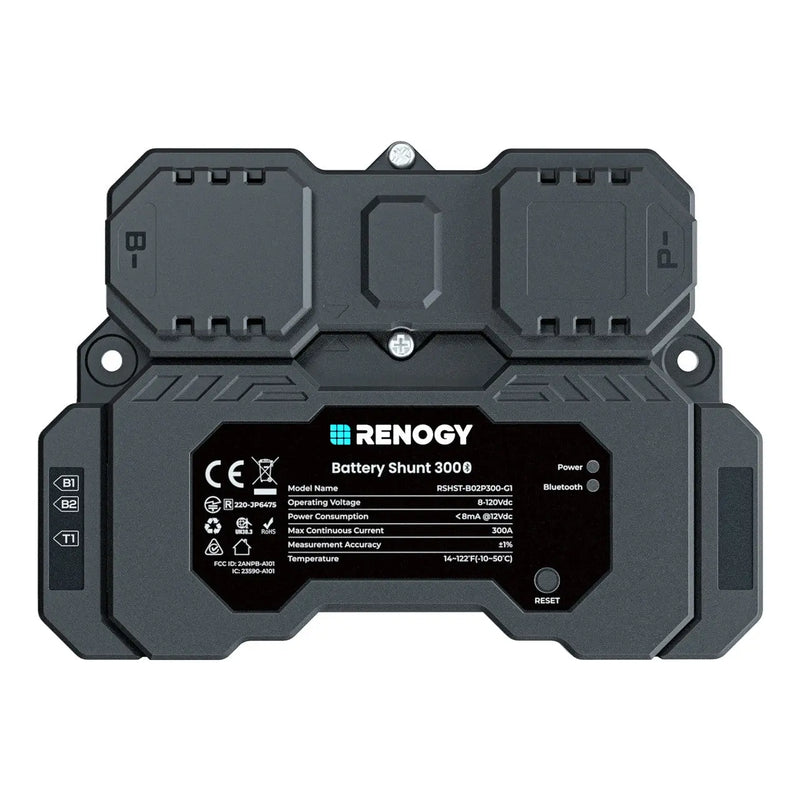

Model Name: RSHST-B02P300-G1
Power Supply: 8 - 120 VDC
Power Consumption: <0.1 W
Communication: Bluetooth LE and BLE Mesh
Max continuous current: 300A
Max peak current: 500A(<10s)
Current accuracy: ±1%
Current Resolution: 0.01 A
Battery Capacity: 1 - 6500Ah
Voltage Input Range: 8V to 120V DC
Voltage input resolution: 10 mV
Temperature sensor range: -20~80℃
Temperature sensor accuracy: ±1%
Operating Temperature: 14°F to 122°F (-10°C to 50°C)
Operating Humidity: 0% to 95% RH
Operating Altitude: Less than 2000m above sea level
Installation: Surface mounting
Battery connection: M10 bolts
Weight: 0.57lb (260g )

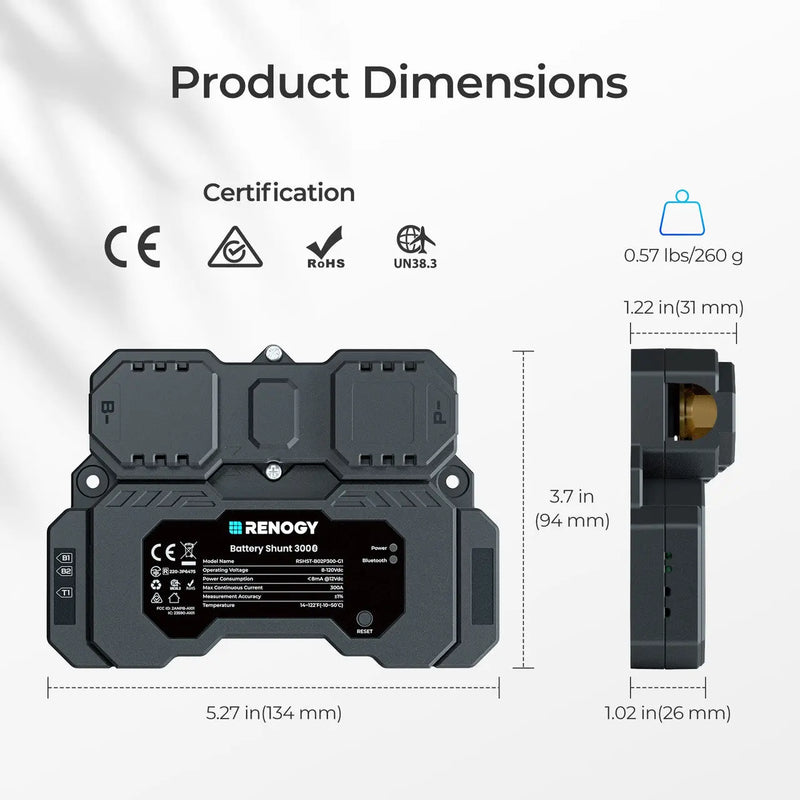

Dimensions: 5.27 x 3.82 x 1.22 inch (134 x 97 x 31 mm)
Warranty: 1-year material and workmanship warranty
Certifications: CE, FCC ID,IC ID,RCM,TSCA, RoHS,UN38.3,TELEC
