- 【Boost Charging】Boosts the voltage of 12V or 24V solar panels to charge 36V or 48V batteries

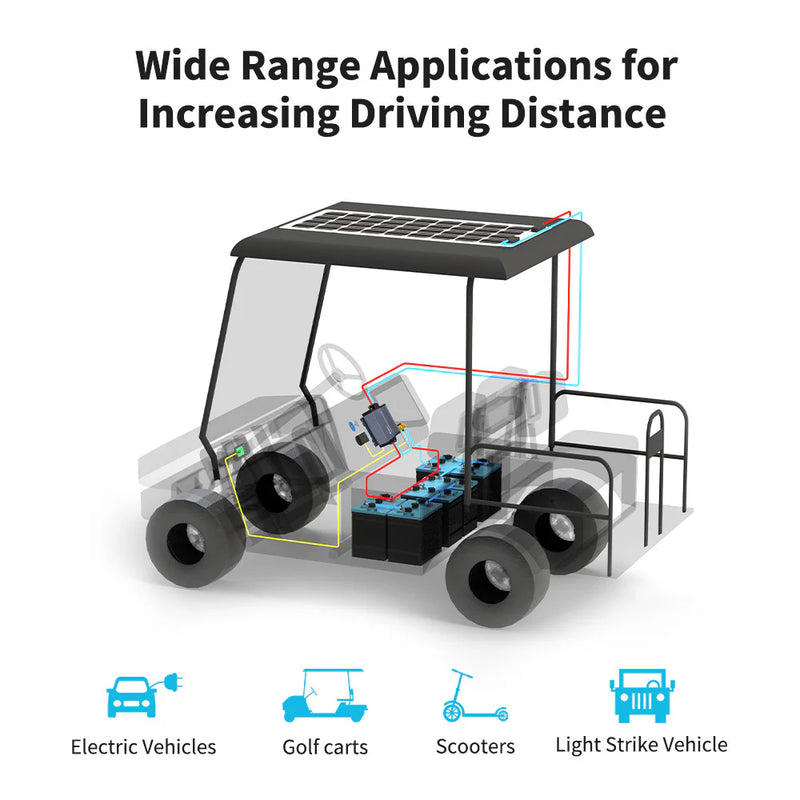

- 【Wide Range Applications 】Increasing driving distance includes: electric vehicles, golf carts, scooters, trikes, and more
- 【99% MPPT Charging Efficiency】Advanced MPPT Technology with minimum 99% tracking efficiency and 90% charge conversion efficiency for 4-stage battery charging (Bulk, Boost, Float, and Equalization) with charging
- 【4 Preset Battery Charge】AGM/Sealed, Gel, Flooded, and Lithium. User mode also available for customizing charging

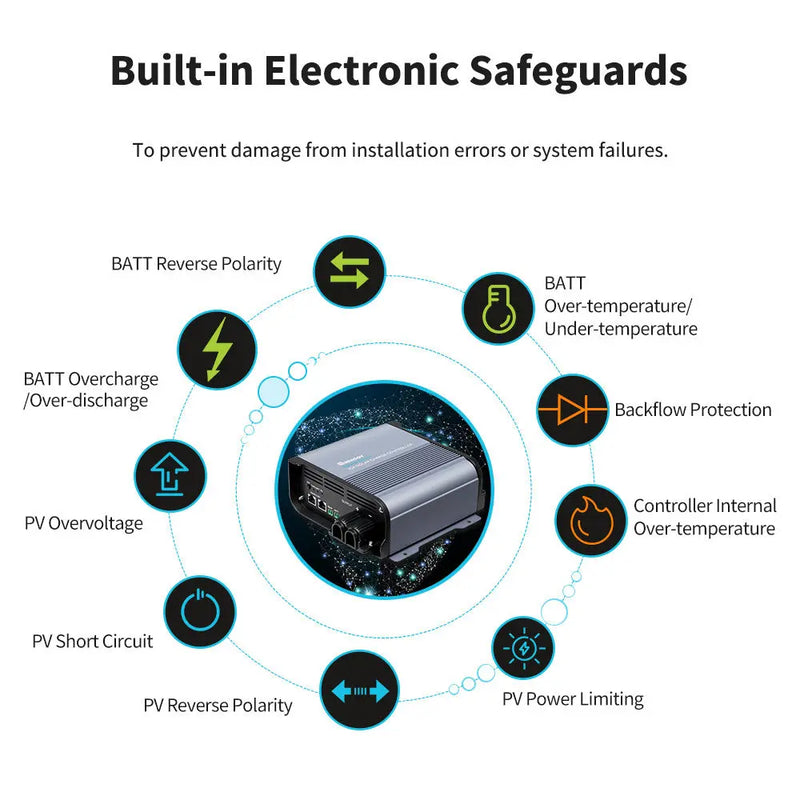

- 【Multiple Electronic Protections】 Protect your battery, controller, and solar—including over-charge protection, reverse polarity protection, and more!

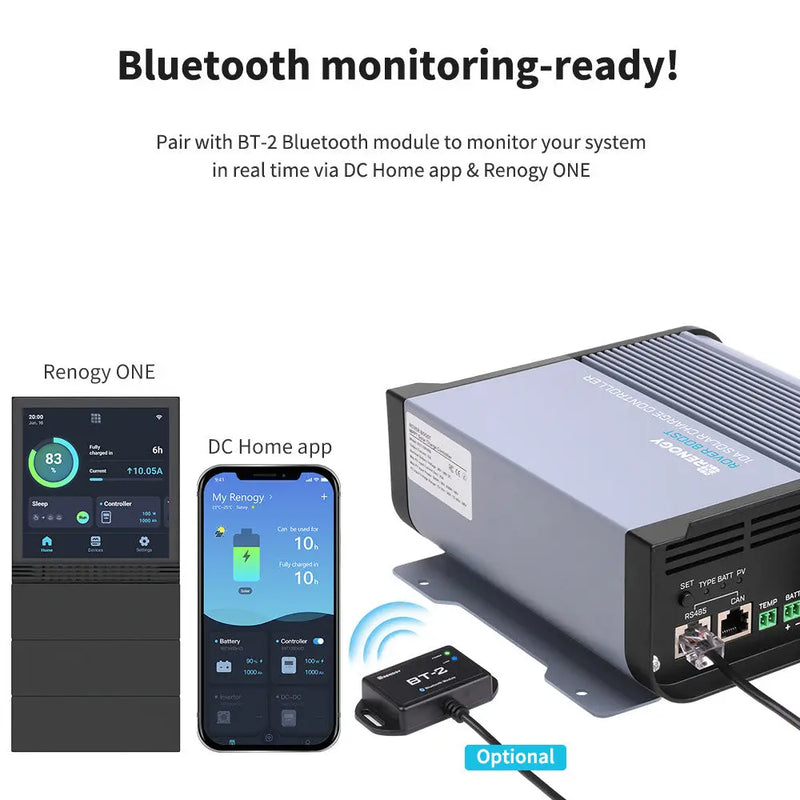

- 【Bluetooth monitoring 】Add a Renogy Bluetooth Module (sold separately) and download the Renogy DC Home App for remote monitoring and customization.

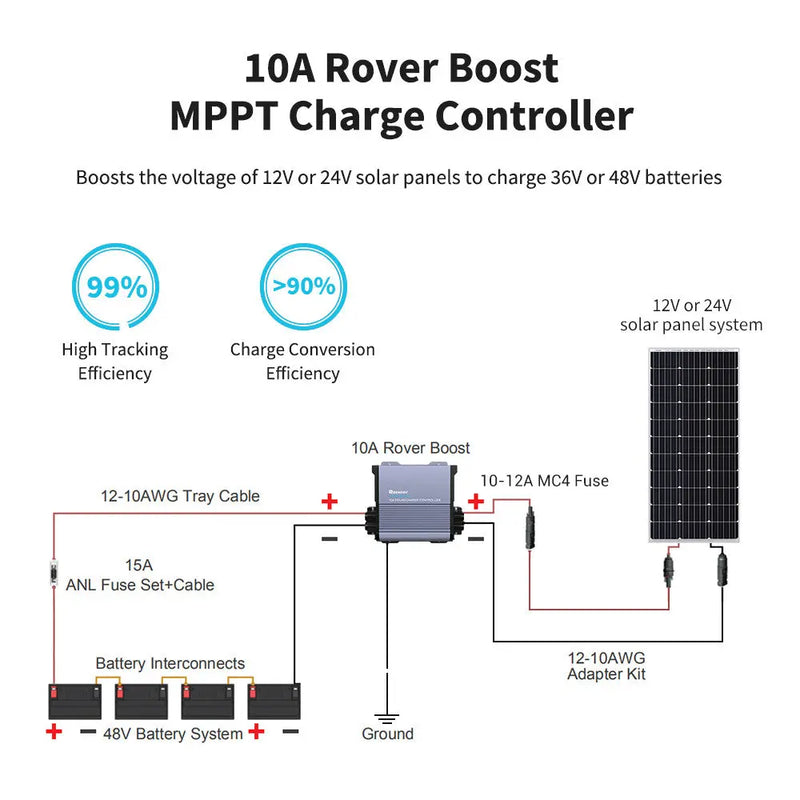

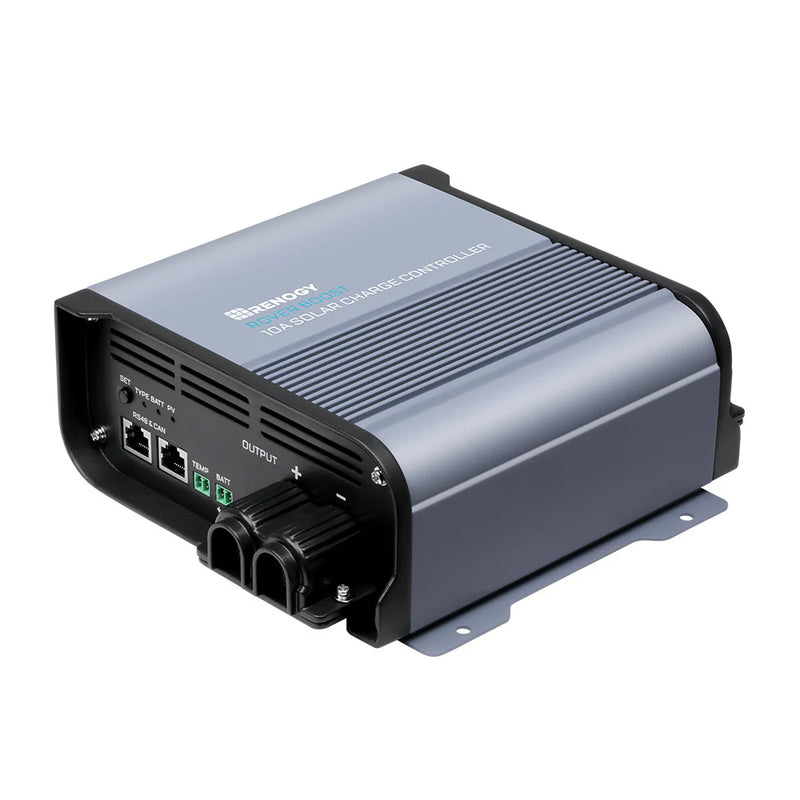

The 10A Rover Boost charge controller is a one-of-a-kind solution for charging 36V or 48V battery banks using 12V or 24V low voltage solar panels. It has been especially designed for golf carts and electric vehicles to increase both driving range and battery life by harnessing solar power. The Rover Boost increases panel voltage with the built-in advanced MPPT technology, maintaining high-speed tracking for maximum performance. Compact yet powerful, this unit is particularly suitable for narrow spaces and requires less setup. Pre-programmed for lead-acid and lithium batteries, it also supports the Renogy Bluetooth monitor for remote reading and adjusting via a smartphone.

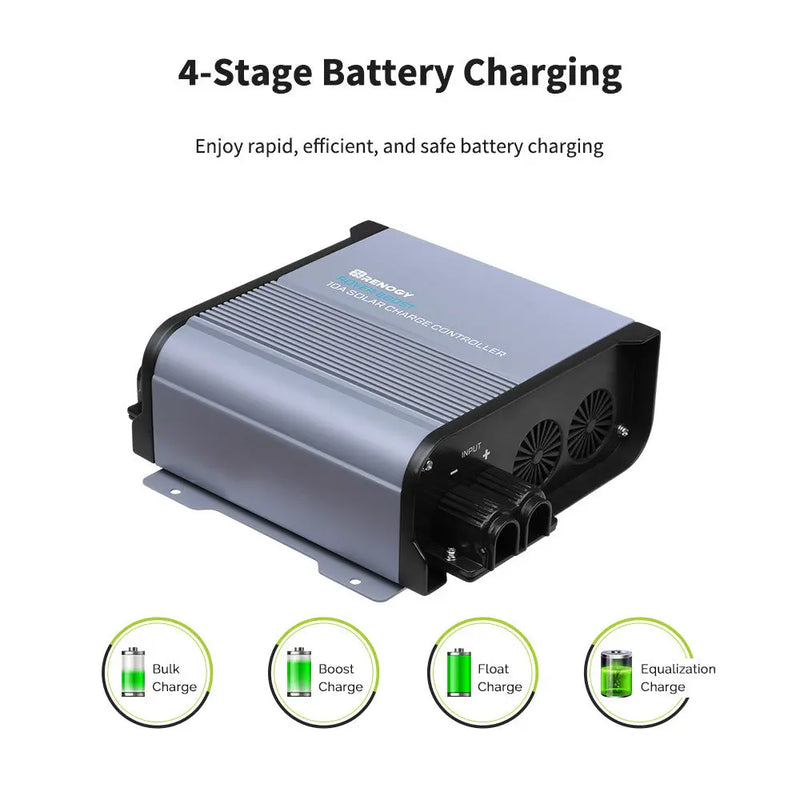

The advanced MPPT technology delivers a minimum of 99% tracking efficiency and 90% charge conversion efficiency, ensuring optimal battery charging. With a 4-stage charging process (Bulk, Boost, Float, and Equalization), it provides efficient and precise charging for various battery types.

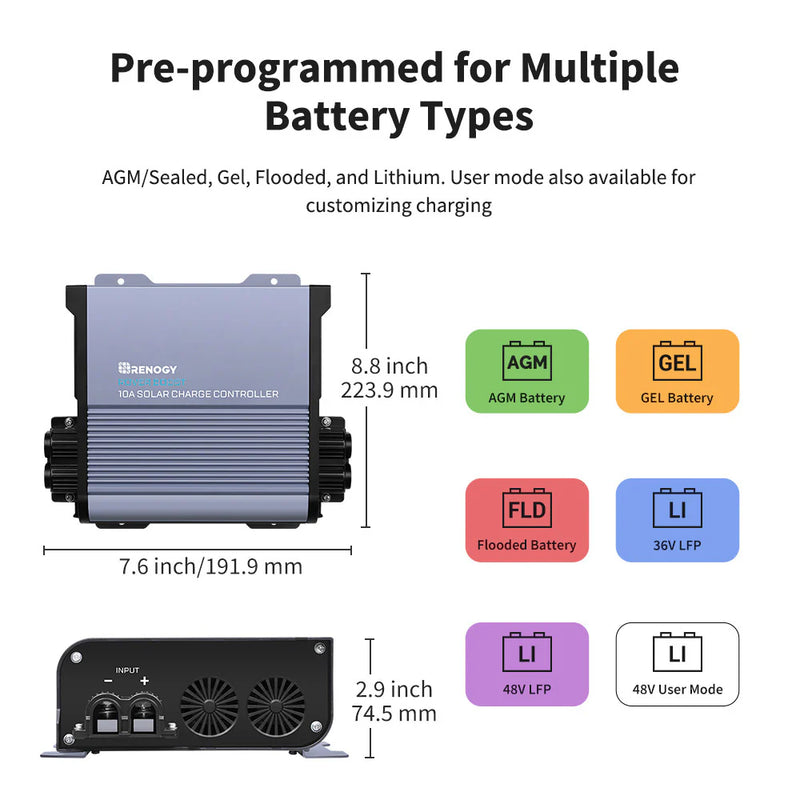

4-preset battery charge profiles for AGM/Sealed, Gel, Flooded, and Lithium. User mode also available for a wide variety of applications. User mode also available for customizing charging.
Enhance your system with the Renogy ONE M1 by connecting it to the BT-2 Bluetooth Module (sold separately). This integration enables Wi-Fi connectivity, allowing your energy status to be uploaded to the cloud while you're on the go. Monitor your system in real-time from anywhere using your phone.
● SKU: RCM-BT2

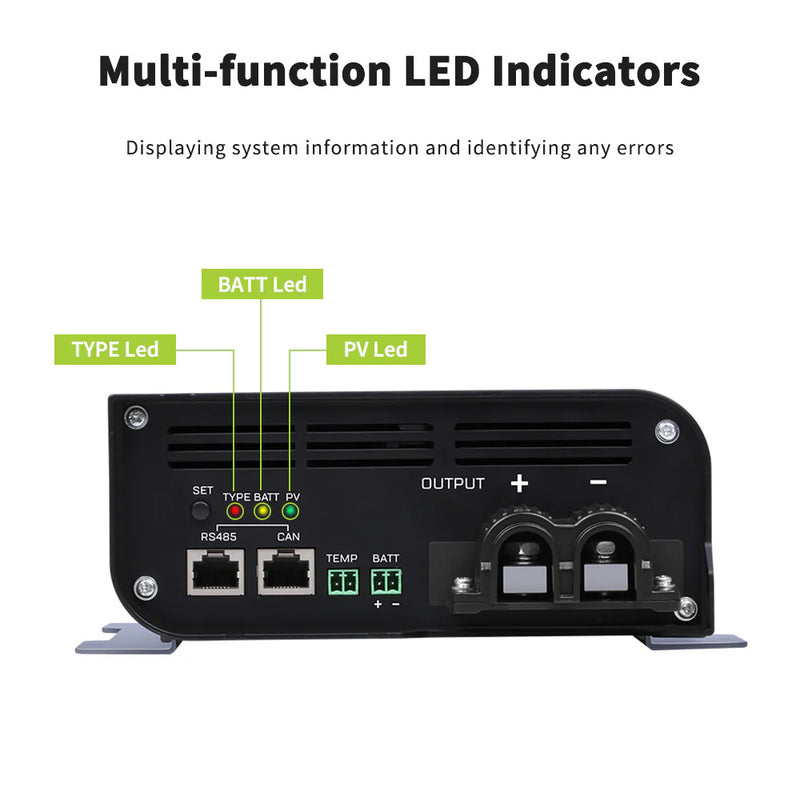

Multi-Function LEDs display system information and identify any errors.
Remote temperature sensor to active temperature compensation function of solar charge controller
● SKU: RTSCC
Accurate voltage sensing enhances overall battery performance and health, ensuring efficient charging and preventing damage from overcharging or undercharging.
● SKU：RVSCC
If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or submit a ticket for troubleshooting assistance.
More questions about your off-grid power system? Learn more from Renogy Learning Center!
Package Includes
|
36V/48V Rover Boost 10A MPPT Solar Charge Controller
1 x
|
Specifications
| 36V/48V ROVER BOOST 10A MPPT SOLAR CHARGE CONTROLLER (RCC10RVRB) | |||
|---|---|---|---|
| Electrical Parameters | Environmental Data | ||
| Nominal System Voltage | 36V / 48V, Auto Recognition (Non-Lithium) | Protection Level | IP20 |
| Rated Charge Current | 10A | Operating Temperature Range | -31°F ~ 149°F/ -35°C ~ + 65°C |
| Max. PV Input Power |
PV Input Power: 500W/36V; 650W/48V Charging Power: 450W/36V; 600W/48V |
Storage Temperature Range | -40°F ~ 176°F / -40℃ ~ + 80℃ |
| MPPT Voltage Range |
15 ~ 25VDC / 36V 15 ~ 40VDC / 48V |
Operating / Storage Humidity | 0-95% RH |
| Max Input Current (short-circuit, Isc) | 35 A | Temperature Compensation |
-3mV / ℃ / 2V (Non-Lithium) 0mV / ℃ / 2V; no compensation (Lithium) |
| Solar Input Voltage Range (VOC) |
15 ~ 25VDC / 36V 15 ~ 40VDC / 48V |
Mechanical Specifications | |
| Power Limiting Protection | Up to 600W/36V; 800W/48V | Dimensions | 8.8 x 7.6 x 2.9 inch / 224 x 192 x 74.5mm |
| Battery Operating Range | 30 ~ 65 VDC | Weight | 2.65 lbs / 1.2 Kg |
| Power Consumption | ≤ 2W | Max. Terminals Size | 16 ~ 2 AWG, M6-12x1 |
| Ground Type | Common Negative Lug (M3) | Certifications | |
| Battery Types | AGM/Sealed, GEL, FLOODED, LFP, USER* | CE and RoHS compliant | YES |
| Electronic Protections | Battery overcharging, Battery over discharge, Battery reverse polarity protection, PV reverse polarity, PV Reverse flow, PV short-circuit protection, Controller internal over-temperature protection, Charging over-current protection | FCC Class B Part 15 Compliant | YES |
| Optional Accessories | Warranty | ||
| Remote Monitor | Bluetooth Module BT-2 (RS485 / CAN bus signal) | Material and workmanship warranty | 2 Year |
