Efficient 24V for Compact System Integration and Battery Conservation

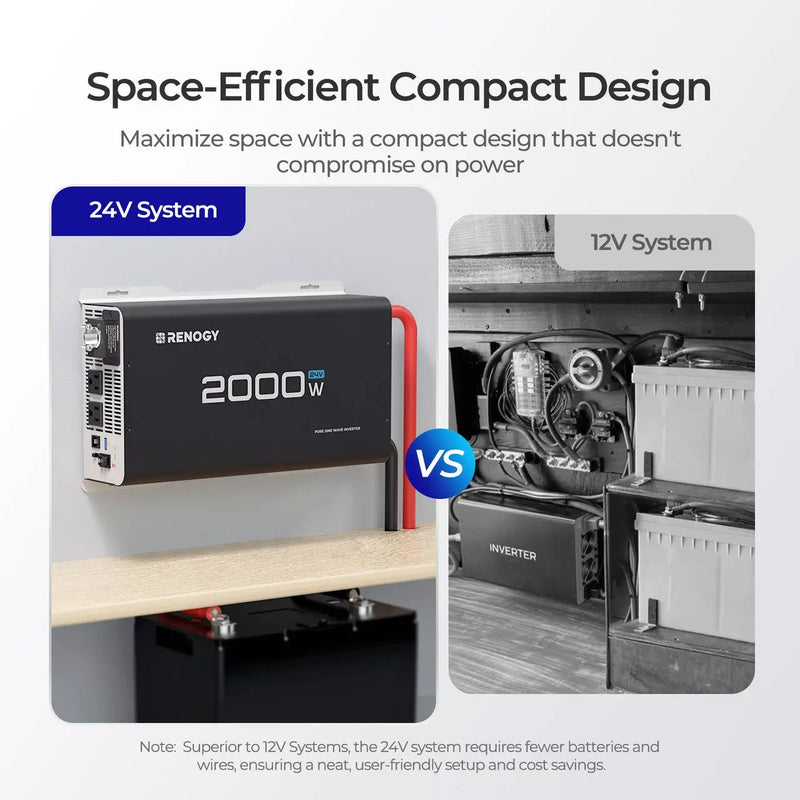

Compact 24V Systems for Space-Saving Efficiency
4000W Peak Boost for Inductive Loads
Fans for Semi-Truck Backseats & Enclosed Spaces
Safeguard Your Boat Trips with GFCI

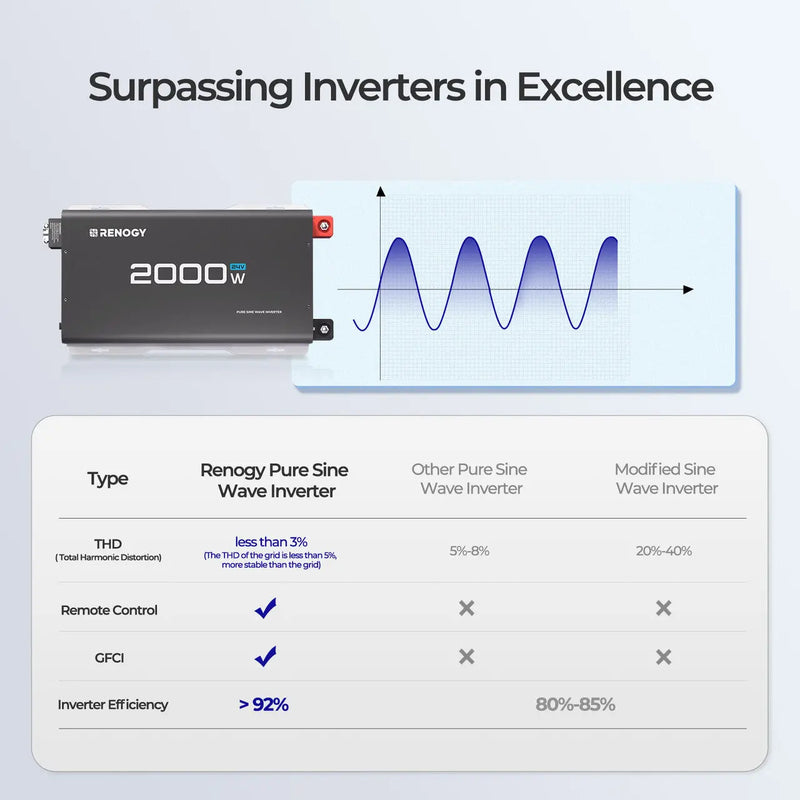

Surpassing Inverters in Excellence

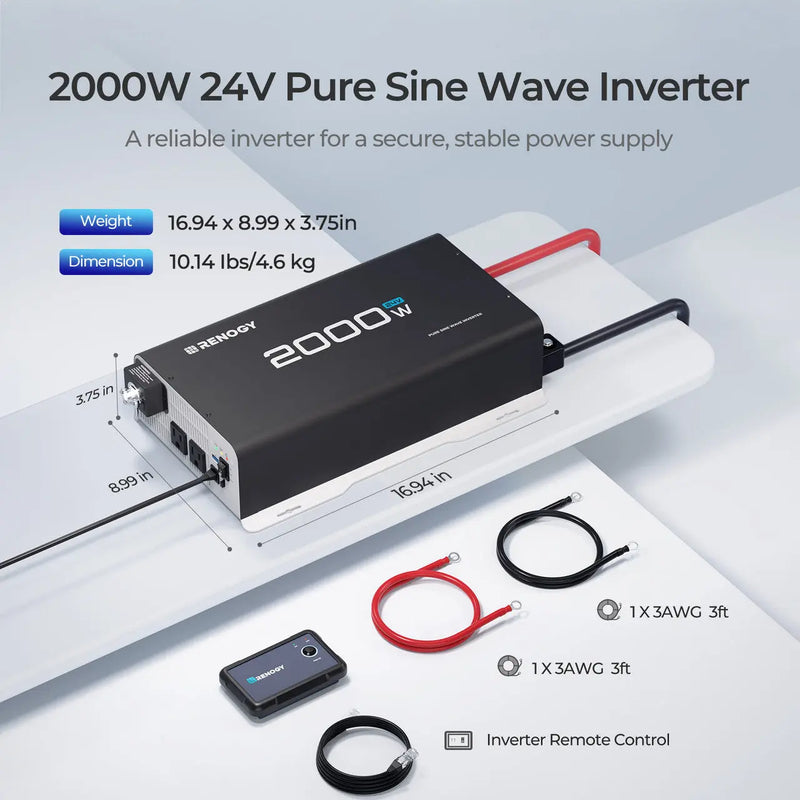

Dimensional Reference Guide
Before installing the inverter, leave 1.97 inches of space for the top of the inverter and at least 4 inches on the side with busbars.

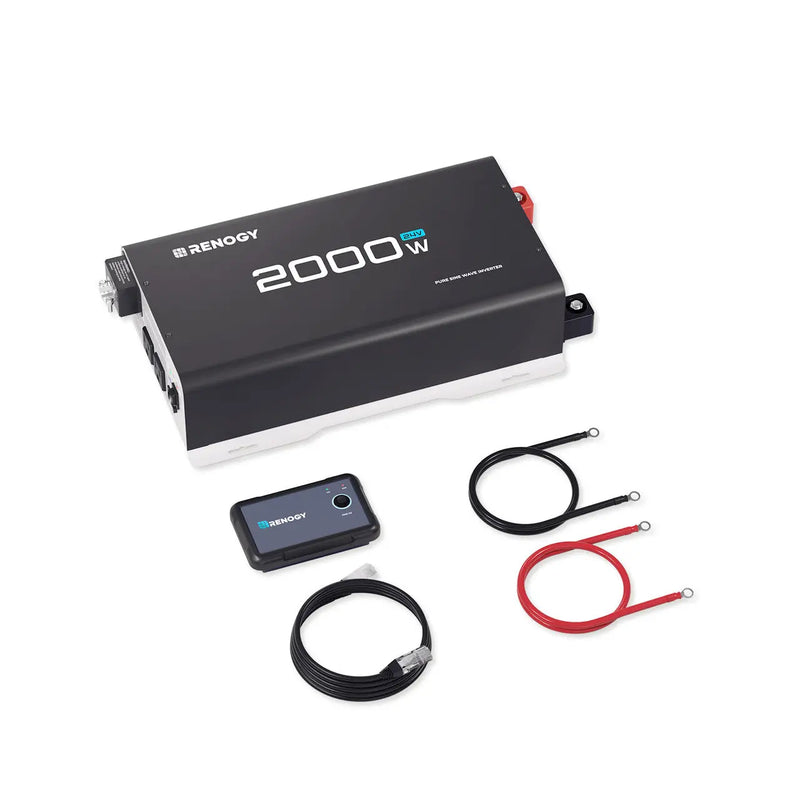

Package Includes
Renogy 2000W 24V Pure Sine Wave Inverter
x 1
Inverter Remote Control
x 1
Inverter Cables
x 2
Renogy 2000W 24V Pure Sine Wave Inverter
General Data
AC Terminals
2 x AC Sockets + Terminal Block
DC Terminals
M8-1.25x25
Operating Temperature
-4°F-131°F/-20℃ ~ 55℃
Storage Temperature
-40°F-158°F/'﹣40℃～70℃
Humidity
Max 95%, Non-condensing
Cooling
Thermally Controlled Fans
Enclosure Rating
IP20
Dimensions (LxWxH)
16.94 x 8.99 x 3.75in / 430.3 x 228.4 x 95.3 mm
Weight
10.14Ib/4.6kg
Output Waveform
Pure Sine Wave
Electrical Data
Continuous Output Power
2000W
Continuous Output Current
16.6A AC
Total Harmonic Distortion (THD)
<3%
Power Factor
1
Surge Rating
4000W (@ 2s)
Output Voltage
120V AC±3%
Output Frequency
50/60Hz
Rated Battery Input Voltage
24VDC
Battery Input Voltage Range
23-30.7VDC
Maximum Continuous Battery Output Current
106A

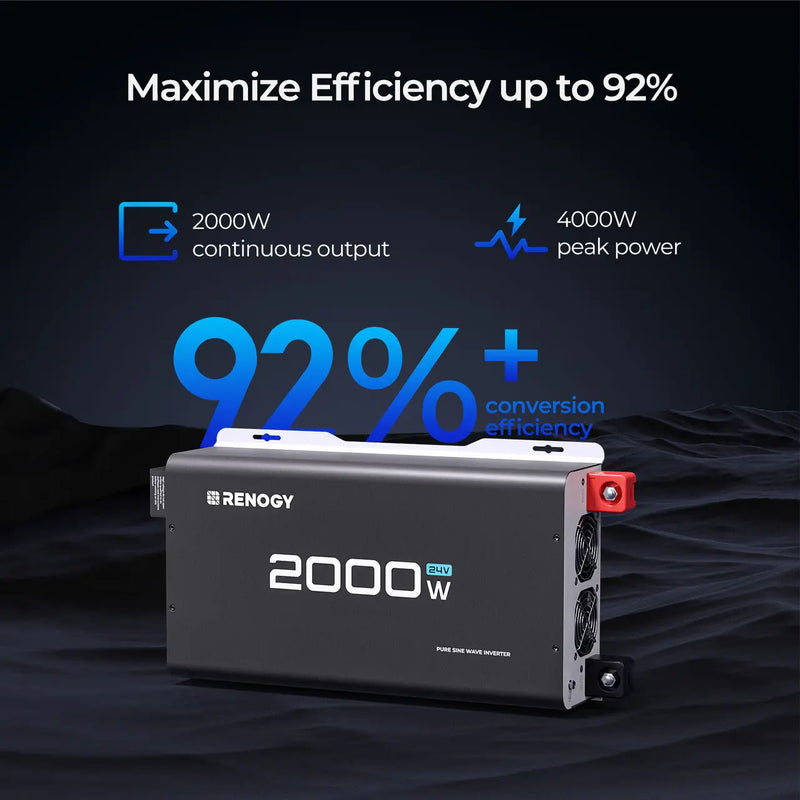

Inverter Efficiency
max 92%
Full Load Efficiency
89%
Power Consumption
<19.2W
Battery Overoltage Shutdown
33.3VDC±0.5VDC
Battery Low Voltage Alarm
22.4VDC±0.5VDC
Battery Low Voltage Shutdown
21.8VDC±0.5VDC
Wired Remote Data
Front Plate Dimensions
4.3x2.6x1.3 in /110x70x31.8mm
Wired Length
16.40ft
Standard
EMC
FCC Part 15 ClassB
Safety
UL458 (including Marine supplement) /CSA-C22.2 No 107.1
Material and workmanship warranty
1 Year
