Features
1. Intelligent Charging System
- Auto Voltage Detection: Auto-sensing 12V/24V system (manual setup available)
- Multi-Battery Support: Optimized charging profiles for Sealed, GEL, Flooded, and Lithium battery types
- 3-Stage PWM Charging: Boost → Float → Equalization (prevents sulfation in lead-acid batteries, excludes GEL/Li)
- Temp Compensation: Auto-adjusts voltage (-3.0mV/°C/2V) for optimal charging (excludes Lithium)
2. Reliable Load Control & Protection
- 5 Operating Modes: Light Control (10-min delay) | Timer Control (1-14h) | Manual | Debug | Always ON
-
Comprehensive Protection: Overcharge/discharge, overload, short-circuit, and reverse polarity protection
3. User-Friendly & Durable Design

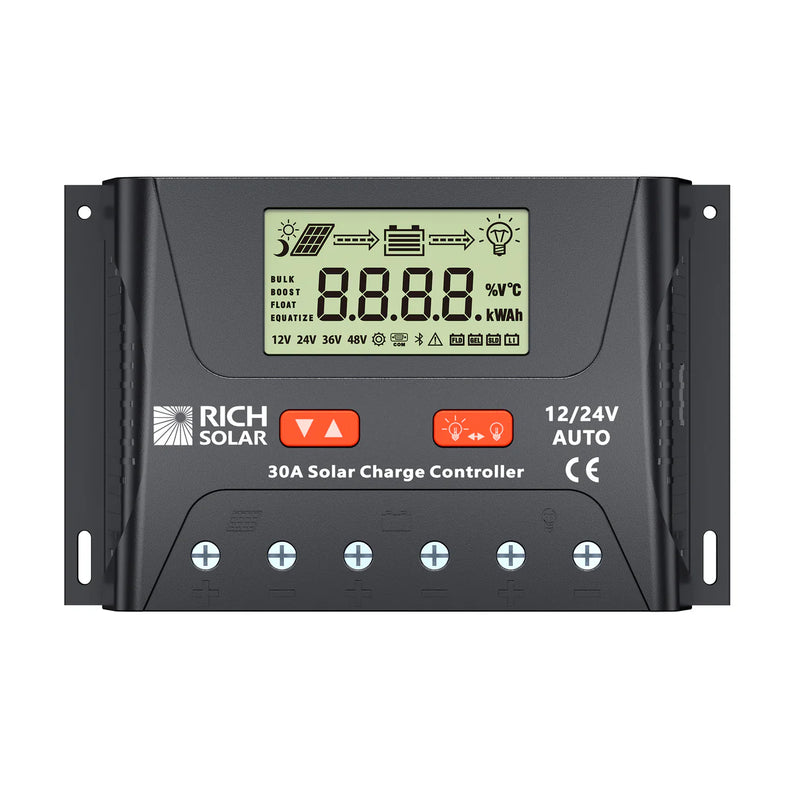

- Clear LCD Display: Dot-matrix screen with real-time monitoring
- Simple 2-Button Control: Adjust settings easily (memory retains configurations)
- Rugged Build: IP30 enclosure, operates from -13°F to +131°F
Specifications
- Rated Current: 30A
- System Voltage: Auto recognition: 12V / 24V (Manual setup optional)
- Rated Power: 450W @12V / 900W @24V
- Max. Solar Input Voltage: < 55V
- Max. Battery Voltage: < 34V
- No-load Loss: <13mA @12V / <15mA @24V
- Battery Compatibility: Lithium/Sealed/GEL/Flooded
- Operating Temperature: –13°F to +131°F (–25°C to +55°C)
- Protection Rating: IP30 (Dust/Splash Resistant)
- Dimensions: 164×103×47mm (6.46×4.07×1.85in)
- Net Weight: 0.39kg (0.86lb)
