Key Features
- Delivers stable 3000W with peak power up to 6000W for loads.
- Protects the battery from peak current surges for longer lifespan.

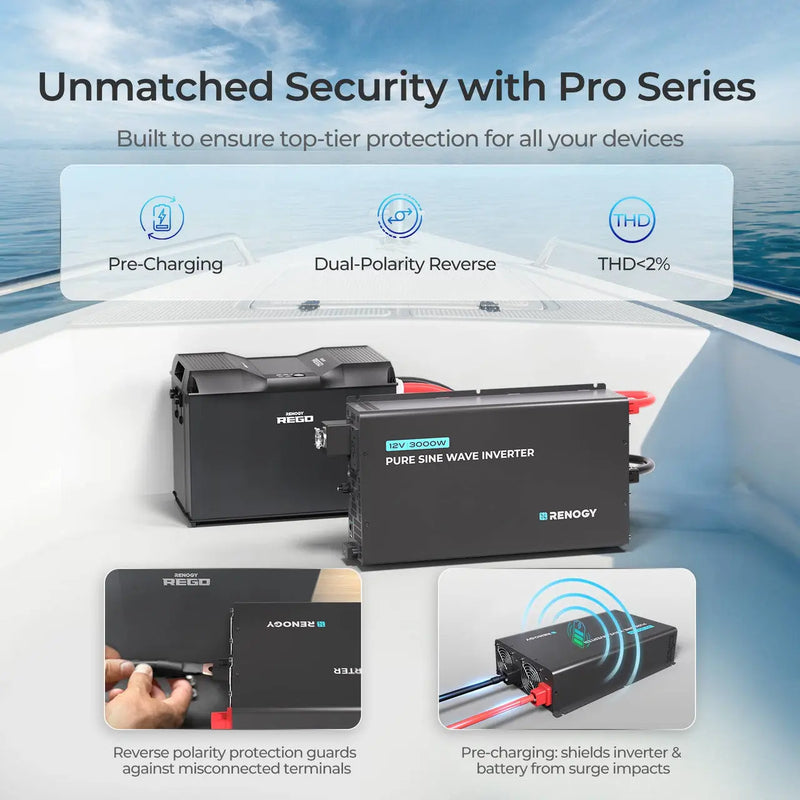

- Dual-polarity reverse connection protection enhances reliability.
- Activates ecosleep mode, reducing idle consumption to under 10W.
- Supports Bluetooth & RV-C for real-time monitoring with a warranty.
- Note: Dimensions: 2.8 x 4.3 x 1.3 in / 70 x 110 x 31.8 mm
3000W 12V Pro Pure Sine Wave Inverter
Transforming Power with Safety and Adaptability

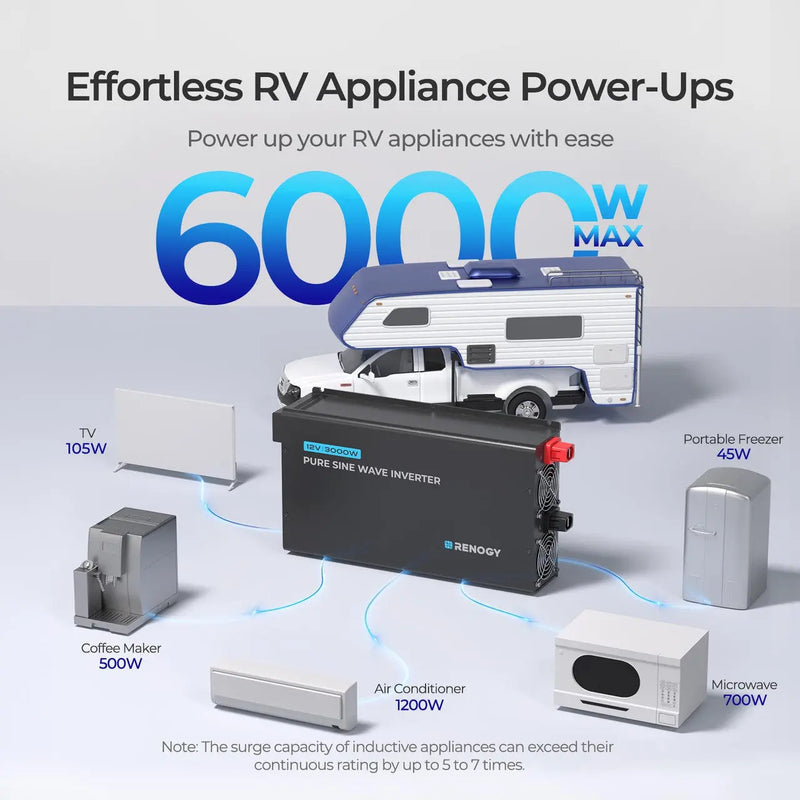

6000W Peak Boost for Inductive Loads
Inverter Pre-Charging for Smooth Startup & Safe Operation
Dual-Polarity Reverse Protection for Effortless Power Connection

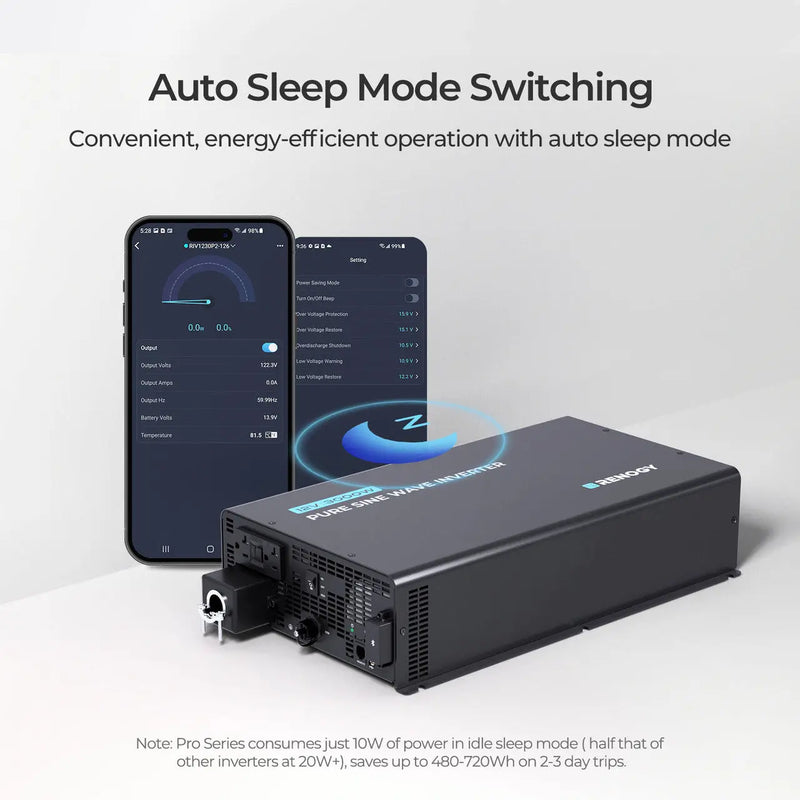

EcoSleep Mode for Energy Savings
Seamless Management with Real-Time Monitoring & Remote Control
Monitor your appliances in real-time to ensure safe, efficient operation. Stay informed about device status and potential issues directly from your fingertips.
Simplify your daily routine with the convenience of remote control. Operate your appliances from the comfort of your seat, offering seamless home automation and effortless living.

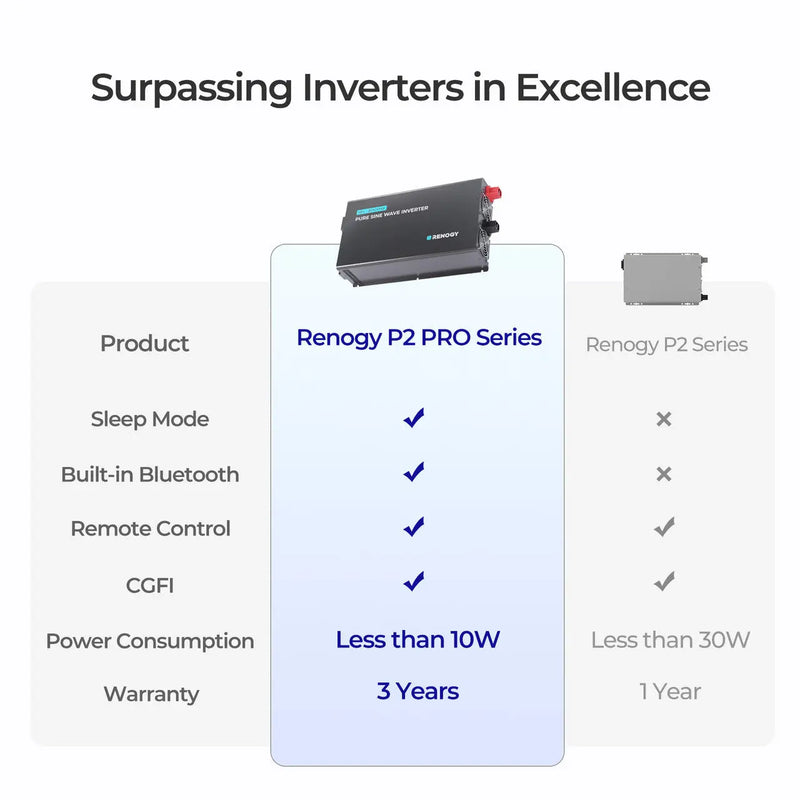

Surpassing Inverters in Excellence

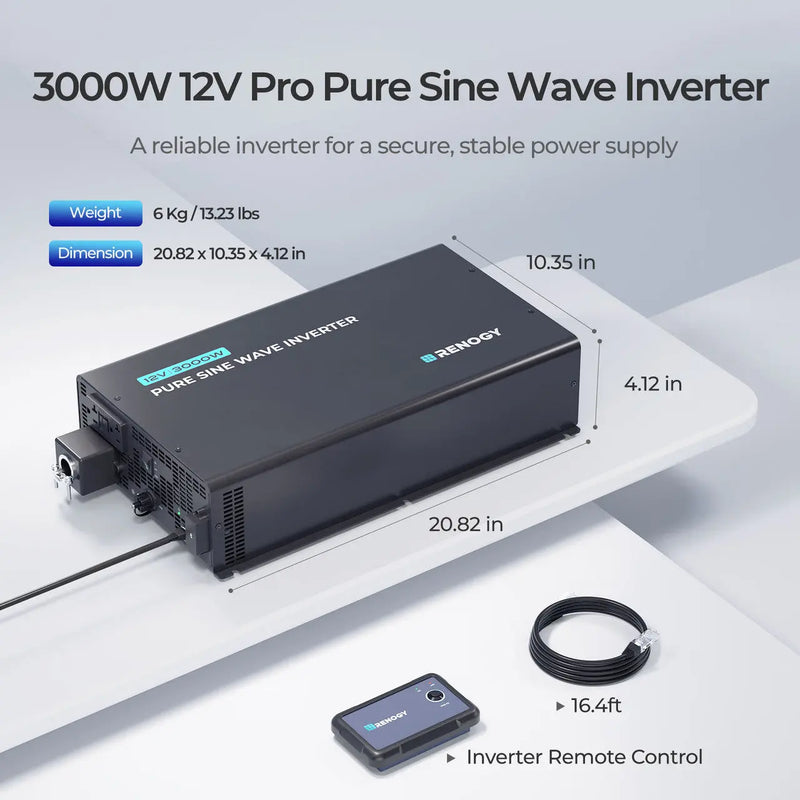

Dimensional Reference Guide
Before installing the inverter, leave 1.97 inches of space for the top of the inverter and at least 4 inches on the side with busbars.

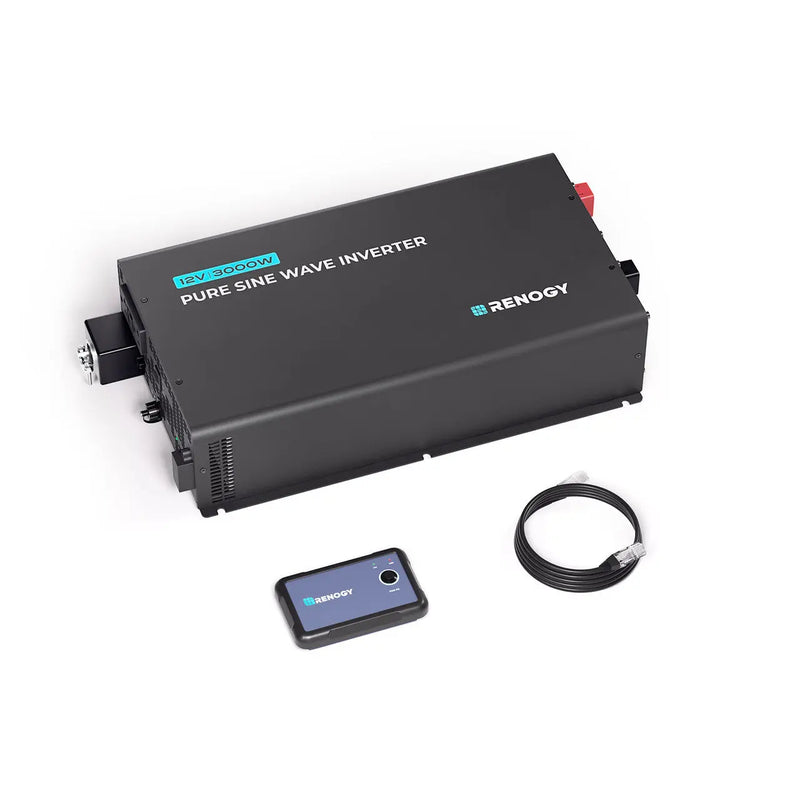

Package Includes
3000W Pure Sine Wave Inverter
x 1
User manual
x 1
Inverter Wired Remote Control
x 1
Renogy 3000W 12V Pro Pure Sine Wave Inverter
Inverter Specifications
Rated Output Power
3000W
Surge Power (100ms)
6000W
Nominal output Voltage RMS
120Vac ±3%
Outuput Frequency
60Hz ± 0.3Hz
Output Wave Form
Pure Sine Wave
AC Output Sockets
2* AC Sockets + 1 DIY AC Terminal
Nominal Input Voltage
12 VDC
Input Voltage Range
11-15.5Vdc
Peak Efficiency
≥90%
Full-load Efficiency
≥87%
Short Circuit Protection
Software Protection
THD
＜3% （Resistance load）
No load power Consumption（Sleep）
Normal:<10 W
Overload Capacity
≥1min @120%; ≥5s @150%; ≥100ms @200%
General Specifications
Communication
RS485 /RV-C
Mobile APP
Yes
Display Control Panel
Renogy one Core
Battery Types
GEL, AGM, SLA, FLD, LI
Operating Temperature Range
Full load: -20℃ ~ 40℃; Down load: 40 ℃~ 50 ℃
Storage Temperature
﹣40℃～70℃
Humidity
0% ~ 95%
Noise
<55dB
Dimensions
20.82 x 10.35 x 4.12 in
Weight
6 Kg (13.228lb)
Wired remote control
List dimensions
2.8 x 4.3 x 1.3 in / 70 x 110 x 31.8 mm
Wire length
Approx 16.4ft
Standard
EMC
FCC Part 15 ClassB
Safety
UL458 (including Marine supplement) /CSA-C22.2 No 107.1
Material and workmanship warranty
3 Years
