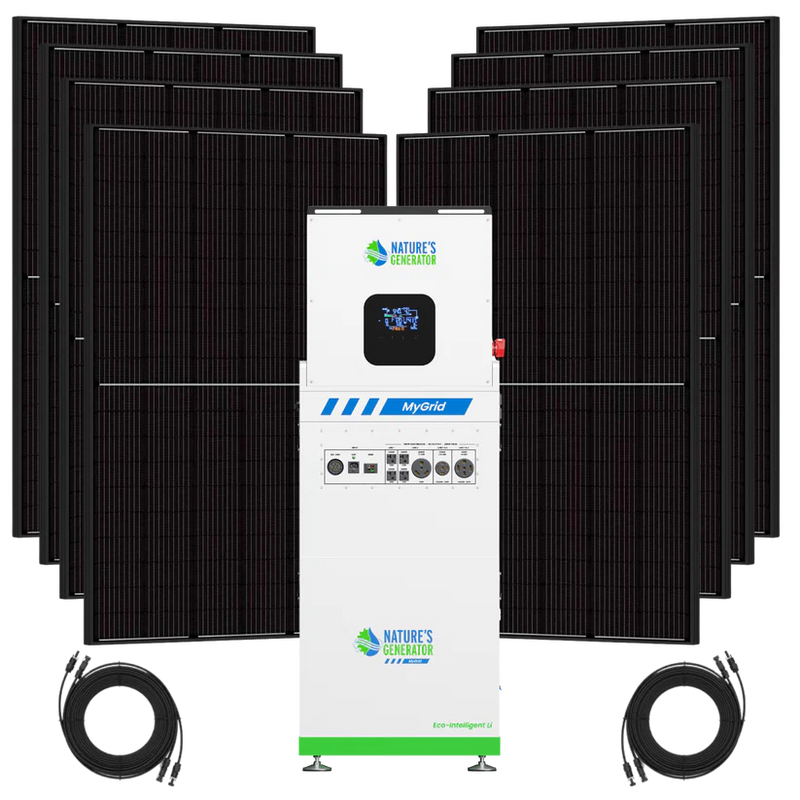

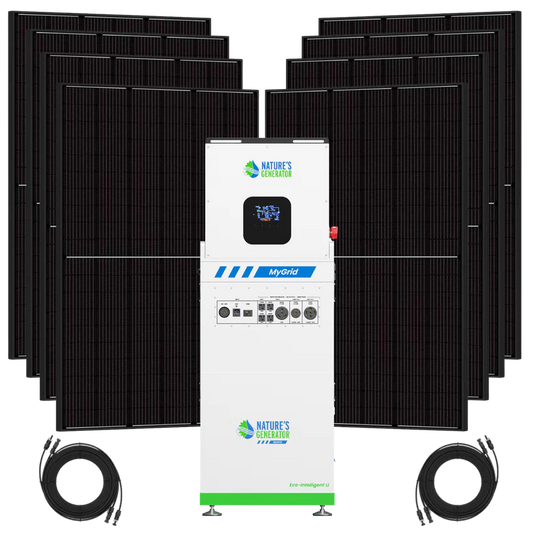

MyGrid 10K+ 8X Rigid 410W Solar Panel
• Complete Solar Power Bundle: Includes the MyGrid 10K solar generator with high-efficiency solar panels to capture free clean energy right out of the box.
• Reduce Electricity Bills: Store solar or off-peak energy and use it during high-rate periods to lower electricity costs and increase energy independence.
• Reliable Whole-Home Performance: Delivers 10,000 W continuous output with a 10,496 Wh LiFePO₄ battery, dependable whole-home power for outages or off grid use or uninterrupted power supply.

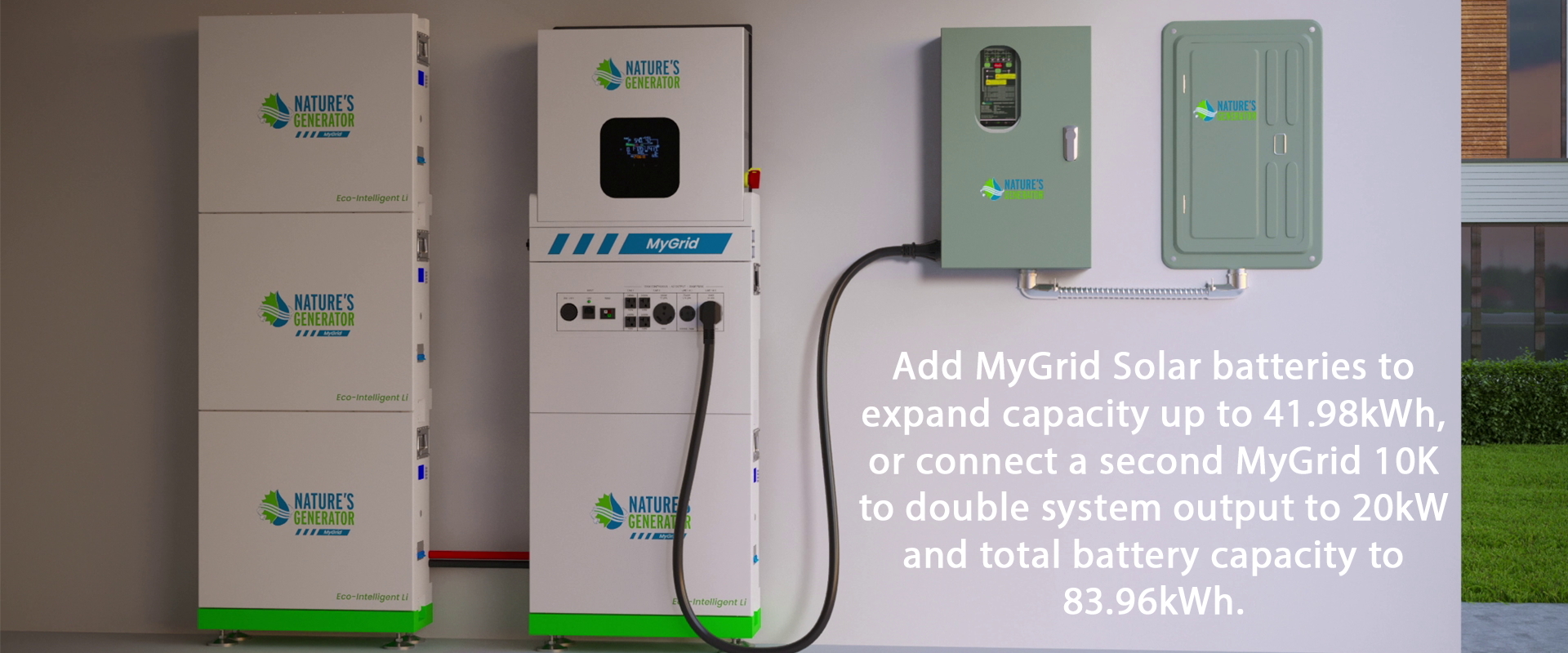

• Expandable for Growing Needs: Combine two units for 20,000W output, expand battery capacity to 73,742Wh, and integrate up to 12,000W solar panels or 350W wind turbine as energy needs grow.

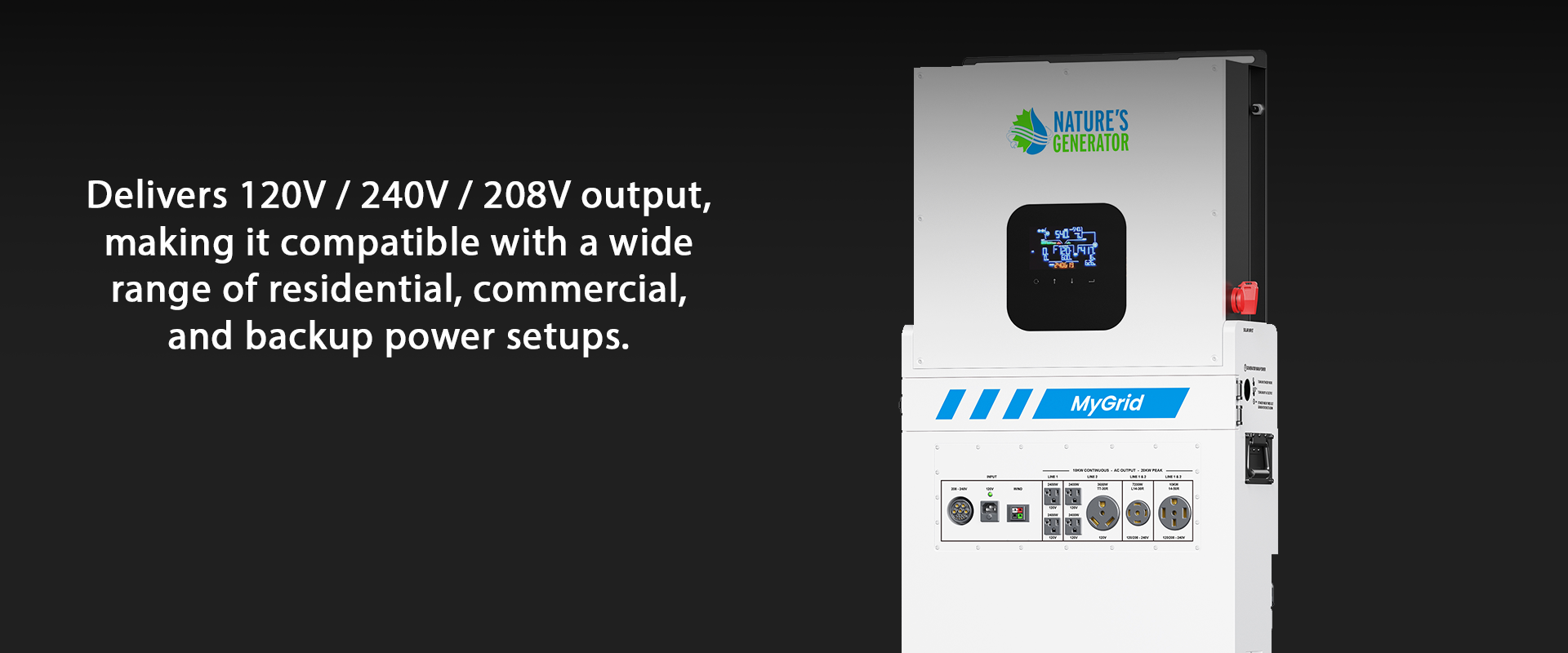

• Dual Voltage Compatibility: Supports 120V, 120/240V and 120/208V charging and discharging, suitable for residential, light commercial and AC coupling applications.
• Fast Recharge Performance: Advanced charging technology enables up to 80% charge in approximately 2 hours, minimizing downtime
• Fast & Easy Installation: Plug-and-play design ensures quick setup, lower installation cost and hassle-free relocation, providing flexibility for homeowners, renters, and temporary spaces.
• Smart Protection & Compact Safe Design: Integrated Battery Management System (BMS) continuously monitors and protects battery health for long life, while the compact, eco-friendly, and UL 1741 certified system ensures safe, sustainable home energy.
Features
Engineered for whole-home capability, the MyGrid 10K delivers high-capacity power, flexible charging, and reliable performance for any energy demand.
Setup in minutes
Get instant home backup power with a fast, hassle-free installation.
Renter Friendly
Enjoy whole-home power without permanent wiring or modifications.
EV to Home Compatible
Easily transfer energy between your EV and home for ultimate flexibility
Powerful 10KW 10,496Wh
Delivers robust, long-lasting energy to support essential circuits and heavy loads.
Keep Everything Running, No Limits
Enjoy uninterrupted power for up to several days, anytime you need it.
Reliable, Versatile, Scalable, and Ready for Any Setup
Power That Moves, Grows, and Integrates Seamlessly
Versatile Charging for Every Setup
Multiple Ways to Charge, Never Run Out of Power
Super Charging: 100% in 2.5 hours
Solar Charger: 12,000W 120Vdc-550DVdc
Wind Charger: 350W
120V AC charging: 1000W
208Vac or 240Vac Charger: 4500W
Inverter
Output Continuous Power
10,000W
Output Peak Power
20,000W
Output Voltage
120V/240V Split Phase or 120V/208V 2 of 3 Phases
Output Frequency
60Hz
Output Power Form
Pure Sine Wave
Auto Switching
<20ms
Battery
Capacity
51.2V 205Ah (10496Wh)
Cell Chemistry
Lithium Iron Phosphate (LiFePO4)
Cycle life
>6000 Cycles
Self Discharge
Recommended recharging every 6 months
Charges
120Vac Charger
1000W
208Vac or 240Vac Charger
4500W
Wind Charger
350W
Solar Charger
12,000W 120Vdc-550DVdc
Solar Charge Mode
MPPT
Ports
Output Ports:
4* NEMA 5-20R Outlet
1* NEMA TT-30R Outlet
1* NEMA L14-30R Outlet
1* NEMA 14-50R Outlet
Input Ports:
2* Solar Input Ports
1* Wind Input Port
1* 120Vac Input Port
1* 208Vac or 240Vac Input Port
General
Optimal Operating Temperature
68 – 86°F (20 – 30°C)
Storage Temperature
14 – 113°F (-10 – 45°C)
Battery Charging Temperature
32 – 113°F (0 – 45°C)
Battery Discharging Temperature
14 – 113°F (-10 – 45°C)
Warranty
5 Years Limited Warranty
Certification:
Dimension and Weight
Generator Dimensions:
21.8 x 8.5 x 38.5 inches (555.4 x 216 x 980 mm) not counting mounting bar
Battery
Capacity
51.2V 205Ah (10496Wh)
Cell Chemistry
Lithium Iron Phosphate (LiFePO4)
Cycle life
>6000 Cycles
Self Discharge
Recommended recharging every 6 months
General
Optimal Operating Temperature
68 – 86°F (20 – 30°C)
Storage Temperature
14 – 113°F (-10 – 45°C)
Battery Charging Temperature
32 – 113°F (0 – 45°C)
Battery Discharging Temperature
14 – 113°F (-10 – 45°C)
Warranty
3+2 Years
Certification:
Dimension and Weight
Battery Dimensions:
21.8 x 8.5 x 23.4 inches (555.4 x 216 x 596 mm) not counting mounting bar
Battery Weight: 213 lbs (96.6 kg)
Power Rating
Maximum Power (Pmax)
410W
Maximum Power Voltage (Vmp)
31.35
Maximum Power Current (Imp)
13.08
Open-circuit Voltage (Voc)
37.12
Short-circuit Current (Isc)
13.96
Module Efficiency STC (%)
20.97%
Dimensions & Characteristics
1755*1038*30mm(69.09*40.87*1.18 inch)
Cell Type
Mono PERC 182×91mm
No.of Half-cells
108 (6×18)
Frame
Anodized Aluminum Alloy
Weight
20.5 kg (45.19 lbs)
Front Glass
3.2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
Operation Temperature
-40℃~+85℃ (-40°F ~+185°F )
Junction Box
IP68 Rated, connector compatible with MC4
Output Cables
1200mm (47.24 inch)
Fire rating
UL: Type 1, IEC: Class C
What's In The Box?
MyGrid 10K
