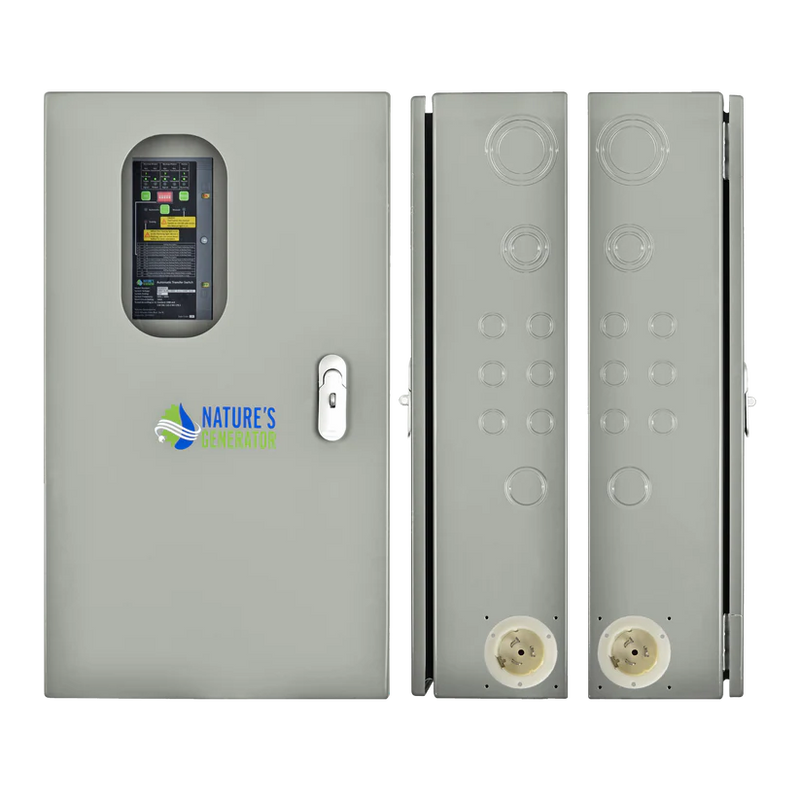

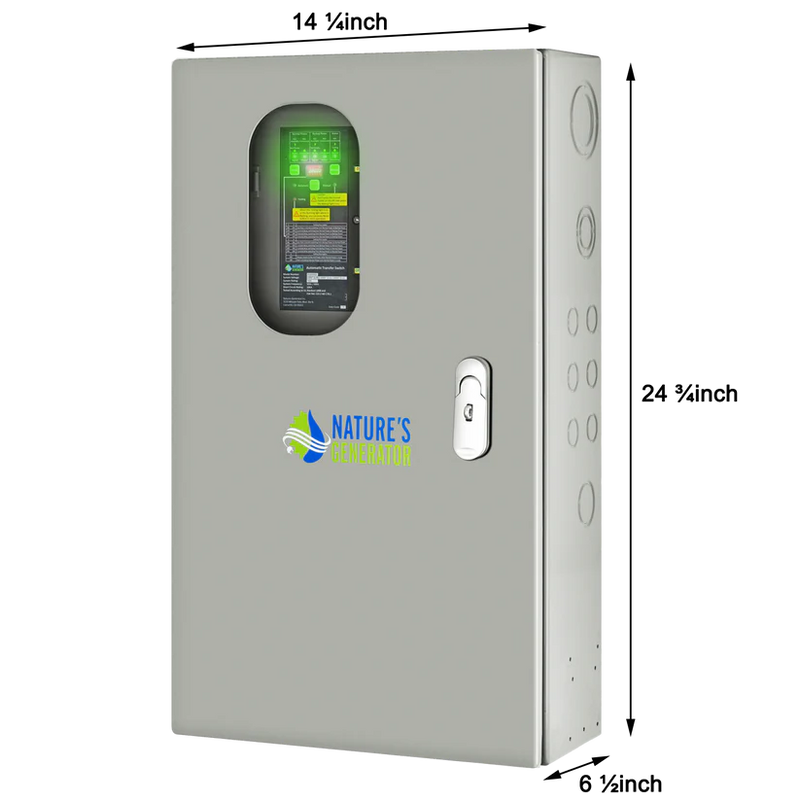

50A Automatic Generator Transfer Switch
• Reliable Automatic Power Switching: Seamlessly transfers selected circuits from utility power to backup power during an outage—no manual intervention required.
• High-Capacity & Broad Compatibility(63A Bus Bar): Works with most solar generators, battery backup systems, grid-tie inverters, and gas generators. Supports up to 50 amps and works with 120V, 120/240V, and 120/208V systems. Fully compatible with AFCI and GFCI breakers.
• Grid-Tie Inverter Friendly with Parallel Power Path: Creates a parallel power path for grid-tie inverters, allowing them to continue operating during outages and safely deliver power through the ATS to an AC-coupled battery system—maximizing solar utilization even when the grid is down. Connection Instructions (Video)
• Can Remain on Backup Power even after Utility Power Is Restored: The ATS does not have to automatically switch back to normal utility power, allowing continued use of backup power when desired.
• Extensive Circuit Coverage: Manages up to 24 circuits, allowing essential appliances and systems to stay powered during outages.
• Durable, Heavy-Duty Enclosure: Built with a rugged enclosure designed for dependable performance and long-term reliability in demanding installation environments.
• Complete Connection & Control System: Includes a CS6375 50A inlet and 50A power cord, plus a centralized control console for system monitoring, testing, and manual power source override.
• Certified for Safety & Code Compliance: Meets rigorous safety and performance standards including UL 1008 and CAN/CSA C22.2 No. 178.1, with documentation showing compliance under ISO/IEC Guide 17067.

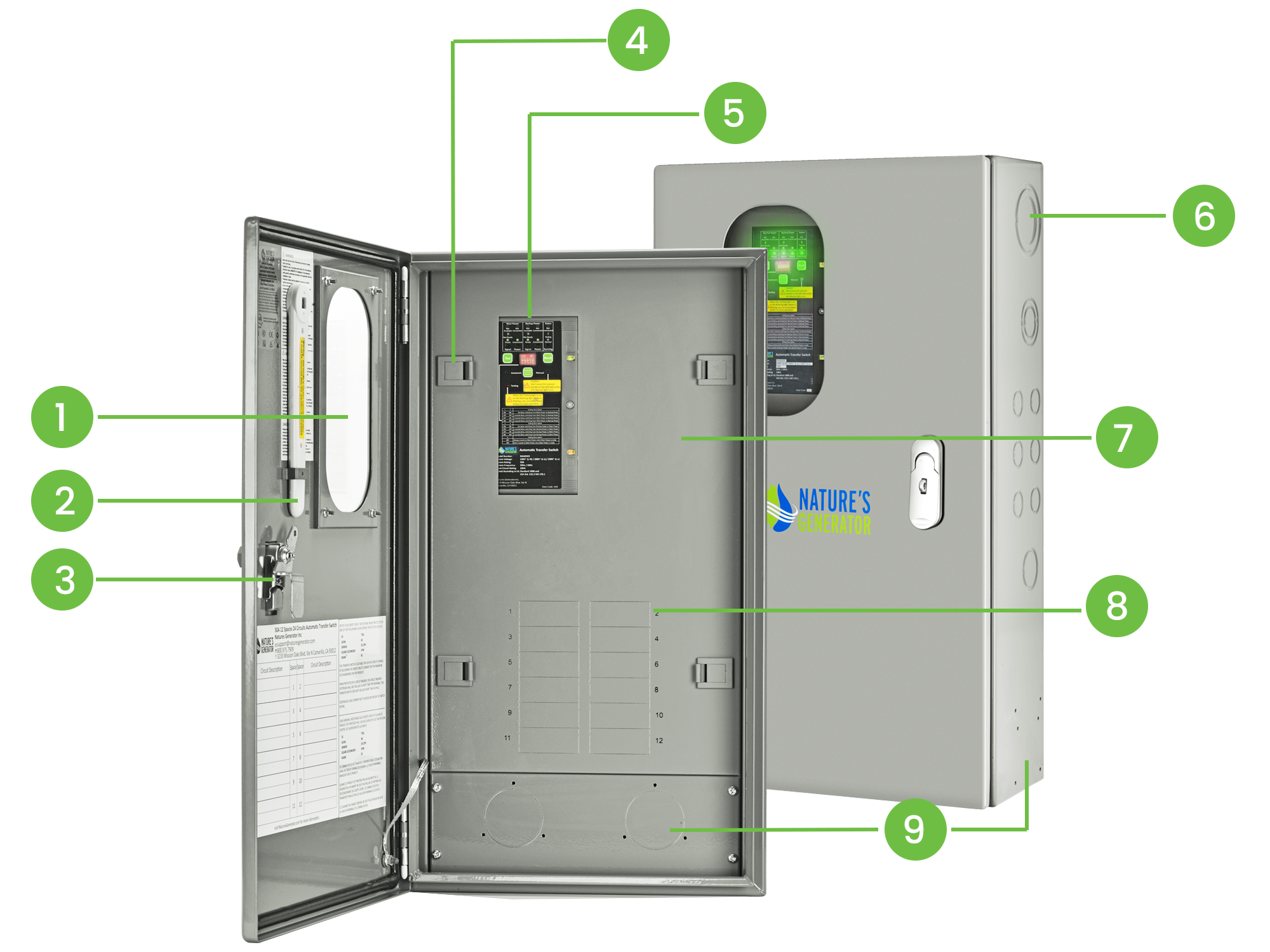

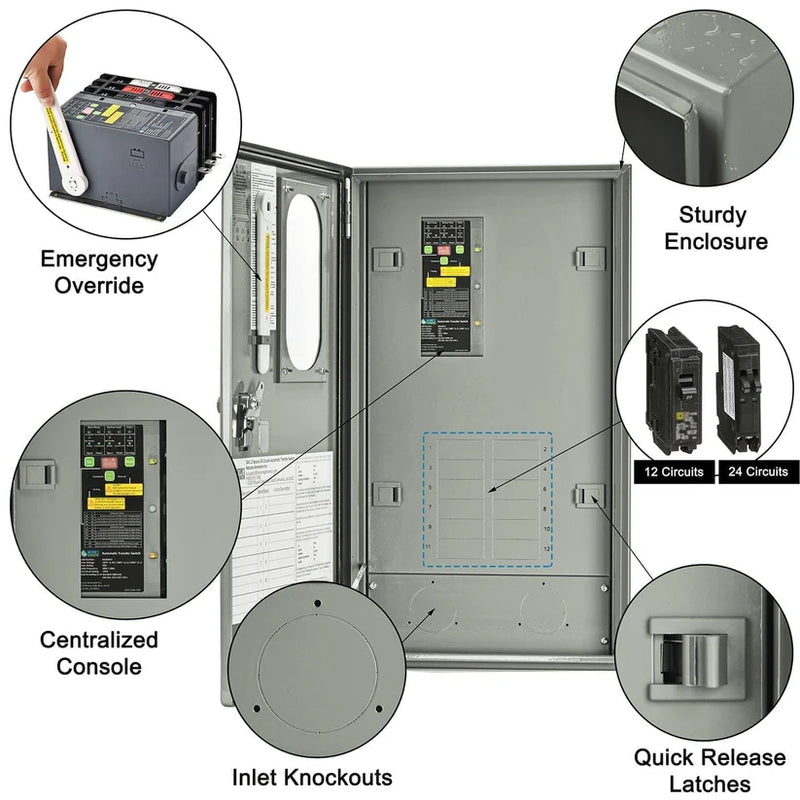

Features
Explore the built-in capabilities designed to deliver safe, reliable, and seamless power switching for home and backup systems.
Manual Override
Get instant home backup power with a fast, hassle-free installation.
Centralized Console
Provides a single, easy-to-access control point for monitoring and managing your home’s power flow.
Water & Dust Resistant Enclosure
Engineered with a water and dust resistant enclosure to help protect against moisture, debris, and everyday environmental conditions for dependable operation.

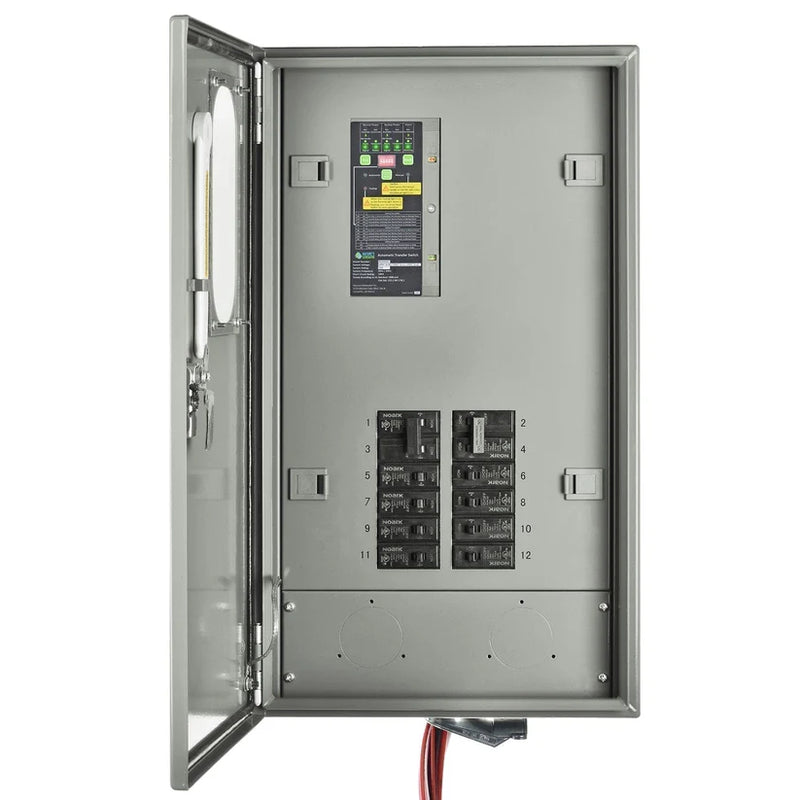

Supports Up to 24 Circuits with Tandem Breakers
Designed to manage a large number of household circuits, giving you flexible and organized power distribution.

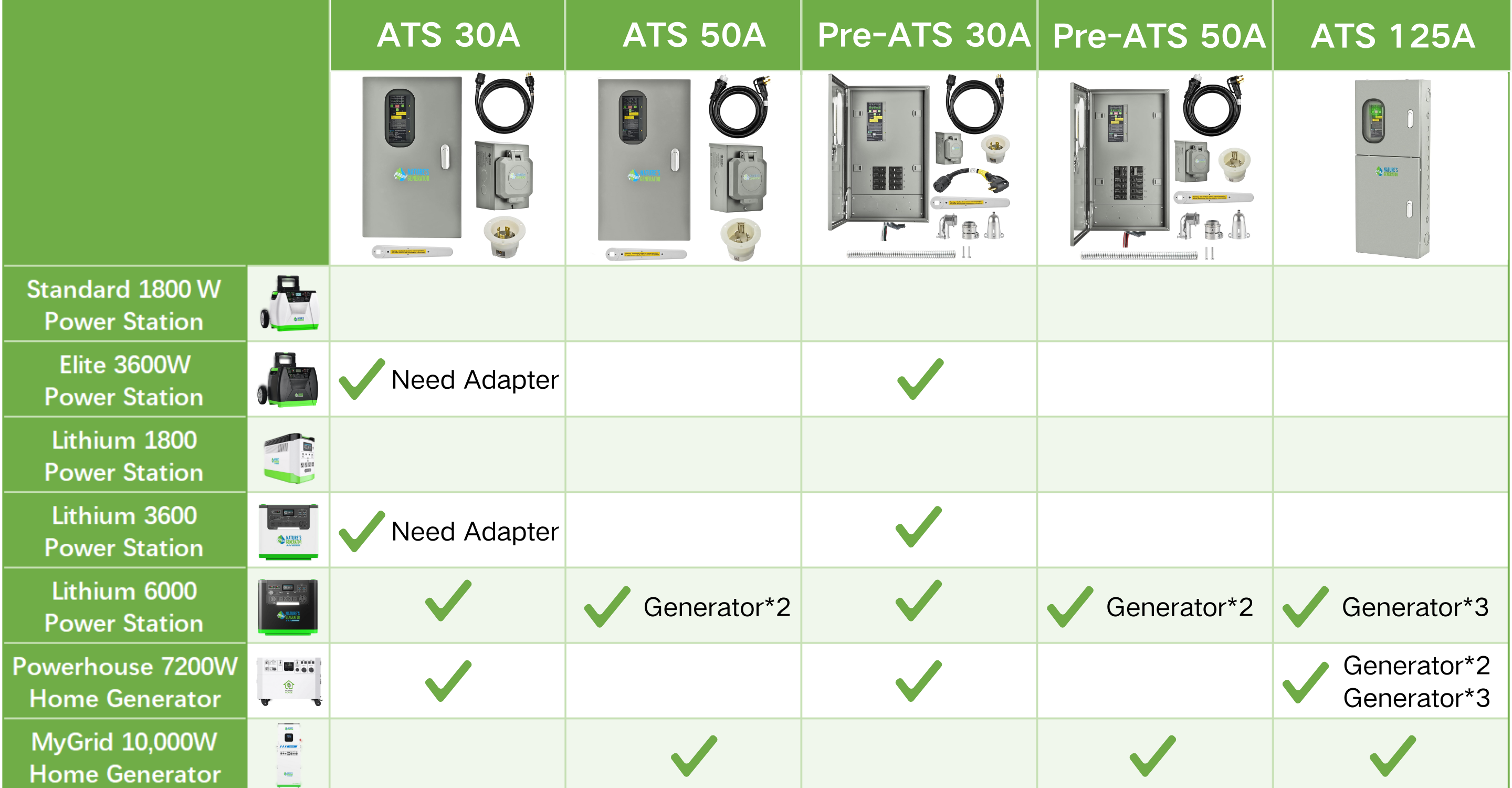

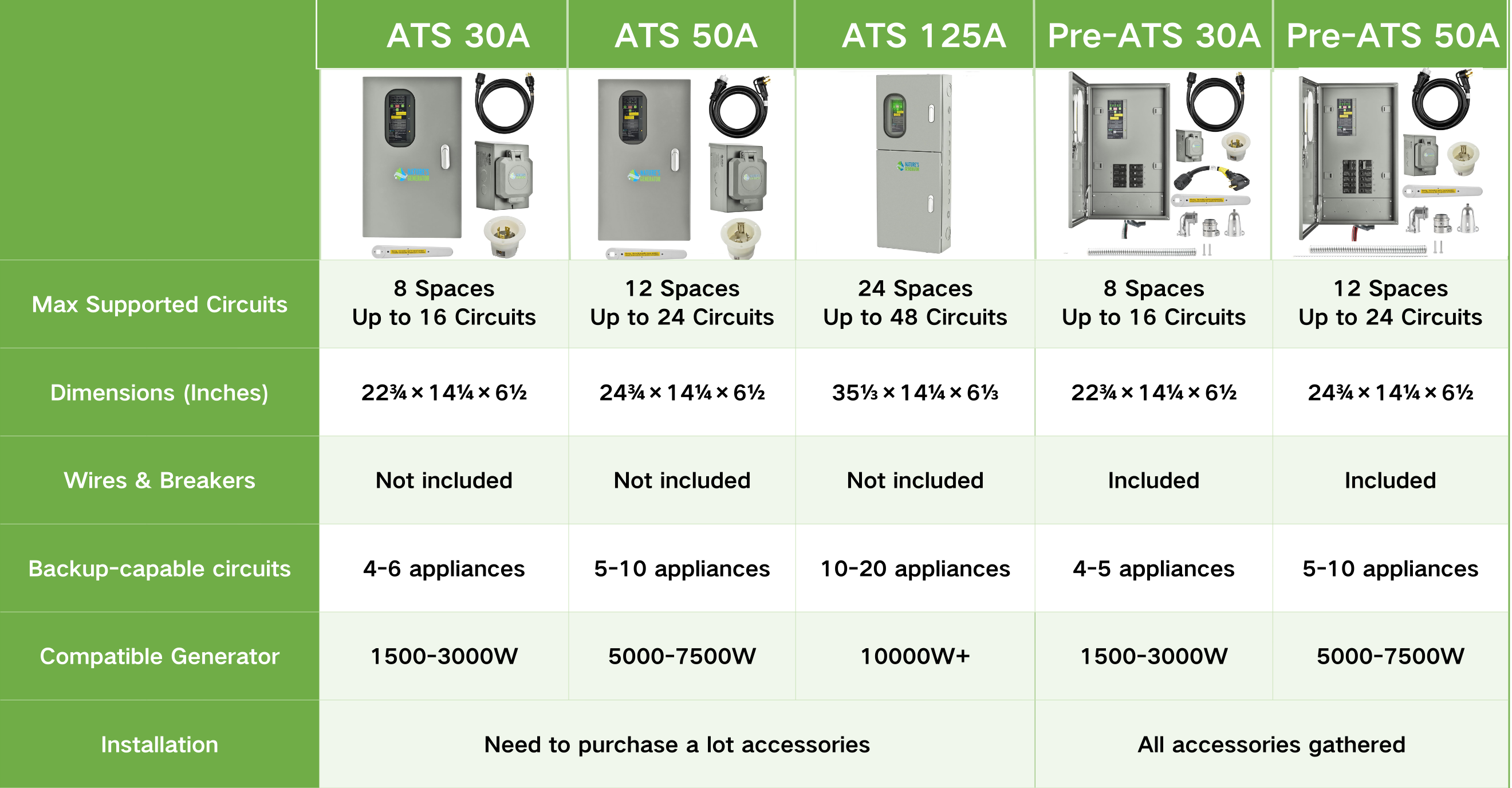

ATS Model Comparison: Find Your Perfect Match
Find the perfect ATS solution for your needs. Compare features and specifications to make a confident, informed decision.
Easy to Install. Flexible to Use. Ready for Whole-Home Power.
Designed for quick setup, flexible system compatibility, and reliable power management to support whole-home backup needs.

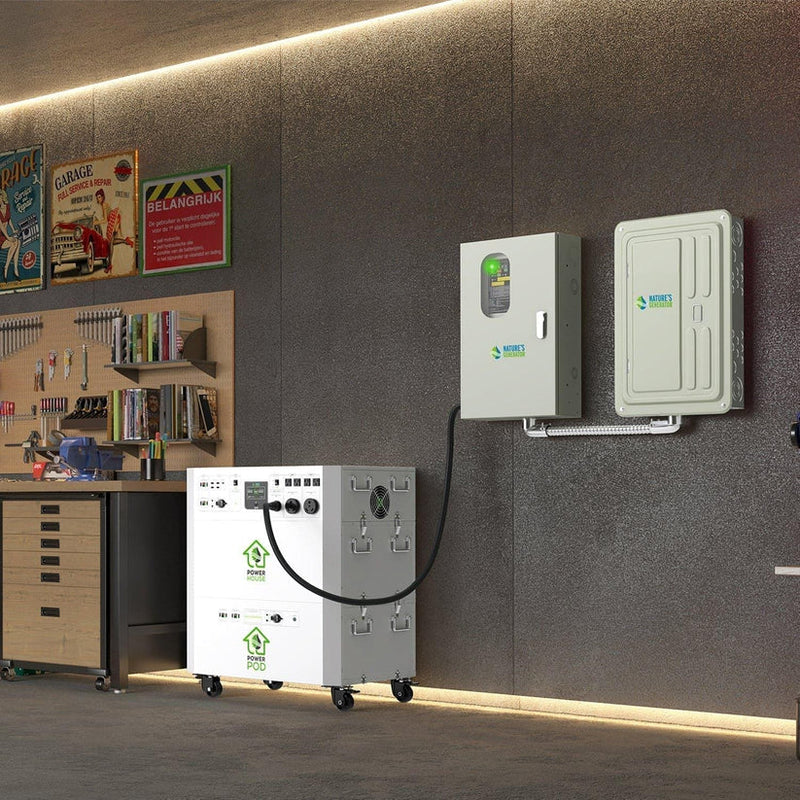

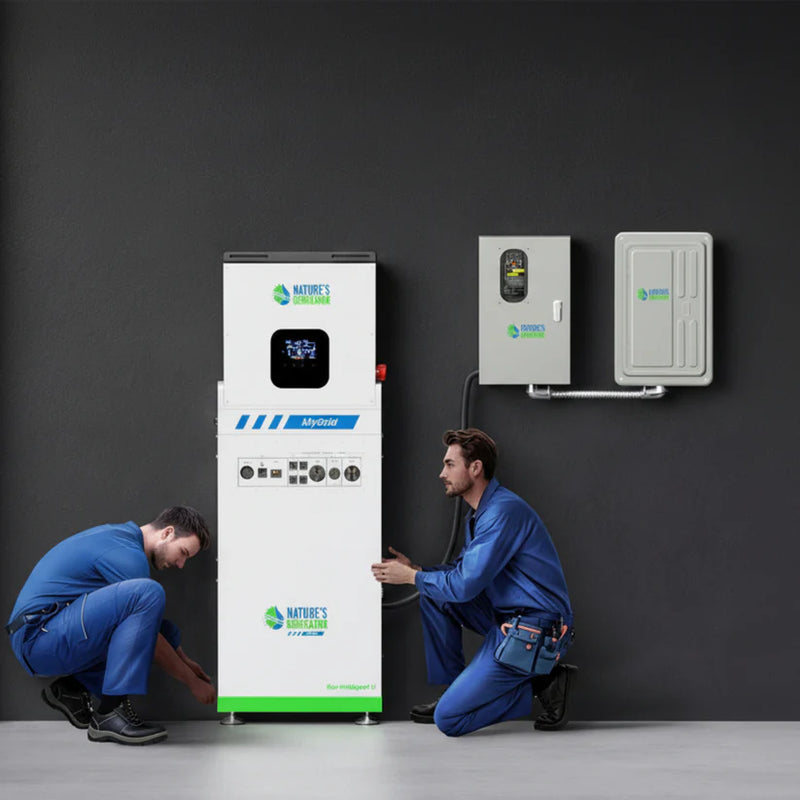

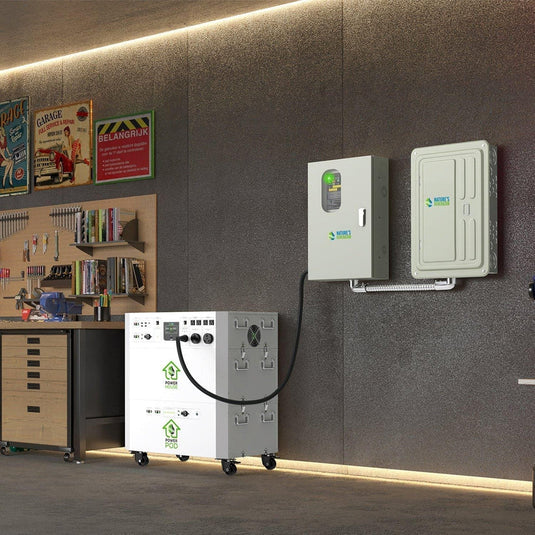

Built for Whole-Home Backup
Versatile Applications
Easy Installation

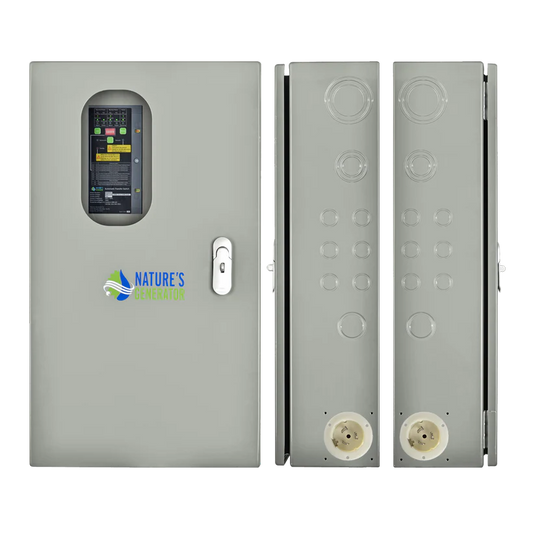

50A Automatic Transfer Switch
Built for scalable home power, offering flexible circuit expansion and clean, organized control.
Tech Specs
Find all the essential technical details of your automatic transfer switch, including amperage, voltage compatibility, and installation features.
Technical Overview
Specification
Power Rating
50A
System Voltage
120 V~ (L-N) / 208V~ (L-L) / 240V~ (L-L)
Number of Spaces
12 spaces
Number of Circuits
Expandable to 24 circuits with tandem breakers
Dimension and Weight
24¾ x 14¼ x 6½ inches
(630 x 360 x165mm)
61.5 Ib (27.9Kg)
Not including packaging and accessories
Certification*

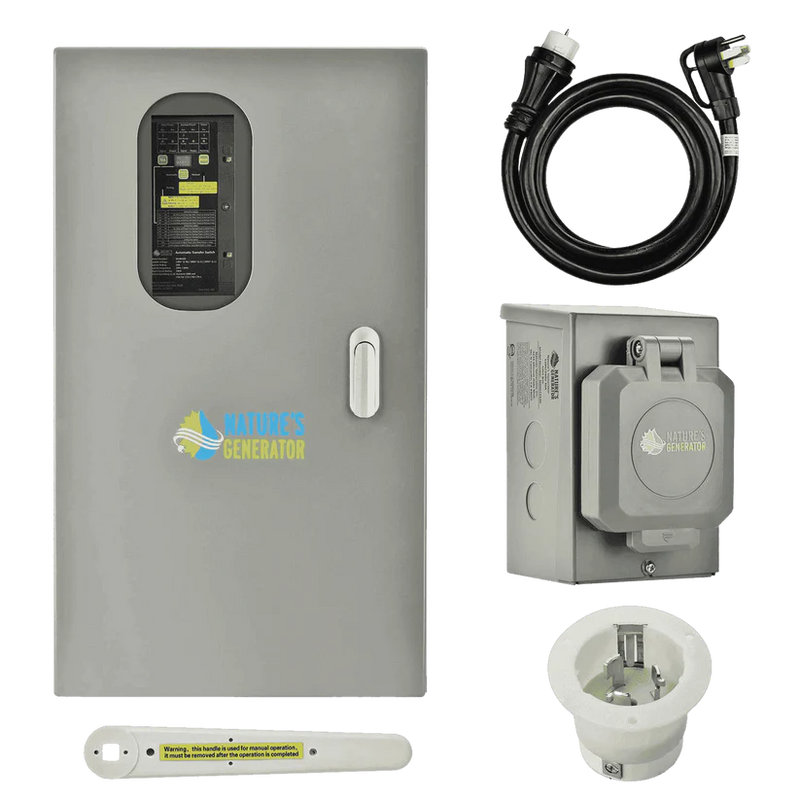

What's In The Box?
50A Automatic Transfer Switch
1* 50A Automatic Transfer Switch
1* Manual Override Handle
1* 50A Power Inlet Box
1* Power Cord
1* User Manual
1* Pre-wired 50A Automatic Transfer Switch
1* Manual Override Handle
1* 50A Power Inlet Box
1* Power Cord
1* User Manual
