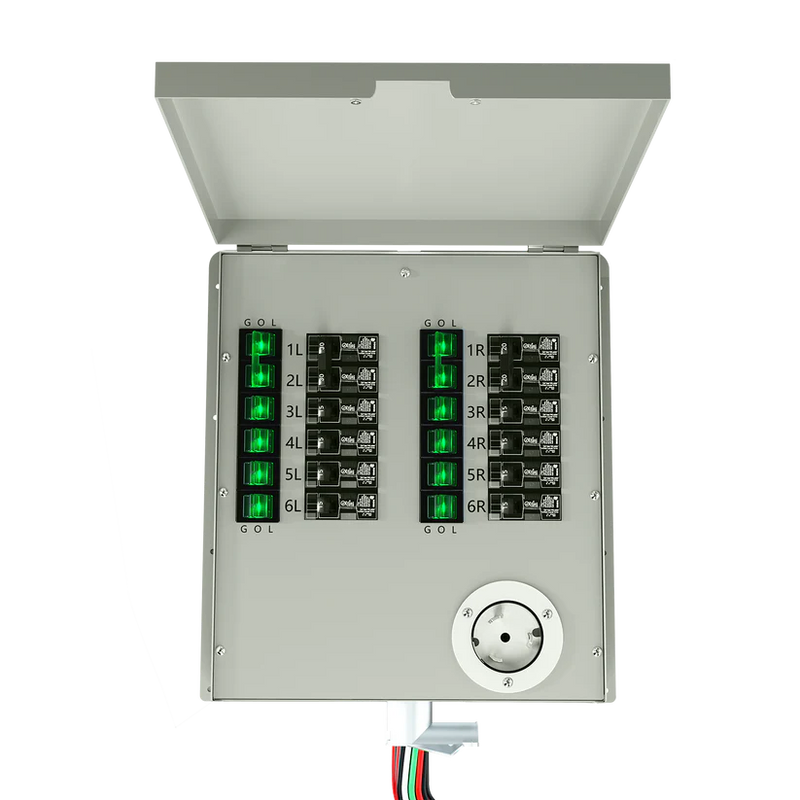

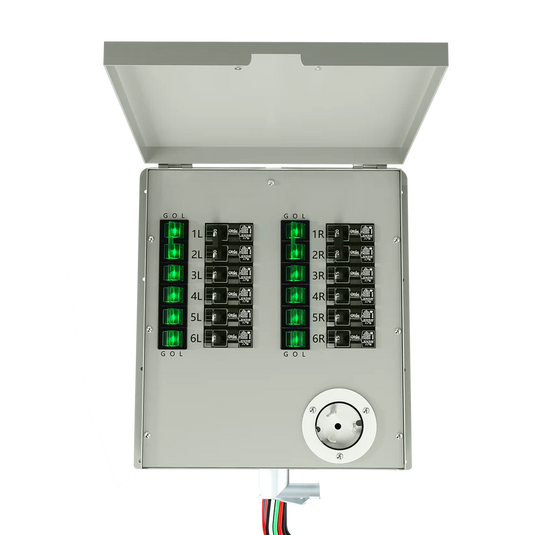

12-Circuit 120/240V 50A Non-Automatic Transfer Switch

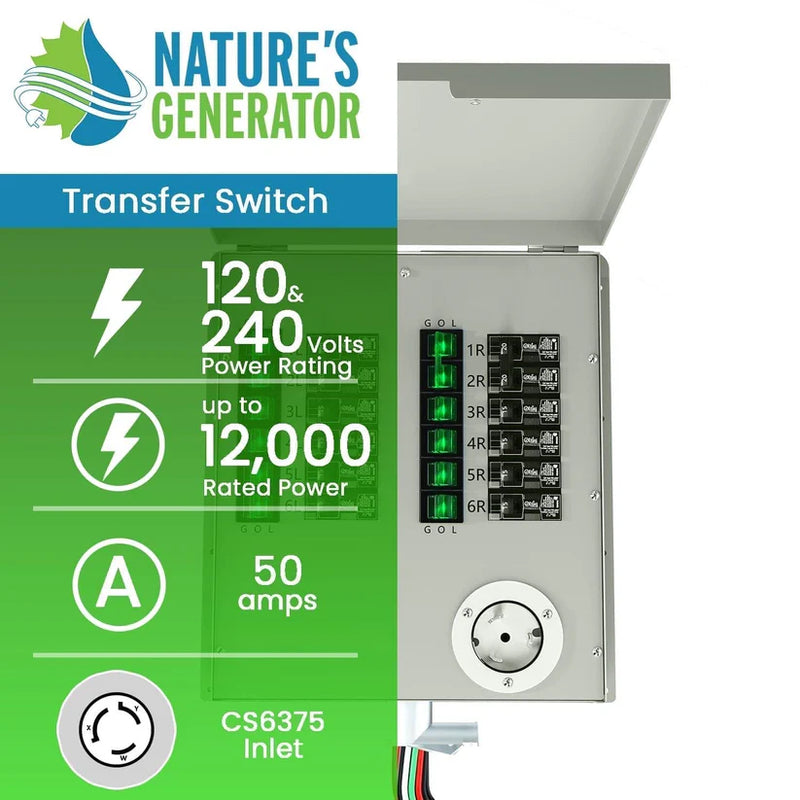

• 50A Power Capacity with Flexible Circuit Support: Rated for 50 amps at 120/240V, supporting up to 12 circuits (configurable as twelve 120V circuits or six 240V circuits), and compatible with AFCI/GFCI breakers..

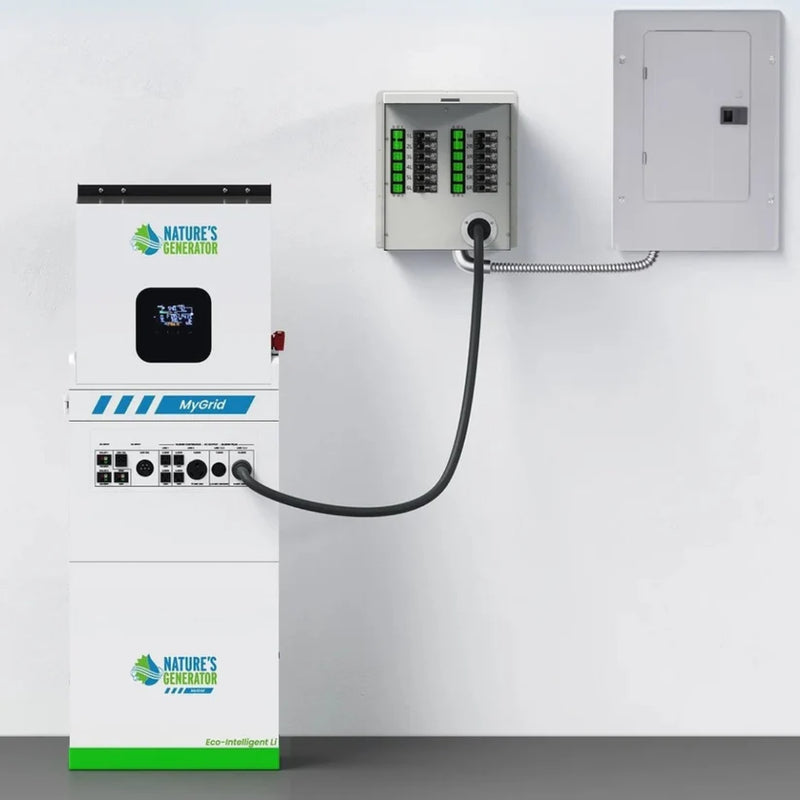

• Hybrid Grid & Stored Energy Operation: When connected to a home energy storage system like MyGrid 10K, selected circuits can run on stored energy while others remain on the grid, helping reduce electricity use and save on power bills.
• Safe Manual Power Switching & Circuit Control: Provides a secure, non-automatic way to connect your generator or backup power system to your home’s electrical system. Manual selector switches allow you to control and manage specific circuits while preventing backfeeding and protecting your electrical system.

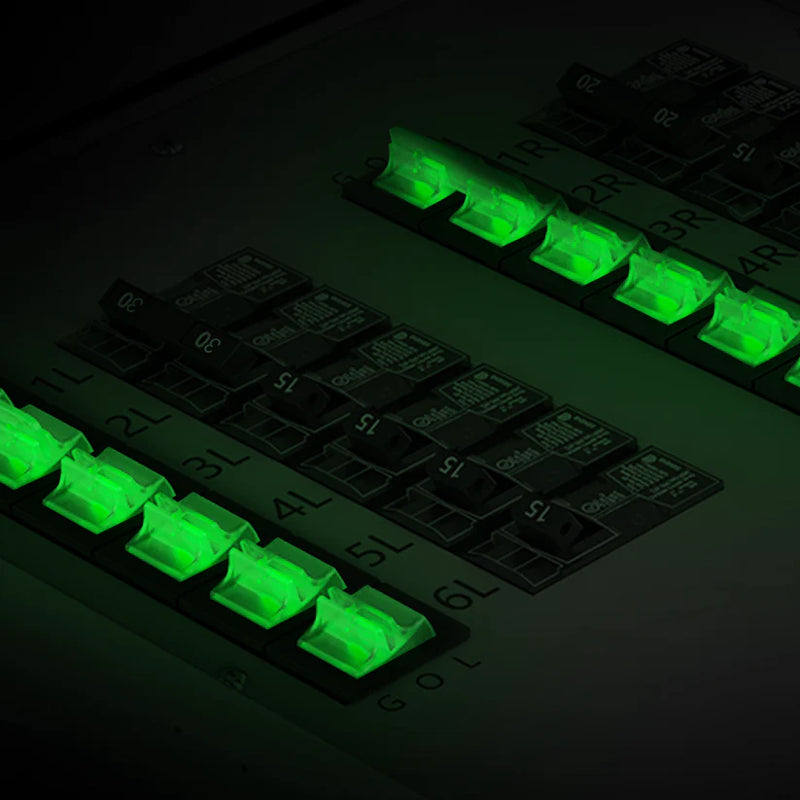

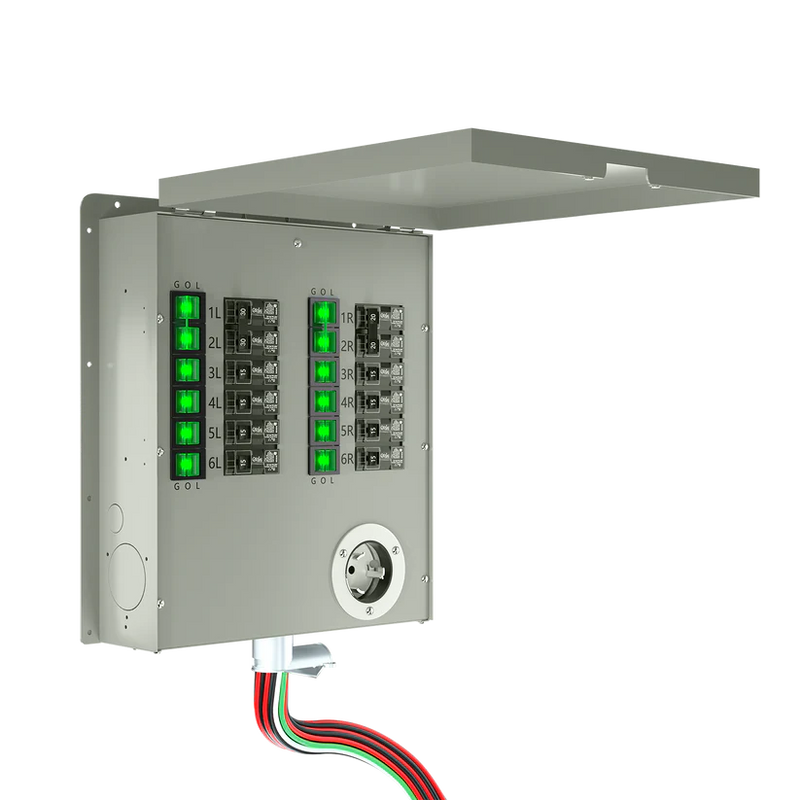

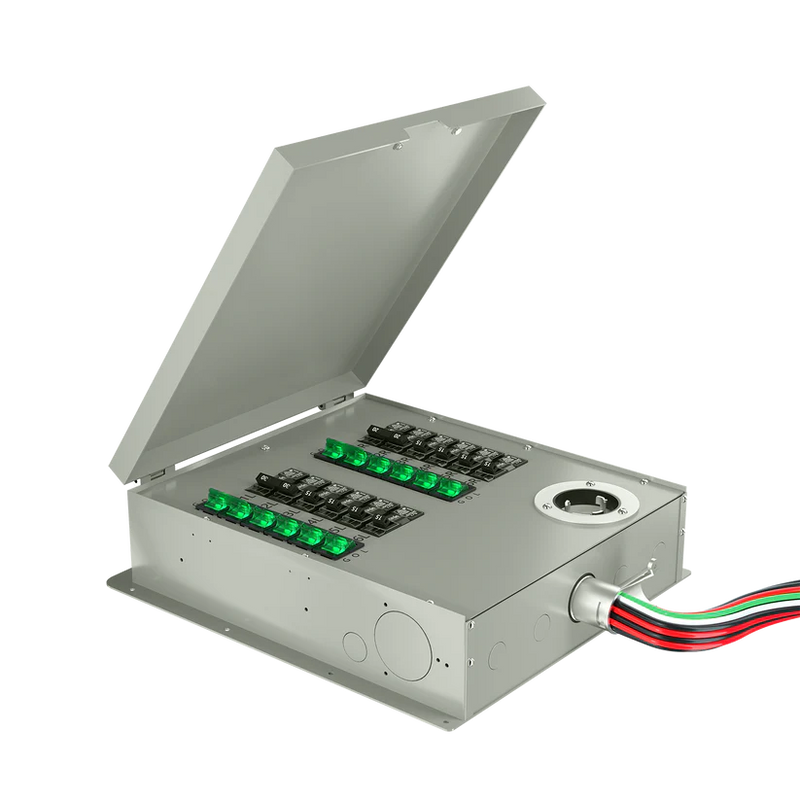

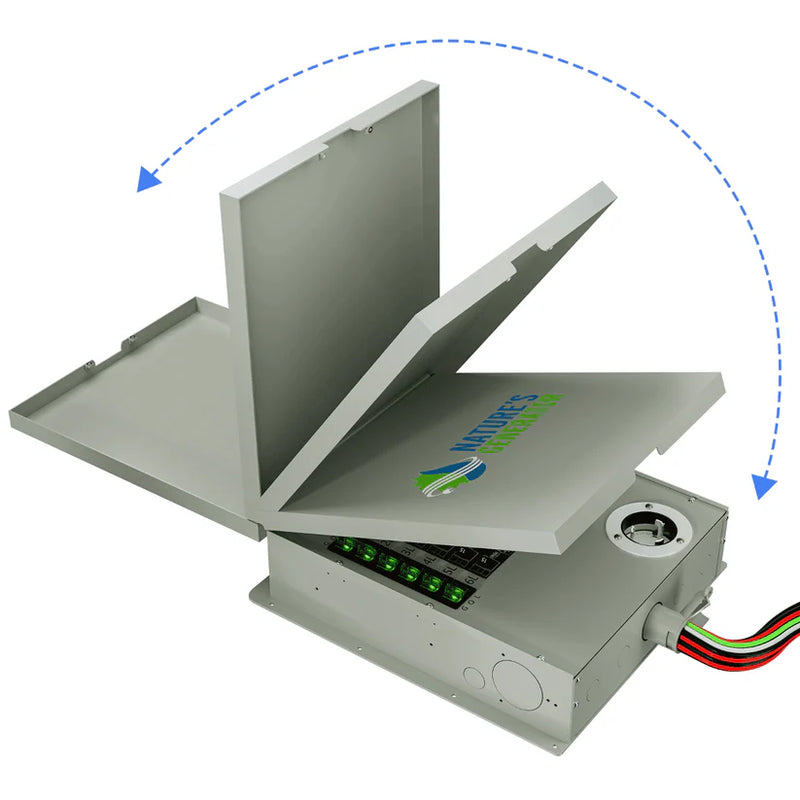

• Durable, Installation-Ready Construction: Built with a rugged steel enclosure and illuminated rocker switches that clearly indicate generator power status for safe, reliable operation.
• Complete Generator Connection Kit: Includes a CS6375 50A power inlet, inlet box, 50A power cord and pre-wired components to simplify installation with compatible generator systems.
• Certified for Safety & Code Compliance: Independently tested and certified to meet UL 1008 and CAN/CSA C22.2 No. 178.1 standards, with compliance verified under ISO/IEC Guide 17067 for safe, code-compliant operation.

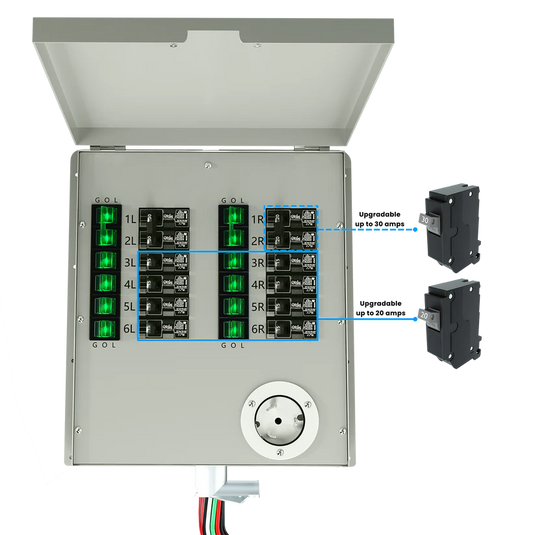

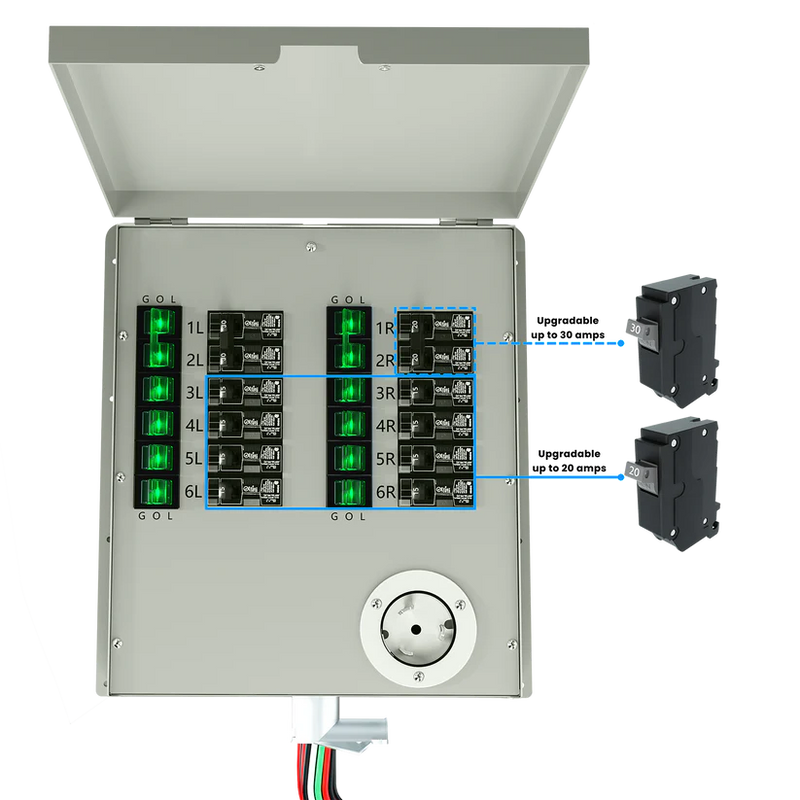

Pre-installed Breakers
| Type | Quantity | Wire Gauge | Upgradable to |
|---|---|---|---|
| 2-Pole 30A Breaker | 1 | 10 AWG | 30A Breaker |
| 2-Pole 20A Breaker | 1 | 10 AWG | 30A Breaker |
| 1-Pole 15A Breaker | 8 | 12 AWG | 20A Breaker |
Pre-installed Backup Power Conductors
| Type | Wire Gauge |
|---|---|
| Line 1 | 6 AWG |
| Line 2 | 6 AWG |
| Neutral | 6 AWG |
| Ground | 8 AWG |
Features
Explore the built-in capabilities designed to deliver safe, reliable, and seamless power switching for home and backup systems.
Safe Power Transfer Solution
Provides a secure way to connect your generator to home circuits while preventing dangerous backfeeding.

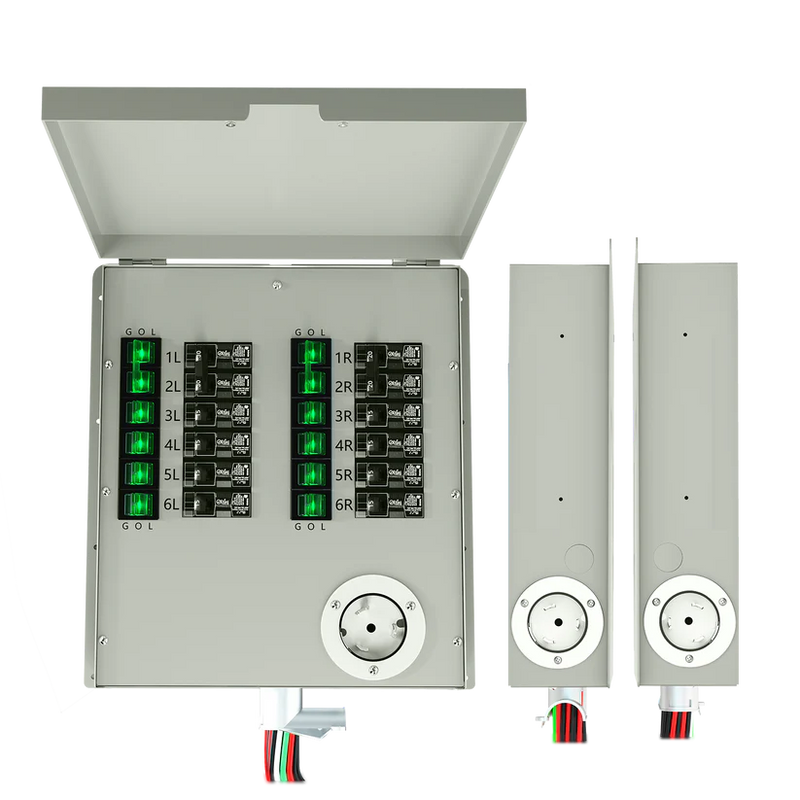

Multi-Inlet Position
Provides a single, easy-to-access control point for monitoring and managing your home’s power flow.
Built for Backup & Emergency Use
Ideal for outages and emergency situations, ensuring reliable power delivery to essential home circuits.
Safe & Reliable Design
Engineered for dependable performance, giving peace of mind during power transfers.
Transfer Switch Comparison
Not sure which transfer switch fits your generator best? Simple, straightforward, and tailored to help you pick the right one in no time.
Home Transfer Switch Solutions: Scenario Comparison
It compares backup capacity, applicable generators and power ranges to help choose the right transfer switch for home backup.
12 Circuits 50A
12 Circuits 30A
6 Circuits 120V
4 Circuits 15A
Safe and Reliable Power Transfer Kit
Secure, flexible, and reliable generator connection for safe home power transfer during emergencies.
About the Product

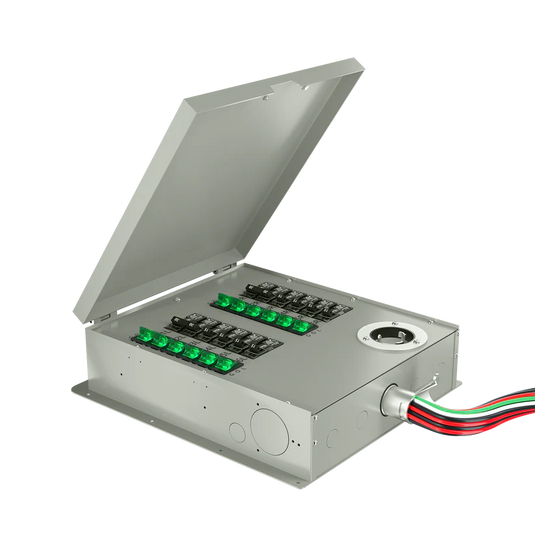

120V/240V 12-Circuit 50A Manual Transfer Switch
Tech Specs
Find all the essential technical details of your manual transfer switch, including circuit support, amperage, and installation features.
Technical Overview
50A Manual Transfer Switch Tab
Specification
Voltage
120V/240V
Inlet
CS6375
Number of Circuits
12 circuits
Dimension and Weight
Dimensions
14.1 inch x 15.3 inch x 5 inch (35.8 cm x 39 cm x 12.7 cm)
Weight out of box
31.9 lbs. (14.5 Kg)
Certification*

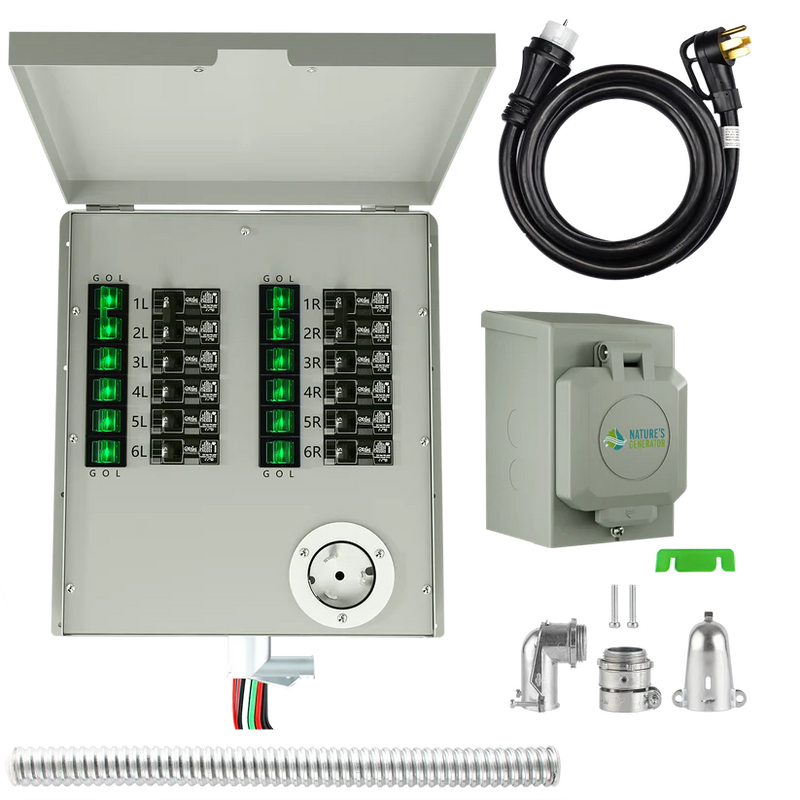

What's In The Box?
120V/240V 50A 12-Circuit Manual Transfer Switch
1* 12-circuit Power Transfer Kit
1* Inlet Box
1* Conduit for Power Transfer Kit

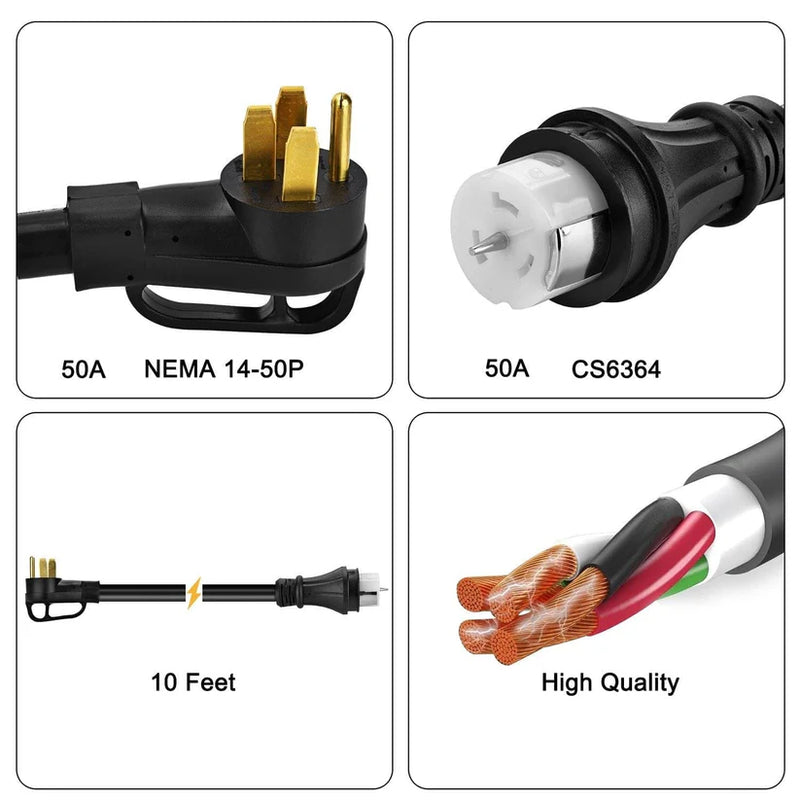

1* 10 Foot 10AWG Power cord for Power Transfer Kit
1* 90° & 180° Conduit Fitting
1* Flexible Conduit
4* Spare Switch Bridges
1* User Guide
