Availability:
Estimated Arrival: Between Nov 27 and Nov 29. *ETA to the USA Only
Orders placed Monday Thru Thursday normally ship within 24-48 hours. Orders placed Friday thru Sunday will normally ship out on Monday
This item ships for Free !!

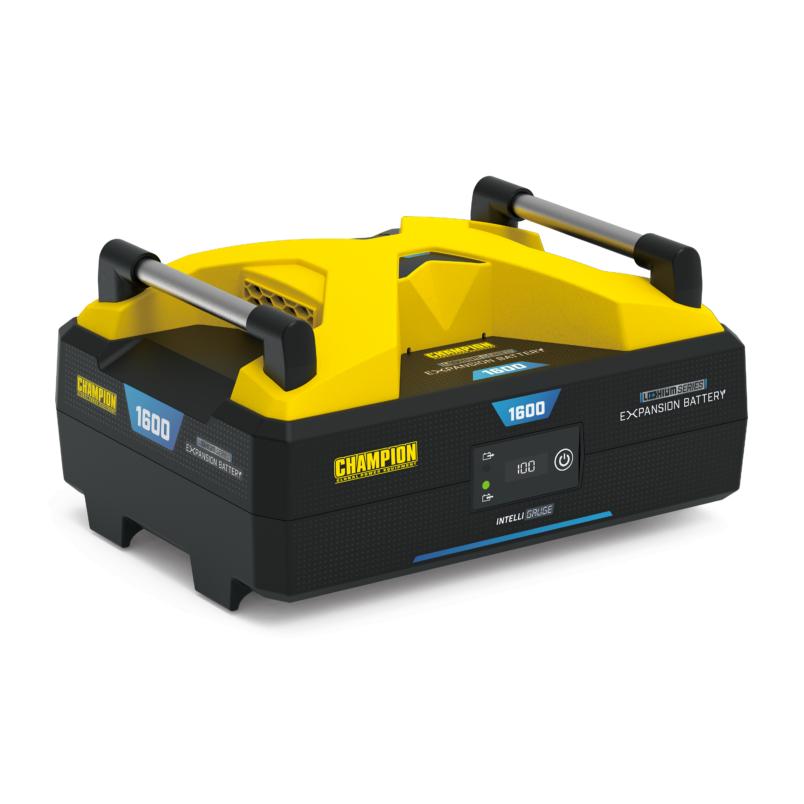

The Champion Power Equipment 201107 1638 Wh Lithium Ion Expansion Battery is the perfect solution to increase run time for your Solar Generator Power Station. You can pair up to 10 expansion batteries per power station.
Be confident you have plenty of off-grid power for your homestead, ice fishing shack, or hunting cabin.
The Easy Connect DC Solar Charge Harness is equipped with 3 MC4 connectors, plus an APP port if you want to use your solar panel to charge your battery directly. The MPPT solar controller makes sure your battery is harnessing as much power as possible from the sun. Your battery gets 440W of charging power from AC wall power or solar power. Use both at the same time and get 880W of charging power.
Charging to 100% is easy. Choose to use AC wall power and it takes 4.5 hours. Use solar power to get charged up in 4.8 hours. AC plus DC in just 2.3 hours. In a hurry? Get yourself powered up to 80% in a little more than half that time. Champion’s innovative design provides power on the go how, where, and when you need it.
Keep one or more extra charged-up batteries on hand to ensure uninterrupted power for your RV, van life, or camping. Extra batteries are a great idea if you want to provide backup for a few essential items in your home, or even power your pellet grill or sound system while tailgating.
On the job, avoid downtime by keeping extra batteries charged and swapping them out as you work.

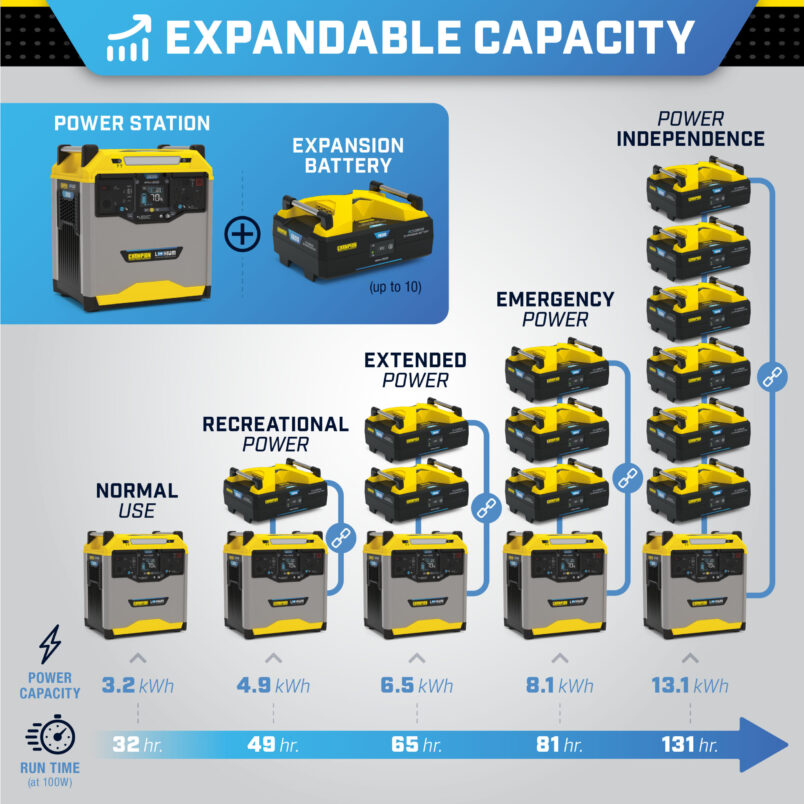

You’ve got options! Dramatically increase capacity and run time by chaining up to 10 of these batteries together to add up to 16.3 kWh to your power station setup. This innovative, stackable design is a space saver and is compatible with Champion power station models 100593 and 100594. (Note: A stack adapter [PN SS11372] is required to stack multiple Expansion Batteries. Get a FREE stack adapter by contacting customer service.)
The advanced lithium-ion battery technology includes low battery protection, delivers lasting, fade-free power, and sets you free from needing to keep fuel on hand.
Buy this extension battery with confidence – Champion Support and our nationwide network of service centers will back up your purchase with a 3-year or 1000-cycle limited warranty and FREE lifetime technical support.

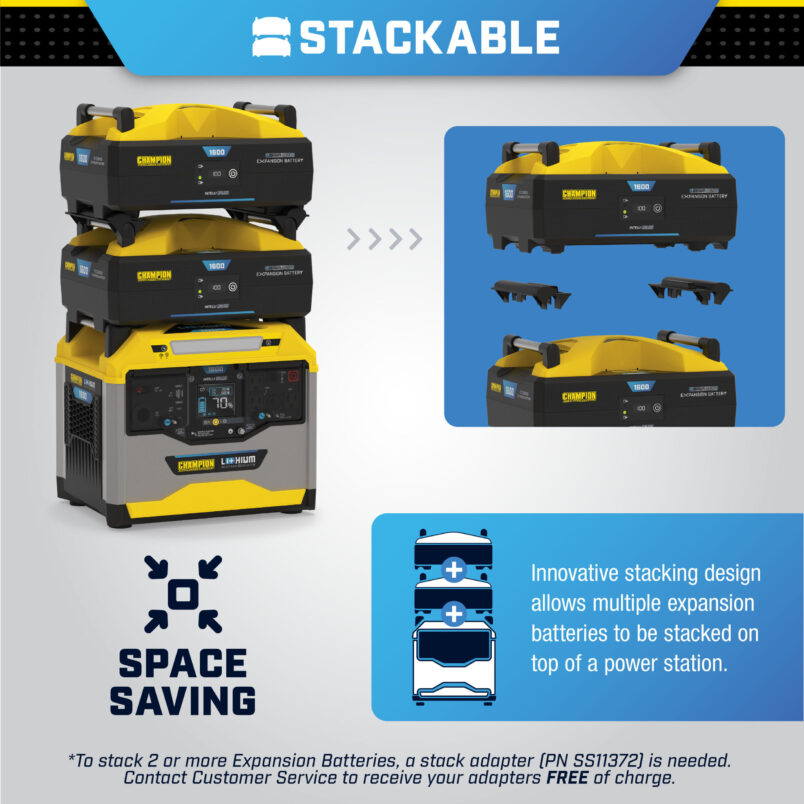

Stacking 2 or more expansion batteries?
To stack multiple Expansion Batteries, a stack adapter (PN SS11372) is needed. Contact customer service (727-370-9930) to receive your adapters FREE of charge.
What’s included
- AC Charge Cable
- AC/DC Charging Module
- Battery Connection Cable
- Easy Connect DC Solar Charge Harness
Specifications
| Capacity | 1638 Wh |
|---|---|
| Expansion Battery Chainable | Yes |
| Parallel Capability | No |
| Run Time at 100W | 16.4 hr. |
| AC Charge Time to 80% | 2.8 hr. |
| AC Charge Time to 100% | 4.5 hr. |
| Solar Charging | Yes (MPPT) |
| Solar Connection Options | MC4, Anderson Powerpole |
| AC + DC Charge Time to 80% | 1.4 hr. |
| AC + DC Charge Time to 100% | 2.3 hr. |
| Battery Chemistry | Lithium-ion NMC |
| Low Battery Protection | Yes |
| Simultaneous Recharge & Discharge | No |
| Life Cycles | 500 |
| Charging Temperature Range | 32-113 °F |
| Discharge Temperature Range | 5-104 °F |
| ETL Listing | cETLus |
Measurements
| Length | 13.4 in. |
|---|---|
| Width | 10.2 in. |
| Height | 6.7 in. |
| Weight | 24.9 lb. |
