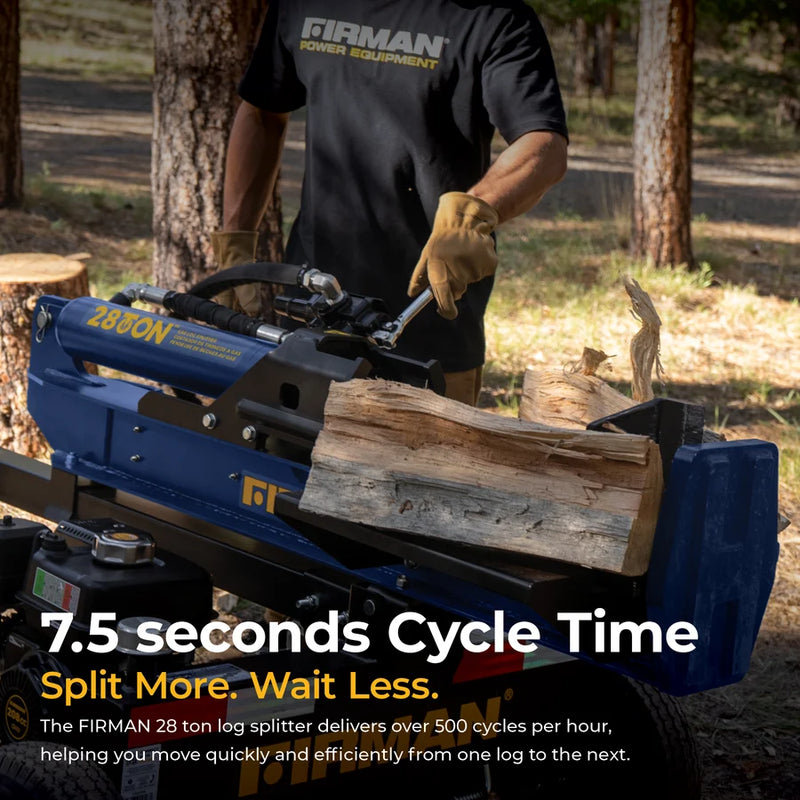

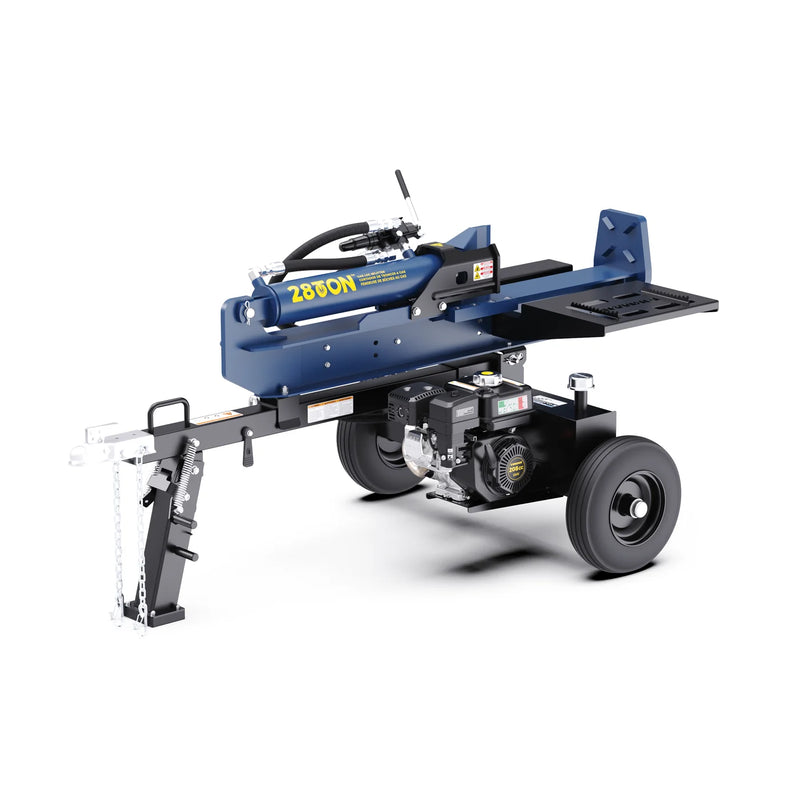

The FIRMAN GS2801 28-Ton Log Splitter is built to power through tough wood with speed and strength, delivering 28 tons of splitting force from a dependable 208cc OHV engine. With a 7.5-second cycle time powered by a high-performance 16GPM two-stage pump, it speed splits tough hardwoods faster than the competition.

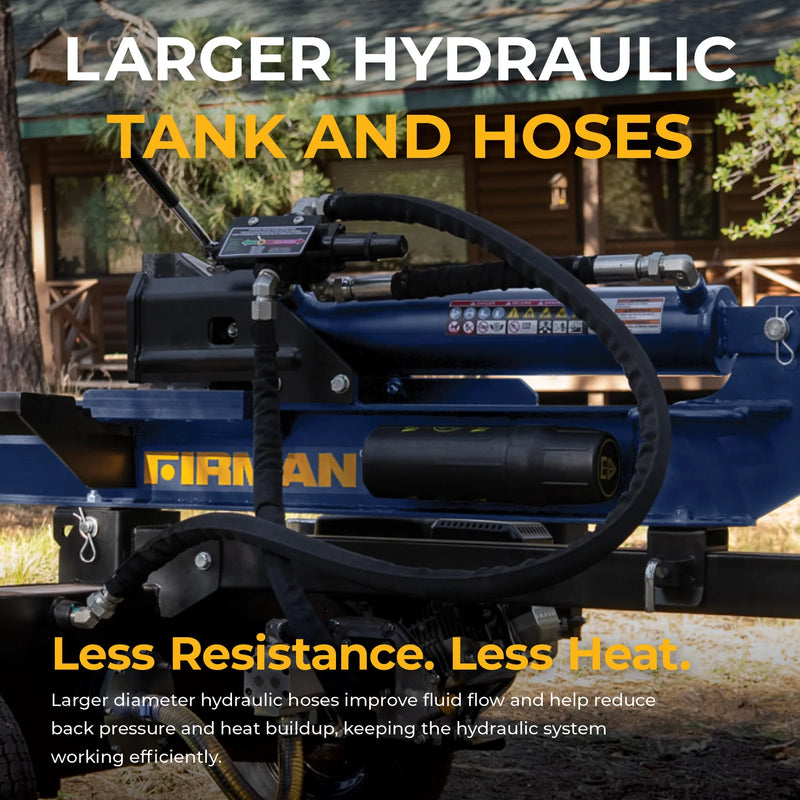

Durability and efficiency were core to the design, which features horizontal and vertical operation for convenience. Boasting an oversized hydraulic system, with a 7.85 Gallon capacity for improved cooling and longevity, and an 8.5-inch hardened steel wedge that tackles hardwoods with confidence.

Easy to tow with 16-inch high-speed tires and a 2-inch ball coupler for smooth transport at 45MPH, the GS2801 is ready for work that demands power.

The GS2801 comes with an engine oil bottle, a hydraulic oil bottle, a spark plug tool kit, and an oil funnel.

LEGENDARY FIRMAN ENGINEERING

• 208cc FIRMAN engine
• 28-ton Splitting force
• Recoil start
• 16 GMP Pump
• 8-gallon Hydraulic Pump
• 0.9-gallon Tank
• 4-Cycle Engine
• Low oil shut-off

OUR PERFORMANCE, YOUR ADVANTAGE

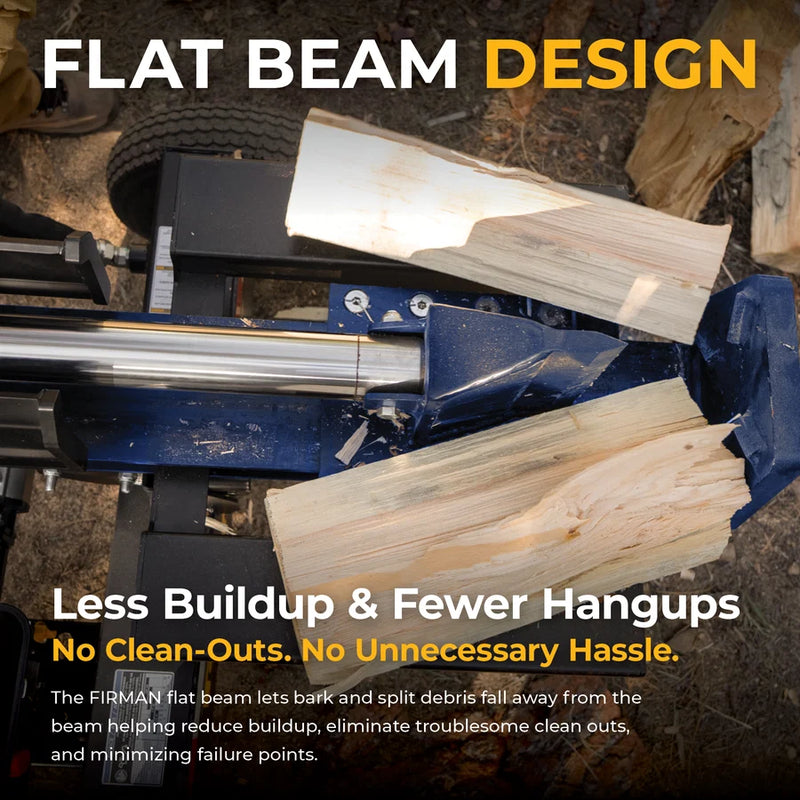

• Commercial Flat Beam Design Eliminating Common Failure Points
• Hardened Steel Wedge: 8.5"

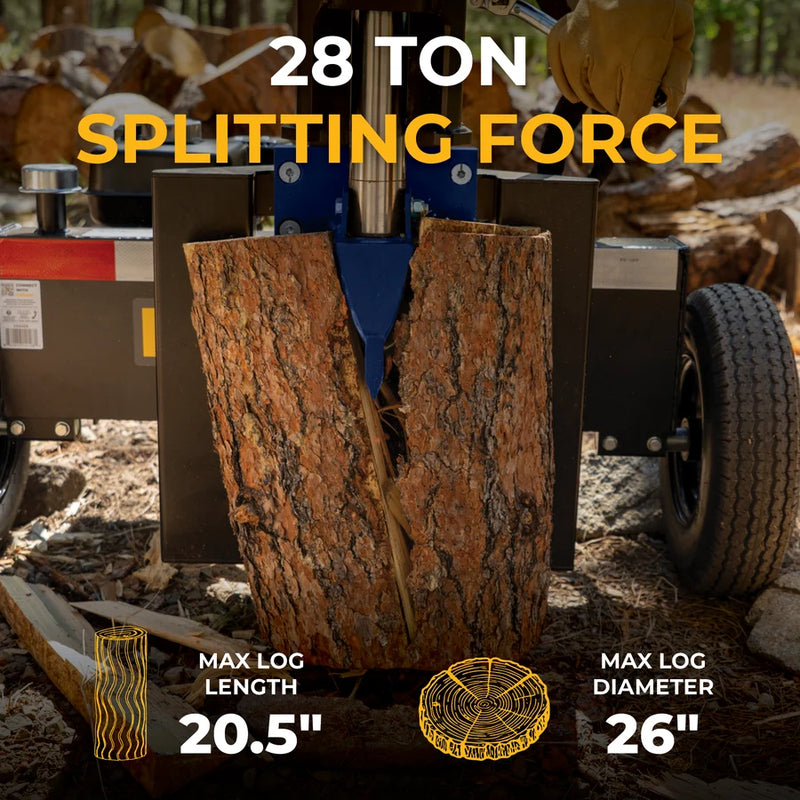

• Max Log Length: 20.5"
• Max Log Diameter: 26"

FEATURES THAT GO BEYOND YOUR EXPECTATIONS

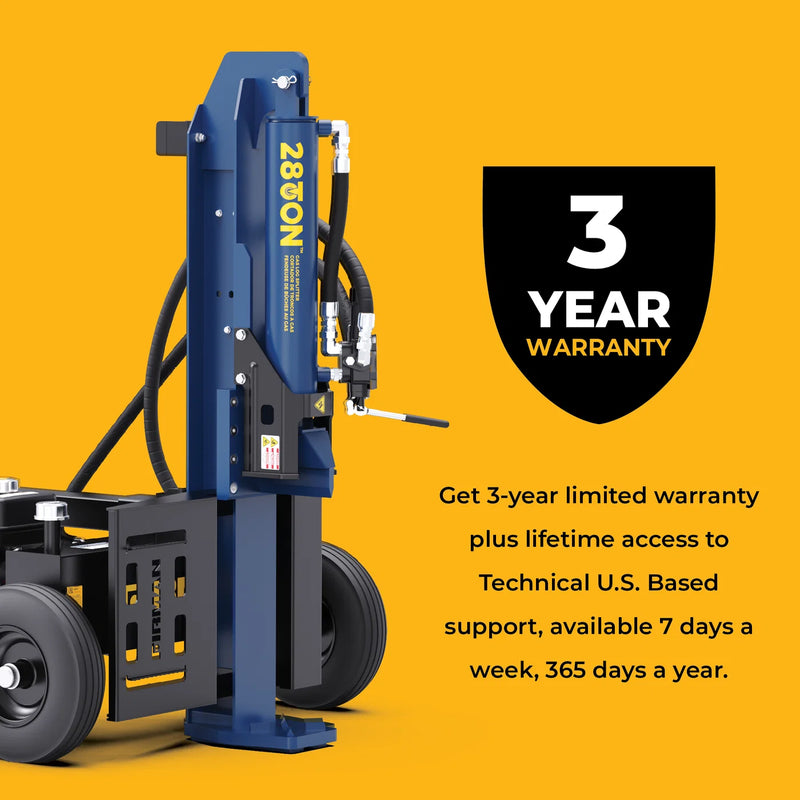

3-year warranty

• Auto-return valve
• Vertical to Horizontal Operation

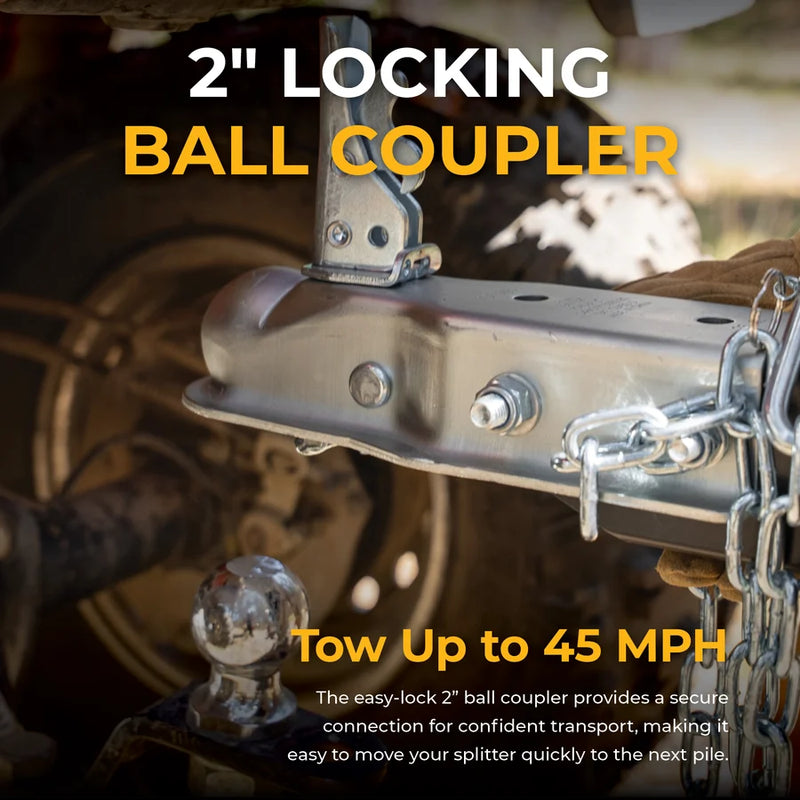

• Towable: 2" Locking Ball Coupler

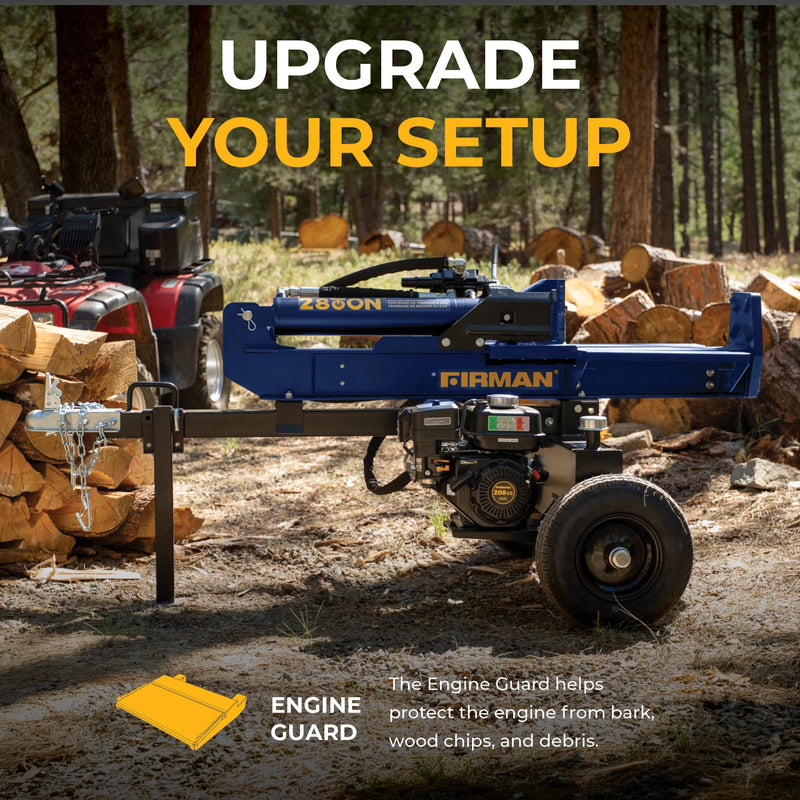

• Optional: Engine Debris Guard

Specifications

Certifications

EPA lll	Yes
USDA	Yes
ANSI/OPEI B71.7-2018	Yes

Engine

Brand	FIRMAN
Size	208CC
Type	4-stroke
Fuel Tank Capacity	0.9-gallons
Fuel Type	Gasoline
Low Oil Shutoff	Yes

Hydraulic System

Tank Size	8-gallons
Pump Spec	2-Stage

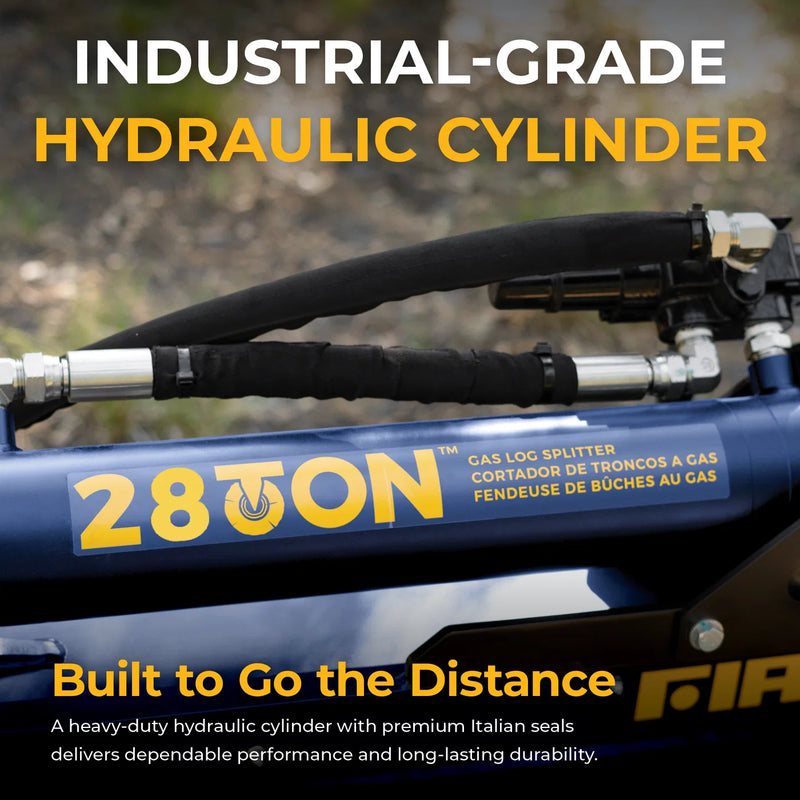

Cylinder Diameter	4.13"
Cylinder Rod Size	2.76"
Flow Rate	16 GPM

Performance

Max. Splitting Force	28-Ton
Max. Log Length	20.5"
Max Log Diameter	26"
Cycle Time	7.5 Seconds

Machine

Operating Position	Horizontal, Vertical
Wedge	8.5" Hardened Steel
Wedge Type	Single
Auto Return	Yes
Filter	Spin-on Replaceable (100 mesh)
Log Catchers	Yes
Log Cradles	Yes
Beam Type	Full

Packaging

Unit

UPC	840876141335

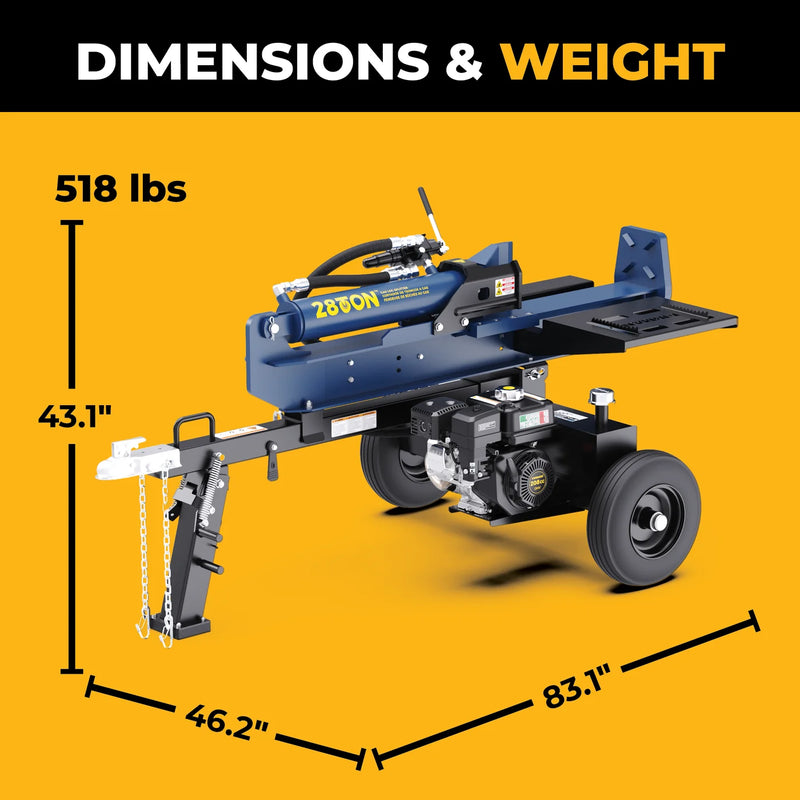

Dimensions	70.5" x 28.3 x 21"
Gross Weight	646 lbs
Net Weight	518 lbs

Towing

Hitch Type	2" Locking Ball Coupler
Max. Speed	45 MPH

Wheel Kit

Wheels	Yes
Wheel Type	Pneumatic
Wheel Diameter	16" DOT.(4.8-8)
