Champion 22 kW Whole House Home Standby Generator and 100A Switch with fleX Technology #201010

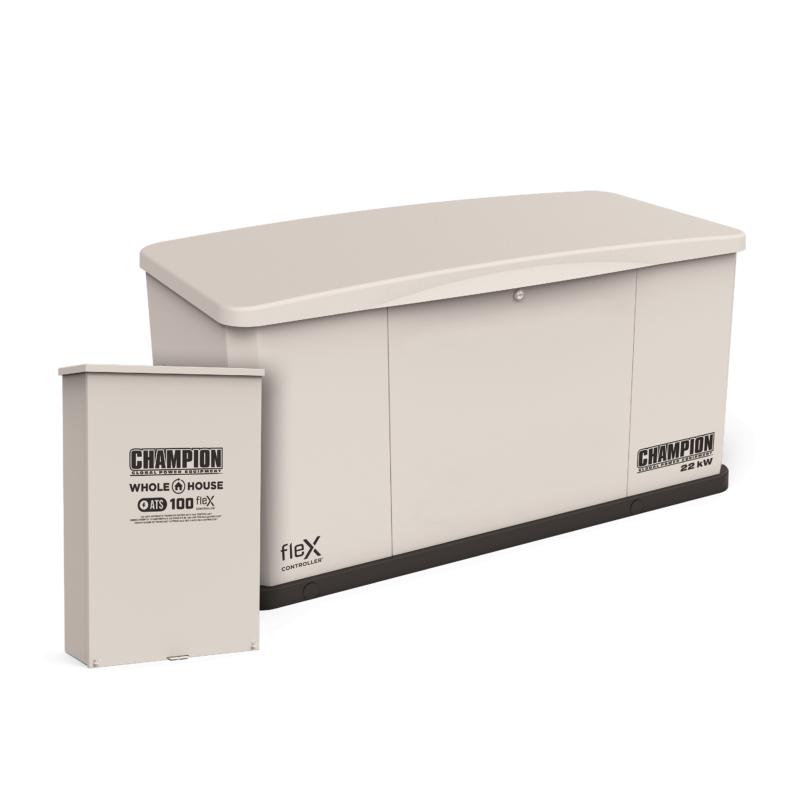

The Champion Power Equipment 201010 Home Standby Generator System includes 22 kW fleX Home Standby Generator and 100A fleX ATS Whole House Automatic Transfer Switch. Equipped with fleX technology for reduced costs, increases efficiency, and peace of mind while ensuring security and convenience for your family during an emergency. Enjoy totally automatic, seamless power to your home during an outage.

Champion fleX 22 kW generator features fleX Controller™ with ambient light-sensing OLED display and Power Line Carrier technology, which uses your home’s existing wiring so your generator can talk to the automatic transfer switch and other components without needing to run separate wires, saving you money and time on installation.

With fleX Wi-Fi Direct your installer can use a tablet or cell phone to program your generator meaning less hassle, faster setup, and lower cost.

Featuring a NEMA 3R Service Entry rated enclosure, this switch may be installed indoors or outdoors and is ETL listed to comply with UL standards for the US.

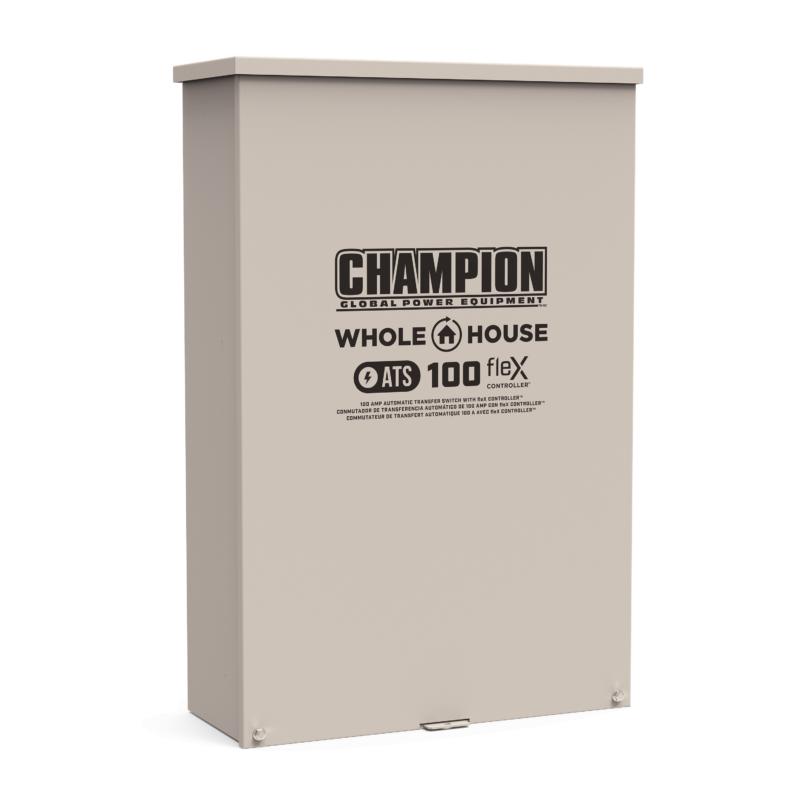

The Whole House automatic transfer switch backs up your home’s 100-amp distribution panel and has the ability to manage your high-demand appliances by using our fleX Load Management Module model 201019 (sold separately). Featuring a NEMA 3R Service Entry rated enclosure, this switch may be installed indoors or outdoors and is ETL listed to comply with UL standards for the US.

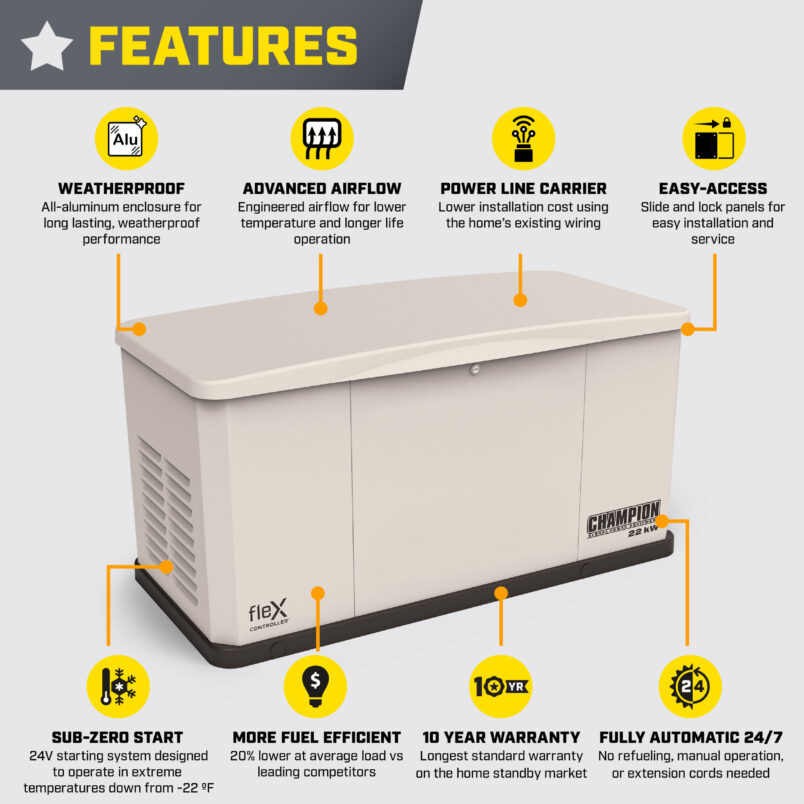

The innovative advanced airflow design stands out from the competition and allows your HSB to operate at cooler temperatures which extends the life of your engine. Your HSB is up to 20% more fuel efficient than leading competitors with 3.6 gal/hr using propane and 270.2 ft3/hr using natural gas at rated load.

Be confident your HSB will hold up to any weather thanks to the aluminum enclosure for long lasting weatherproof performance plus slide and lock panels for easy installation and service access.

The 24V starting system operates in sub-zero temperatures down to -22 °F, never needs refueling operating on your home’s NG or LP fuel supply, starts automatically when the power goes out, and returns to standby when power is restored.

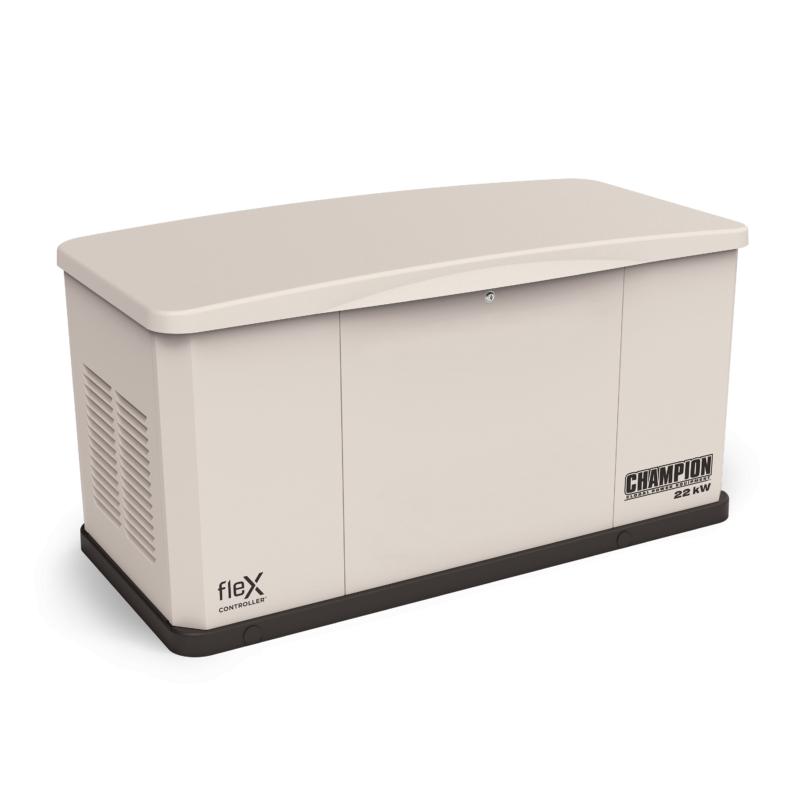

The 999cc V-Twin Champion engine provides 22-kilowatts of continuous power on propane and 19.8-kilowatts on natural gas. This 22 kW-rated unit produces 91.7 amps at 240 volts on propane and 82.5 amps at 240 volts on natural gas.

What’s included

• Battery Jumper Wire
• Gas Inlet Flex Hose
• Gas Inlet Hose
• Keys for Door Lock
• Master Mixer Assembly
• Hurricane Holddown Hardware
