3960 WATT SOLAR WITH 6,000 WATT PURE SINE POWER INVERTER CHARGER 48VDC 120VAC OFF GRID KIT

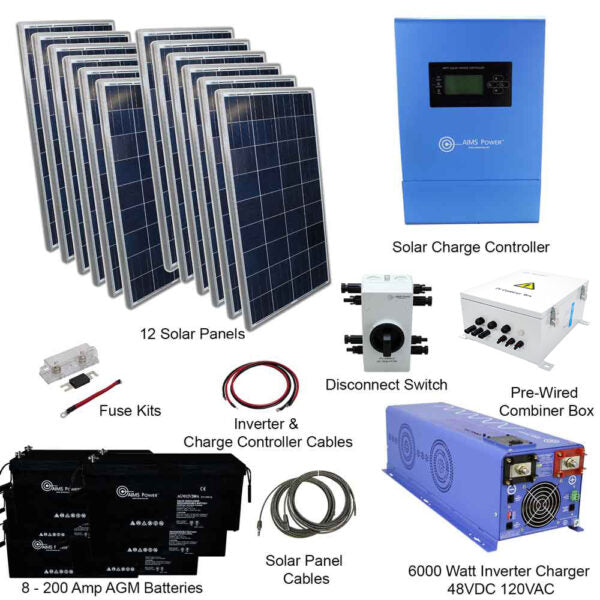

KIT COMPONENTS

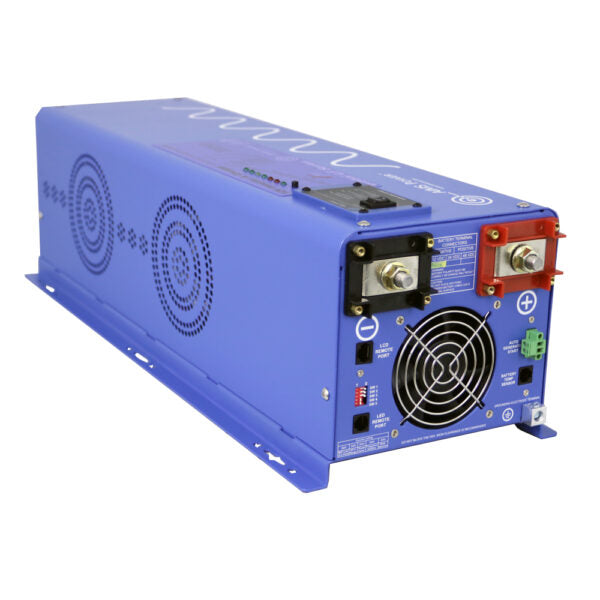

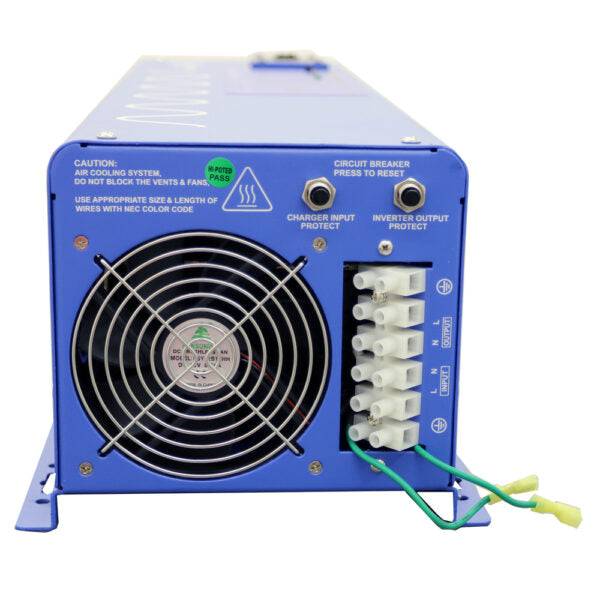

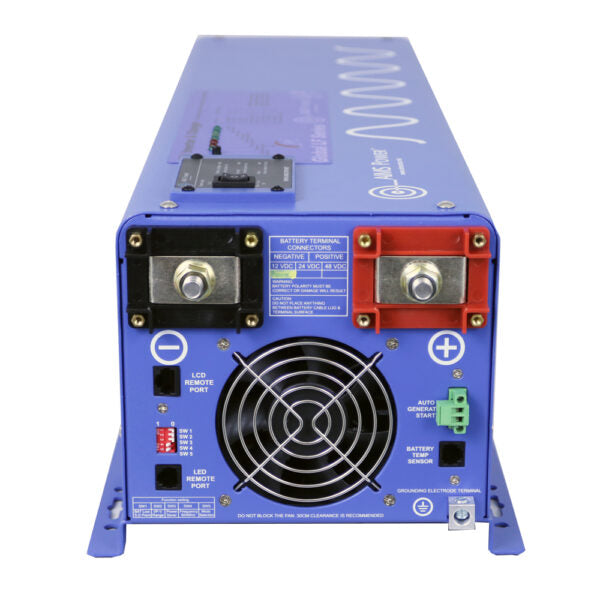

6,000 watt pure sine inverter charger

Click here for more inverter charger info

330 watt mono solar panel  Qty 12 – PV330mono @210 SQ FT

Click here for more panel info

Combiner Box 6 String– Pre-wired

Click here for combiner box info

80 amp MPPT solar charge controller SCC80AMPPT

Click here for more charge controller info

Quick Disconnect Switch DC1600V32A2IO

Click here for disconnect switch info

200 ah AGM deep cycle battery maintenance free sealed lead acid AGM12V200A – Qty 12

Click here for more battery info

• PICOGLFBATS – qty 1 – battery temperature sensor
• PVEXT20FT10AWG – PV female & male extension cables for solar array to combiner box and disconnect to solar charge controller
• PVM100FT10AWG – 100 foot PV wire for solar panel (male) from combiner box to disconnect
• PVF100FT10AWG – 100 foot PV wire for solar panel (female) from combiner box to disconnect
• CBL08FT6AWGC – 8 ft set charge controller to battery cables
• CBL08FT1/0AWG- 8 ft set of 4 AWG cable battery bank to inverter
• CBL02FT1/0AWG– qty 2 -2 ft 4 AWG cable (battery cables)
• CBL01FT1/0AWGRED – qty 7 – 1 ft jumper for fuse kit and battery jumpers
• ANL300KIT – 300 amp inline fuse kit for battery to inverter
• ANL100KIT – 100 amp inline fuse kit for charge controller to battery
• PVEXT15FT10AWG – qty 2 -15 ft PV extension wires male and female to connect solar panels in parallel

Powerful all-in-one solar kit for all of your off grid or back up power needs. Whether you’re supplying power to a business office or whole house, this solar kit includes all necessary products and bundled for your convenience. This 3960 watts of solar and the 8,000 watt. 100/50amp output low frequency inverter charger 48VDC split phase 110/120/220/230/240 VAC along with 600 amps of battery power at 48VDC will keep you up and running.

The pure sine inverter has a built in smart charger, automatic transfer switch and can recharge the batteries when city or generator power is available.  If grid power is lost, your solar system will automatically kick in. The 48VDC is more efficient, generates less heat allowing you to use smaller cables and fuses. The mono crystalline panels are covered in tempered glass to protect from hazardous weather and the PV wiring is protected against UV, water, ozone, fluids, oil, salt and general weathering.

Each system comes with a wiring diagram upon purchase.

• • Everything you need for an off grid or backup solar system (mounting brackets/racks excluded)
  • Works with large size appliances up to 8000 watts/ 33 AC amps @ 240VAC and 66AC amps @ 120VAC
  • Ideal for tools, pumps, compressors, appliances and electronics
  • Automatically switches from grid power to solar power or can be used for all off grid applications
  • Need @210 SQ FT available for solar panels

*The solar panel array will recharge a 50% depleted 600 amp battery bank in <5  hours with full sunlight.*
