THIS ITEM SHIPS FREE!!!!

1980 WATT SOLAR WITH 6,000 WATT PURE SINE POWER INVERTER CHARGER 48VDC 120/240VAC OFF GRID SOLAR KIT

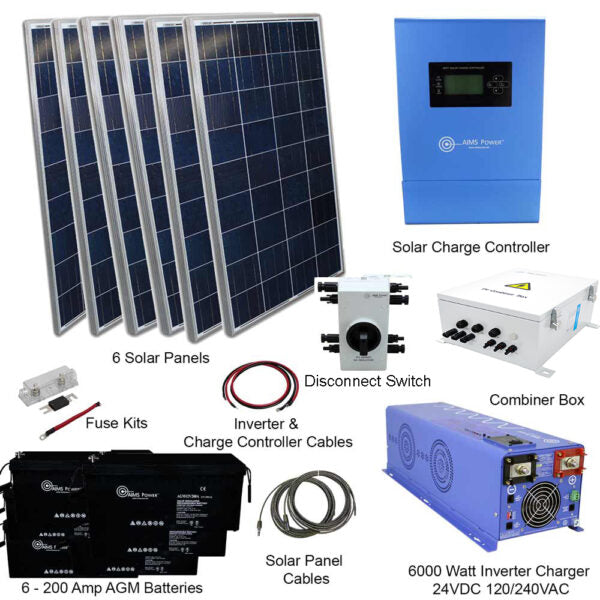

KIT COMPONENTS

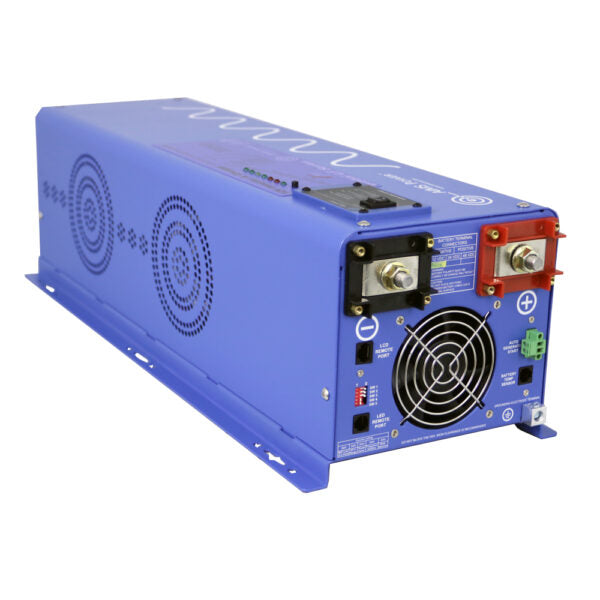

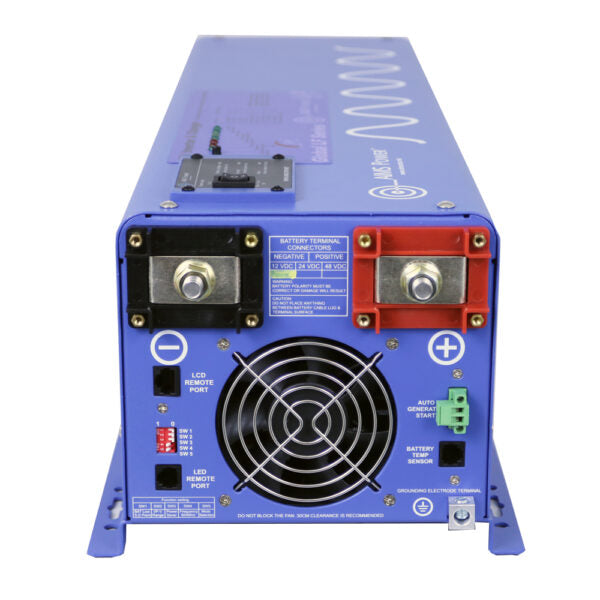

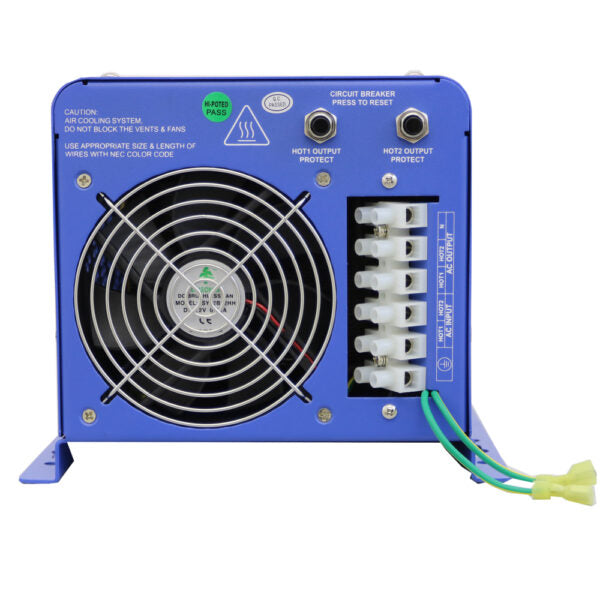

6,000 watt pure sine inverter charger 120/240vac 24V

Click here for more inverter charger info

330 watt mono solar panel  Qty 6 – PV330mono @210 SQ FT

Click here for more panel info

Combiner Box 3 String– Pre-wired

Click here for combiner box info

60 amp MPPT solar charge controller SCC60AMPPT

Click here for more charge controller info

Quick Disconnect Switch DC1600V32A2IO

Click here for disconnect switch info

200 ah AGM deep cycle battery maintenance free sealed lead acid AGM12V200A – Qty 6

Click here for more battery info

• PICOGLFBATS – qty 1 – battery temperature sensor
• PVEXT20FT10AWG – PV female & male extension cables for solar array to combiner box and disconnect to solar charge controller
• PVM100FT10AWG – 100 foot PV wire for solar panel (male) from combiner box to disconnect
• PVF100FT10AWG – 100 foot PV wire for solar panel (female) from combiner box to disconnect
• CBL08FT6AWGC – 8 ft set charge controller to battery cables
• CBL08FT1/0AWG- 8 ft set of 4 AWG cable battery bank to inverter
• CBL02FT1/0AWG– qty 2 -2 ft 4 AWG cable (battery cables)
• CBL01FT1/0AWGRED – qty 7 – 1 ft jumper for fuse kit and battery jumpers
• ANL300KIT – 300 amp inline fuse kit for battery to inverter
• ANL80KIT – 100 amp inline fuse kit for charge controller to battery
• PVEXT15FT10AWG – qty 2 -15 ft PV extension wires male and female to connect solar panels in parallel

Powerful off grid or back up power kit. Up to 50 amps of power (@120V or 25 at 240V) and the panels will keep up with your load. If you lose grid power, this kit will automatically kick in.

Whether you’re supplying power to a business office or whole house, this solar kit includes all necessary products required and bundled for your convenience. This 1980 watt solar kit comes with a 6000 watt low frequency inverter charger (split phase 120/240VAC). The inverter has a built in charger and can recharge the batteries when city or generator power is available. The solar panels are covered in tempered glass to protect from hazardous weather and the PV wiring is protected against UV, water, ozone, fluids, oil, salt and general weathering. The kit is packed with  battery power to power your items at night or on shady days.

The pre-wired solar array combiner box makes installation a breeze and provides extra safety features for your system. Each system comes with a wiring diagram upon purchase.

The pure sine inverter has a built in smart charger, automatic transfer switch and can recharge the batteries when city or generator power is available.  If grid power is lost, your solar system will automatically kick in. The 48VDC is more efficient, generates less heat allowing you to use smaller cables and fuses. The mono crystalline panels are covered in tempered glass to protect from hazardous weather and the PV wiring is protected against UV, water, ozone, fluids, oil, salt and general weathering.

Each system comes with a wiring diagram upon purchase.

• • Everything you need for an off grid or backup solar system (mounting brackets/racks excluded)
  • Works with large size appliances up to 6000 watts/ 25 AC amps @ 240VAC and 50AC amps @ 120VAC
  • Ideal for tools, pumps, compressors, appliances and electronics
  • Automatically switches from grid power to solar power or can be used for all off grid applications
  • Need @72 SQ FT available for solar panels

*The solar panel array will recharge a 50% depleted 600 amp battery bank in <4  hours with full sunlight.*
