Industrial Grade 2000W Low Frequency Power Inverter: Clean, Stable Power for Your Most Demanding Applications

Experience uncompromising power reliability with the AIMS Power 2000W Pure Sine Power Inverter. Engineered to deliver true 120VAC power with a true neutral – virtually identical to grid power.

Built for demanding environments, this inverter delivers a massive 6,000-watt surge capacity for 20 seconds, ensuring reliable startup for heavy-duty equipment. Advanced DSP (Digital Signal Processing) technology maintains consistent performance and stable output voltage—even as battery levels drop—making it ideal for sensitive electronics, power tools and appliances. Built tough for rugged conditions, it features an intelligent 3-step controlled fan for efficient cooling, GFCI outlets for added safety, hard wire terminal for convenience, and an optional LCD remote panel for convenient monitoring.

Ideal for professional-grade applications:

  • Utility and service trucks requiring grid-quality power
  • Mobile workshops, food trucks, and field service vehicles
  • Off-grid homes, cabins, and emergency backup systems
  • Remote construction sites and solar/battery backup installations
  • 2000W – 16 Amps Continuous Power – Handles demanding loads with ease
  • 6,000W Surge Capacity – Powers high-startup equipment for 20 seconds
  • ETL Listed Conforms to UL458 Standards & CSA
  • Pure Sine Wave Output – Clean power safe for most devices
  • Single GFCI Duplex receptacle  – Enhanced safety protection
  • Hard wire terminal for full output capacity
  • DSP Technology – Advanced digital signal processing for optimal performance
  • Built to withstand harsh conditions
  • 3-Step Controlled Fan – Quiet operation with efficient cooling
  • Voltage Regulation – Stable output regardless of battery voltage fluctuations
  • Optional LCD display for convenient monitoring- REMOTELF
  • Power Save Mode – Energy conservation when no load present
  • Overload protection
  • Low and high voltage protection
  • Short circuit protection
  • Low and high temperature protection
  • Conformal coated
  • 50Hz & 60Hz
  • 2 Year Warranty
  • Lifetime tech support
Power Inverter Model- PILF Series 6W12V120V 10W12V120V 15W12V120V 20W12V120V 24W12V120V 30W12V120V / 240V 40W12V120V
Power Inverter Output Continuous Power Watt 600 1000 1500 2000 2400 3000 4000
Surge Rating(20s) Watt 1800 3000 4500 6000 7200 9000 12000
Capable of Electric Motor 0.6HP 1.0HP 1.5HP 2.0HP 2.4HP 3.0HP 4.0HP
Output Waveform Pure Sine wave
Nominal Efficiency Up to 88%
Power Factor 0.9-1.0
Nominal Output Voltage 120Vac (Single Phase) or 120/240Vac (Split Phase PILF30W12V240V ONLY)
Output Voltage Regulation ±10% RMS
Output Frequency 50/60Hz ± 0.3Hz
Short Circuit Protection Yes, Current Limit Function (Fault after 1sec)
THD Typically-<3%, Max 10% under full linear load
DC Input Nominal Input Voltage 12.0Vdc
Minimum Start Voltage 10.0Vdc
Low Battery Alarm 10.5Vdc / 11.0Vdc /11.5Vdc / 12.5Vdc
Low Battery Trip 10.0Vdc / 10.5Vdc /11.0Vdc / 12.0Vdc
High Voltage Alarm & Fault ≥16.0Vdc
High DC Input Recovery ≤15.5Vdc
Low Battery Voltage Recover ≥13.0Vdc
Idle Consumption-Search Mode < 2.5W when Power Saver On Mode
Remote Control Yes. Optional
Display Tri-Color LEDs
Physical Specs Mounting Wall Mounted or Flat Placement- Any orientation except upside down (top facing down)
Inverter Weight 17lbs 26lbs 32.5lbs 47lbs 52lbs 57lbs 69.5lbs
Shipping Weight 19lbs 28lbs 35lbs 57lbs 62lbs 68lbs 83lbs

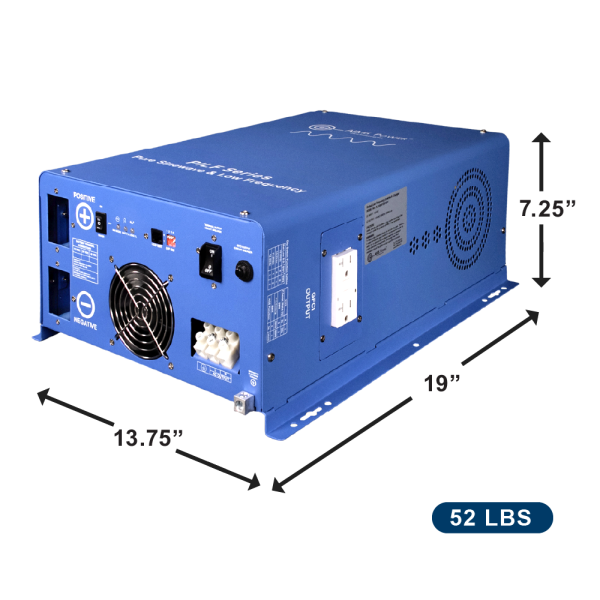

Inverter Size LxWxH inches 12.75×5.5×7.25 14.75×5.5×7.25 14.75x 5.5×7.25 19×13.75×7.25 19×13.75×7.25 19×13.75×7.25 22.25×13.75×7.25
Shipped Size 17 x 9 x 9 20 x 9 x 9 20 x 9 x 9 24 x 18 x 12 24 x 18 x 12 24 x 18 x 12 27 x 18 x 12
