Harness reliable solar energy with a rugged 100W monocrystalline panel built for long term performance in demanding environments. Featuring a longer, narrower profile than typical panels of the same wattage, this design makes it ideal for installations where space is limited or constrained.

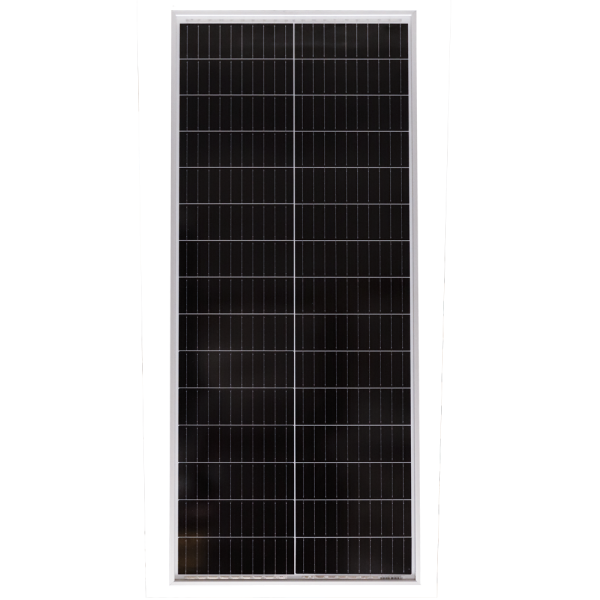

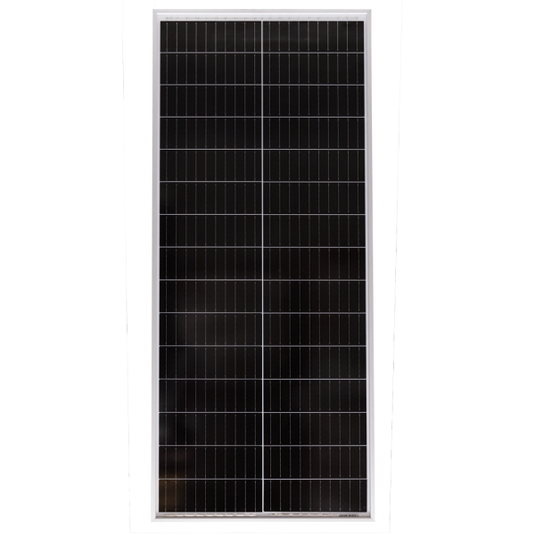

The AIMS Power 100 Watt Monocrystalline Rigid Solar Panel is engineered for dependable energy production in both roof and ground mount solar installations. Built with high efficiency monocrystalline cells and protected by tempered glass, this heavy duty solar panel withstands harsh environmental conditions while delivering consistent power output. Its precision construction and durable aluminum frame make it especially well suited for off-grid systems, mobile installations, and small solar arrays where reliability, longevity, and efficient use of space matter.
This panel produces stable DC power using highly efficient solar cells and maintains performance across a wide temperature range. With pre-drilled mounting holes and industry standard MC4 type connectors, installers can integrate it quickly into existing or new solar systems.
• Users: Reliable 100W solar power for RVs, cabins, off-grid systems, and backup energy applications, ideal for tight or narrow mounting spaces. • Installers: Narrow form factor allows flexible placement where wider panels won’t fit; pre-drilled aluminum frame and MC4 leads simplify mounting and system integration. Cable length = 24″
Features
Monocrystalline efficient solar harvesting
Strong surface for harsh environment
Panels capable of +3 Watts over rated capacity
Cable length = 24″
Pre-drilled aluminum frame
Tempered glass
25 Year limited warranty
Specifications
Maximum Power (Watt): 100 watts
Maximum Power Voltage (Vmp): 17.3 volts
Optimum Operating Current (Imp): 5.79 amps
Open Circuit Voltage (Voc): 20.23 volts
Short Circuit Current (Isc): 6.29 amps
Number of Cells (pcs): 15×2
Front Glass Thickness (mm): 3.2 mm
Temperature Coefficients of Isc (%) °C: -0.048
Temperature Coefficients of Voc (%) °C: -0.29
Temperature Coefficients of Pm (%) °C: -0.37
Temperature Range: -40°C to +80°C
Tolerance Wattage: 0-3 watts
Surface Maximum Load Capacity: 6000Pa
Allowable Hail Load: 45mm at 30.7m/s
Bypass Diode Rating (A): 15
600VDC max system voltage
Cell Efficiency (%): 19.02%
Module Efficiency (%): 16.4%
Backing (brand Type): TPT
Warranty: 90% of 10 years, 80% of 25 years
Standard Test Conditions: AM1.5 1000W/ 25 +/-2°C
FF (%): 70-76%
Weight Per Panel (lbs): 13 lbs

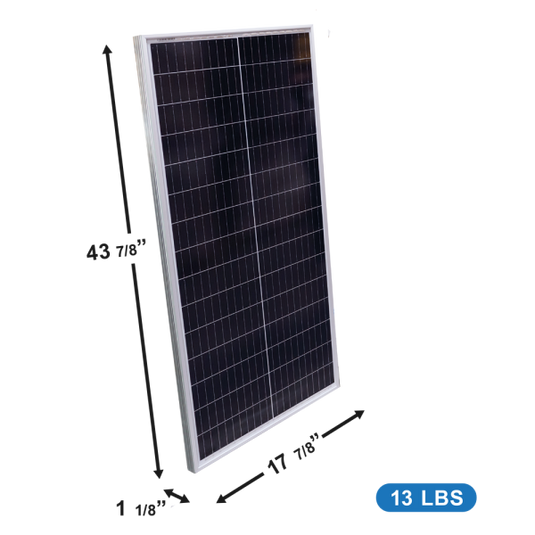

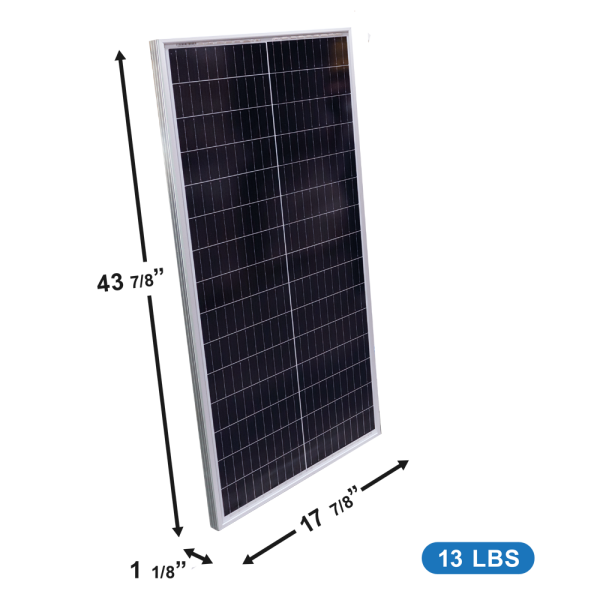

Dimensions (inches): 43 7/8″L x 17 7/8″W x 1 1/8″D
MC4 cable length: 24″
