- ALL IN ONE: Designed to provide grid tie, battery back up and solar power management in one product. The AIMS Power Pure Sine Hybrid Inverter’s simple but comprehensive design eliminates the need for extra equipment, providing an efficient solution for users interested in off grid battery backup, net metering, and load sharing all in one product.

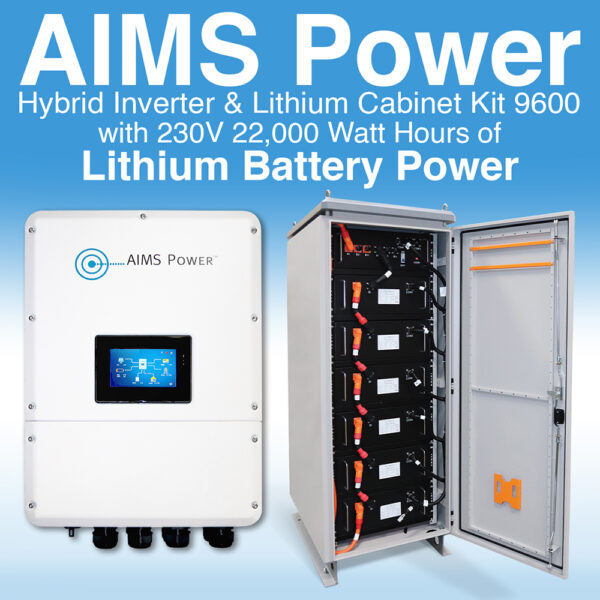

- KIT: This kit includes 1 AIMS Power PIHY9600 9.6 kW Hybrid Inverter Charger and 1 AIMS Power Lithium Battery Cabinet 230VDC 96AMPS 22,114 Watt Hours Master Battery (Total storage 22,114 Watts).
- EASY TO USE: By combining solar power and battery backup into one complete, easy to use solution, these AIMS Power hybrid models give you independent power production and frees you from the restrictions and cost of grid power.
- TRUSTWORTHY: The inverter comes with a 10 year manufacturer’s Warranty and the battery comes with a 5 year manufacturer’s Warranty when purchased from authorized resellers. Buy with confidence. AIMS Power has been in business for over 20 years. All tech and warranty support in Nevada.
- DELIVERY: This kit is delivered by freight with a lift gate at delivery. Please make sure that your delivery location can accept freight deliveries and that someone will be available to accept and sign for the delivery.
Hybrid Inverter Charger
- Listed to UL 1741-SA I CSA 22.2 No.107-01 I UL1998 I UL1699B
- Stackable (Max 6)
- Direct 3 string PV input
- IP65 NEMA4X rated for outdoor installation
- 10 year warranty
- Customizable DC input voltage for various battery types including lithium and lead
- Free USA based tech support
- Wide programmable voltage input range
- Generator input for backup 240VAC
- Wide PV input voltage range
- Load sharing
- Isolated emergency backup output for defined loads
- Configurable charge and load times based on local utility recommendations
- Loaded with safety features

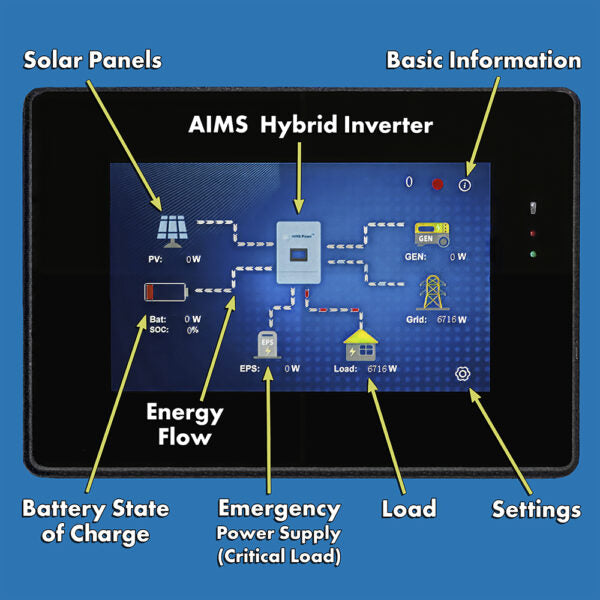

- Large 5-inch color LCD
- RS485, CAN, Wi-Fi, 4G
- Extremely efficient
- FCC Part 15 Class B

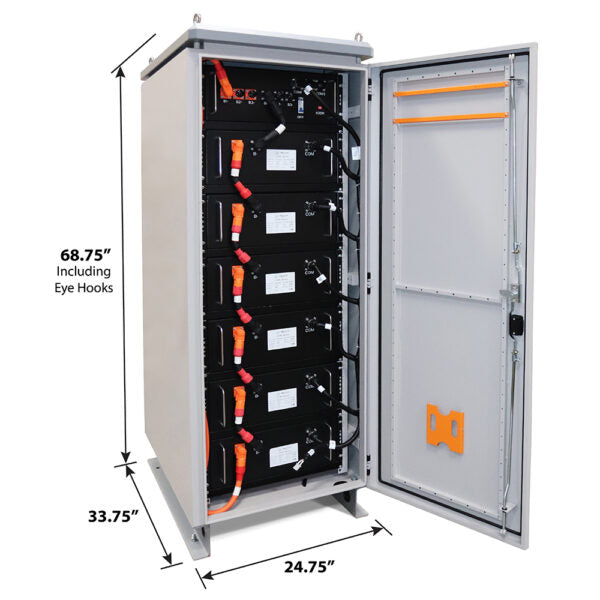

Lithium Battery Cabinet
◦ Pre-programmed to work seamlessly with AIMS hybrid inverter
◦ Pre-wired for easy installation and set up
◦ Five year limited warranty
◦ Requires only 3 simple wires to connect to the inverter (positive, negative and CAN)
◦ Superior BMS for optimal performance
◦ Expandable – max 3 per inverter (1 master and 2 slaves)
◦ Cell balancing
◦ More efficient during high watt usage
◦ Natural cooling
◦ Eye bolts for lifting included
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

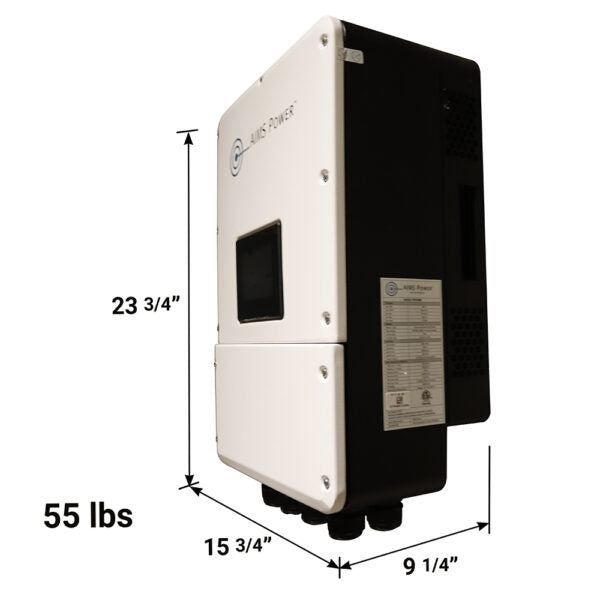

Dimensions: 23 3/4″ x 15 3/4″ x 9 1/4″ 55 lbs |
◦ Voltage DC: 230.4V
◦ Amp hours: 96
◦ kWh 22.1 (22,114 watt hours)
◦ Cabinet includes qty 6 38.4V lithium packs wired in series.
◦ Max charge/discharge current 50amps
◦ Cycle life >3500
◦ Cut off discharge voltage – 180V
◦ Max charge voltage- 262.8
◦ Efficiency >97%
◦ IP grade – IP54
◦ Weight – 650 lbs
◦ Dimensions (inches) – 68.75H x 33.75D x 24.75W
