If you are considering expansion. Note that Generation 2 is compatible with Generation 1. If you're unsure about the version you have, our customer support team is ready to assist you.
Take a Closer Look
Our popular 12V 200Ah Core LFP Battery, now upgraded with Bluetooth for smart mobile monitoring.
200Ah Core vs. Other LiFePO4
Unmatched performance for your most demanding energy needs.
Real-Time Power at Fingertips
The all-new Renogy 12V 200Ah Core Battery with Bluetooth connectivity enables effortless monitoring via the Renogy app. Instantly track remaining power, voltage, current, and receive critical alerts for protection triggers—all from your smartphone. Stay informed and ensure optimal performance with seamless, real-time updates.
Extra Power. More Possibilities.
The Renogy 12V 200Ah Core delivers more than expected. With a max. 6% additional capacity, you’re ready for unexpected challenges like storms, hurricanes, wildfires, and more.
Powerful to the Core
Providing reliable power almost 10 times longer than standard lead-acid batteries, the Renogy 12V 200Ah Core LiFePO4 Battery is equipped with EV-grade cells for superior, lasting performance.
Year-round Protections
The built-in 200A battery management system (BMS) ensures peace of mind year-round. The low-temperature cut-off feature actively prevents charging when temperatures drop below 32°F.
Protections from Bumps
We understand the journey is often bumpy. That’s why the battery is designed with rugged protection to safeguard components from impacts on the road.
Connect in Series
Easily wire 12V 200Ah Core Series Batteries in series to build a 24V, 36V, or even 48V system in your RV.

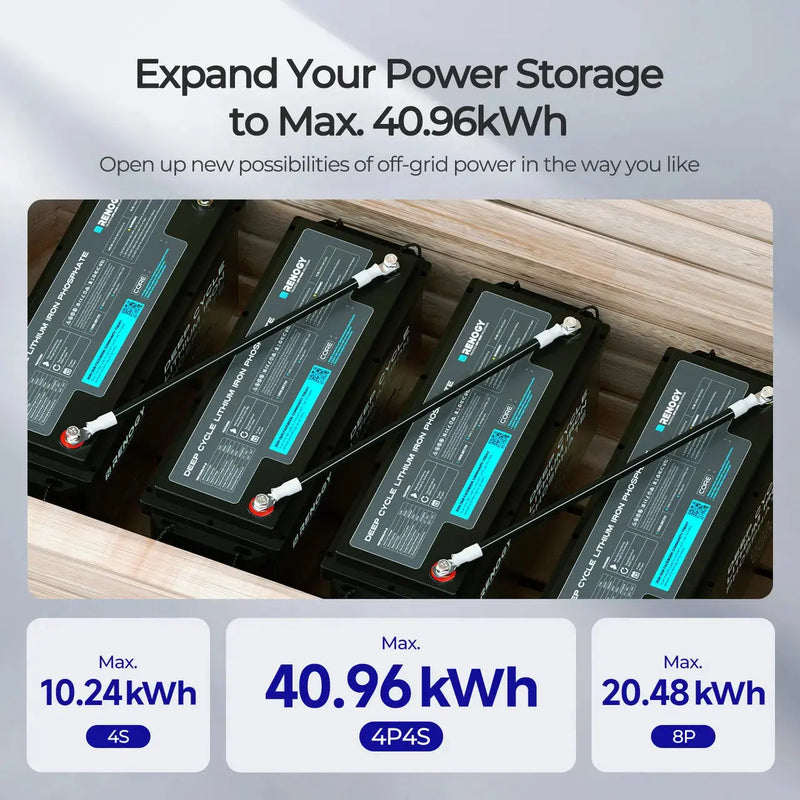

Connect in Parallel
Extend the runtime of your off-grid power system by connecting batteries in parallel. With 8 Renogy 12V 200Ah Core Series Batteries, you can achieve up to 20.48kWh of power.
Connect in Series-Parallel
Looking to boost both voltage and capacity? Try connecting sets of batteries in series-parallel to maximize your system's power and be ready for emergencies like outages and hurricanes.
Dimensional Reference Guide
Before installing the battery, ensure you leave 1.97-3.94 inches (5-10 cm) of space above the battery and at least 7.87 inches (20 cm) on the side with the busbars.
What's in the box
Package Includes
Core - 12V 200Ah Lithium Iron Phosphate Battery w/ Bluetooth
x 1
Long Terminal Bolts
x 2
Insulation Sleeves
x 2
User Manual
x 1

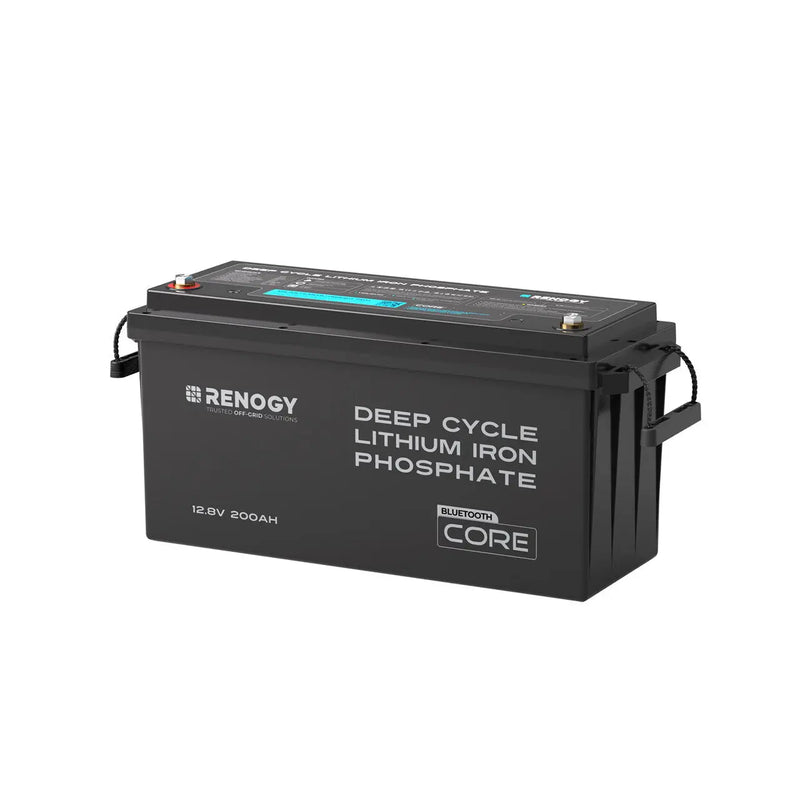

Renogy 12V 200Ah Core Series Deep Cycle Lithium Iron Phosphate Battery w/ Bluetooth
Electrical Specifications
Rated Capacity
200Ah (0.5C, 25℃)
Voltage
12V
Energy
2560Wh
Cycle Life (0.5C/1C, 25℃)
5000 Cycles (80% DOD, 80% EOL)
Voltage Range
10V to 14.8V
Charging Parameters
Charge Voltage
14.4V
Maximum Continuous Charge Current
200A
Discharging Parameters
Maximum Continuous Discharge Current
200A
Peak Discharge Current
400A@10s
Temperature Parameters
Operation Temperature Range
Charge: 32°F to 122°F / 0°C to 50°C; Discharge: -4°F to 131°F / -20°C to 55°C
Storage Temperature Range
-4°F to 149°F / -20°C to 65°C
Operation Relative Humidity
10% to 95%
Mechanical Specifications
Dimension (L x W x H)
19.76 x 7.36 x 9.53 in / 502 x 187 x 242 mm
Weight
44.53 lbs. / 20.2 kg
Terminal Bolt Size
M8 x 1.25 x 15 mm
Protection Rating
IP65
Warranty
5-year prorated material and workmanship warranty
Yes
Certifications
MSDS, UN38.3, FCC, PSE, IC, RCM, RoHS, CE, and UKCA
Yes
