Ultra-thin (2.4 in) for canopies, behind seats and more tight spaces
9x slower temperature rise enhances safety & reduces thermal runaway
Versatile mounting with vibration-resistant bracket kits
10A reliable charging in freezing conditions down to 14°F/-10°C
Powering a 2000W inverter with a single battery at 200A high output

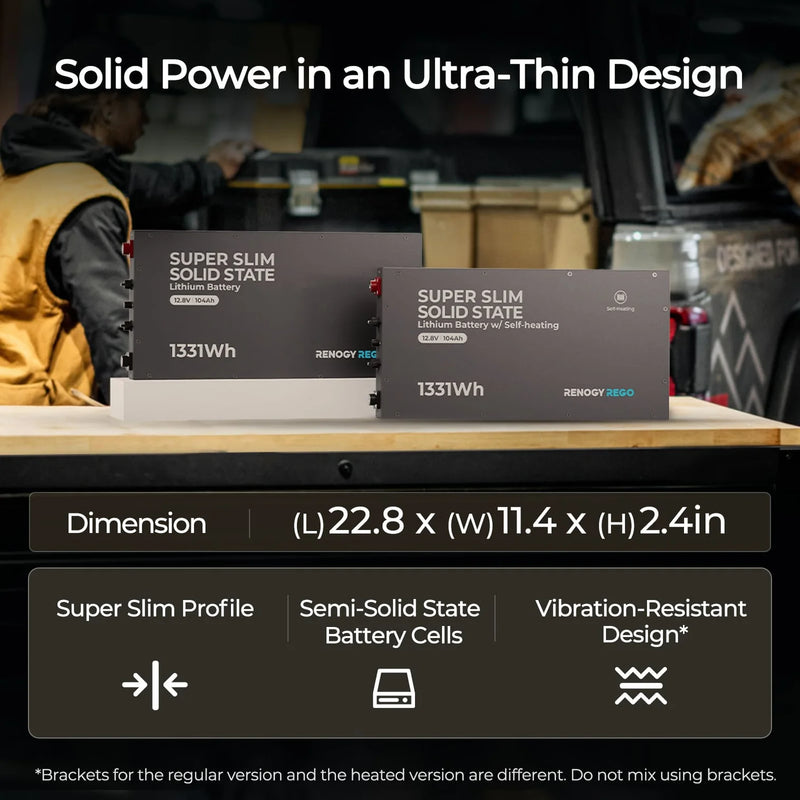

Solid Power in an Ultra-Thin Design

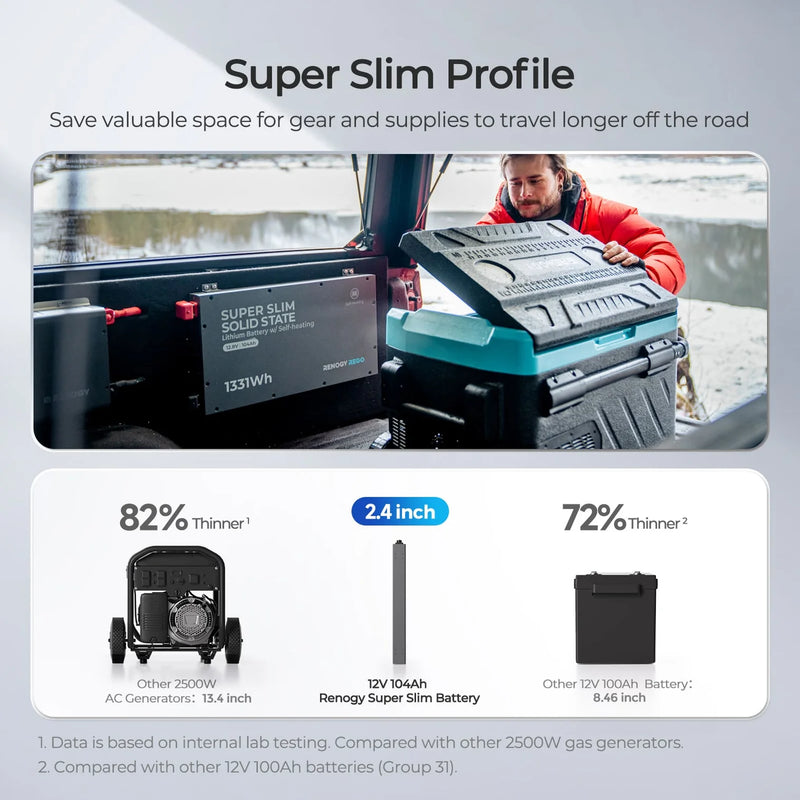

Super-Slim Design. Effortless Installation.
As thin as 2.4inch / 61mm, Renogy Slimline LiFePO4 Battery can snugly fit into the back of a seat, underseat cabins, or other tight spaces in overlanding vehicles.
Travel Light with Confidence
Stop overloading your 4x4 pickup trucks with lead-acid batteries and gas generators. This 12V 104Ah Solid-State LFP Battery helps reduce weight and free up more space for your essentials, so you can venture further.

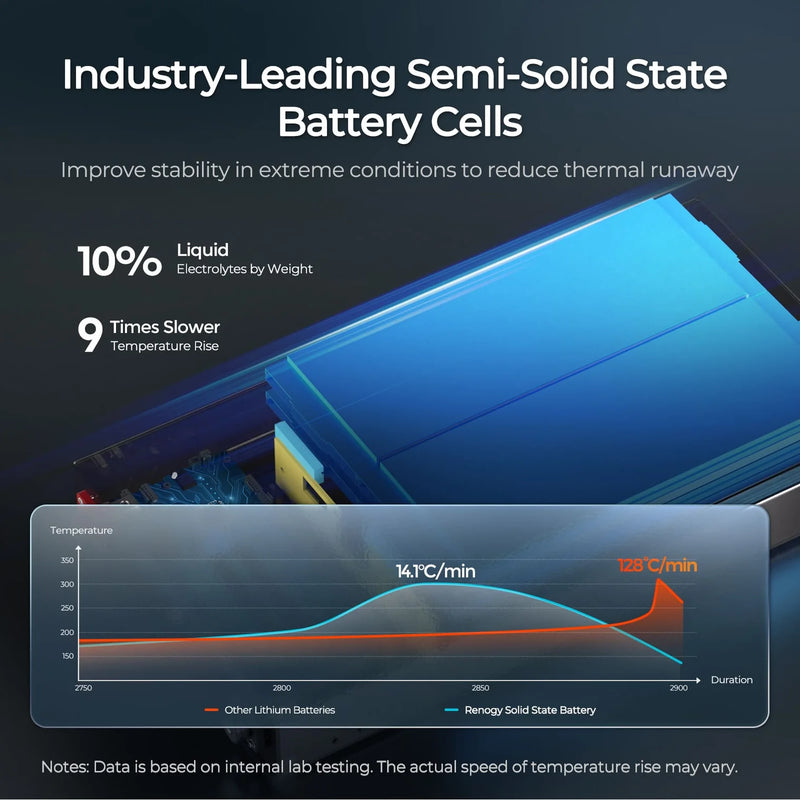

The Next-Gen LiFePO4 Cells
Renogy is taking a step forward by introducing semi-solid state cells for RV batteries. By reducing liquid electrolytes by 70%*, this new solid state battery contains 10% liquid electrolytes by weight, helping to bring safety and lifespan to the next level.
Inherently Safe & Stable
Renogy slimline LiFePO4 battery features a revolutionary hybrid solid-liquid electrolytes, ensuring it does not swell or burn even if punctured or crushed.
Safety At Its Heart
The Intelligent Power Armor Technology helps this super slim lithium battery take a huge leap in sustained performance. The built-in battery management system (BMS) offers more than 60 protections against overvoltage, short circuits, extreme temperatures, and more. And with the self-control fuse in the Active Backup Protection, your battery will get an extra layer of more responsive protection against overcurrent.
Safe Charging in Cold Weather
Designed specifically for cold weather, REGO super-slim lithium battery is now available in a self-heating version with the same performance and dimensions. Equipped with self-heating pads that draw power from the charger, this resilient LFP battery can safely charge at temperatures down to -4°F/-20°C, preventing short circuits or thermal runaway that can occur with non-heated lithium batteries.

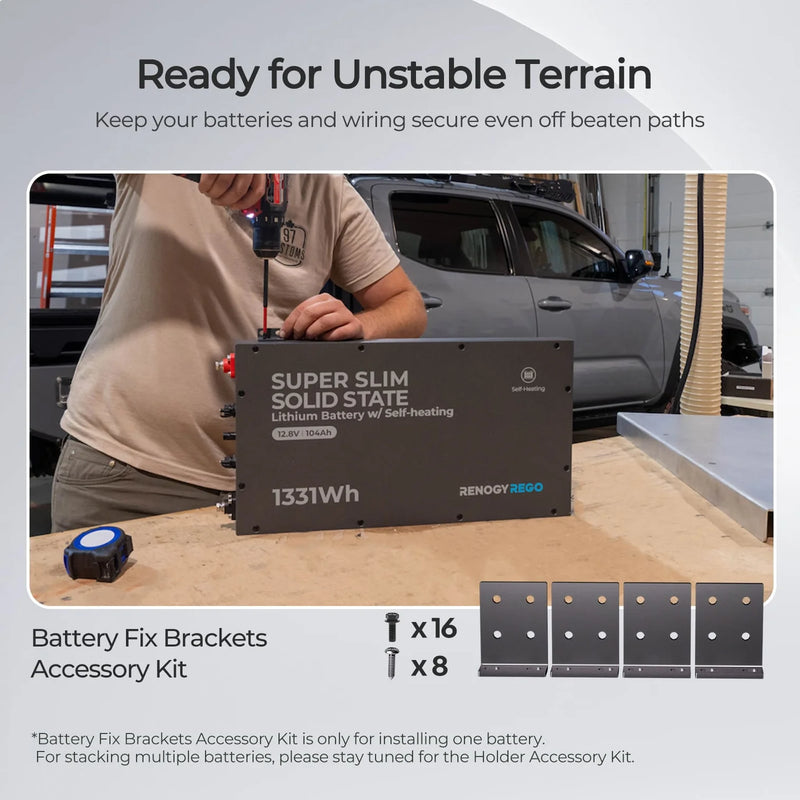

More Ways to Install
With sophisticated accessory kits, you can secure this slimline LFP battery on the side of canopies, under the floor, or under seats, no matter how beaten the path is.
Built Tough for the Wild
When the off-road life calls, the Renogy Slimline LiFePO4 battery is ready to answer. Its rugged IP67-rated enclosure protects against dust, water, and the elements, so you can confidently tackle any terrain. The added UL94 V-0 fire-resistant rating provides critical safety, letting you focus on the thrill of the adventure.
izing Guide
Before installing the battery, please note that you need to leave 1.97-3.94in (50-100mm) for the top of the battery; the side with busbars needs to be left at least 7.87in (200mm). *The self-heating version is the same size as the regular option.
Package Includes

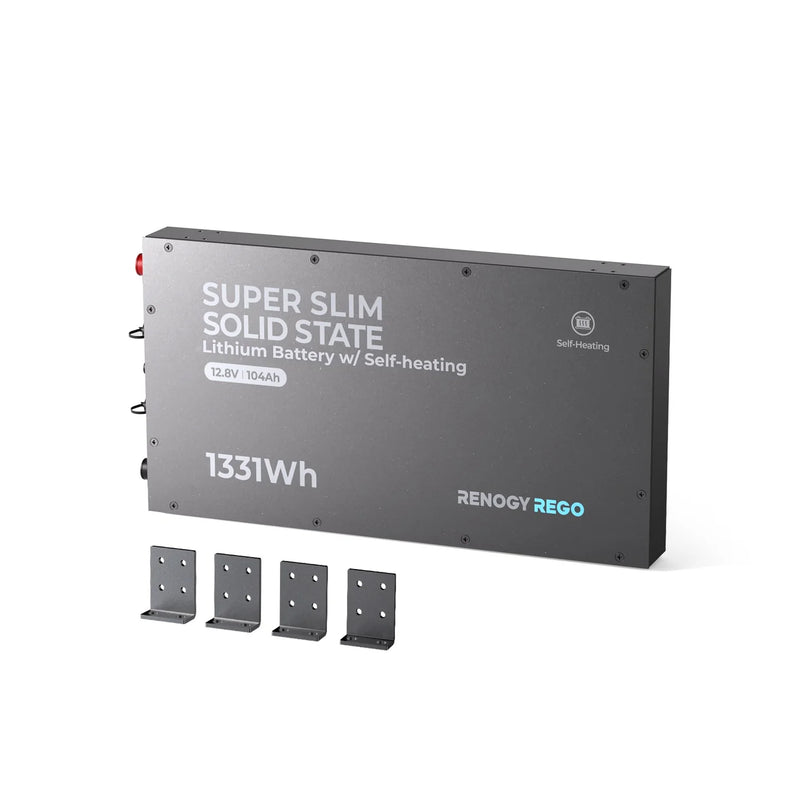

REGO 12.8V 104Ah Super Slim Solid State Lithium Battery w/ Self-Heating * 1
Battery Bracket Kit *1
Long Terminal Bolts (M8 x 1.25 x 16mm) *2
Terminal Bolts (M8 x 1.25 x 12mm) *2
Insulation Sleeves *2
User Manual *1
12.8V 104Ah Super Slim Lithium Iron Phosphate Battery with Self-Heating
12.8V 104Ah Super Slim Lithium Iron Phosphate Battery with Self-Heating
Battery Cell Type
Pouch
Cell Chemistry
LiFePO4
Rated Voltage
12.8V
Rated Capacity (0.5C, 25°C)
104Ah
Voltage Range
10 to 14.8V
Cycle Life (0.5C, 25°C)
6,000 Cycles (80% DOD, 80% EOL)
Maximum Continuous Charge Current
100A
Maximum Continuous Discharge Current
200A
Peak Discharge Current
290A@30s
BMS Discharge Voltage Cut-Off
8.8V
Reconnect Voltage/Current
0.5A
Short Circuit Protection
Yes
Resistance
5mΩ
Self Discharge
<3%/month
Connection Method
4S/16P/4S4P
Charge Temperature
-4℉ to 131℉ / -20℃ to 55℃
Discharge Temperature
-4℉ to 140℉ / -20℃ to 60℃
Storage Temperature
-4℉ to 140℉ / -20℃ to 60℃
Operation Relative Humidity
5% to 95%
Weight
29.5 lbs / 13.38kg
Dimensions (LxWxH)
22.8 x 11.4 x 2.4in / 579 x 290 x 61mm

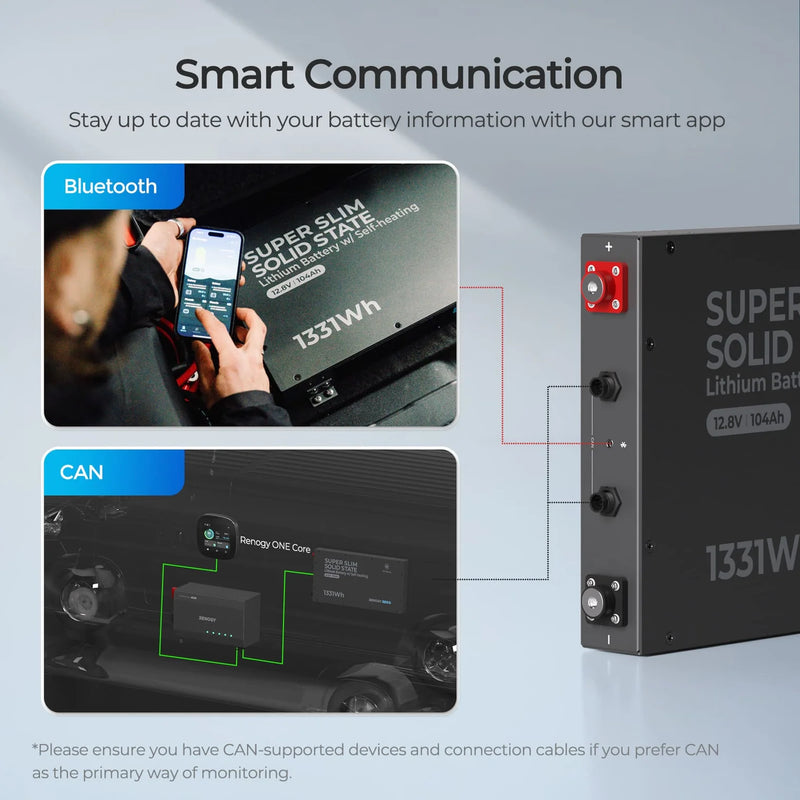

Communication Protocol
CAN and Bluetooth
Terminal Bolt Size
M8 Terminal
Recommended Terminal Torque
70.8 in-lb / 8 N·m
Housing Material
Aluminum Alloy
Flame Retardancy
Yes
Protection Rating
IP67
Self-Heating
Yes
Heating Temperature
40°F / 5°C On, 50°F / 10°C Off
Self-Heating Power
150W
Shipping Class
UN3480, Class 9
Certifications
UN38.3 In Progress: CE, FCC, IC
Warranty
8-Year
