Features

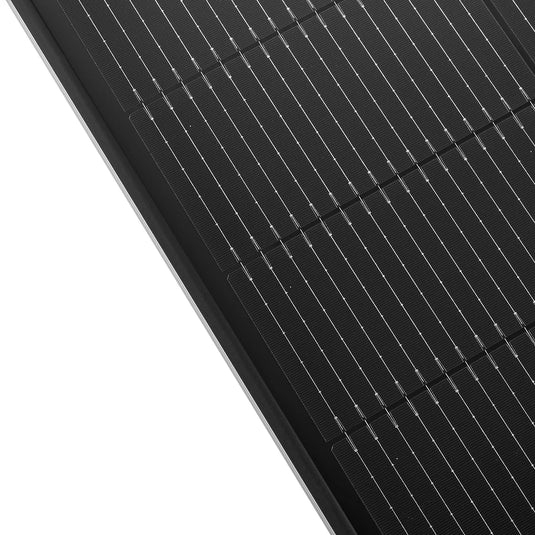

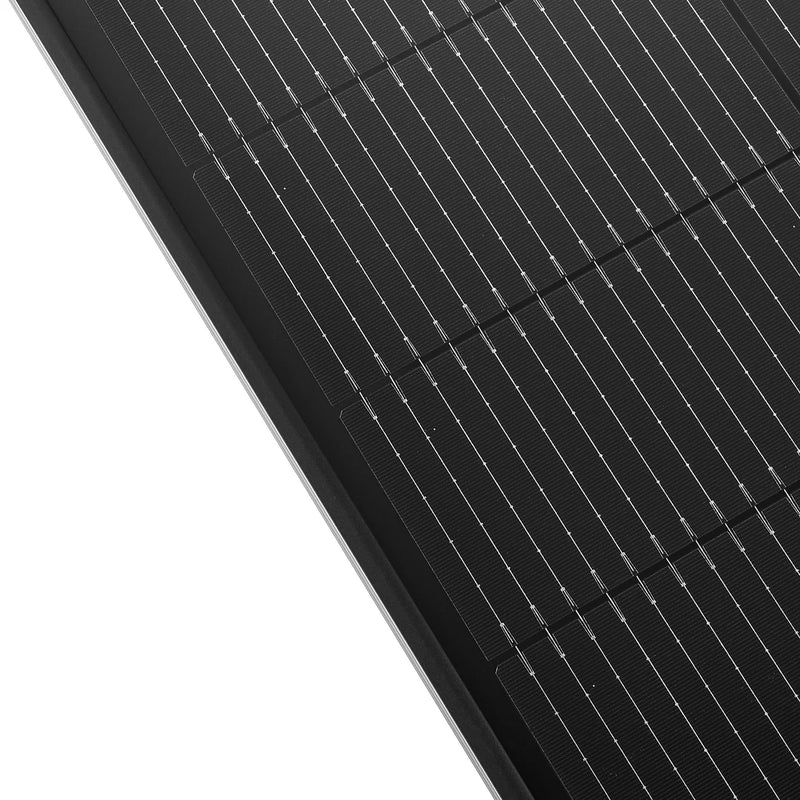

- 16-busbar N-Type TOPCon monocrystalline cells with up to 25.3% efficiency
- 34-cell configuration delivers a reliable 130W output
- 3.2 mm AR-coated tempered glass maximizes sunlight capture and durability
- Power tolerance 0 to +5W ensures at least the rated output
- Excellent low-light performance on cloudy days and at dawn/dusk
- Rigorously tested for UV, thermal cycling, humidity freeze, and more
- PID-resistant and double EL-inspected to prevent microcracks
- Certified to withstand 2400 Pa wind and 5400 Pa snow load
- Perfect for off-grid systems, RVs, boats, and mobile power setups
Installation

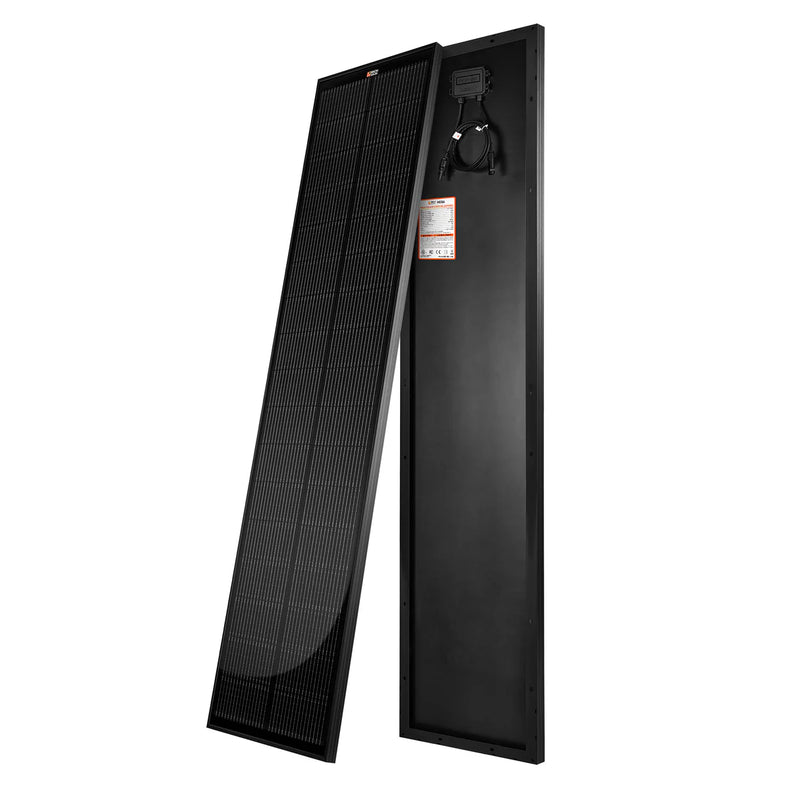

- Anodized aluminum frame – lightweight, strong, and corrosion-resistant
- 12 pre-drilled mounting holes for Z brackets, tilt mounts, pole, or ground installation
- Pre-attached 3 ft solar cables with connectors for fast setup
- Compatible with both on-grid and off-grid inverters
Warranty
- 25-year output warranty
- 10-year workmanship warranty
Built-in Components
- Panel leads (pair): 3 feet each

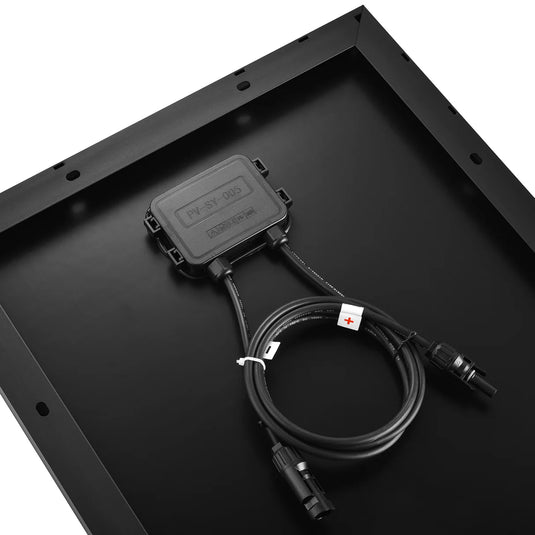

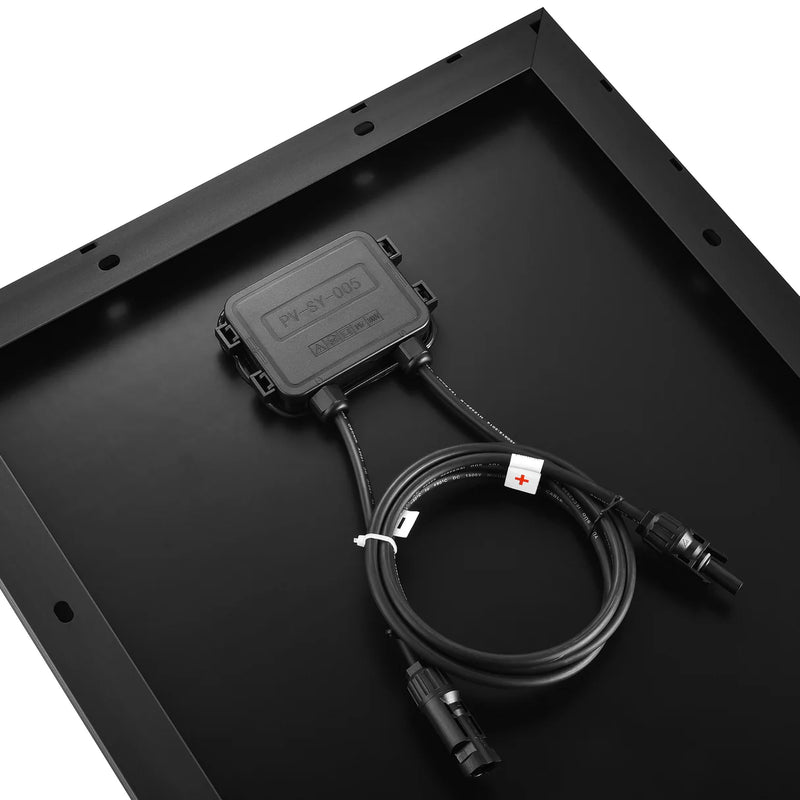

- IP67-rated waterproof junction box
- IP67-rated waterproof solar connectors
- Bypass diodes built into the junction box
Specifications
-
Model: RS-M130SL
-
Maximum Power(Pmax): 130W
-
Maximum Power Voltage(Vmp): 19.6V
-
Maximum Power Current(Imp): 6.63A
-
Open Circuit Voltage(Voc): 23.6V
-
Short Circuit Current(Isc): 6.92A
-
Maximum System Voltage(Vmax): 1000 VDC
-
Maximum Series Fuse Rating: 15A
-
Module Efficiency: 19.8%
-
Temperature Range: -40℉ to +185℉
-
Weight: 15.4 lb
-

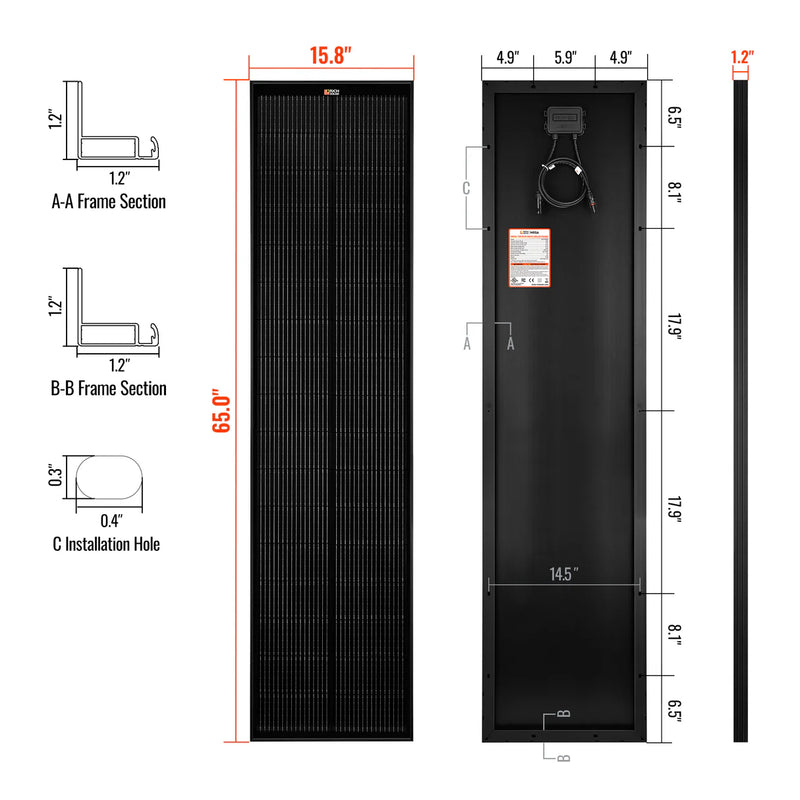

Dimensions: 65.0 x 15.8 x 1.2 in
