Features

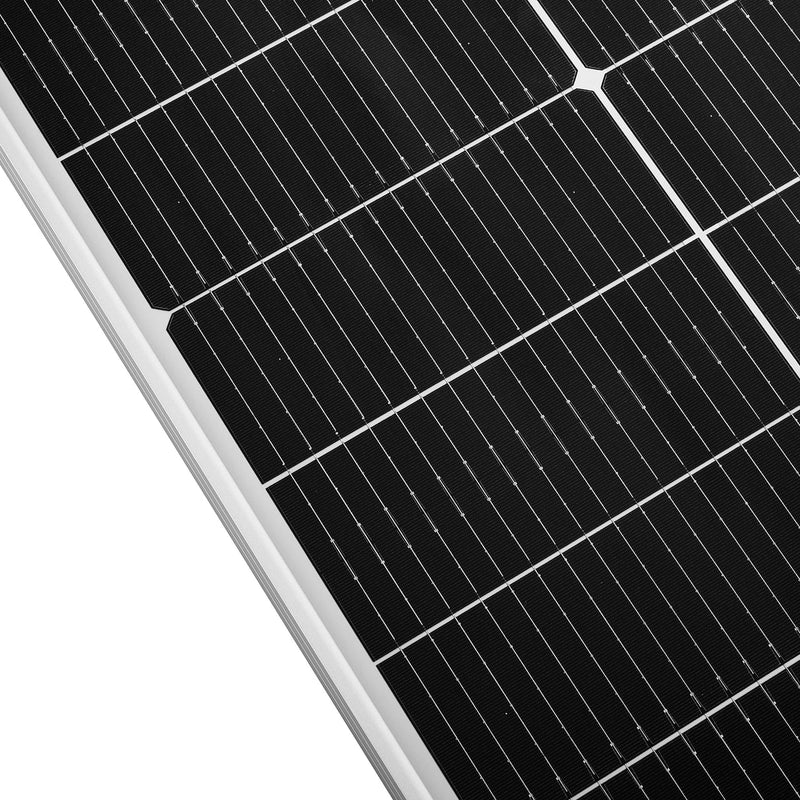

- 16-busbar monocrystalline cells with up to 25.1% efficiency
- 34-cell configuration delivers a reliable 100W output
- 3.2 mm AR-coated tempered glass maximizes sunlight capture and durability
- Power tolerance 0 to +5W ensures at least the rated output
- Excellent low-light performance on cloudy days and at dawn/dusk
- Tested for UV exposure, thermal cycling, humidity freeze, and more
- PID-resistant and 100% EL-inspected to prevent microcracks
- Certified to withstand 2400 Pa wind, 5400 Pa snow load, and 35 mm hail at 97 km/h
- Perfect for RVs, vans, truck campers, overland rigs, and marine systems
Installation
Warranty
- 25-year output warranty
- 10-year workmanship warranty

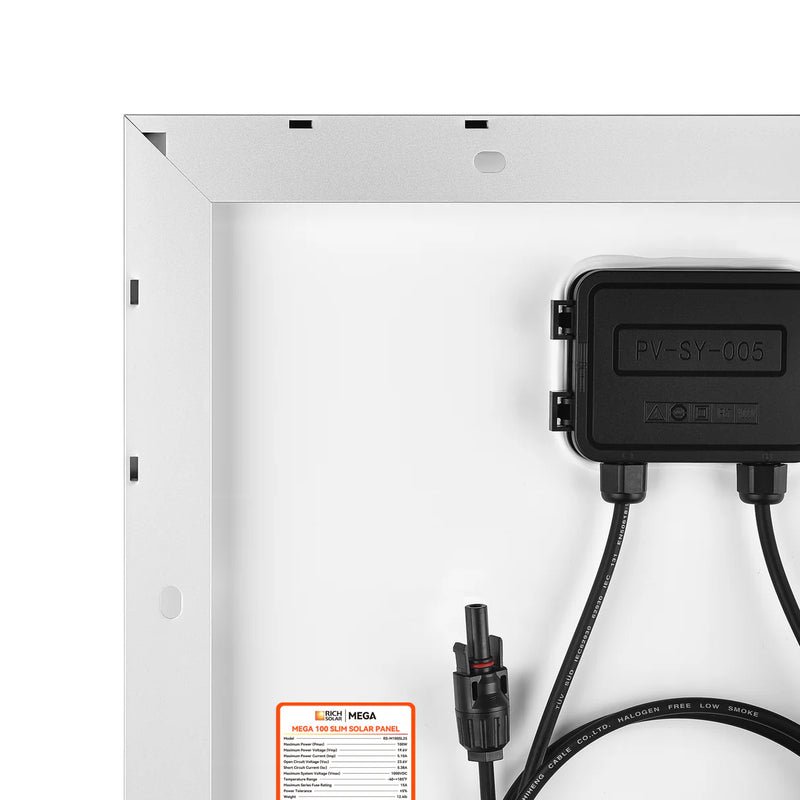

Built-in Components
- Panel Leads (Pair): 12 AWG, 3 ft each

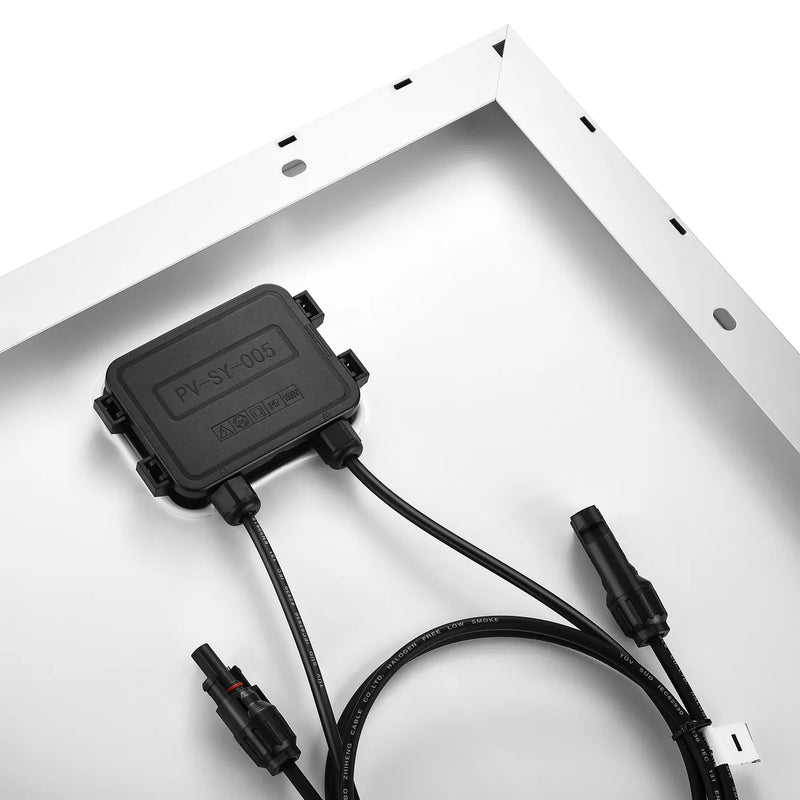

- IP67-rated waterproof junction box
- IP67-rated waterproof solar connectors
Specifications
-
Model: RS-M100SL
-
Maximum Power(Pmax): 100W
-
Maximum Power Voltage(Vmp): 19.6V
-
Maximum Power Current(Imp): 5.1A
-
Open Circuit Voltage(Voc): 23.6V
-
Short Circuit Current(Isc): 5.38A
-
Maximum System Voltage(Vmax): 1000VDC
-
Maximum Series Fuse Rating: 15A
-
Weight: 12.4 lb
-

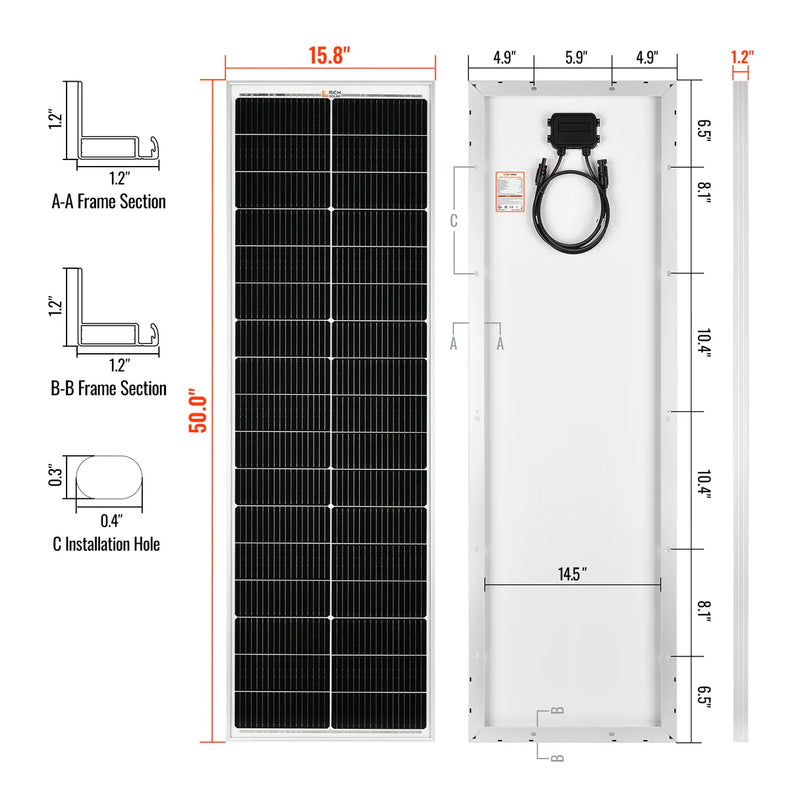

Dimensions: 50.0 x 15.8 x 1.2 in
