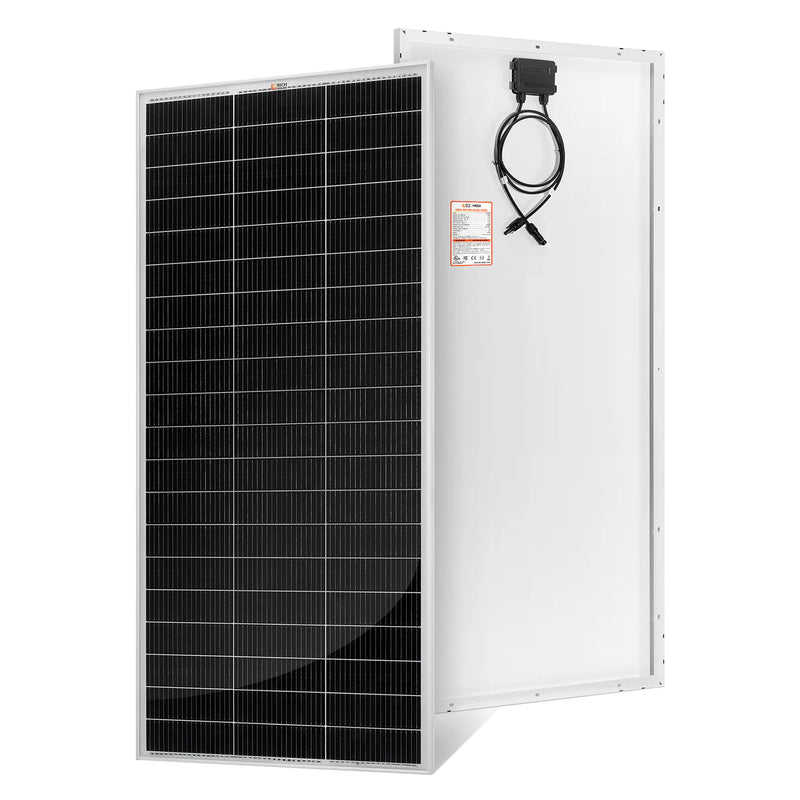

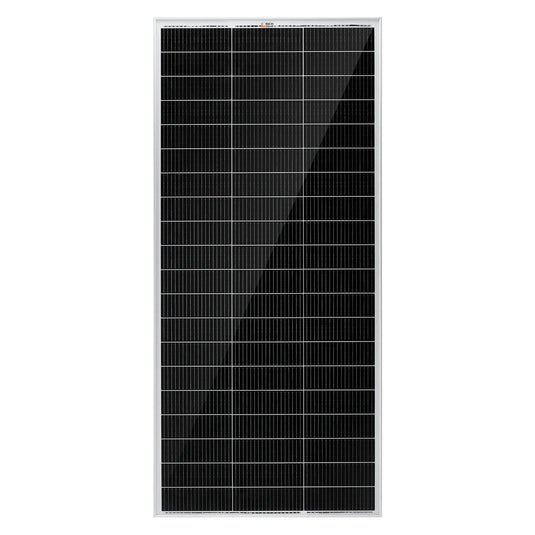

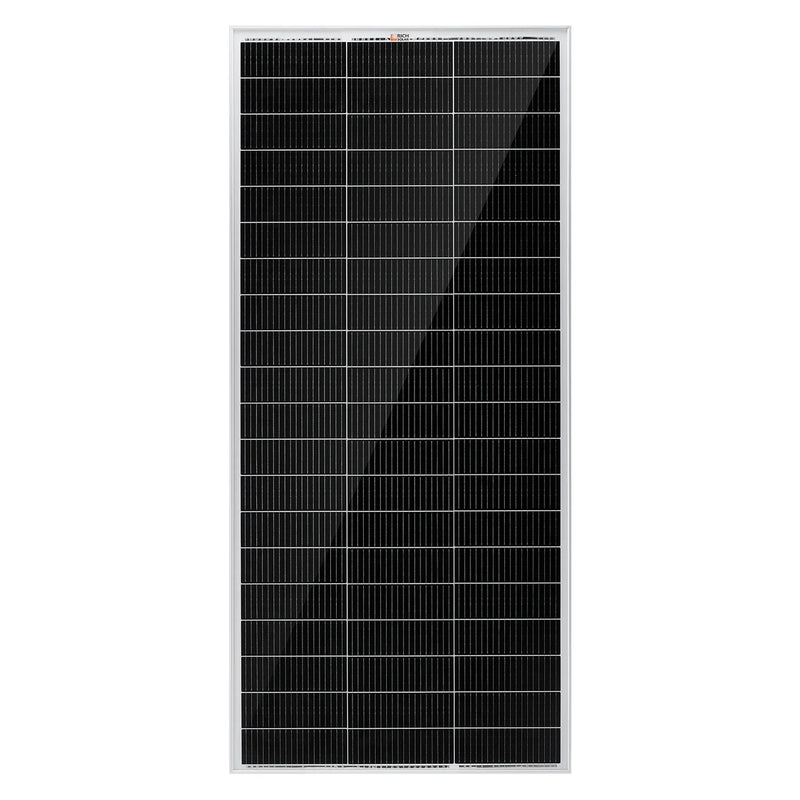

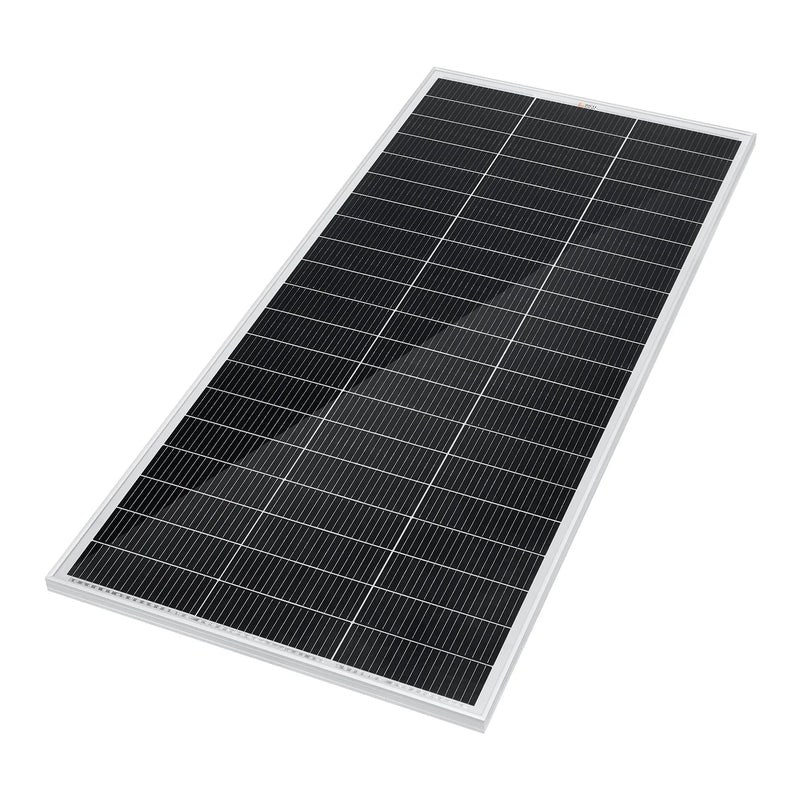

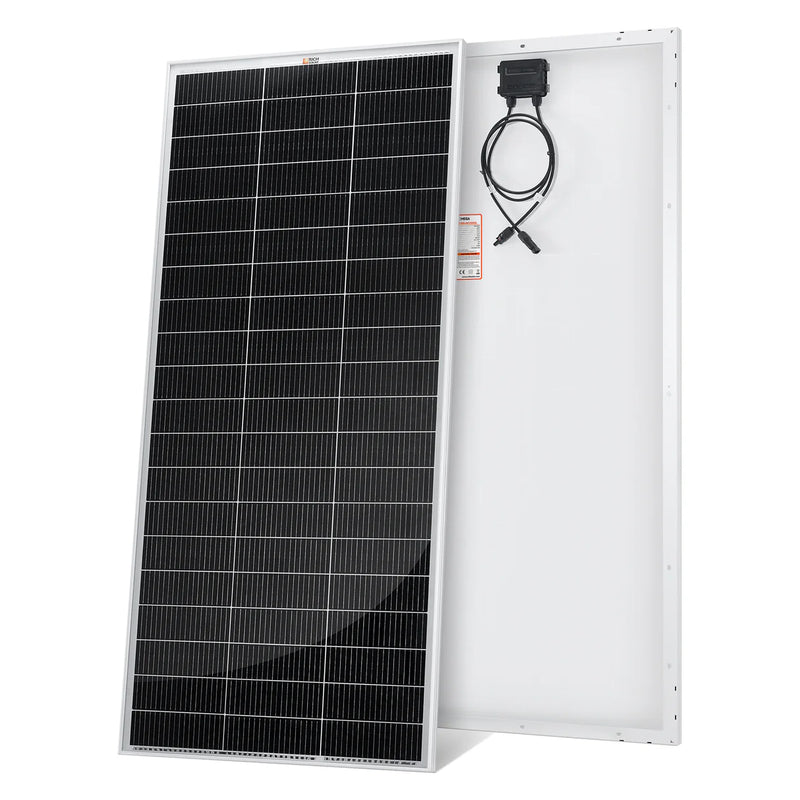

MEGA 200 PRO
24V 200W N-Type Solar Panel
200W Maximum Power Output
0~+5W Positive Power Tolerance
Specifications
| Maximum Power ( Pmax): |
200W |
| Maximum Power Voltage (Vmp): |
36.3V |
| Maximum Power Current (Imp): |
5.51A |
| Open Circuit Voltage (Voc): |
43.5V |
| Short Circuit Current (Isc): |
5.93A |
| Maximum System Voltage (Vmax): |
1000VDC |
| Temperature Range: |
-40°F~ +185°F |
| Weight: |
24 lb |

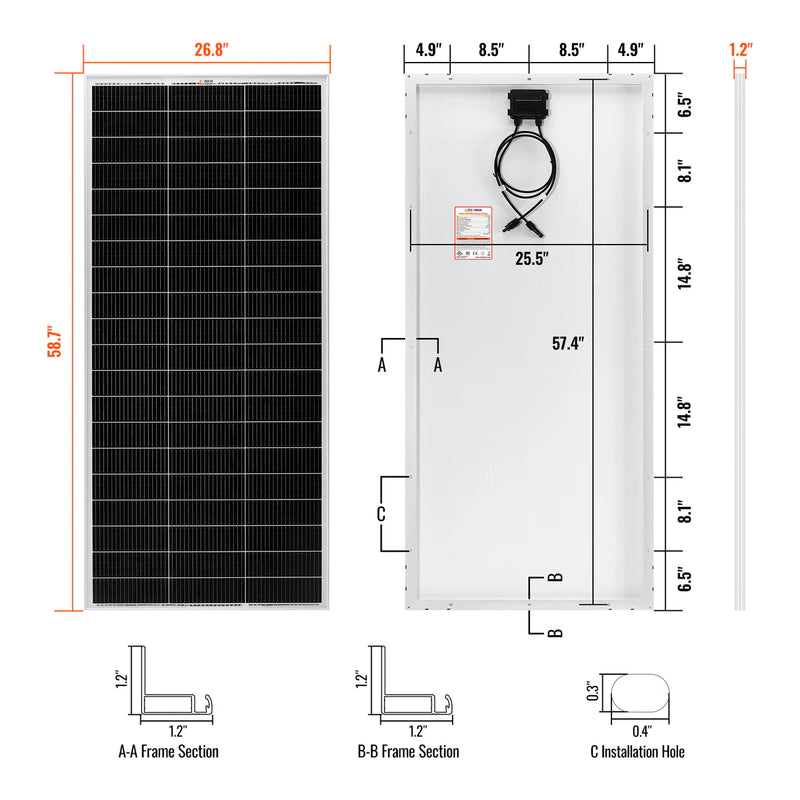

| Dimensions: |
58.7 × 26.8 × 1.2 in |

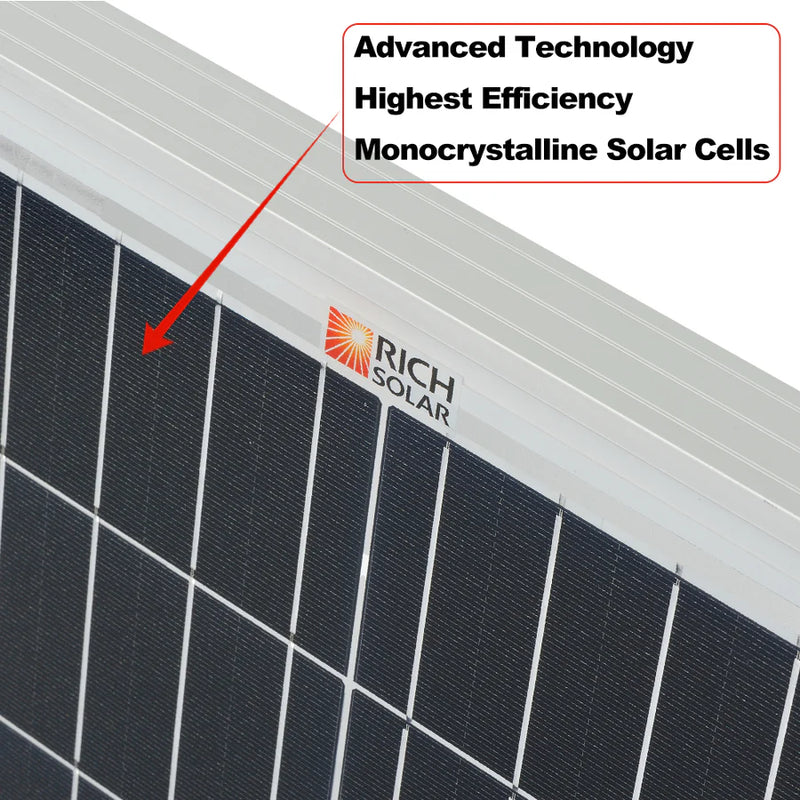

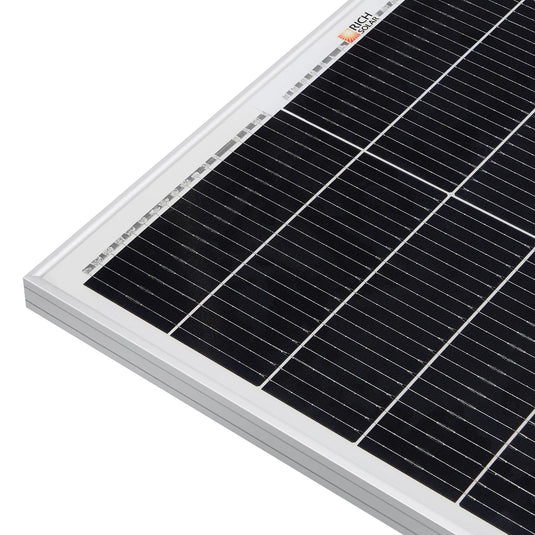

N-TypeCells For Higher Efficiency And Longevity
-
Higher Efficiency: N-Type TopCon cells deliver up to 24.8% conversion efficiency, maximizing power output.
-
Better Low-Light Performance: Stable electricity generation even on cloudy days or during early mornings.
-
Long Lifespan & Ultra-Low Degradation: Grade A+ quality ensures consistent performance and 25-year power warranty.
25-Year Power Warranty – Built To Last
-

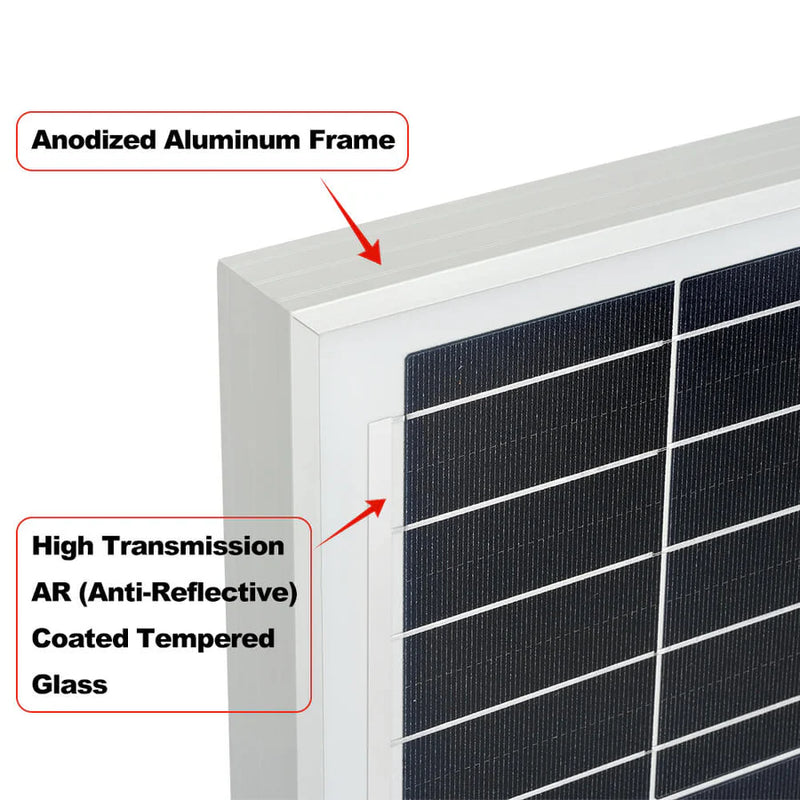

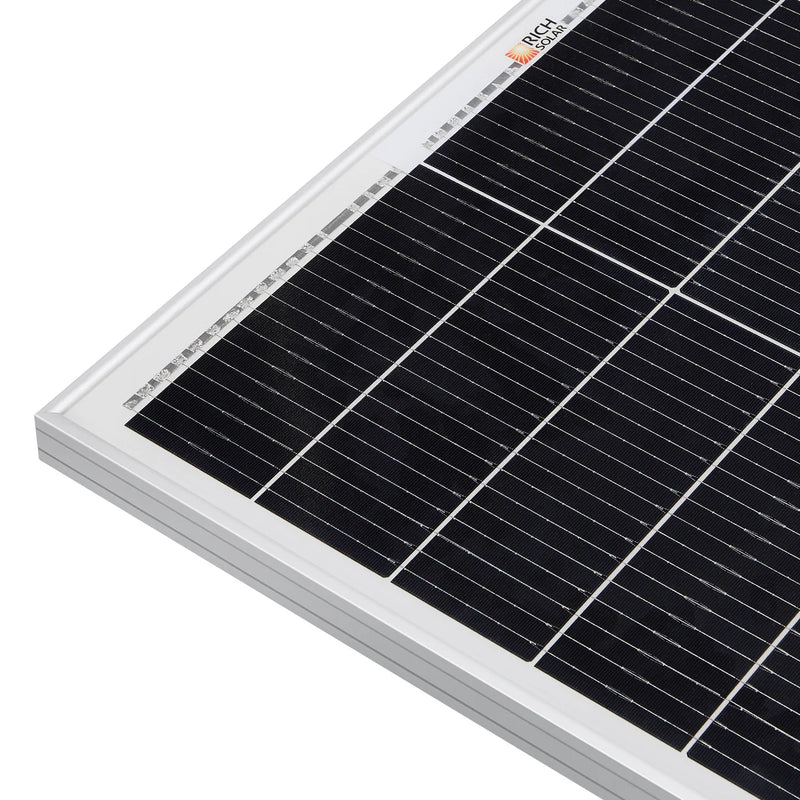

Weather-Resistant Materials – 3.2mm high-transparency tempered glass with corrosion-resistant aluminum frame.
-

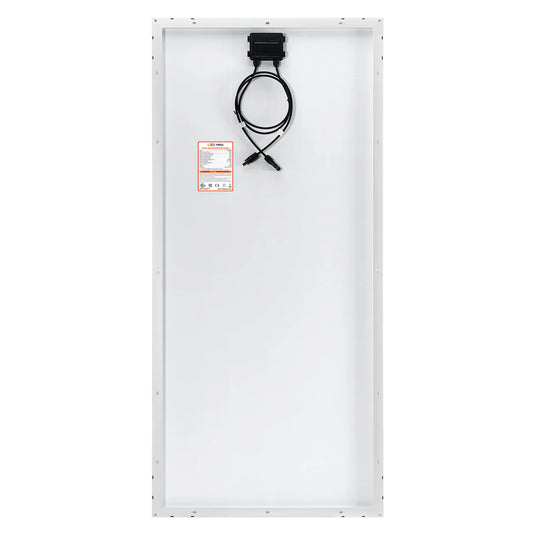

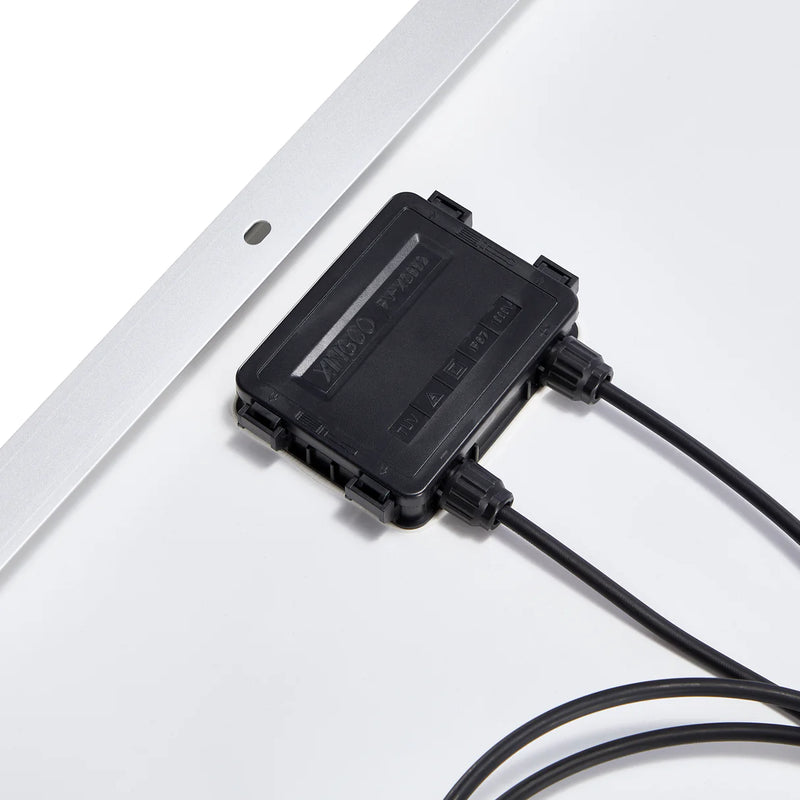

IP67 Waterproof Rating – Sealed junction box and MC4 connectors for all-weather protection
-
Rigorous Testing – Over 30 in-house tests, including UV, thermal cycling, and high-frequency, ensure durability
-
PID-Resistant & 100% EL Inspected – Prevents micro-cracks and guarantees module integrity
Effortless Installation
-

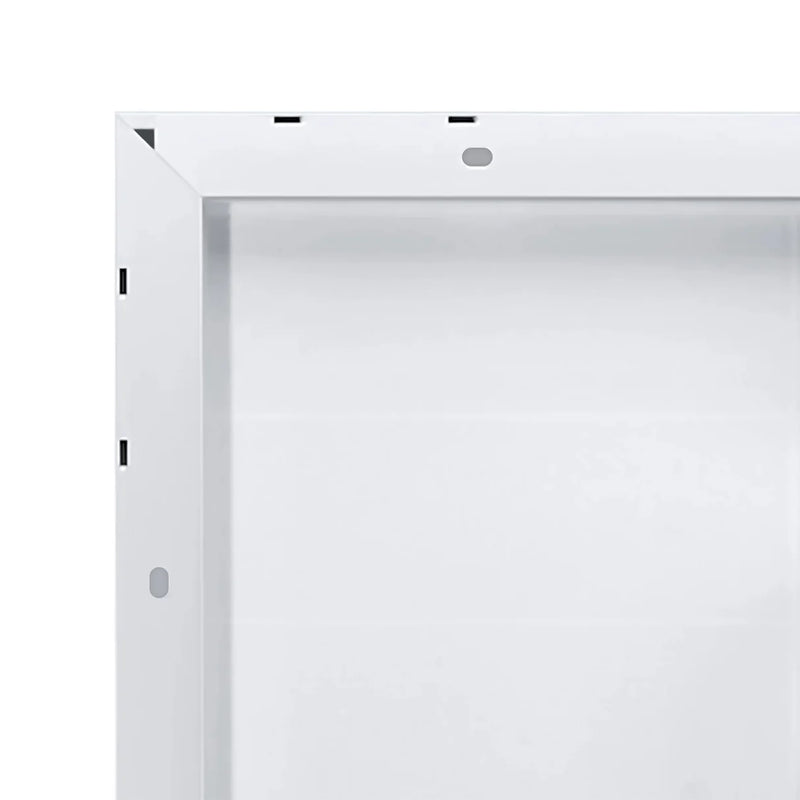

Quick Setup – Pre-drilled holes allow flexible mounting options for fast, hassle-free installation.
-

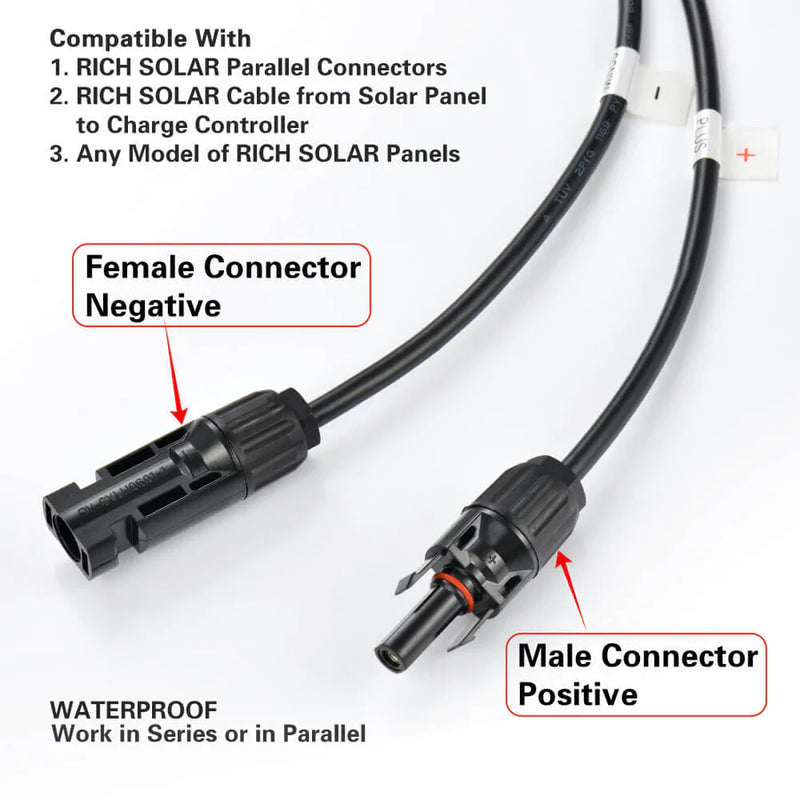

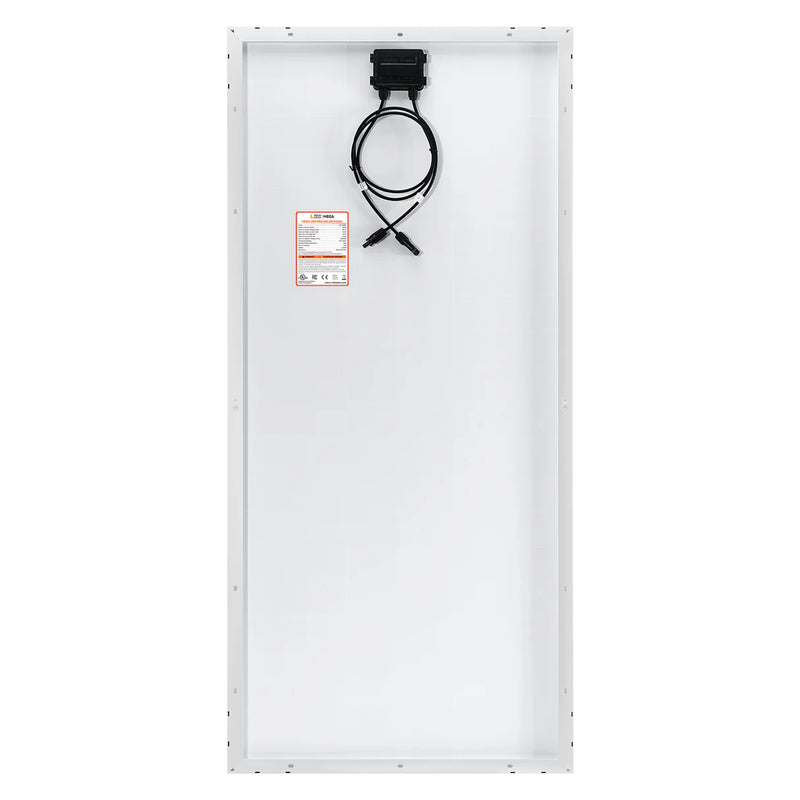

Plug & Play –MC4 connectors with 3ft pre-attached cables for easy connection to other solar panels.
-
High Compatibility – Works seamlessly with PWM/MPPT controllers and on/off-grid inverters for versatile system integration.
High-Voltage Solar Panels
-
Fewer Panels Needed – For systems above 12V, a single high-voltage panel can replace two standard panels.
-
Simpler Wiring – Reduce cable complexity and connection points for faster, easier installation.
-
Ideal for High-Wattage Systems – Perfect choice for off-grid homes, RVs, and large solar arrays.
