Approved by the California Energy Commission. Solar Equipment List – CA Energy Commission

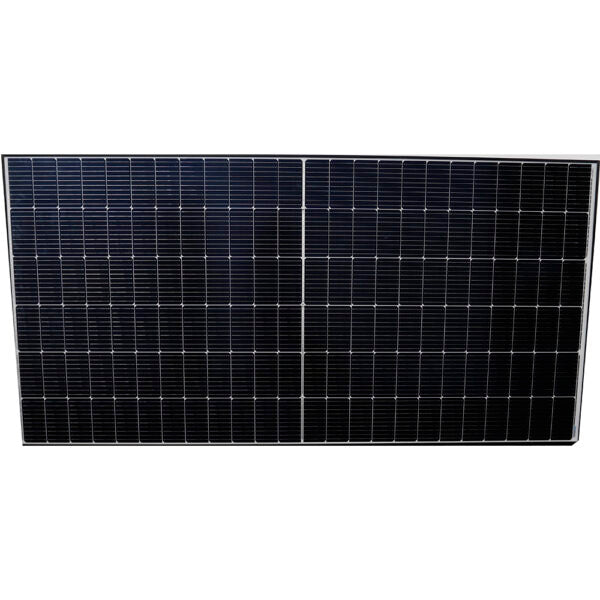

The 555 Watt Monocrystalline Solar Panel from AIMS Power is a versatile performer constructed with tempered glass and a stronger surface to protect from harsh weather conditions. The solar cells used in the panel provide high light transmission and the textured glass allows for more efficient power solar harvesting. The panel also includes a bypass diode that minimizes the power drop caused by shade. Easy to install using the pre-drilled holes on the aluminum outer frame. Perfect for home, business and industrial applications for back up or off grid power. You can also use to tie to the grid or with our hybrid inverters. Packed with power. Includes 12″ cable with female and male MC4 compatible connectors.

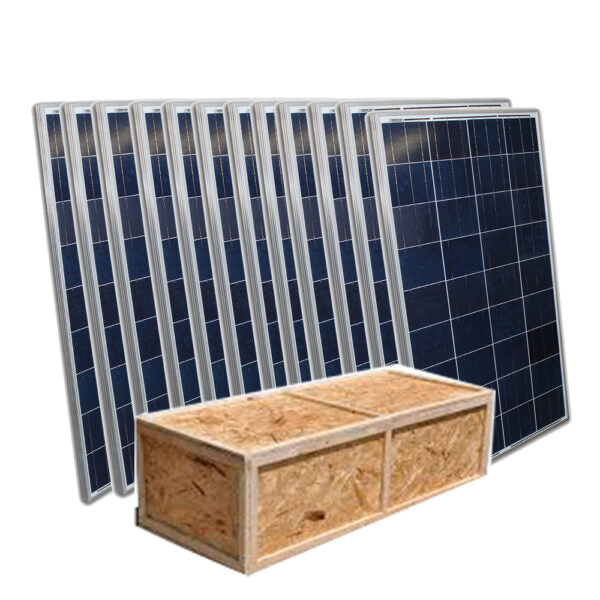

21 Pack
- Monocrystalline efficient solar harvesting
- Strong surface for harsh environment
- Panels capable of 0 to +3 Watts over rated capacity
- Pre-drilled aluminum frame
- Tempered glass
- 25 Year limited warranty
- Maximum Power (Watts): 555 watts
- (Vmp): 42.11 volts operating voltage
- (Imp): 13.18 amps operating current
- (Voc):50.02 volts open circuit voltage
- (Isc): 14.07 amps
- Number of Cells (pcs): 6*24 = 144
- Front Glass Thickness (mm): 3.2 mm
- Temperature Coefficients of Isc (%) °C: -0.048
- Temperature Coefficients of Voc (%) °C: -0.29
- Temperature Coefficients of Pm (%) °C: -0.37
- Temperature Range: -40°C to +85°C
- Tolerance Wattage: 0-3 watts
- Surface Maximum Load Capacity: 6000Pa snow and 3600Pa wind
- Allowable Hail Load: 45mm at 30.7m/s
- Bypass Diode Rating (A): 10
- Cell Efficiency (%): 22%
- Module Efficiency (%): 21.5%
- Warranty: 91.2% of 12 years, 80.6% of 25 years
- Weight Per Panel (lbs): 60 lbs

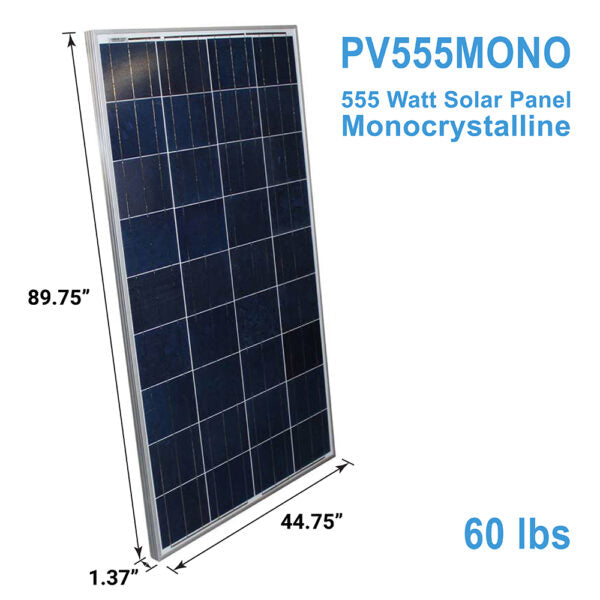

- Dimensions (inches): 89.75 x 44.75 x 1.37
