Features
- PWM technology, switching control by MOSFET
- Common positive grounding connection
- High efficiency and low power consumption
- Battery type setting and battery condition indication
- Smart charging control
- Charging time management
- LED indication for the battery condition and charging status

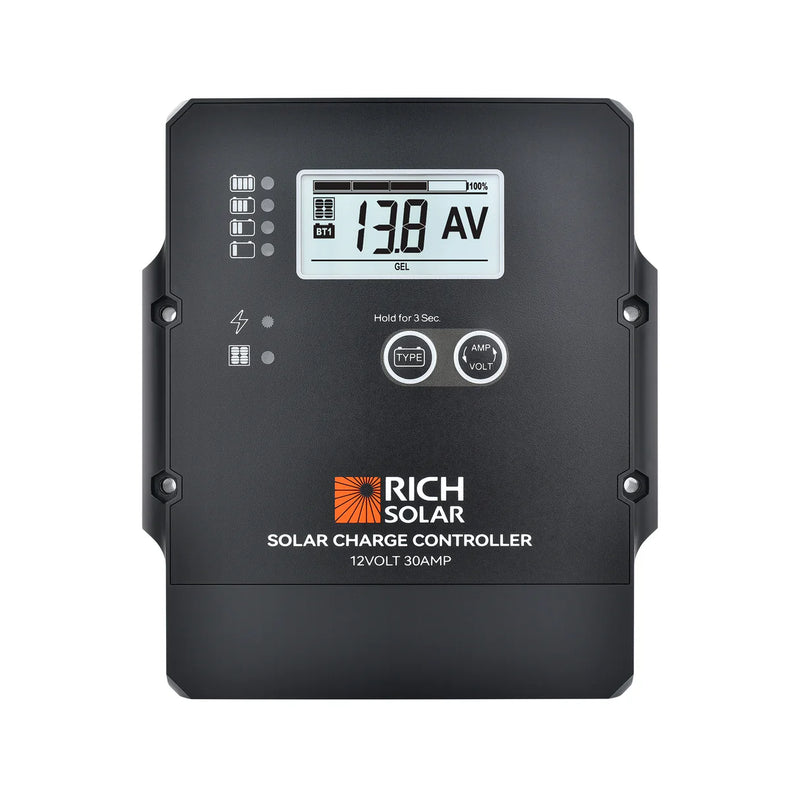

- Digital display charging parameters and battery settings
- Automatically activates Lithium battery against BMS protection
- Thermal protection
- Over voltage protection, short-circuit protection, reverse polarity protection
- No sparks
- The thinnest and most compact design
- Corrosion-resistant terminals and connectors
- Conformal coating supplied to the inside board against moisture
- Includes a port for external battery temperature sensor (BTS - optional)
- Compatible with most rechargeable lead acid
- batteries, including Flooded (WET), AGM, GEL, Calcium and Lithium batteries
- Designed to meet CE standards and comply with EMC and FCC regulations
Specifications
-
Electrical Parameters
-
Rated Solar Panel Amps: Max. 30 AMP
-
Normal Input Solar Cell Array Voltage: 15~22 VDC
-
Maximum Solar Cell Array Voltage (output has no load): Max. 25 VDC
-
The Controller Lowest Operating Voltage at Solar or Battery Side: Min. 8 VDC
-
Standby Current Consumption at Night: Max. 5 mA
-
Maximum Voltage Drop - Solar Panel to Battery: Max. 0.25 VDC
-
Physical Parameters
-
Controller Material: Plastic, Standard ABS
-

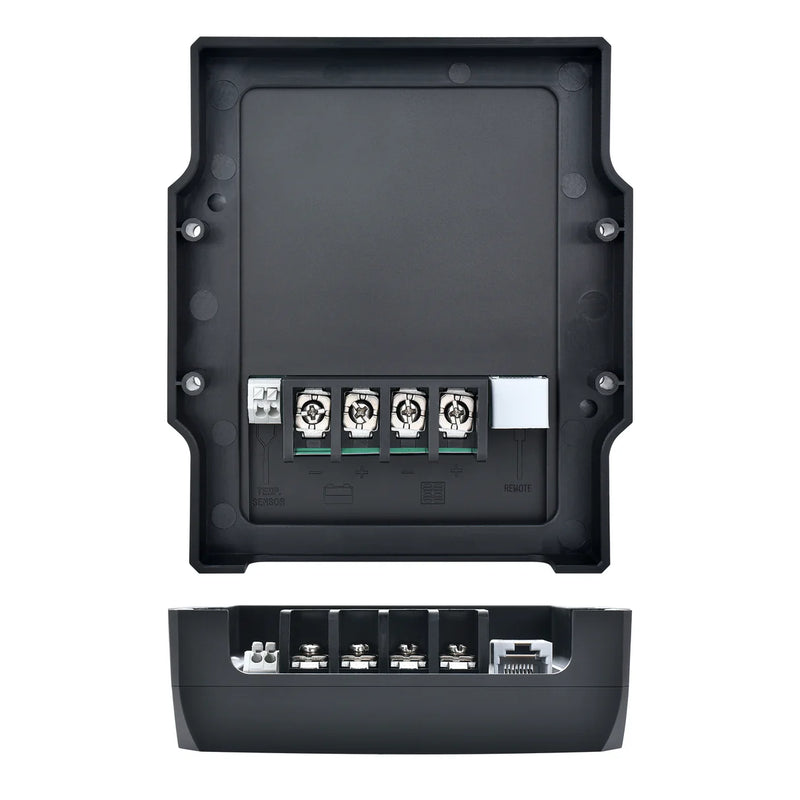

Power Terminal Maximum Stranded Wire Size: #8 AWG stranded - 0.2in²
-
Power Terminal Torque: Up to 17 in-lb (1.92 N·m)
-

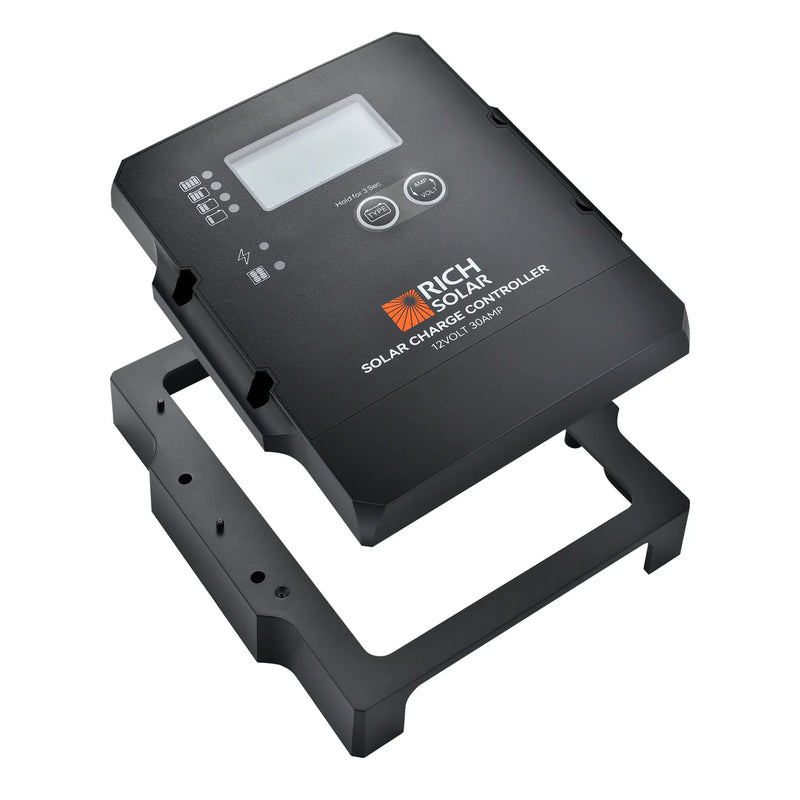

Mounting: Vertical wall mounting
-
IP Grade: IP22
-
Net Weight: Approx. 10.6oz / 300g
