FREE SHIPPING!!!!

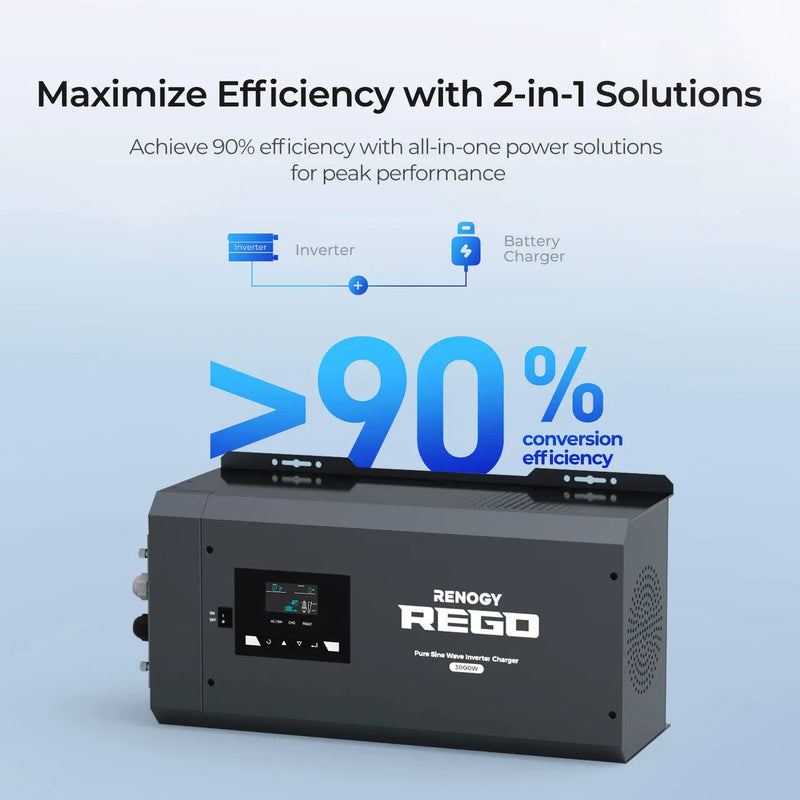

- Achieves over 90% conversion efficiency for optimal energy use.

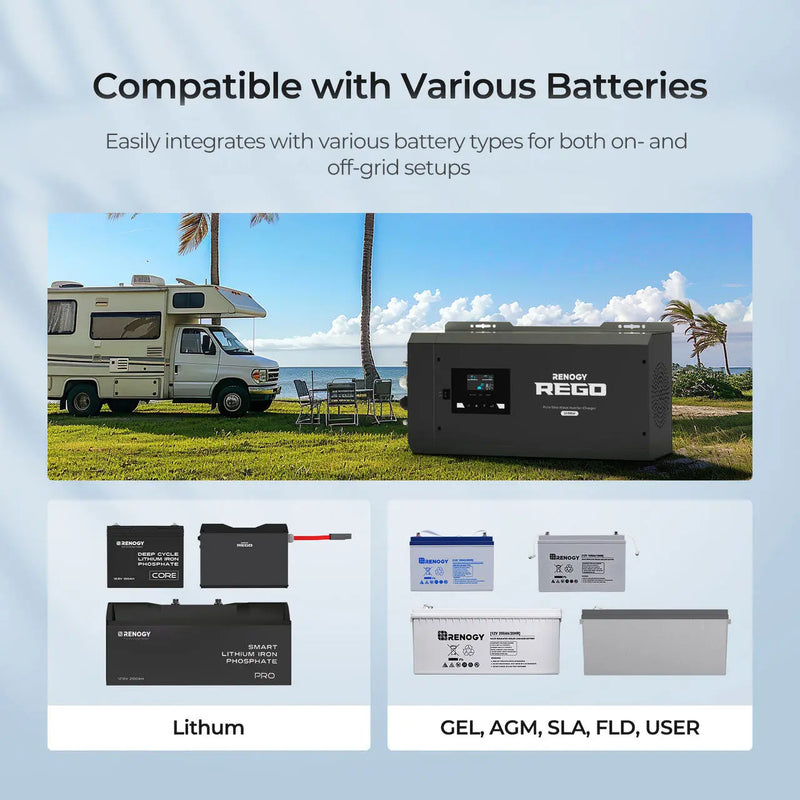

- Works with Gel, AGM, SLA, FLD, CAL, and Li batteries for versatility.

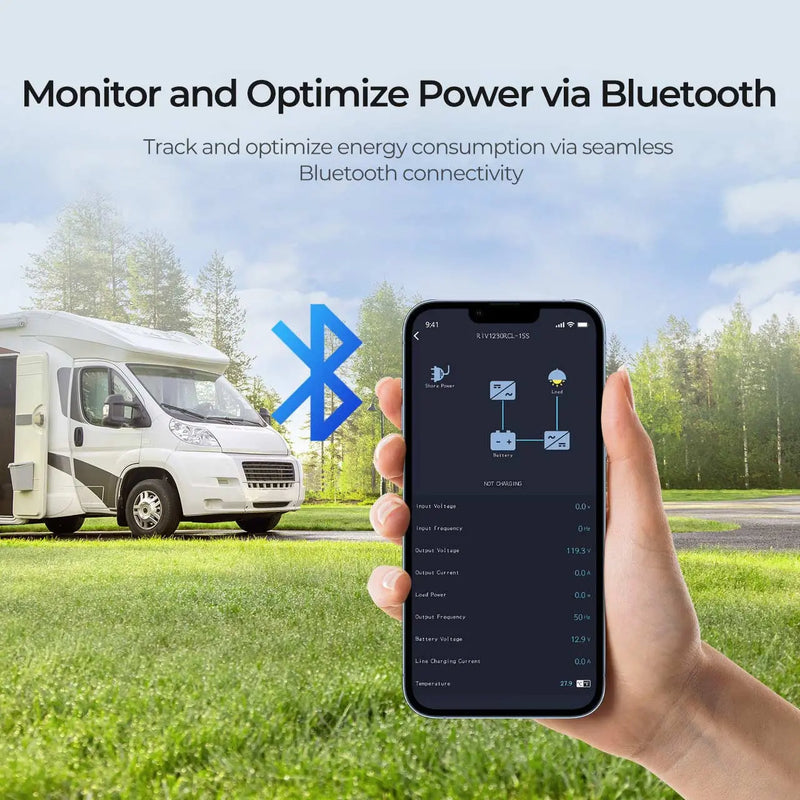

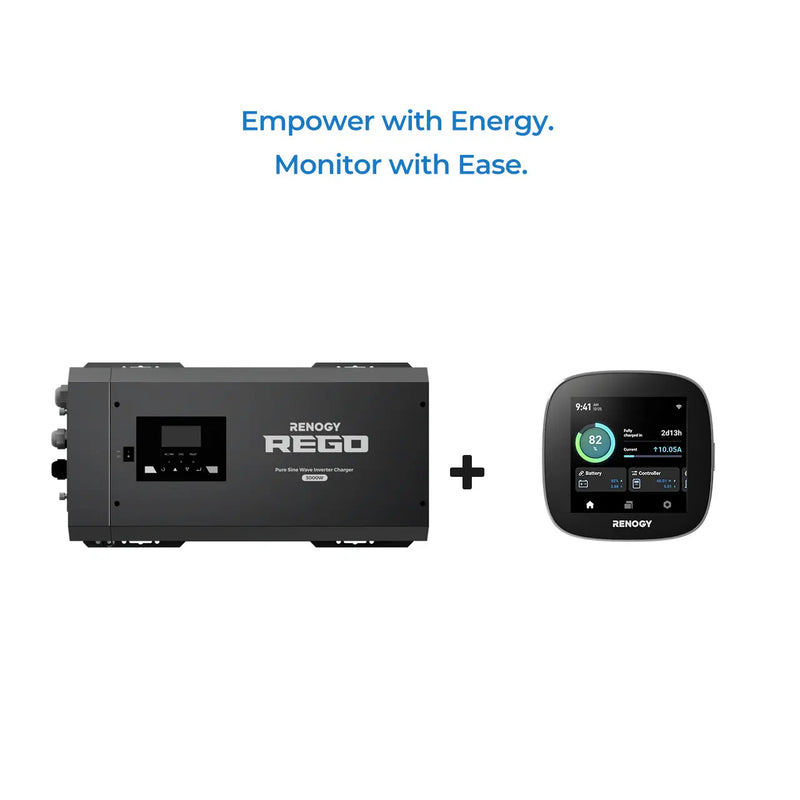

- Built-in Bluetooth connects with Renogy ONE M1 and Core for control.
- Ensures high efficiency with 4-stage charging, extending battery life.

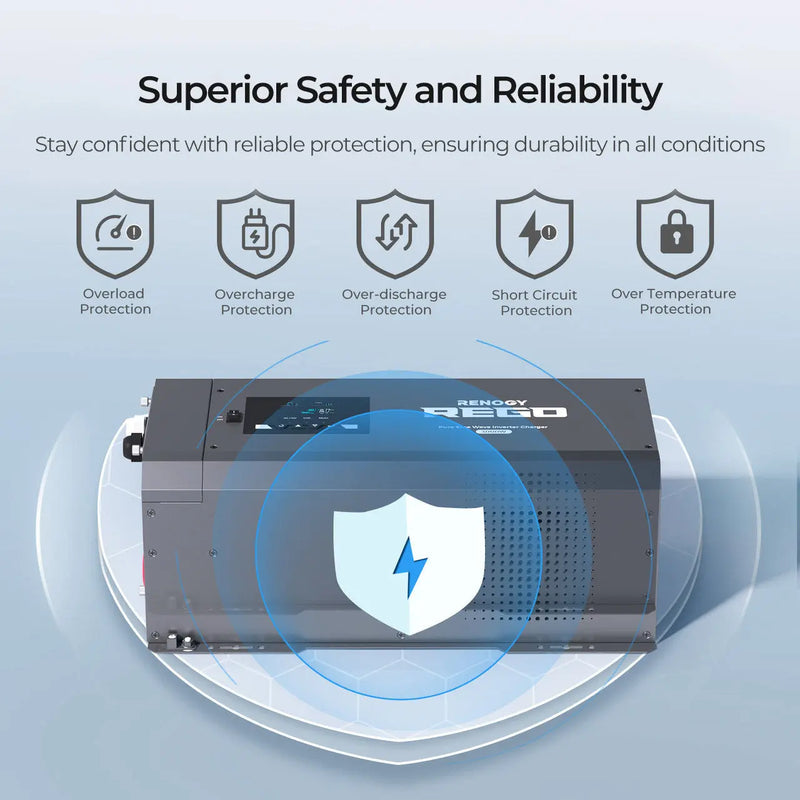

- Provides complete protection for batteries, preventing damage.
- * Please double-check the inverter size (20.1 x 11.2 x 7.6 in / 510 x 285 x 193 mm) before purchasing to ensure a proper fit.
REGO 12V 3000W Pure Sine Wave Inverter Charger w/ LCD Display
Power Your Off-grid Life
Manage Your Energy Remotely
Easy Installation
High-efficiency Charging and Stability
Seamless Power Switch in 10 ms

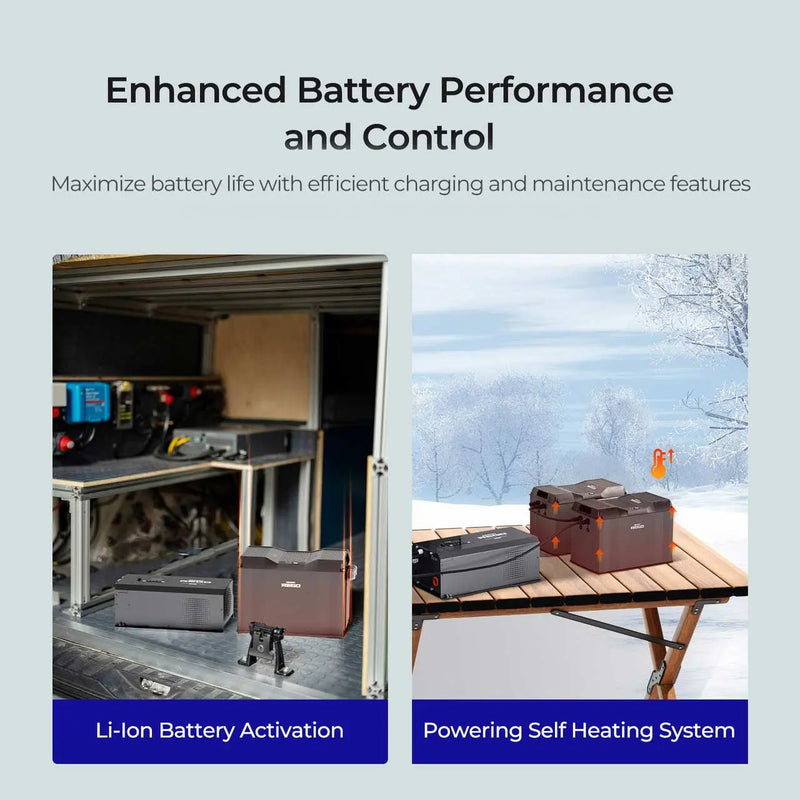

Activate Your Lithium Batteries with Ease
Support for Self-Heating Lithium Batteries
Dimensional Reference Guide
Before installing the inverter, leave 1.97 inches of space for the top of the inverter and at least 4 inches on the side with busbars.
Easy-to-Use LCD Display Panel
Battery Temperature Sensor
Tested to the Highest Standard
Find Your Inverter Match by Technical Needs

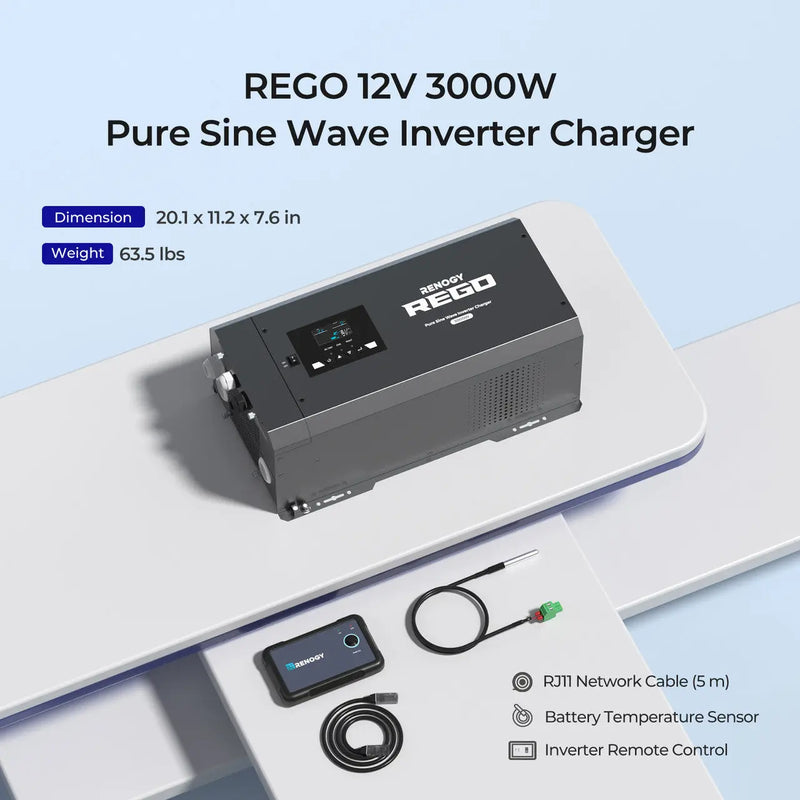

Package Includes
3000W Pure Sine Wave Inverter Charger w/ LCD Display
x 1
Battery Temperature sensor
x 1
Inverter Wired Remote Control
x 1
Specifications
Model
RIV1230RCL-1SS
Inverter

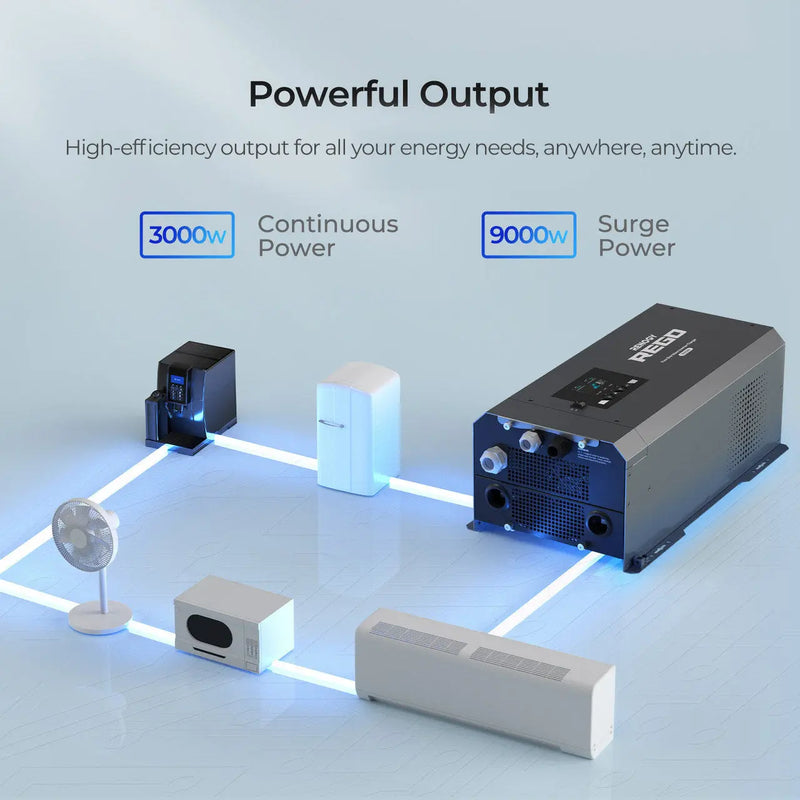

Continuous Power
3000W
Surge Power
9000W
AC Output Voltage Range
100~120VAC configurable, 5V interval
Output Frequency (Nominal)
50/60 Hz ± 0.1%
Output Waveform
Pure Sine Wave
Efficiency
> 90%
No Load Current Draw
Normal: <30W Power Saving: <15W
Charger Specifications
Output Current
5-75A configurable, 5A intervals
Optimal Efficiency
>85%
Nominal Input Voltage
120 VAC
Input Voltage Range
90-138 VAC
Input Frenquency Range
40Hz - 70Hz
Input Wave Form
Sine Wave (Utility or Generator)
Transferswitch Specifications
Transfer Time
~ 10ms
Transfer Rating
30A Automatic Transfer Switch (30A Continuous, 40A Maximum)
General Specification
Battery Types
GEL, AGM, SLA, FLD, CAL, LI, USER
Noise
<50dB
Operating Temperature
'-20-40°C/-4-104°F
Dimensions
20.1 x 11.2 x 7.6 in / 510 x 285 x 193 mm
Storage Temperature
'-30 ~ 70°C / -22 ~ 158°F
Weight
63.5 lbs / 28.8 Kg
Humidity
0% ~ 95%
General Specification
Material and workmanship warranty
2 Year
Accessoreis
1 Year
General Specification
FCC Part 15 Class A Compliant
Yes
UL458
Yes
CSA-C22.2 No 107.1
Yes
