The battery cabinet can be used with a second cabinet to add even more power to your system. Max 3 cabinets per hybrid inverter. 1 master cabinet and 2 slaves.
The add on cabinet is part # LFP230V96A-S. (slave cabinet and must be used with the master because the master has the BMS)
◦ Pre-programmed to work seamlessly with AIMS hybrid inverter
◦ Pre-wired for easy installation and set up
◦ Five year limited warranty
◦ Requires only 3 simple wires to connect to the inverter (positive, negative and CAN)
◦ Superior BMS for optimal performance
◦ Expandable – max 3 per inverter (1 master and 2 slaves)
◦ Cell balancing
◦ More efficient during high watt usage
◦ Natural cooling
◦ Eye bolts for lifting included
◦ Pre-wired for easy installation and set up
◦ Five year limited warranty
◦ Requires only 3 simple wires to connect to the inverter (positive, negative and CAN)
◦ Superior BMS for optimal performance
◦ Expandable – max 3 per inverter (1 master and 2 slaves)
◦ Cell balancing
◦ More efficient during high watt usage
◦ Natural cooling
◦ Eye bolts for lifting included
◦ Voltage DC: 230.4V
◦ Amp hours: 96
◦ kWh 22.1 (22,114 watt hours)

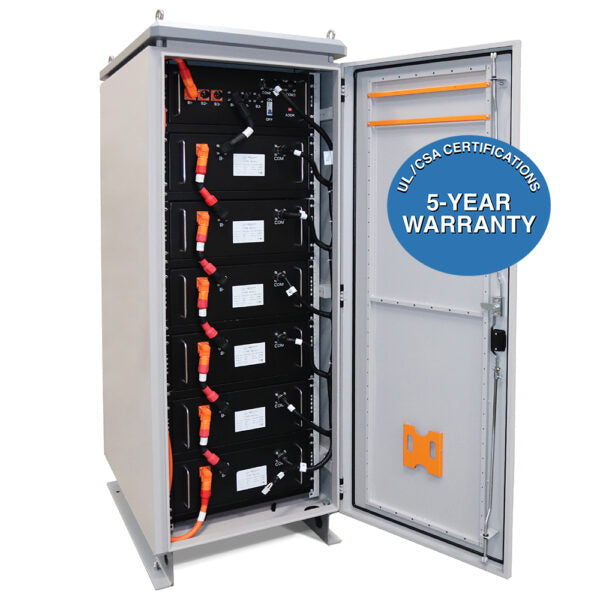

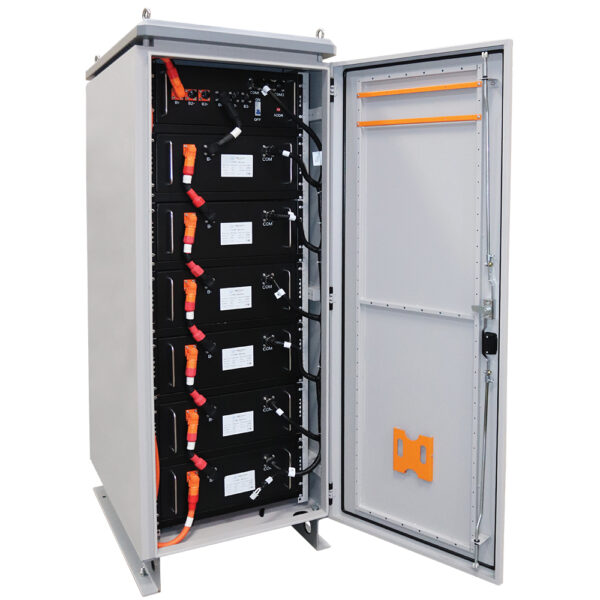

◦ Cabinet includes qty 6 38.4V lithium packs wired in series.
◦ Max charge/discharge current 50amps
◦ Cycle life >3500
◦ Cut off discharge voltage – 180V
◦ Max charge voltage- 262.8
◦ Efficiency >97%
◦ IP grade – IP54
◦ Weight – 650 lbs

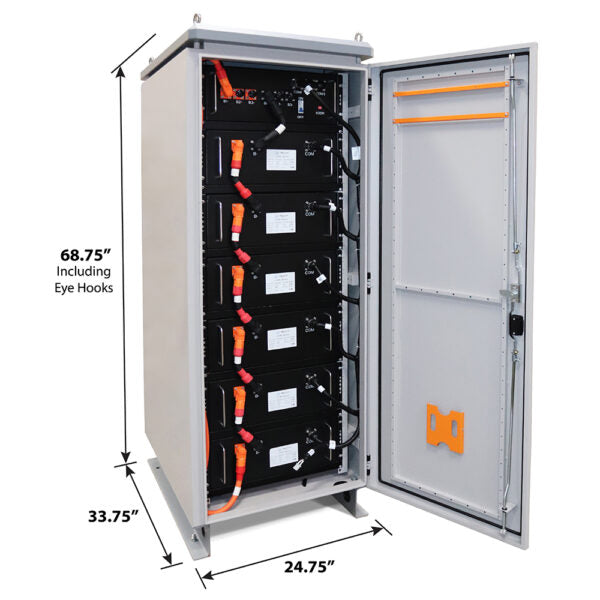

◦ Dimensions (inches) – 68.75H x 33.75D x 24.75W
◦ Amp hours: 96
◦ kWh 22.1 (22,114 watt hours)
◦ Cabinet includes qty 6 38.4V lithium packs wired in series.
◦ Max charge/discharge current 50amps
◦ Cycle life >3500
◦ Cut off discharge voltage – 180V
◦ Max charge voltage- 262.8
◦ Efficiency >97%
◦ IP grade – IP54
◦ Weight – 650 lbs
◦ Dimensions (inches) – 68.75H x 33.75D x 24.75W
