Features

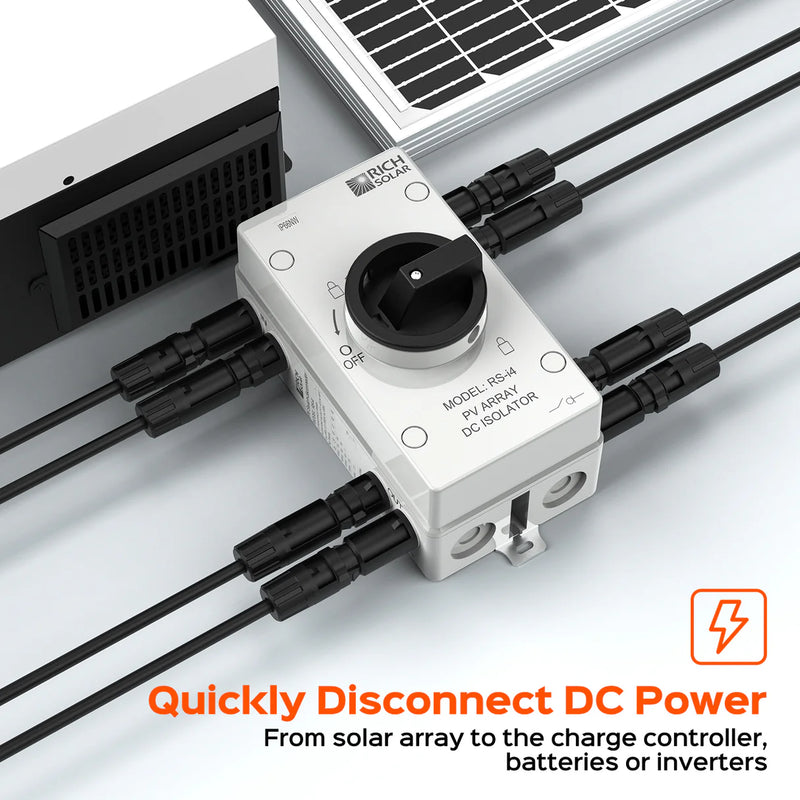

- Quickly disconnects DC power from your solar array to the charge controller, batteries and/or inverters.
- Outdoor rated.

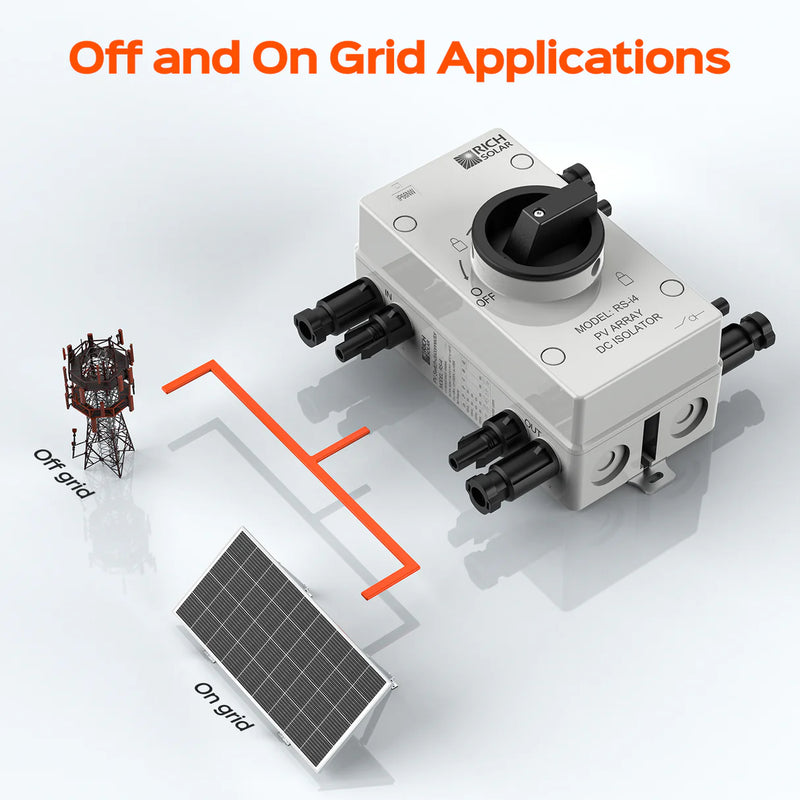

- Off and on-grid applications.

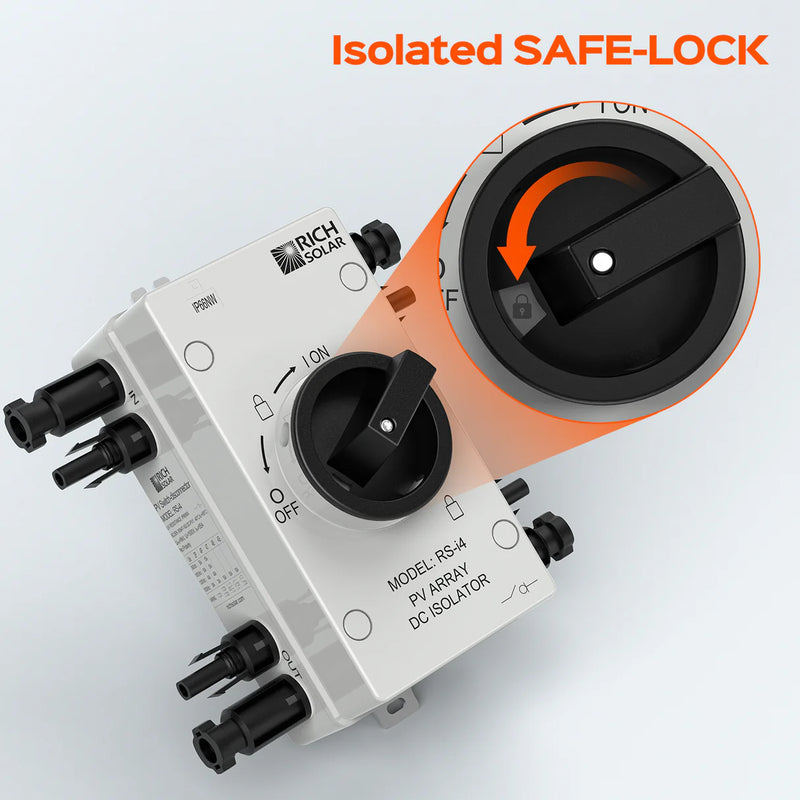

- Isolated SAFE-LOCK with three rotational positions, reducing the risk of tampering.
- 4-pole and 2-string.

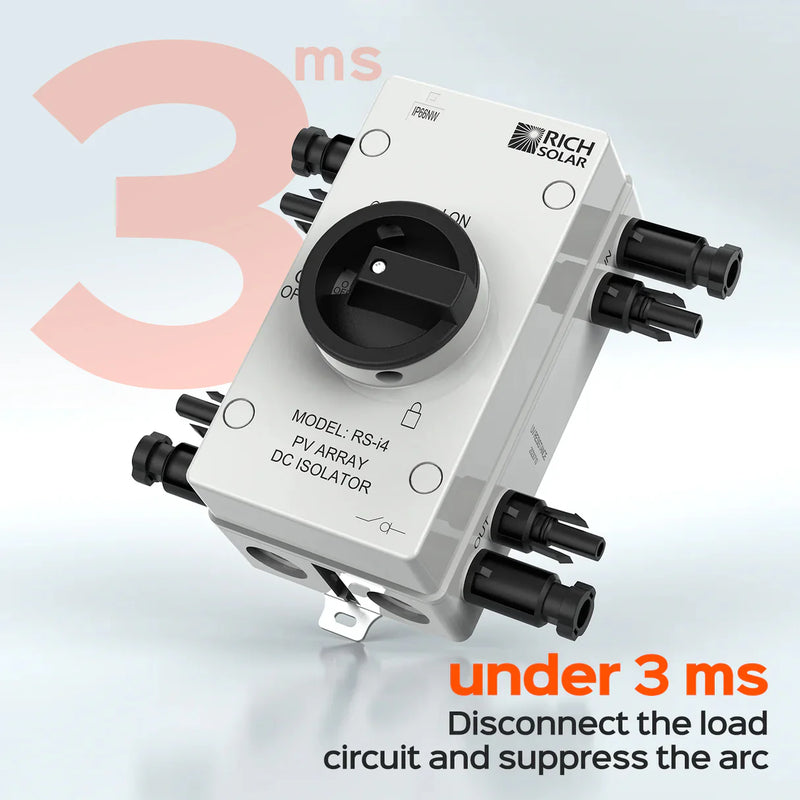

- Ensures the disconnection of load circuits and suppression of the arc in under 3 milliseconds.
- Lockout option.
- Output and input connections are built for easy setup and installation.
Specifications
-
Max. Rated Current: 55A
-
Max. Rated Voltage: 1500VDC
-
Poles / Circuit: 4P in series
-
Supported PV Strings: 2 PV strings
-
Impulse Withstand Voltage: 8 kV
-
IP Rating: IP66NW
-
Arc Suppression Time: <3ms
-
Operating Temperature: -40°F to +185°F (-40°C to +85°C)
-
Housing Material: Flame-retardant PC (UL94 V-0)
-

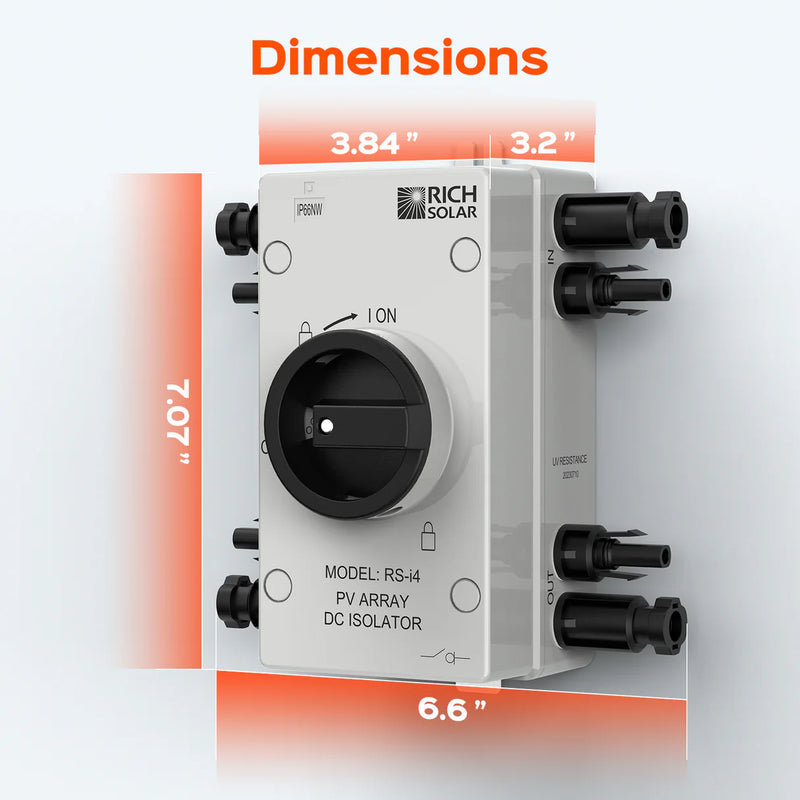

Dimensions (HxWxD): 7.1x6.8x4.3 in (179.5x173.9x110 mm)
-
Net Weight: 1.6lb (0.73kg)
-
Certifications: CE
-
Warranty: 3 years
