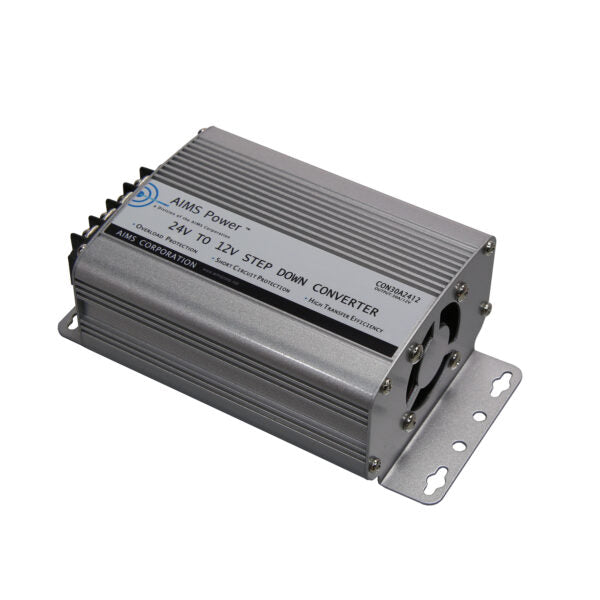

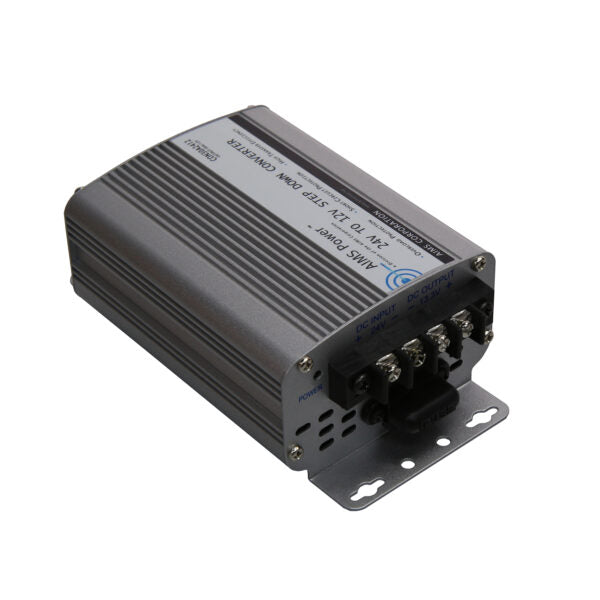

This compact step-down DC-DC converter has an input voltage of 24 VDC nominal (range 20 VDC to 37 VDC) to a highly regulated output voltage of 12 VDC nominal at 60 Amps. This a non-isolated 60 amp DC-DC converter and is made for use in negative ground systems. These units have CE EN61000-6-3:2007+A1:2011 and CE EN61000-6-1:2007
- 60 Amp 24 volt to 12 volt dc to dc converter
- Green LED on front panel to confirm power on
- Terminal block for DC input/output
- Over Temperature protection
- Over Load protection
- DC Input Low Battery Shutdown
- DC Input High Battery Shutdown
- DC Output Short Protection
- DC Output Over Current Protection
- DC Output Over Voltage Protection
- Transformer based
- Aluminum case for optimal cooling
- Instruction manual
- Free 1 year tech support
- 1 Year Warranty Parts and Labor
- CE EN61000-6-3:2007+A1:2011
- CE EN61000-6-1:2007
-
- DC Input Voltage: 20-37 Vdc
- DC Output Voltage: 12.5-13.5 Vdc
- Output Current: 60 amps
- Output Current Max: 72 amps
- Non-Isolated
- Conversion Effiency: >90%
- DC Input Low Battery Shutdown: 18 +/- 1 V
- DC Input High Battery Shutdown: >38Vdc
- DC Input Over Current Protection: 30A Fuse
- DC Input Polarity Protection: Fuse Protected
- Over Temperature Protection: 150 +/- 5 degrees F
- DC Output Short Protection: Yes
- DC Output Over Current Protection: 72 amps
- DC Output Over Voltage Protection: TVS Diode
Dimensions:
-
- Unit Weight: 2.0 lbs.
- Unit Size L x W x H: 5.91 x 3.39 x 2.2 inches
- Shipping Weight: 2 lbs.
